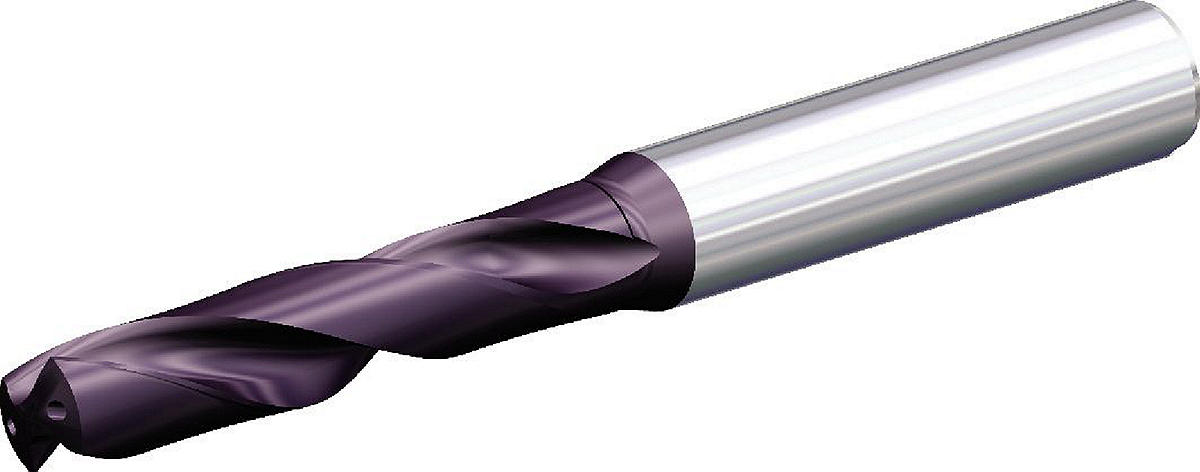

B210_SGL (~3 x D); B211_SGL (~5 x D); B212_SGL (~8 x D); KCMS15; A-Shank; SGL Drills. Сверла SGL; Нержавеющая сталь; Внутренний подвод СОЖ. Сверло SGL • СОЖ • Нержавеющая сталь

Особенности:

SGL drills with through coolant for stainless steel and high-temperature alloys.
By combining unique Kennametal features such as the all new SGL-Point-Geometry with a patented gashing, an unique Flute Design and a best in class coating into one tool, the B21*SGL drill is the ultimate high volume production tool.
All new SGL point geometry with improved web thinning and patented gashing which migrate in a straight cutting edge enables high cutting parameters (feeds), improves hole quality and creates controlled chips which leads to a reliable performance.
KCMS15 grade is a Monolayer PVD AlTiN coated fine grain carbide with superior surface finish. First choice for stainless steel, high-temperature resistant materials. The coating offers high hardness and excellent wear resistance as well as enhanced high-temperature properties increasing its applicability also to MQL machining of steel.
The highly polished surface ensures superior chip evacuation even when low-pressure coolant is applied.
Ideal point angle and tolerance make the B21_SGL series the preffered pilot drill for B27_SGL series Solid Carbide deep Hole Drills.

Применение:

Helix Angle: 30°
Shank - Cylindrical Plain ≤h6
Drilling
Drilling - Through Coolant
Drilling Depth: 5x
Drilling Depth: 3x
DIN number 6537
DIN number 6535
Tool Dimensions: 2flute/2margin/coolant
Drilling: Stacked Plates
Drilling Depth: 8x

SAP Material Number	ISO Catalog Number	[LS] Shank Length	[D] Adapter / Shank / Bore Diameter	[L5] Drill Point Length	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L3] Flute Length	[D1] Wire Size	[L] Overall Length
6350528	B212A03000SGL	36.0	6.0	0.4400	33.0000	3.0000	40.0000		78.0000
6350529	B212A03175SGL	36.0	6.0	0.4700	33.0000	3.1750	40.0000		78.0000
6350530	B212A03200SGL	36.0	6.0	0.4700	33.0000	3.2000	40.0000		78.0000
6350551	B212A03264SGL	36.0	6.0	0.4800	33.0000	3.2640	40.0000	30	78.0000
6350552	B212A03300SGL	36.0	6.0	0.4900	33.0000	3.3000	40.0000		78.0000
6350553	B212A03455SGL	36.0	6.0	0.5100	33.0000	3.4550	40.0000		78.0000
6350554	B212A03500SGL	36.0	6.0	0.5200	33.0000	3.5000	40.0000		78.0000
6350555	B212A03571SGL	36.0	6.0	0.5300	33.0000	3.5710	40.0000		78.0000
6350556	B212A03658SGL	36.0	6.0	0.5400	33.0000	3.6580	40.0000		78.0000
6350557	B212A03700SGL	36.0	6.0	0.5500	33.0000	3.7000	40.0000		78.0000
6350558	B212A03800SGL	36.0	6.0	0.5600	41.0000	3.8000	49.0000		87.0000
6393624	B212A03970SGL	36.0	6.0	0.5900	41.0000	3.9700	49.0000		87.0000
6350559	B212A04000SGL	36.0	6.0	0.5900	41.0000	4.0000	49.0000		87.0000
6350560	B212A04039SGL	36.0	6.0	0.6000	41.0000	4.0390	49.0000		87.0000
6350561	B212A04100SGL	36.0	6.0	0.6100	41.0000	4.1000	49.0000		87.0000
6350562	B212A04200SGL	36.0	6.0	0.6200	41.0000	4.2000	49.0000		87.0000
6350564	B212A04300SGL	36.0	6.0	0.6400	41.0000	4.3000	49.0000		87.0000
6350565	B212A04366SGL	36.0	6.0	0.6500	41.0000	4.3656	49.0000		87.0000
6350566	B212A04500SGL	36.0	6.0	0.6700	41.0000	4.5000	49.0000		87.0000
6350567	B212A04700SGL	36.0	6.0	0.7000	41.0000	4.7000	49.0000		87.0000
6393625	B212A04763SGL	36.0	6.0	0.7000	48.0000	4.7630	56.0000		94.0000
6350568	B212A04800SGL	36.0	6.0	0.7100	48.0000	4.8000	56.0000		94.0000
6350569	B212A04852SGL	36.0	6.0	0.7200	48.0000	4.8520	56.0000		94.0000
6350570	B212A05000SGL	36.0	6.0	0.7400	48.0000	5.0000	56.0000		94.0000
6350571	B212A05100SGL	36.0	6.0	0.7500	48.0000	5.1000	56.0000		94.0000
6350572	B212A05200SGL	36.0	6.0	0.7700	48.0000	5.2000	56.0000		94.0000
6350573	B212A05500SGL	36.0	6.0	0.8100	48.0000	5.5000	56.0000		94.0000
6393626	B212A05558SGL	36.0	6.0	0.8200	48.0000	5.5580	56.0000		94.0000
6962063	B212A05700SGL	36.0	6.0	0.8400	48.0000	5.7000	56.0000		94.0000
6350575	B212A05800SGL	36.0	6.0	0.8600	48.0000	5.8000	56.0000		94.0000
6350576	B212A06000SGL	36.0	6.0	0.8900	48.0000	6.0000	56.0000		94.0000
6350577	B212A06350SGL	36.0	8.0	0.9400	57.0000	6.3500	67.0000	E	105.0000
6350578	B212A06500SGL	36.0	8.0	0.9600	57.0000	6.5000	67.0000		105.0000
6350579	B212A06630SGL	36.0	8.0	0.9800	57.0000	6.6300	67.0000		105.0000
6393627	B212A06746SGL	36.0	8.0	1.0000	57.0000	6.7460	67.0000		105.0000
6350580	B212A06800SGL	36.0	8.0	1.0100	57.0000	6.8000	67.0000		105.0000
6350591	B212A07000SGL	36.0	8.0	1.0400	57.0000	7.0000	67.0000		105.0000
6393628	B212A07145SGL	36.0	8.0	1.0600	64.0000	7.1450	74.0000		113.0000
6350592	B212A07500SGL	36.0	8.0	1.1100	64.0000	7.5000	74.0000		113.0000
6393629	B212A07541SGL	36.0	8.0	1.1200	64.0000	7.5406	74.0000		113.0000
6350593	B212A07800SGL	36.0	8.0	1.1500	64.0000	7.8000	74.0000		113.0000
6393630	B212A07938SGL	36.0	8.0	1.1700	64.0000	7.9375	74.0000		113.0000
6350594	B212A08000SGL	36.0	8.0	1.1800	64.0000	8.0000	74.0000		113.0000
6393641	B212A08334SGL	40.0	10.0	1.2300	80.0000	8.3344	92.0000		135.0000
6350595	B212A08400SGL	40.0	10.0	1.2400	80.0000	8.4000	92.0000		135.0000
6350596	B212A08500SGL	40.0	10.0	1.2600	80.0000	8.5000	92.0000		135.0000
6393642	B212A08733SGL	40.0	10.0	1.2900	80.0000	8.7330	92.0000		135.0000
6350597	B212A08800SGL	40.0	10.0	1.3000	80.0000	8.8000	92.0000		135.0000
6350598	B212A09000SGL	40.0	10.0	1.3300	80.0000	9.0000	92.0000		135.0000
6393643	B212A09129SGL	40.0	10.0	1.3500	80.0000	9.1290	92.0000		135.0000
6350599	B212A09500SGL	40.0	10.0	1.4100	80.0000	9.5000	92.0000		135.0000
6393644	B212A09525SGL	40.0	10.0	1.4100	80.0000	9.5250	92.0000		135.0000
6393645	B212A09921SGL	40.0	10.0	1.4700	80.0000	9.9210	92.0000		135.0000
6350600	B212A10000SGL	40.0	10.0	1.4800	80.0000	10.0000	92.0000		135.0000
6350601	B212A10200SGL	45.0	12.0	1.5100	96.0000	10.2000	110.0000		158.0000
6393646	B212A10320SGL	45.0	12.0	1.5300	96.0000	10.3200	110.0000		158.0000
6350602	B212A10500SGL	45.0	12.0	1.5500	96.0000	10.5000	110.0000		158.0000
6393647	B212A10716SGL	45.0	12.0	1.5900	96.0000	10.7156	110.0000		158.0000
6350603	B212A11000SGL	45.0	12.0	1.6300	96.0000	11.0000	110.0000		158.0000
6393648	B212A11113SGL	45.0	12.0	1.6400	96.0000	11.1130	110.0000		158.0000
6393649	B212A11509SGL	45.0	12.0	1.7000	96.0000	11.5094	110.0000		158.0000
6350604	B212A11800SGL	45.0	12.0	1.7500	96.0000	11.8000	110.0000		158.0000
6393650	B212A11908SGL	45.0	12.0	1.7600	96.0000	11.9080	110.0000		158.0000
6350605	B212A12000SGL	45.0	12.0	1.7800	96.0000	12.0000	110.0000		158.0000
6393651	B212A12304SGL	45.0	14.0	1.8200	112.0000	12.3040	128.0000		176.0000
6350606	B212A12500SGL	45.0	14.0	1.8500	112.0000	12.5000	128.0000		176.0000
6393652	B212A12700SGL	45.0	14.0	1.8800	112.0000	12.7000	128.0000		176.0000
6350607	B212A13000SGL	45.0	14.0	1.9200	112.0000	13.0000	128.0000		176.0000
6350608	B212A13500SGL	45.0	14.0	2.0000	112.0000	13.5000	128.0000		176.0000
6350609	B212A14000SGL	45.0	14.0	2.0700	112.0000	14.0000	128.0000		176.0000
6393653	B212A14288SGL	48.0	16.0	2.1100	128.0000	14.2880	146.0000		197.0000
6393654	B212A15875SGL	48.0	16.0	2.3500	128.0000	15.8750	146.0000		197.0000

Tolerance:

Tolerance • Metric
nominal size range	D1 tolerance m7	D tolerance h6
3–6	0,004/0,016	0,000/-0,008
6–10	0,006/0,021	0,000/-0,009
10–18	0,007/0,025	0,000/-0,011
18–25,4	0,008/0,029	0,000/-0,013

Tolerance • Inch
nominal size range	D1 tolerance m7	D tolerance h6
.1181 to .2362	.0002/.0006	.0000/-.0003
.2362 to .3937	.0002/.0008	.0000/-.0004
.3937 to .7087	.0003/.0010	.0000/-.0004
.7087 to 1.0000	.0003/.0011	.0000/-.0005

Dimension:

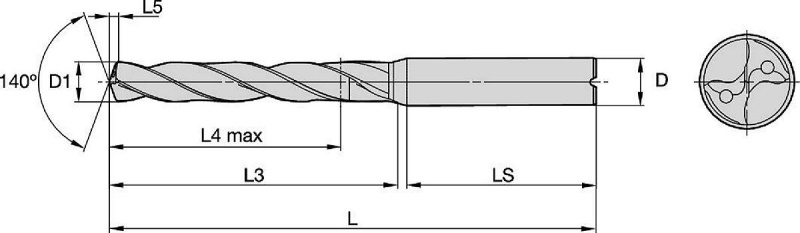

Размеры цельных твердосплавных сверл Kennametal (серия B*)

mm				SHORT*			LONG*			EXTRA LONG**
Ø		DIN 6535		~3 x D			~5 x D			~8 x D (SGL)
D1 min	D1 max	D	LS min	L	L3	L4	L	L3	L4	L	L3	L4
2,301	2,999	4	28	58	17	12	58	22	17	66	30	25
3,000	3,750	6	36	62	20	14	66	28	23	78	40	33
3,751	4,750	6	36	66	24	17	74	36	29	87	49	41
4,751	6,000	6	36	66	28	20	82	44	35	94	56	48
6,001	7,000	8	36	79	34	24	91	53	43	105	67	57
7,001	8,000	8	36	79	41	29	91	53	43	121	82	64
8,001	10,000	10	40	89	47	35	103	61	49	145	102	80
10,001	12,000	12	45	102	55	40	118	71	56	170	122	96
12,001	14,000	14	45	107	60	43	124	77	60	190	142	112
14,001	16,000	16	48	115	65	45	133	83	63	213	162	128
16,001	18,000	18	48	123	73	51	143	93	71	232	181	144
18,001	20,000	20	50	131	79	55	153	101	77	254	201	160
20,001	22,000	20	50	141	86	60	167	112	85	274	221	176
22,001	25,000	25	56	153	95	65	184	126	98	310	251	200
* D1 20mm to DIN 6537K
* D1 20mm to factory standard
** to factory standard

Режимы резания:

Material Group

		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate per Rev
		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
P	1	110	160	210	mm/r	0,05–0,13	0,08–0,19	0,11–0,24	0,14–0,30	0,16–0,35	0,18–0,39	0,20–0,46	0,23–0,51
	2	130	170	210	mm/r	0,05–0,13	0,08–0,17	0,11–0,20	0,14–0,24	0,16–0,28	0,18–0,32	0,20–0,37	0,23–0,41
	3	110	150	190	mm/r	0,08–0,13	0,12–0,19	0,14–0,24	0,17–0,30	0,20–0,35	0,22–0,39	0,26–0,46	0,29–0,51
	4	80	120	150	mm/r	0,08–0,12	0,11–0,18	0,12–0,23	0,15–0,28	0,17–0,33	0,19–0,37	0,22–0,43	0,25–0,48
	5	60	80	90	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,14	0,08–0,18	0,11–0,21	0,14–0,24	0,16–0,26
	6	60	70	80	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,14	0,08–0,18	0,11–0,21	0,14–0,24	0,16–0,26
M	1	60	80	90	mm/r	0,04–0,08	0,06–0,14	0,08–0,19	0,11–0,21	0,13–0,23	0,14–0,24	0,16–0,26	0,19–0,29
	2	50	80	80	mm/r	0,04–0,08	0,06–0,14	0,08–0,19	0,11–0,21	0,13–0,23	0,14–0,24	0,16–0,26	0,19–0,29
	3	40	50	70	mm/r	0,04–0,07	0,06–0,10	0,08–0,14	0,09–0,17	0,10–0,20	0,12–0,22	0,14–0,24	0,16–0,27
S	1	20	20	20	mm/r	0,03–0,08	0,04–0,09	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	2	10	20	30	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	3	10	20	50	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	4	30	50	60	mm/r	0,03–0,04	0,04–0,05	0,06–0,08	0,08–0,10	0,11–0,13	0,13–0,15	0,14–0,18	0,16–0,20

Material Group

Material Group		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate per Rev
		Min	Starting Value	Max		1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750
P	1	360	520	690	IPR	.002–.005	.003–.008	.004–.009	.006–.012	.006–.014	.007–.015	.008–.018	.009–.020
	2	430	560	690	IPR	.002–.005	.003–.007	.004–.008	.006–.009	.006–.011	.007–.013	.008–.015	.009–.016
	3	360	490	620	IPR	.003–.005	.005–.008	.006–.009	.007–.012	.008–.014	.009–.015	.010–.018	.011–.020
	4	260	390	490	IPR	.003–.005	.004–.007	.005–.009	.006–.011	.007–.013	.008–.015	.009–.017	.010–.019
	5	200	260	300	IPR	.001–.004	.002–.004	.002–.004	.002–.006	.003–.007	.004–.008	.006–.009	.006–.010
	6	200	230	260	IPR	.001–.004	.002–.004	.002–.004	.002–.006	.003–.007	.004–.008	.006–.009	.006–.010
M	1	200	260	300	IPR	.002–.003	.002–.006	.003–.008	.004–.008	.005–.009	.006–.009	.006–.010	.008–.011
	2	160	260	260	IPR	.002–.003	.002–.006	.003–.008	.004–.008	.005–.009	.006–.009	.006–.010	.008–.011
	3	130	160	230	IPR	.002–.003	.002–.004	.003–.006	.004–.007	.004–.008	.005–.009	.006–.009	.006–.011
S	1	70	70	70	IPR	.001–.003	.002–.004	.002–.004	.002–.004	.003–.006	.004–.006	.006–.008	.006–.008
	2	30	70	100	IPR	.001–.004	.002–.004	.002–.004	.002–.004	.003–.006	.004–.006	.006–.008	.006–.008
	3	30	70	160	IPR	.001–.004	.002–.004	.002–.004	.002–.004	.003–.006	.004–.006	.006–.008	.006–.008
	4	100	160	200	IPR	.001–.002	.002–.002	.002–.003	.003–.004	.004–.005	.005–.006	.006–.007	.006–.008


		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate per Rev
Material Group		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
P	1	110	160	210	mm/r	0,05–0,13	0,08–0,19	0,11–0,24	0,14–0,30	0,16–0,35	0,18–0,39	0,20–0,46	0,23–0,51
	2	130	170	210	mm/r	0,05–0,13	0,08–0,17	0,11–0,20	0,14–0,24	0,16–0,28	0,18–0,32	0,20–0,37	0,23–0,41
	3	110	150	190	mm/r	0,08–0,13	0,12–0,19	0,14–0,24	0,17–0,30	0,20–0,35	0,22–0,39	0,26–0,46	0,29–0,51
	4	80	120	150	mm/r	0,08–0,12	0,11–0,18	0,12–0,23	0,15–0,28	0,17–0,33	0,19–0,37	0,22–0,43	0,25–0,48
	5	60	80	90	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,14	0,08–0,18	0,11–0,21	0,14–0,24	0,16–0,26
	6	60	70	80	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,14	0,08–0,18	0,11–0,21	0,14–0,24	0,16–0,26
M	1	60	80	90	mm/r	0,04–0,08	0,06–0,14	0,08–0,19	0,11–0,21	0,13–0,23	0,14–0,24	0,16–0,26	0,19–0,29
	2	50	80	80	mm/r	0,04–0,08	0,06–0,14	0,08–0,19	0,11–0,21	0,13–0,23	0,14–0,24	0,16–0,26	0,19–0,29
	3	40	50	70	mm/r	0,04–0,07	0,06–0,10	0,08–0,14	0,09–0,17	0,10–0,20	0,12–0,22	0,14–0,24	0,16–0,27
S	1	20	20	20	mm/r	0,03–0,08	0,04–0,09	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	2	10	20	30	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	3	10	20	50	mm/r	0,03–0,11	0,04–0,11	0,05–0,11	0,05–0,11	0,08–0,14	0,11–0,16	0,14–0,19	0,16–0,21
	4	30	50	60	mm/r	0,03–0,04	0,04–0,05	0,06–0,08	0,08–0,10	0,11–0,13	0,13–0,15	0,14–0,18	0,16–0,20
