Описание

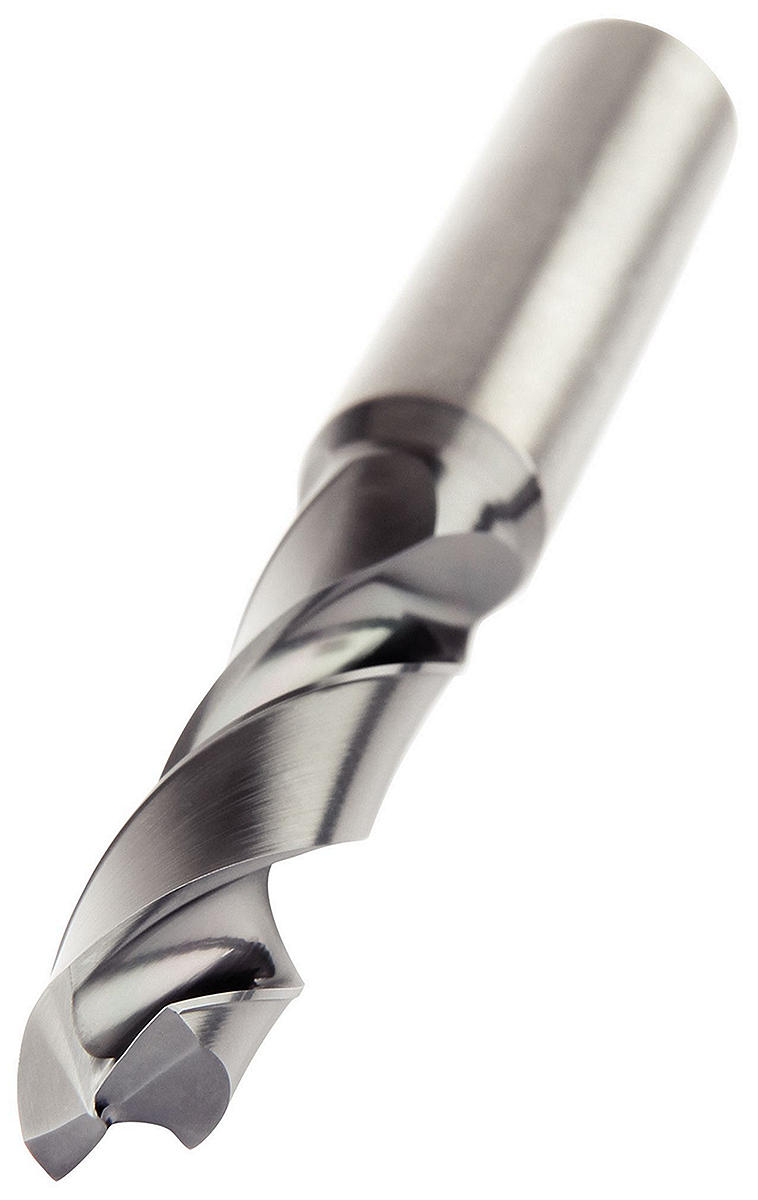

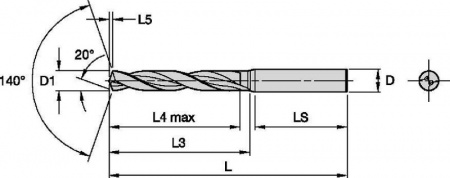

HPX; B222; 5 x D; Наружный подвод СОЖ; Хвостовик HA. HPX; B222; 5 x D. HPX Drills • High-Volume Steel Production
Применение:
- Corner Style: Corner Chamfer
- Drilling
- Flood Coolant: Drilling
- Drilling - No Coolant
- Tool Dimensions: 2flute/2margin/no cool
- Drilling: Stacked Plates
- Shank - Cylindrical Plain ≤h6

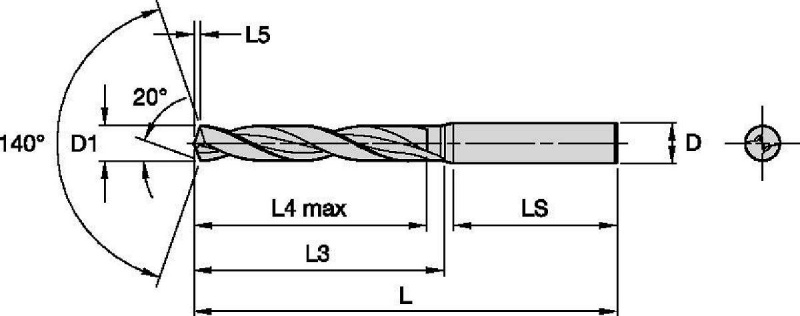

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [LS] Shank Length | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [L] Overall Length | [D1] Wire Size |
|---|---|---|---|---|---|---|---|---|---|
| 6781438 | B222A03000HPX | 6.0 | 36.0 | 0.6900 | 23.0000 | 3.0000 | 28.0000 | 66.0000 | |
| 6781439 | B222A03048HPX | 6.0 | 36.0 | 0.7000 | 23.0000 | 3.0480 | 28.0000 | 66.0000 | 31 |
| 6781440 | B222A03100HPX | 6.0 | 36.0 | 0.7100 | 23.0000 | 3.1000 | 28.0000 | 66.0000 | |
| 6781451 | B222A03175HPX | 6.0 | 36.0 | 0.7300 | 23.0000 | 3.1750 | 28.0000 | 66.0000 | |
| 6781452 | B222A03200HPX | 6.0 | 36.0 | 0.7300 | 23.0000 | 3.2000 | 28.0000 | 66.0000 | |
| 6781453 | B222A03264HPX | 6.0 | 36.0 | 0.7500 | 23.0000 | 3.2640 | 28.0000 | 66.0000 | 30 |
| 6781454 | B222A03300HPX | 6.0 | 36.0 | 0.7600 | 23.0000 | 3.3000 | 28.0000 | 66.0000 | |
| 6781455 | B222A03400HPX | 6.0 | 36.0 | 0.7800 | 23.0000 | 3.4000 | 28.0000 | 66.0000 | |
| 6781456 | B222A03455HPX | 6.0 | 36.0 | 0.7900 | 23.0000 | 3.4550 | 28.0000 | 66.0000 | |
| 6781457 | B222A03500HPX | 6.0 | 36.0 | 0.8000 | 23.0000 | 3.5000 | 28.0000 | 66.0000 | |
| 6781458 | B222A03571HPX | 6.0 | 36.0 | 0.8100 | 23.0000 | 3.5710 | 28.0000 | 66.0000 | |
| 6781459 | B222A03600HPX | 6.0 | 36.0 | 0.8200 | 23.0000 | 3.6000 | 28.0000 | 66.0000 | |
| 6781460 | B222A03700HPX | 6.0 | 36.0 | 0.8400 | 23.0000 | 3.7000 | 28.0000 | 66.0000 | |
| 6781461 | B222A03800HPX | 6.0 | 36.0 | 0.8600 | 29.0000 | 3.8000 | 36.0000 | 74.0000 | |
| 6781462 | B222A03900HPX | 6.0 | 36.0 | 0.8800 | 29.0000 | 3.9000 | 36.0000 | 74.0000 | |
| 6781463 | B222A03970HPX | 6.0 | 36.0 | 0.9000 | 29.0000 | 3.9700 | 36.0000 | 74.0000 | |
| 6781464 | B222A04000HPX | 6.0 | 36.0 | 0.9000 | 29.0000 | 4.0000 | 36.0000 | 74.0000 | |
| 6781465 | B222A04100HPX | 6.0 | 36.0 | 0.9200 | 29.0000 | 4.1000 | 36.0000 | 74.0000 | |
| 6781466 | B222A04200HPX | 6.0 | 36.0 | 0.9400 | 29.0000 | 4.2000 | 36.0000 | 74.0000 | |
| 6781467 | B222A04300HPX | 6.0 | 36.0 | 0.9600 | 29.0000 | 4.3000 | 36.0000 | 74.0000 | |
| 6781468 | B222A04400HPX | 6.0 | 36.0 | 0.9800 | 29.0000 | 4.4000 | 36.0000 | 74.0000 | |
| 6781469 | B222A04500HPX | 6.0 | 36.0 | 1.0100 | 29.0000 | 4.5000 | 36.0000 | 74.0000 | |
| 6781470 | B222A04600HPX | 6.0 | 36.0 | 1.0300 | 29.0000 | 4.6000 | 36.0000 | 74.0000 | |
| 6781471 | B222A04700HPX | 6.0 | 36.0 | 1.0500 | 29.0000 | 4.7000 | 36.0000 | 74.0000 | |
| 6781472 | B222A04763HPX | 6.0 | 36.0 | 1.0600 | 35.0000 | 4.7630 | 44.0000 | 82.0000 | |
| 6781473 | B222A04800HPX | 6.0 | 36.0 | 1.0700 | 35.0000 | 4.8000 | 44.0000 | 82.0000 | |
| 6781474 | B222A04900HPX | 6.0 | 36.0 | 1.0900 | 35.0000 | 4.9000 | 44.0000 | 82.0000 | |
| 6781475 | B222A05000HPX | 6.0 | 36.0 | 1.1100 | 35.0000 | 5.0000 | 44.0000 | 82.0000 | |
| 6781476 | B222A05100HPX | 6.0 | 36.0 | 1.1300 | 35.0000 | 5.1000 | 44.0000 | 82.0000 | |
| 6781477 | B222A05106HPX | 6.0 | 36.0 | 1.1300 | 35.0000 | 5.1060 | 44.0000 | 82.0000 | |
| 6781478 | B222A05159HPX | 6.0 | 36.0 | 1.1400 | 35.0000 | 5.1594 | 44.0000 | 82.0000 | |
| 6781479 | B222A05200HPX | 6.0 | 36.0 | 1.1500 | 35.0000 | 5.2000 | 44.0000 | 82.0000 | |
| 6781480 | B222A05300HPX | 6.0 | 36.0 | 1.1700 | 35.0000 | 5.3000 | 44.0000 | 82.0000 | |
| 6781481 | B222A05400HPX | 6.0 | 36.0 | 1.1900 | 35.0000 | 5.4000 | 44.0000 | 82.0000 | |
| 6781482 | B222A05410HPX | 6.0 | 36.0 | 1.1900 | 35.0000 | 5.4100 | 44.0000 | 82.0000 | 3 |
| 6781483 | B222A05500HPX | 6.0 | 36.0 | 1.2100 | 35.0000 | 5.5000 | 44.0000 | 82.0000 | |
| 6781484 | B222A05558HPX | 6.0 | 36.0 | 1.2200 | 35.0000 | 5.5580 | 44.0000 | 82.0000 | |
| 6781485 | B222A05600HPX | 6.0 | 36.0 | 1.2300 | 35.0000 | 5.6000 | 44.0000 | 82.0000 | |
| 6781486 | B222A05700HPX | 6.0 | 36.0 | 1.2500 | 35.0000 | 5.7000 | 44.0000 | 82.0000 | |
| 6781487 | B222A05791HPX | 6.0 | 36.0 | 1.2700 | 35.0000 | 5.7910 | 44.0000 | 82.0000 | 1 |
| 6781488 | B222A05800HPX | 6.0 | 36.0 | 1.2700 | 35.0000 | 5.8000 | 44.0000 | 82.0000 | |
| 6781489 | B222A05900HPX | 6.0 | 36.0 | 1.2900 | 35.0000 | 5.9000 | 44.0000 | 82.0000 | |
| 6781490 | B222A06000HPX | 6.0 | 36.0 | 1.3100 | 35.0000 | 6.0000 | 44.0000 | 82.0000 | |
| 6781491 | B222A06100HPX | 8.0 | 36.0 | 1.3300 | 43.0000 | 6.1000 | 53.0000 | 91.0000 | |
| 6781492 | B222A06200HPX | 8.0 | 36.0 | 1.3500 | 43.0000 | 6.2000 | 53.0000 | 91.0000 | |
| 6781493 | B222A06300HPX | 8.0 | 36.0 | 1.3700 | 43.0000 | 6.3000 | 53.0000 | 91.0000 | |
| 6781494 | B222A06350HPX | 8.0 | 36.0 | 1.3800 | 43.0000 | 6.3500 | 53.0000 | 91.0000 | E |
| 6781495 | B222A06400HPX | 8.0 | 36.0 | 1.3900 | 43.0000 | 6.4000 | 53.0000 | 91.0000 | |
| 6781496 | B222A06500HPX | 8.0 | 36.0 | 1.4100 | 43.0000 | 6.5000 | 53.0000 | 91.0000 | |
| 6781497 | B222A06600HPX | 8.0 | 36.0 | 1.4300 | 43.0000 | 6.6000 | 53.0000 | 91.0000 | |
| 6781498 | B222A06700HPX | 8.0 | 36.0 | 1.4600 | 43.0000 | 6.7000 | 53.0000 | 91.0000 | |
| 6781499 | B222A06746HPX | 8.0 | 36.0 | 1.4600 | 43.0000 | 6.7460 | 53.0000 | 91.0000 | |
| 6781500 | B222A06800HPX | 8.0 | 36.0 | 1.4800 | 43.0000 | 6.8000 | 53.0000 | 91.0000 | |
| 6781511 | B222A06900HPX | 8.0 | 36.0 | 1.5000 | 43.0000 | 6.9000 | 53.0000 | 91.0000 | |
| 6781512 | B222A07000HPX | 8.0 | 36.0 | 1.5200 | 43.0000 | 7.0000 | 53.0000 | 91.0000 | |
| 6781513 | B222A07100HPX | 8.0 | 36.0 | 1.5400 | 43.0000 | 7.1000 | 53.0000 | 91.0000 | |
| 6781515 | B222A07145HPX | 8.0 | 36.0 | 1.5500 | 43.0000 | 7.1450 | 53.0000 | 91.0000 | |
| 6781516 | B222A07200HPX | 8.0 | 36.0 | 1.5600 | 43.0000 | 7.2000 | 53.0000 | 91.0000 | |
| 6781517 | B222A07300HPX | 8.0 | 36.0 | 1.5800 | 43.0000 | 7.3000 | 53.0000 | 91.0000 | |
| 6781518 | B222A07400HPX | 8.0 | 36.0 | 1.6000 | 43.0000 | 7.4000 | 53.0000 | 91.0000 | |
| 6781519 | B222A07500HPX | 8.0 | 36.0 | 1.6200 | 43.0000 | 7.5000 | 53.0000 | 91.0000 | |
| 6781520 | B222A07541HPX | 8.0 | 36.0 | 1.6300 | 43.0000 | 7.5406 | 53.0000 | 91.0000 | |
| 6781521 | B222A07800HPX | 8.0 | 36.0 | 1.6800 | 43.0000 | 7.8000 | 53.0000 | 91.0000 | |
| 6781522 | B222A07938HPX | 8.0 | 36.0 | 1.7100 | 43.0000 | 7.9375 | 53.0000 | 91.0000 | |
| 6781523 | B222A08000HPX | 8.0 | 36.0 | 1.7200 | 43.0000 | 8.0000 | 53.0000 | 91.0000 | |
| 6781524 | B222A08100HPX | 10.0 | 40.0 | 1.7400 | 49.0000 | 8.1000 | 61.0000 | 103.0000 | |
| 6781525 | B222A08200HPX | 10.0 | 40.0 | 1.7600 | 49.0000 | 8.2000 | 61.0000 | 103.0000 | |
| 6781526 | B222A08334HPX | 10.0 | 40.0 | 1.7900 | 49.0000 | 8.3344 | 61.0000 | 103.0000 | |
| 6781527 | B222A08500HPX | 10.0 | 40.0 | 1.8200 | 49.0000 | 8.5000 | 61.0000 | 103.0000 | |
| 6781528 | B222A08700HPX | 10.0 | 40.0 | 1.8600 | 49.0000 | 8.7000 | 61.0000 | 103.0000 | |
| 6781529 | B222A08733HPX | 10.0 | 40.0 | 1.8700 | 49.0000 | 8.7330 | 61.0000 | 103.0000 | |
| 6781530 | B222A08800HPX | 10.0 | 40.0 | 1.8800 | 49.0000 | 8.8000 | 61.0000 | 103.0000 | |
| 6781531 | B222A09000HPX | 10.0 | 40.0 | 1.9200 | 49.0000 | 9.0000 | 61.0000 | 103.0000 | |
| 6781532 | B222A09129HPX | 10.0 | 40.0 | 1.9500 | 49.0000 | 9.1290 | 61.0000 | 103.0000 | |
| 6781533 | B222A09400HPX | 10.0 | 40.0 | 2.0000 | 49.0000 | 9.4000 | 61.0000 | 103.0000 | |
| 6781534 | B222A09500HPX | 10.0 | 40.0 | 2.0200 | 49.0000 | 9.5000 | 61.0000 | 103.0000 | |
| 6781537 | B222A09525HPX | 10.0 | 40.0 | 2.0300 | 49.0000 | 9.5250 | 61.0000 | 103.0000 | |
| 6781540 | B222A09800HPX | 10.0 | 40.0 | 2.0800 | 49.0000 | 9.8000 | 61.0000 | 103.0000 | |
| 6781541 | B222A10000HPX | 10.0 | 40.0 | 2.1200 | 49.0000 | 10.0000 | 61.0000 | 103.0000 | |
| 6781542 | B222A10200HPX | 12.0 | 45.0 | 2.1600 | 56.0000 | 10.2000 | 71.0000 | 118.0000 | |
| 6781543 | B222A10300HPX | 12.0 | 45.0 | 2.1800 | 56.0000 | 10.3000 | 71.0000 | 118.0000 | |
| 6781544 | B222A10320HPX | 12.0 | 45.0 | 2.1900 | 56.0000 | 10.3200 | 71.0000 | 118.0000 | |
| 6781545 | B222A10500HPX | 12.0 | 45.0 | 2.2200 | 56.0000 | 10.5000 | 71.0000 | 118.0000 | |
| 6781546 | B222A10716HPX | 12.0 | 45.0 | 2.2600 | 56.0000 | 10.7156 | 71.0000 | 118.0000 | |
| 6781547 | B222A10800HPX | 12.0 | 45.0 | 2.2800 | 56.0000 | 10.8000 | 71.0000 | 118.0000 | |
| 6781548 | B222A11000HPX | 12.0 | 45.0 | 2.3200 | 56.0000 | 11.0000 | 71.0000 | 118.0000 | |
| 6781549 | B222A11113HPX | 12.0 | 45.0 | 2.3400 | 56.0000 | 11.1130 | 71.0000 | 118.0000 | |
| 6781550 | B222A11500HPX | 12.0 | 45.0 | 2.4200 | 56.0000 | 11.5000 | 71.0000 | 118.0000 | |
| 6781551 | B222A11509HPX | 12.0 | 45.0 | 2.4200 | 56.0000 | 11.5094 | 71.0000 | 118.0000 | |
| 6781552 | B222A12000HPX | 12.0 | 45.0 | 2.5200 | 56.0000 | 12.0000 | 71.0000 | 118.0000 | |
| 6781553 | B222A12500HPX | 14.0 | 45.0 | 2.6200 | 60.0000 | 12.5000 | 77.0000 | 124.0000 | |
| 6781554 | B222A12700HPX | 14.0 | 45.0 | 2.6600 | 60.0000 | 12.7000 | 77.0000 | 124.0000 | |
| 6781555 | B222A13000HPX | 14.0 | 45.0 | 2.7200 | 60.0000 | 13.0000 | 77.0000 | 124.0000 | |
| 6781556 | B222A13500HPX | 14.0 | 45.0 | 2.8200 | 60.0000 | 13.5000 | 77.0000 | 124.0000 | |
| 6781557 | B222A14000HPX | 14.0 | 45.0 | 2.9200 | 60.0000 | 14.0000 | 77.0000 | 124.0000 | |
| 6781558 | B222A14288HPX | 16.0 | 48.0 | 2.9800 | 63.0000 | 14.2880 | 83.0000 | 133.0000 | |
| 6781559 | B222A14500HPX | 16.0 | 48.0 | 3.0200 | 63.0000 | 14.5000 | 83.0000 | 133.0000 | |
| 6781560 | B222A15000HPX | 16.0 | 48.0 | 3.1200 | 63.0000 | 15.0000 | 83.0000 | 133.0000 | |
| 6781571 | B222A15500HPX | 16.0 | 48.0 | 3.2200 | 63.0000 | 15.5000 | 83.0000 | 133.0000 | |
| 6781572 | B222A15875HPX | 16.0 | 48.0 | 3.2900 | 63.0000 | 15.8750 | 83.0000 | 133.0000 | |
| 6781573 | B222A16000HPX | 16.0 | 48.0 | 3.3200 | 63.0000 | 16.0000 | 83.0000 | 133.0000 | |
| 6781574 | B222A16500HPX | 18.0 | 48.0 | 3.4200 | 71.0000 | 16.5000 | 93.0000 | 143.0000 | |
| 6781575 | B222A17000HPX | 18.0 | 48.0 | 3.5200 | 71.0000 | 17.0000 | 93.0000 | 143.0000 | |
| 6781576 | B222A17500HPX | 18.0 | 48.0 | 3.6100 | 71.0000 | 17.5000 | 93.0000 | 143.0000 | |
| 6781577 | B222A18000HPX | 18.0 | 48.0 | 3.7100 | 71.0000 | 18.0000 | 93.0000 | 143.0000 | |
| 6781578 | B222A18500HPX | 20.0 | 50.0 | 3.8100 | 77.0000 | 18.5000 | 101.0000 | 153.0000 | |
| 6781579 | B222A19000HPX | 20.0 | 50.0 | 3.9100 | 77.0000 | 19.0000 | 101.0000 | 153.0000 | |
| 6781580 | B222A20000HPX | 20.0 | 50.0 | 4.1100 | 77.0000 | 20.0000 | 101.0000 | 153.0000 |
Tolerance:
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 1–3 | 0,002/0,012 | 0,000/-0,006 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .0394–.1181 | .0001/.0005 | .0000/-.0002 |
| .1181–.2362 | .0002/.0006 | .0000/-.0003 |
| .2362–.3937 | .0002/.0008 | .0000/-.0004 |
| .3937–.7087 | .0003/.0010 | .0000/-.0004 |
| .7087–1.0000 | .0003/.0011 | .0000/-.0005 |
Режимы резания:
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 0 | 80 | 110 | 170 | mm/r | 0,06–0,19 | 0,07–0,21 | 0,09–0,25 | 0,11–0,30 | 0,13–0,34 | 0,15–0,38 | 0,19–0,47 | 0,23–0,56 |
| 1 | 70 | 110 | 150 | mm/r | 0,05–0,22 | 0,07–0,24 | 0,11–0,30 | 0,14–0,35 | 0,17–0,40 | 0,21–0,45 | 0,28–0,56 | 0,34–0,66 | |
| 2 | 90 | 120 | 160 | mm/r | 0,09–0,21 | 0,11–0,23 | 0,13–0,29 | 0,16–0,34 | 0,19–0,39 | 0,22–0,44 | 0,27–0,55 | 0,33–0,65 | |
| 3 | 60 | 90 | 120 | mm/r | 0,12–0,22 | 0,13–0,24 | 0,16–0,30 | 0,19–0,35 | 0,22–0,40 | 0,25–0,45 | 0,31–0,56 | 0,37–0,66 | |
| 4 | 50 | 80 | 120 | mm/r | 0,23–0,11 | 0,25–0,12 | 0,31–0,15 | 0,36–0,17 | 0,41–0,20 | 0,46–0,23 | 0,57–0,28 | 0,67–0,33 | |
| 5 | 50 | 60 | 70 | mm/r | 0,08–0,15 | 0,09–0,17 | 0,12–0,21 | 0,14–0,26 | 0,17–0,30 | 0,20–0,34 | 0,25–0,43 | 0,30–0,52 | |
| 6 | 50 | 60 | 70 | mm/r | 0,08–0,15 | 0,09–0,17 | 0,12–0,21 | 0,14–0,26 | 0,17–0,30 | 0,20–0,34 | 0,25–0,43 | 0,30–0,52 | |
| Material Group | | | |||||||||||
| Cutting Speed vc | Inch | ||||||||||||
| Range SFM | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 0 | 260 | 360 | 560 | IPR | .002–.007 | .003–.008 | .004–.010 | .004–.012 | .005–.013 | .006–.015 | .008–.019 | .009–.022 |
| 1 | 230 | 360 | 490 | IPR | .002–.009 | .003–.010 | .004–.012 | .006–.014 | .007–.016 | .008–.018 | .011–.022 | .014–.026 | |
| 2 | 300 | 390 | 520 | IPR | .004–.008 | .004–.009 | .005–.011 | .006–.013 | .008–.015 | .009–.017 | .011–.022 | .013–.026 | |
| 3 | 200 | 300 | 390 | IPR | .005–.009 | .005–.010 | .006–.012 | .008–.014 | .009–.016 | .010–.018 | .012–.022 | .015–.026 | |
| 4 | 160 | 260 | 390 | IPR | .009–.004 | .010–.005 | .012–.006 | .014–.007 | .016–.008 | .018–.009 | .022–.011 | .026–.013 | |
| 5 | 160 | 200 | 230 | IPR | .003–.006 | .004–.007 | .005–.008 | .006–.010 | .007–.012 | .008–.014 | .010–.017 | .012–.021 | |
| 6 | 160 | 200 | 230 | IPR | .003–.006 | .004–.007 | .005–.008 | .006–.010 | .007–.012 | .008–.014 | .010–.017 | .012–.021 | |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 0 | 80 | 110 | 170 | mm/r | 0,06–0,19 | 0,07–0,21 | 0,09–0,25 | 0,11–0,30 | 0,13–0,34 | 0,15–0,38 | 0,19–0,47 | 0,23–0,56 |
| 1 | 70 | 110 | 150 | mm/r | 0,05–0,22 | 0,07–0,24 | 0,11–0,30 | 0,14–0,35 | 0,17–0,40 | 0,21–0,45 | 0,28–0,56 | 0,34–0,66 | |
| 2 | 90 | 120 | 160 | mm/r | 0,09–0,21 | 0,11–0,23 | 0,13–0,29 | 0,16–0,34 | 0,19–0,39 | 0,22–0,44 | 0,27–0,55 | 0,33–0,65 | |
| 3 | 60 | 90 | 120 | mm/r | 0,12–0,22 | 0,13–0,24 | 0,16–0,30 | 0,19–0,35 | 0,22–0,40 | 0,25–0,45 | 0,31–0,56 | 0,37–0,66 | |
| 4 | 50 | 80 | 120 | mm/r | 0,23–0,11 | 0,25–0,12 | 0,31–0,15 | 0,36–0,17 | 0,41–0,20 | 0,46–0,23 | 0,57–0,28 | 0,67–0,33 | |
| 5 | 50 | 60 | 70 | mm/r | 0,08–0,15 | 0,09–0,17 | 0,12–0,21 | 0,14–0,26 | 0,17–0,30 | 0,20–0,34 | 0,25–0,43 | 0,30–0,52 | |
| 6 | 50 | 60 | 70 | mm/r | 0,08–0,15 | 0,09–0,17 | 0,12–0,21 | 0,14–0,26 | 0,17–0,30 | 0,20–0,34 | 0,25–0,43 | 0,30–0,52 | |
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Inch | ||||||||||||
| Range SFM | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 0 | 230 | 430 | 490 | IPR | .006–.011 | .006–.012 | .007–.014 | .008–.016 | .009–.018 | .010–.020 | .011–.023 | .013–.027 |
| 1 | 230 | 430 | 490 | IPR | .007–.014 | .007–.015 | .008–.018 | .009–.021 | .010–.024 | .011–.027 | .013–.032 | .015–.038 | |
| 2 | 330 | 390 | 460 | IPR | .006–.014 | .007–.015 | .008–.018 | .010–.020 | .011–.023 | .013–.025 | .015–.031 | .018–.036 | |
| 3 | 230 | 300 | 330 | IPR | .007–.014 | .008–.015 | .009–.018 | .011–.021 | .012–.023 | .014–.026 | .017–.031 | .020–.037 | |
| 4 | 200 | 260 | 300 | IPR | .006–.012 | .007–.013 | .009–.015 | .010–.018 | .012–.020 | .014–.022 | .017–.027 | .020–.032 | |
| 5 | 130 | 160 | 200 | IPR | .005–.010 | .006–.011 | .007–.013 | .009–.015 | .010–.017 | .011–.020 | .014–.024 | .016–.028 | |
| 6 | 100 | 130 | 160 | IPR | .005–.010 | .006–.011 | .007–.013 | .009–.015 | .010–.017 | .011–.020 | .014–.024 | .016–.028 | |
| Material Group | | | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 0 | 70 | 130 | 150 | mm/r | 0,15–0,28 | 0,16–0,31 | 0,18–0,35 | 0,20–0,40 | 0,22–0,45 | 0,25–0,50 | 0,29–0,59 | 0,33–0,68 |
| 1 | 70 | 130 | 150 | mm/r | 0,18–0,35 | 0,19–0,39 | 0,21–0,46 | 0,24–0,53 | 0,26–0,60 | 0,28–0,67 | 0,33–0,81 | 0,38–0,96 | |
| 2 | 100 | 120 | 140 | mm/r | 0,16–0,35 | 0,18–0,38 | 0,21–0,45 | 0,25–0,51 | 0,28–0,58 | 0,32–0,64 | 0,39–0,78 | 0,46–0,91 | |
| 3 | 70 | 90 | 100 | mm/r | 0,18–0,35 | 0,19–0,38 | 0,23–0,45 | 0,27–0,52 | 0,31–0,59 | 0,35–0,66 | 0,42–0,80 | 0,50–0,93 | |
| 4 | 60 | 80 | 90 | mm/r | 0,16–0,29 | 0,18–0,32 | 0,22–0,38 | 0,26–0,45 | 0,31–0,51 | 0,35–0,57 | 0,43–0,69 | 0,52–0,81 | |
| 5 | 40 | 50 | 60 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| 6 | 30 | 40 | 50 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 0 | 70 | 130 | 150 | mm/r | 0,15–0,28 | 0,16–0,31 | 0,18–0,35 | 0,20–0,40 | 0,22–0,45 | 0,25–0,50 | 0,29–0,59 | 0,33–0,68 |
| 1 | 70 | 130 | 150 | mm/r | 0,18–0,35 | 0,19–0,39 | 0,21–0,46 | 0,24–0,53 | 0,26–0,60 | 0,28–0,67 | 0,33–0,81 | 0,38–0,96 | |
| 2 | 100 | 120 | 140 | mm/r | 0,16–0,35 | 0,18–0,38 | 0,21–0,45 | 0,25–0,51 | 0,28–0,58 | 0,32–0,64 | 0,39–0,78 | 0,46–0,91 | |
| 3 | 70 | 90 | 100 | mm/r | 0,18–0,35 | 0,19–0,38 | 0,23–0,45 | 0,27–0,52 | 0,31–0,59 | 0,35–0,66 | 0,42–0,80 | 0,50–0,93 | |
| 4 | 60 | 80 | 90 | mm/r | 0,16–0,29 | 0,18–0,32 | 0,22–0,38 | 0,26–0,45 | 0,31–0,51 | 0,35–0,57 | 0,43–0,69 | 0,52–0,81 | |
| 5 | 40 | 50 | 60 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| 6 | 30 | 40 | 50 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
Видео:
CNC Machine Golfing with HPX Drill & GOdrill
Задать вопрос
Нужна консультация?
Наши специалисты ответят на любой интересующий вопрос
Задать вопрос
