Описание

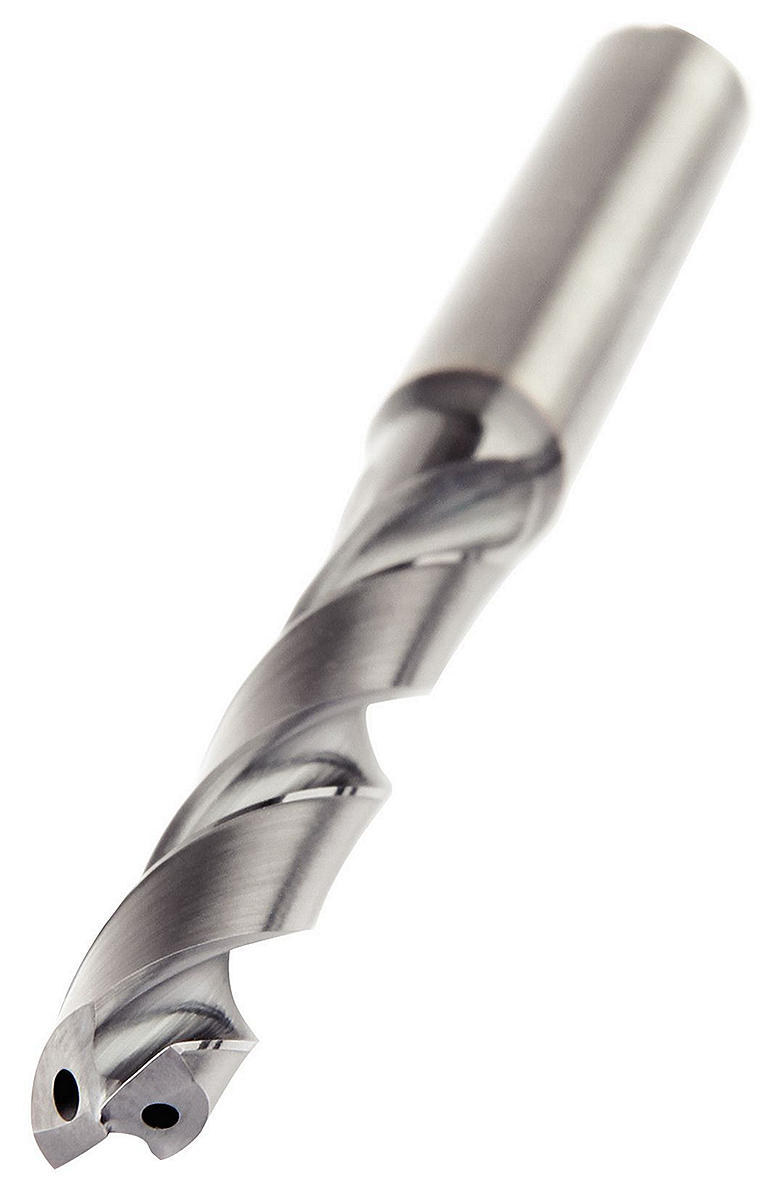

HPX; B224; 3 x D; Внутренний подвод СОЖ; Хвостовик HA. HPX; B224; 3 x D; Внутренний подвод СОЖ. HPX Drills • High-Volume Steel Production
Применение:
- Drilling
- Corner Style: Corner Chamfer
- Shank - Cylindrical Plain ≤h6
- Drilling - Through Coolant
- Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
- Tool Dimensions: 2flute/2margin/coolant
- Drilling: Stacked Plates

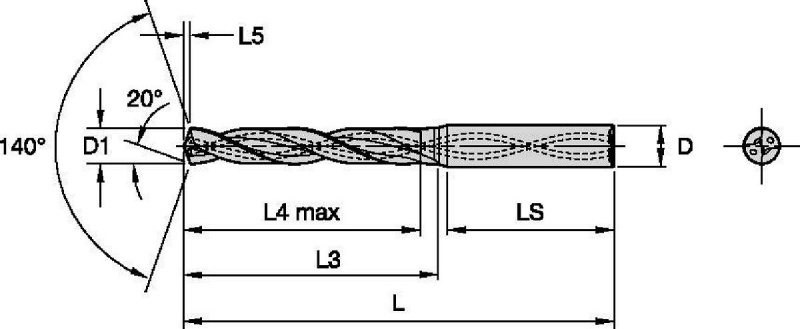

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [D1] Wire Size | [L] Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| 6781581 | B224A03000HPX | 36.0 | 6.0 | 0.6900 | 14.0000 | 3.0000 | 20.0000 | 62.0000 | |
| 6781582 | B224A03048HPX | 36.0 | 6.0 | 0.7000 | 14.0000 | 3.0480 | 20.0000 | 31 | 62.0000 |
| 6781583 | B224A03100HPX | 36.0 | 6.0 | 0.7100 | 14.0000 | 3.1000 | 20.0000 | 62.0000 | |
| 6781585 | B224A03175HPX | 36.0 | 6.0 | 0.7300 | 14.0000 | 3.1750 | 20.0000 | 62.0000 | |
| 6781586 | B224A03200HPX | 36.0 | 6.0 | 0.7300 | 14.0000 | 3.2000 | 20.0000 | 62.0000 | |
| 6781587 | B224A03264HPX | 36.0 | 6.0 | 0.7500 | 14.0000 | 3.2640 | 20.0000 | 30 | 62.0000 |
| 6781588 | B224A03300HPX | 36.0 | 6.0 | 0.7600 | 14.0000 | 3.3000 | 20.0000 | 62.0000 | |
| 6781589 | B224A03400HPX | 36.0 | 6.0 | 0.7800 | 14.0000 | 3.4000 | 20.0000 | 62.0000 | |
| 6781590 | B224A03455HPX | 36.0 | 6.0 | 0.7900 | 14.0000 | 3.4550 | 20.0000 | 62.0000 | |
| 6781591 | B224A03500HPX | 36.0 | 6.0 | 0.8000 | 14.0000 | 3.5000 | 20.0000 | 62.0000 | |
| 6781592 | B224A03571HPX | 36.0 | 6.0 | 0.8100 | 14.0000 | 3.5710 | 20.0000 | 62.0000 | |
| 6781593 | B224A03600HPX | 36.0 | 6.0 | 0.8200 | 14.0000 | 3.6000 | 20.0000 | 62.0000 | |
| 6781594 | B224A03658HPX | 36.0 | 6.0 | 0.8300 | 14.0000 | 3.6580 | 20.0000 | 62.0000 | |
| 6781595 | B224A03700HPX | 36.0 | 6.0 | 0.8400 | 14.0000 | 3.7000 | 20.0000 | 62.0000 | |
| 6781596 | B224A03800HPX | 36.0 | 6.0 | 0.8600 | 17.0000 | 3.8000 | 24.0000 | 66.0000 | |
| 6781597 | B224A03900HPX | 36.0 | 6.0 | 0.8800 | 17.0000 | 3.9000 | 24.0000 | 66.0000 | |
| 6781598 | B224A03970HPX | 36.0 | 6.0 | 0.9000 | 17.0000 | 3.9700 | 24.0000 | 66.0000 | |
| 6781599 | B224A04000HPX | 36.0 | 6.0 | 0.9000 | 17.0000 | 4.0000 | 24.0000 | 66.0000 | |
| 6781600 | B224A04100HPX | 36.0 | 6.0 | 0.9200 | 17.0000 | 4.1000 | 24.0000 | 66.0000 | |
| 6781602 | B224A04200HPX | 36.0 | 6.0 | 0.9400 | 17.0000 | 4.2000 | 24.0000 | 66.0000 | |
| 6781603 | B224A04217HPX | 36.0 | 6.0 | 0.9500 | 17.0000 | 4.2170 | 24.0000 | 66.0000 | |
| 6781604 | B224A04300HPX | 36.0 | 6.0 | 0.9600 | 17.0000 | 4.3000 | 24.0000 | 66.0000 | |
| 6781605 | B224A04400HPX | 36.0 | 6.0 | 0.9800 | 17.0000 | 4.4000 | 24.0000 | 66.0000 | |
| 6781606 | B224A04500HPX | 36.0 | 6.0 | 1.0100 | 17.0000 | 4.5000 | 24.0000 | 66.0000 | |
| 6781607 | B224A04600HPX | 36.0 | 6.0 | 1.0300 | 17.0000 | 4.6000 | 24.0000 | 66.0000 | |
| 6781608 | B224A04700HPX | 36.0 | 6.0 | 1.0500 | 17.0000 | 4.7000 | 24.0000 | 66.0000 | |
| 6781609 | B224A04763HPX | 36.0 | 6.0 | 1.0600 | 20.0000 | 4.7630 | 28.0000 | 66.0000 | |
| 6781610 | B224A04800HPX | 36.0 | 6.0 | 1.0700 | 20.0000 | 4.8000 | 28.0000 | 66.0000 | |
| 6781622 | B224A04852HPX | 36.0 | 6.0 | 1.0800 | 20.0000 | 4.8520 | 28.0000 | 66.0000 | |
| 6781623 | B224A04900HPX | 36.0 | 6.0 | 1.0900 | 20.0000 | 4.9000 | 28.0000 | 66.0000 | |
| 6781624 | B224A05000HPX | 36.0 | 6.0 | 1.1100 | 20.0000 | 5.0000 | 28.0000 | 66.0000 | |
| 6781625 | B224A05100HPX | 36.0 | 6.0 | 1.1300 | 20.0000 | 5.1000 | 28.0000 | 66.0000 | |
| 6781626 | B224A05106HPX | 36.0 | 6.0 | 1.1300 | 20.0000 | 5.1060 | 28.0000 | 66.0000 | |
| 6781627 | B224A05159HPX | 36.0 | 6.0 | 1.1400 | 20.0000 | 5.1594 | 28.0000 | 66.0000 | |
| 6781628 | B224A05200HPX | 36.0 | 6.0 | 1.1500 | 20.0000 | 5.2000 | 28.0000 | 66.0000 | |
| 6781629 | B224A05300HPX | 36.0 | 6.0 | 1.1700 | 20.0000 | 5.3000 | 28.0000 | 66.0000 | |
| 6781630 | B224A05400HPX | 36.0 | 6.0 | 1.1900 | 20.0000 | 5.4000 | 28.0000 | 66.0000 | |
| 6781631 | B224A05410HPX | 36.0 | 6.0 | 1.1900 | 20.0000 | 5.4100 | 28.0000 | 3 | 66.0000 |
| 6781632 | B224A05500HPX | 36.0 | 6.0 | 1.2100 | 20.0000 | 5.5000 | 28.0000 | 66.0000 | |
| 6781633 | B224A05558HPX | 36.0 | 6.0 | 1.2200 | 20.0000 | 5.5580 | 28.0000 | 66.0000 | |
| 6781634 | B224A05600HPX | 36.0 | 6.0 | 1.2300 | 20.0000 | 5.6000 | 28.0000 | 66.0000 | |
| 6781635 | B224A05700HPX | 36.0 | 6.0 | 1.2500 | 20.0000 | 5.7000 | 28.0000 | 66.0000 | |
| 6781636 | B224A05791HPX | 36.0 | 6.0 | 1.2700 | 20.0000 | 5.7910 | 28.0000 | 1 | 66.0000 |
| 6781637 | B224A05800HPX | 36.0 | 6.0 | 1.2700 | 20.0000 | 5.8000 | 28.0000 | 66.0000 | |
| 6781638 | B224A05900HPX | 36.0 | 6.0 | 1.2900 | 20.0000 | 5.9000 | 28.0000 | 66.0000 | |
| 6781639 | B224A06000HPX | 36.0 | 6.0 | 1.3100 | 20.0000 | 6.0000 | 28.0000 | 66.0000 | |
| 6781640 | B224A06100HPX | 36.0 | 8.0 | 1.3300 | 24.0000 | 6.1000 | 34.0000 | 79.0000 | |
| 6781651 | B224A06200HPX | 36.0 | 8.0 | 1.3500 | 24.0000 | 6.2000 | 34.0000 | 79.0000 | |
| 6781652 | B224A06300HPX | 36.0 | 8.0 | 1.3700 | 24.0000 | 6.3000 | 34.0000 | 79.0000 | |
| 6781653 | B224A06350HPX | 36.0 | 8.0 | 1.3800 | 24.0000 | 6.3500 | 34.0000 | E | 79.0000 |
| 6781654 | B224A06400HPX | 36.0 | 8.0 | 1.3900 | 24.0000 | 6.4000 | 34.0000 | 79.0000 | |
| 6781655 | B224A06500HPX | 36.0 | 8.0 | 1.4100 | 24.0000 | 6.5000 | 34.0000 | 79.0000 | |
| 6781656 | B224A06600HPX | 36.0 | 8.0 | 1.4300 | 24.0000 | 6.6000 | 34.0000 | 79.0000 | |
| 6781657 | B224A06700HPX | 36.0 | 8.0 | 1.4600 | 24.0000 | 6.7000 | 34.0000 | 79.0000 | |
| 6781658 | B224A06746HPX | 36.0 | 8.0 | 1.4600 | 24.0000 | 6.7460 | 34.0000 | 79.0000 | |
| 6781659 | B224A06800HPX | 36.0 | 8.0 | 1.4800 | 24.0000 | 6.8000 | 34.0000 | 79.0000 | |
| 6781660 | B224A07000HPX | 36.0 | 8.0 | 1.5200 | 24.0000 | 7.0000 | 34.0000 | 79.0000 | |
| 6781661 | B224A07100HPX | 36.0 | 8.0 | 1.5400 | 29.0000 | 7.1000 | 41.0000 | 79.0000 | |
| 6781662 | B224A07145HPX | 36.0 | 8.0 | 1.5500 | 29.0000 | 7.1450 | 41.0000 | 79.0000 | |
| 6781663 | B224A07200HPX | 36.0 | 8.0 | 1.5600 | 29.0000 | 7.2000 | 41.0000 | 79.0000 | |
| 6781664 | B224A07300HPX | 36.0 | 8.0 | 1.5800 | 29.0000 | 7.3000 | 41.0000 | 79.0000 | |
| 6781665 | B224A07400HPX | 36.0 | 8.0 | 1.6000 | 29.0000 | 7.4000 | 41.0000 | 79.0000 | |
| 6781666 | B224A07500HPX | 36.0 | 8.0 | 1.6200 | 29.0000 | 7.5000 | 41.0000 | 79.0000 | |
| 6781667 | B224A07541HPX | 36.0 | 8.0 | 1.6300 | 29.0000 | 7.5406 | 41.0000 | 79.0000 | |
| 6781668 | B224A07800HPX | 36.0 | 8.0 | 1.6800 | 29.0000 | 7.8000 | 41.0000 | 79.0000 | |
| 6781669 | B224A07938HPX | 36.0 | 8.0 | 1.7100 | 29.0000 | 7.9375 | 41.0000 | 79.0000 | |
| 6781670 | B224A08000HPX | 36.0 | 8.0 | 1.7200 | 29.0000 | 8.0000 | 41.0000 | 79.0000 | |
| 6781671 | B224A08100HPX | 40.0 | 10.0 | 1.7400 | 35.0000 | 8.1000 | 47.0000 | 89.0000 | |
| 6781672 | B224A08200HPX | 40.0 | 10.0 | 1.7600 | 35.0000 | 8.2000 | 47.0000 | 89.0000 | |
| 6781673 | B224A08334HPX | 40.0 | 10.0 | 1.7900 | 35.0000 | 8.3344 | 47.0000 | 89.0000 | |
| 6781674 | B224A08500HPX | 40.0 | 10.0 | 1.8200 | 35.0000 | 8.5000 | 47.0000 | 89.0000 | |
| 6781675 | B224A08700HPX | 40.0 | 10.0 | 1.8600 | 35.0000 | 8.7000 | 47.0000 | 89.0000 | |
| 6781676 | B224A08733HPX | 40.0 | 10.0 | 1.8700 | 35.0000 | 8.7330 | 47.0000 | 89.0000 | |
| 6781677 | B224A08800HPX | 40.0 | 10.0 | 1.8800 | 35.0000 | 8.8000 | 47.0000 | 89.0000 | |
| 6781678 | B224A09000HPX | 40.0 | 10.0 | 1.9200 | 35.0000 | 9.0000 | 47.0000 | 89.0000 | |
| 6781679 | B224A09100HPX | 40.0 | 10.0 | 1.9400 | 35.0000 | 9.1000 | 47.0000 | 89.0000 | |
| 6781680 | B224A09129HPX | 40.0 | 10.0 | 1.9500 | 35.0000 | 9.1290 | 47.0000 | 89.0000 | |
| 6781682 | B224A09400HPX | 40.0 | 10.0 | 2.0000 | 35.0000 | 9.4000 | 47.0000 | 89.0000 | |
| 6781683 | B224A09500HPX | 40.0 | 10.0 | 2.0200 | 35.0000 | 9.5000 | 47.0000 | 89.0000 | |
| 6781684 | B224A09525HPX | 40.0 | 10.0 | 2.0300 | 35.0000 | 9.5250 | 47.0000 | 89.0000 | |
| 6781685 | B224A09800HPX | 40.0 | 10.0 | 2.0800 | 35.0000 | 9.8000 | 47.0000 | 89.0000 | |
| 6781686 | B224A10000HPX | 40.0 | 10.0 | 2.1200 | 35.0000 | 10.0000 | 47.0000 | 89.0000 | |
| 6781687 | B224A10200HPX | 45.0 | 12.0 | 2.1600 | 40.0000 | 10.2000 | 55.0000 | 102.0000 | |
| 6781688 | B224A10300HPX | 45.0 | 12.0 | 2.1800 | 40.0000 | 10.3000 | 55.0000 | 102.0000 | |
| 6781689 | B224A10320HPX | 45.0 | 12.0 | 2.1900 | 40.0000 | 10.3200 | 55.0000 | 102.0000 | |
| 6781690 | B224A10500HPX | 45.0 | 12.0 | 2.2200 | 40.0000 | 10.5000 | 55.0000 | 102.0000 | |
| 6781691 | B224A10716HPX | 45.0 | 12.0 | 2.2600 | 40.0000 | 10.7156 | 55.0000 | 102.0000 | |
| 6781692 | B224A10800HPX | 45.0 | 12.0 | 2.2800 | 40.0000 | 10.8000 | 55.0000 | 102.0000 | |
| 6781693 | B224A11000HPX | 45.0 | 12.0 | 2.3200 | 40.0000 | 11.0000 | 55.0000 | 102.0000 | |
| 6781694 | B224A11113HPX | 45.0 | 12.0 | 2.3400 | 40.0000 | 11.1130 | 55.0000 | 102.0000 | |
| 6781695 | B224A11500HPX | 45.0 | 12.0 | 2.4200 | 40.0000 | 11.5000 | 55.0000 | 102.0000 | |
| 6781696 | B224A11509HPX | 45.0 | 12.0 | 2.4200 | 40.0000 | 11.5094 | 55.0000 | 102.0000 | |
| 6781697 | B224A12000HPX | 45.0 | 12.0 | 2.5200 | 40.0000 | 12.0000 | 55.0000 | 102.0000 | |
| 6781698 | B224A12500HPX | 45.0 | 14.0 | 2.6200 | 43.0000 | 12.5000 | 60.0000 | 107.0000 | |
| 6781700 | B224A12700HPX | 45.0 | 14.0 | 2.6600 | 43.0000 | 12.7000 | 60.0000 | 107.0000 | |
| 6781701 | B224A13000HPX | 45.0 | 14.0 | 2.7200 | 43.0000 | 13.0000 | 60.0000 | 107.0000 | |
| 6781702 | B224A13500HPX | 45.0 | 14.0 | 2.8200 | 43.0000 | 13.5000 | 60.0000 | 107.0000 | |
| 6781703 | B224A14000HPX | 45.0 | 14.0 | 2.9200 | 43.0000 | 14.0000 | 60.0000 | 107.0000 | |
| 6781704 | B224A14288HPX | 48.0 | 16.0 | 2.9800 | 45.0000 | 14.2880 | 65.0000 | 115.0000 | |
| 6781705 | B224A14500HPX | 48.0 | 16.0 | 3.0200 | 45.0000 | 14.5000 | 65.0000 | 115.0000 | |
| 6781706 | B224A15000HPX | 48.0 | 16.0 | 3.1200 | 45.0000 | 15.0000 | 65.0000 | 115.0000 | |
| 6781707 | B224A15500HPX | 48.0 | 16.0 | 3.2200 | 45.0000 | 15.5000 | 65.0000 | 115.0000 | |
| 6781708 | B224A15875HPX | 48.0 | 16.0 | 3.2900 | 45.0000 | 15.8750 | 65.0000 | 115.0000 | |
| 6781709 | B224A16000HPX | 48.0 | 16.0 | 3.3200 | 45.0000 | 16.0000 | 65.0000 | 115.0000 | |
| 6781710 | B224A16500HPX | 48.0 | 18.0 | 3.4200 | 51.0000 | 16.5000 | 73.0000 | 123.0000 | |
| 6781711 | B224A17000HPX | 48.0 | 18.0 | 3.5200 | 51.0000 | 17.0000 | 73.0000 | 123.0000 | |
| 6781712 | B224A17500HPX | 48.0 | 18.0 | 3.6100 | 51.0000 | 17.5000 | 73.0000 | 123.0000 | |
| 6781713 | B224A18000HPX | 48.0 | 18.0 | 3.7100 | 51.0000 | 18.0000 | 73.0000 | 123.0000 | |
| 6781714 | B224A18500HPX | 50.0 | 20.0 | 3.8100 | 55.0000 | 18.5000 | 79.0000 | 131.0000 | |
| 6781715 | B224A19000HPX | 50.0 | 20.0 | 3.9100 | 55.0000 | 19.0000 | 79.0000 | 131.0000 | |
| 6781716 | B224A20000HPX | 50.0 | 20.0 | 4.1100 | 55.0000 | 20.0000 | 79.0000 | 131.0000 |
Tolerance:
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 1–3 | 0,002/0,012 | 0,000/-0,006 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .0394–.1181 | .0001/.0005 | .0000/-.0002 |
| .1181–.2362 | .0002/.0006 | .0000/-.0003 |
| .2362–.3937 | .0002/.0008 | .0000/-.0004 |
| .3937–.7087 | .0003/.0010 | .0000/-.0004 |
| .7087–1.0000 | .0003/.0011 | .0000/-.0005 |
Режимы резания:
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 0 | 140 | 240 | 290 | mm/r | 0,13–0,24 | 0,14–0,26 | 0,15–0,30 | 0,17–0,34 | 0,19–0,38 | 0,21–0,42 | 0,24–0,50 | 0,28–0,58 |
| 1 | 130 | 240 | 290 | mm/r | 0,15–0,30 | 0,16–0,33 | 0,18–0,39 | 0,20–0,45 | 0,22–0,51 | 0,24–0,57 | 0,28–0,69 | 0,32–0,81 | |
| 2 | 190 | 230 | 270 | mm/r | 0,14–0,29 | 0,15–0,32 | 0,18–0,38 | 0,21–0,43 | 0,24–0,49 | 0,27–0,55 | 0,33–0,66 | 0,39–0,77 | |
| 3 | 130 | 160 | 190 | mm/r | 0,15–0,30 | 0,17–0,33 | 0,20–0,38 | 0,23–0,44 | 0,26–0,50 | 0,29–0,56 | 0,36–0,67 | 0,42–0,79 | |
| 4 | 110 | 150 | 170 | mm/r | 0,13–0,25 | 0,15–0,27 | 0,19–0,33 | 0,22–0,38 | 0,26–0,43 | 0,30–0,48 | 0,37–0,59 | 0,44–0,69 | |
| 5 | 70 | 90 | 110 | mm/r | 0,11–0,21 | 0,13–0,24 | 0,15–0,28 | 0,18–0,33 | 0,21–0,38 | 0,24–0,42 | 0,29–0,51 | 0,35–0,61 | |
| 6 | 60 | 80 | 100 | mm/r | 0,11–0,21 | 0,13–0,24 | 0,15–0,28 | 0,18–0,33 | 0,21–0,38 | 0,24–0,42 | 0,29–0,51 | 0,35–0,61 | |
| Material Group | | | |||||||||||
| Cutting Speed vc | Inch | ||||||||||||
| Range SFM | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 0 | 460 | 790 | 950 | IPR | .005–.009 | .005–.010 | .006–.012 | .007–.013 | .008–.015 | .008–.017 | .010–.020 | .011–.023 |
| 1 | 430 | 790 | 950 | IPR | .006–.012 | .006–.013 | .007–.015 | .008–.018 | .009–.020 | .009–.022 | .011–.027 | .013–.032 | |
| 2 | 620 | 750 | 890 | IPR | .005–.012 | .006–.013 | .007–.015 | .008–.017 | .009–.019 | .011–.022 | .013–.026 | .015–.030 | |
| 3 | 430 | 520 | 620 | IPR | .006–.012 | .007–.013 | .008–.015 | .009–.017 | .010–.020 | .012–.022 | .014–.027 | .017–.031 | |
| 4 | 360 | 490 | 560 | IPR | .005–.010 | .006–.011 | .007–.013 | .009–.015 | .010–.017 | .012–.019 | .015–.023 | .017–.027 | |
| 5 | 230 | 300 | 360 | IPR | .004–.008 | .005–.009 | .006–.011 | .007–.013 | .008–.015 | .009–.017 | .012–.020 | .014–.024 | |
| 6 | 200 | 260 | 330 | IPR | .004–.008 | .005–.009 | .006–.011 | .007–.013 | .008–.015 | .009–.017 | .012–.020 | .014–.024 | |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 0 | 140 | 240 | 290 | mm/r | 0,13–0,24 | 0,14–0,26 | 0,15–0,30 | 0,17–0,34 | 0,19–0,38 | 0,21–0,42 | 0,24–0,50 | 0,28–0,58 |
| 1 | 130 | 240 | 290 | mm/r | 0,15–0,30 | 0,16–0,33 | 0,18–0,39 | 0,20–0,45 | 0,22–0,51 | 0,24–0,57 | 0,28–0,69 | 0,32–0,81 | |
| 2 | 190 | 230 | 270 | mm/r | 0,14–0,29 | 0,15–0,32 | 0,18–0,38 | 0,21–0,43 | 0,24–0,49 | 0,27–0,55 | 0,33–0,66 | 0,39–0,77 | |
| 3 | 130 | 160 | 190 | mm/r | 0,15–0,30 | 0,17–0,33 | 0,20–0,38 | 0,23–0,44 | 0,26–0,50 | 0,29–0,56 | 0,36–0,67 | 0,42–0,79 | |
| 4 | 110 | 150 | 170 | mm/r | 0,13–0,25 | 0,15–0,27 | 0,19–0,33 | 0,22–0,38 | 0,26–0,43 | 0,30–0,48 | 0,37–0,59 | 0,44–0,69 | |
| 5 | 70 | 90 | 110 | mm/r | 0,11–0,21 | 0,13–0,24 | 0,15–0,28 | 0,18–0,33 | 0,21–0,38 | 0,24–0,42 | 0,29–0,51 | 0,35–0,61 | |
| 6 | 60 | 80 | 100 | mm/r | 0,11–0,21 | 0,13–0,24 | 0,15–0,28 | 0,18–0,33 | 0,21–0,38 | 0,24–0,42 | 0,29–0,51 | 0,35–0,61 | |
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Inch | ||||||||||||
| Range SFM | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 0 | 230 | 430 | 490 | IPR | .006–.011 | .006–.012 | .007–.014 | .008–.016 | .009–.018 | .010–.020 | .011–.023 | .013–.027 |
| 1 | 230 | 430 | 490 | IPR | .007–.014 | .007–.015 | .008–.018 | .009–.021 | .010–.024 | .011–.027 | .013–.032 | .015–.038 | |
| 2 | 330 | 390 | 460 | IPR | .006–.014 | .007–.015 | .008–.018 | .010–.020 | .011–.023 | .013–.025 | .015–.031 | .018–.036 | |
| 3 | 230 | 300 | 330 | IPR | .007–.014 | .008–.015 | .009–.018 | .011–.021 | .012–.023 | .014–.026 | .017–.031 | .020–.037 | |
| 4 | 200 | 260 | 300 | IPR | .006–.012 | .007–.013 | .009–.015 | .010–.018 | .012–.020 | .014–.022 | .017–.027 | .020–.032 | |
| 5 | 130 | 160 | 200 | IPR | .005–.010 | .006–.011 | .007–.013 | .009–.015 | .010–.017 | .011–.020 | .014–.024 | .016–.028 | |
| 6 | 100 | 130 | 160 | IPR | .005–.010 | .006–.011 | .007–.013 | .009–.015 | .010–.017 | .011–.020 | .014–.024 | .016–.028 | |
| Material Group | | | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 0 | 70 | 130 | 150 | mm/r | 0,15–0,28 | 0,16–0,31 | 0,18–0,35 | 0,20–0,40 | 0,22–0,45 | 0,25–0,50 | 0,29–0,59 | 0,33–0,68 |
| 1 | 70 | 130 | 150 | mm/r | 0,18–0,35 | 0,19–0,39 | 0,21–0,46 | 0,24–0,53 | 0,26–0,60 | 0,28–0,67 | 0,33–0,81 | 0,38–0,96 | |
| 2 | 100 | 120 | 140 | mm/r | 0,16–0,35 | 0,18–0,38 | 0,21–0,45 | 0,25–0,51 | 0,28–0,58 | 0,32–0,64 | 0,39–0,78 | 0,46–0,91 | |
| 3 | 70 | 90 | 100 | mm/r | 0,18–0,35 | 0,19–0,38 | 0,23–0,45 | 0,27–0,52 | 0,31–0,59 | 0,35–0,66 | 0,42–0,80 | 0,50–0,93 | |
| 4 | 60 | 80 | 90 | mm/r | 0,16–0,29 | 0,18–0,32 | 0,22–0,38 | 0,26–0,45 | 0,31–0,51 | 0,35–0,57 | 0,43–0,69 | 0,52–0,81 | |
| 5 | 40 | 50 | 60 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| 6 | 30 | 40 | 50 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 0 | 70 | 130 | 150 | mm/r | 0,15–0,28 | 0,16–0,31 | 0,18–0,35 | 0,20–0,40 | 0,22–0,45 | 0,25–0,50 | 0,29–0,59 | 0,33–0,68 |
| 1 | 70 | 130 | 150 | mm/r | 0,18–0,35 | 0,19–0,39 | 0,21–0,46 | 0,24–0,53 | 0,26–0,60 | 0,28–0,67 | 0,33–0,81 | 0,38–0,96 | |
| 2 | 100 | 120 | 140 | mm/r | 0,16–0,35 | 0,18–0,38 | 0,21–0,45 | 0,25–0,51 | 0,28–0,58 | 0,32–0,64 | 0,39–0,78 | 0,46–0,91 | |
| 3 | 70 | 90 | 100 | mm/r | 0,18–0,35 | 0,19–0,38 | 0,23–0,45 | 0,27–0,52 | 0,31–0,59 | 0,35–0,66 | 0,42–0,80 | 0,50–0,93 | |
| 4 | 60 | 80 | 90 | mm/r | 0,16–0,29 | 0,18–0,32 | 0,22–0,38 | 0,26–0,45 | 0,31–0,51 | 0,35–0,57 | 0,43–0,69 | 0,52–0,81 | |
| 5 | 40 | 50 | 60 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
| 6 | 30 | 40 | 50 | mm/r | 0,13–0,25 | 0,15–0,28 | 0,18–0,33 | 0,21–0,39 | 0,25–0,44 | 0,28–0,50 | 0,35–0,61 | 0,41–0,71 | |
Видео:
CNC Machine Golfing with HPX Drill & GOdrill
Задать вопрос
Нужна консультация?
Наши специалисты ответят на любой интересующий вопрос
Задать вопрос
