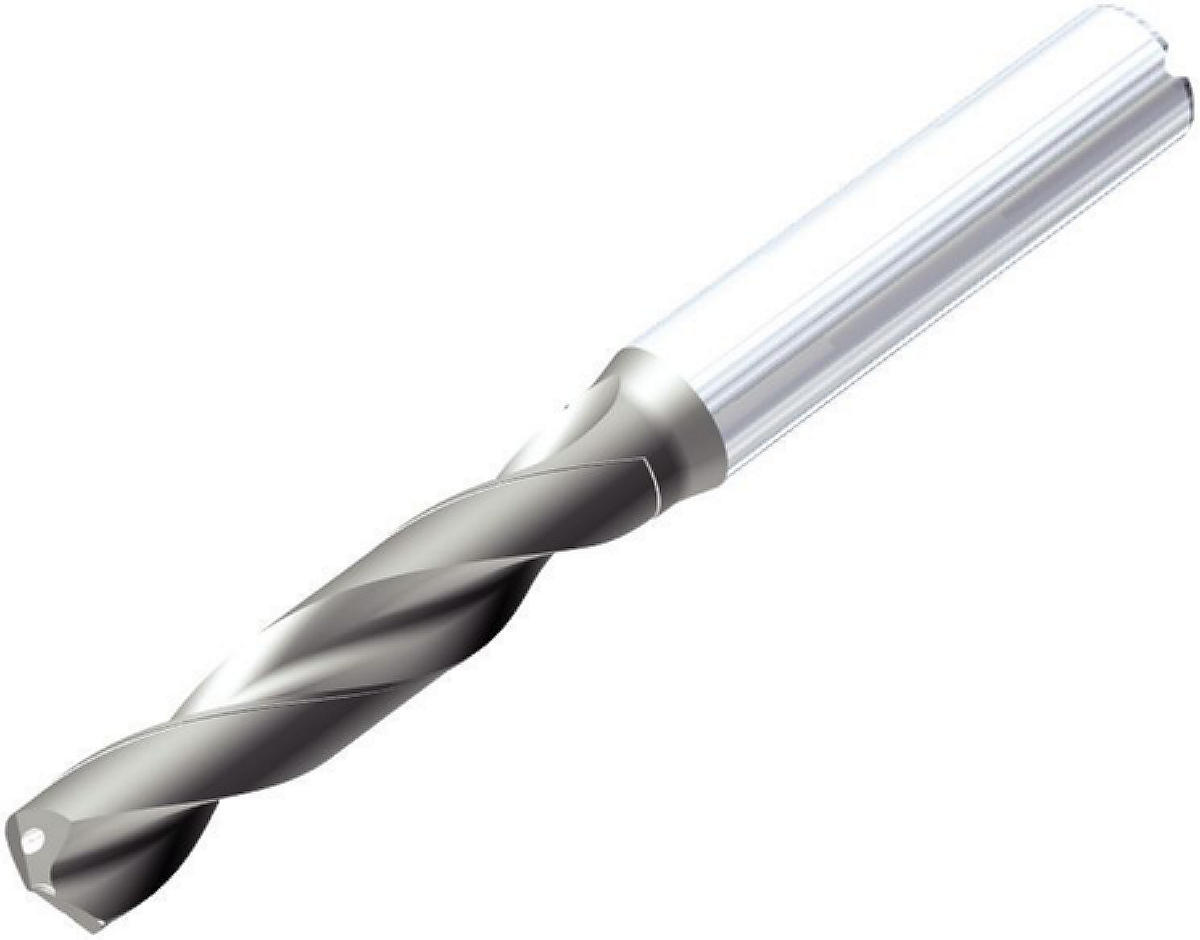

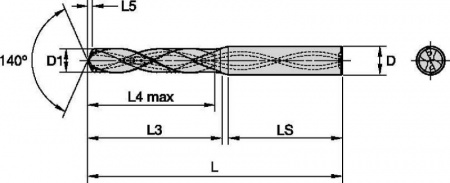

B951A (~3 x D); KCH15; A-Shank; KMH Drills. Сверла KMH; Внутренний подвод СОЖ. KMH Drills • Hard Materials
Особенности:
- The all new KMH solid carbide drills are engineered for hard material applications up to 65 HRC. The B95_ drill series with through coolant and 140° point is designed for deeper applications.
- KMH Point Design with curved cutting edge with corner chamfer for maximum corner stability in hard materials. It avoids chipping on cutting edge thus pre-mature wear.
- Special flute design with strong web to increase the strength of the drill in tough applications with short chips. B95_ series with 30° helix angle to improve chip evacuation in higher length-to-diameter ratios.
- KCH15 on B95_ with its higher toughness supports edge strength at increased rake angles, which are applied to improve chip evacuation in higher L/D ratios. It carries a high temperature and shock resistance AlTiN coating for machining hardened material to increase tool life.
Применение:
- Drilling - Through Coolant
- Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
- Tool Dimensions: 2flute/2margin/coolant
- Helix Angle: 30°
- Drilling
- Shank - Cylindrical Plain ≤h6
- DIN number 6535
- DIN number 6537
- Drilling: Stacked Plates
- Corner Style: Corner Chamfer

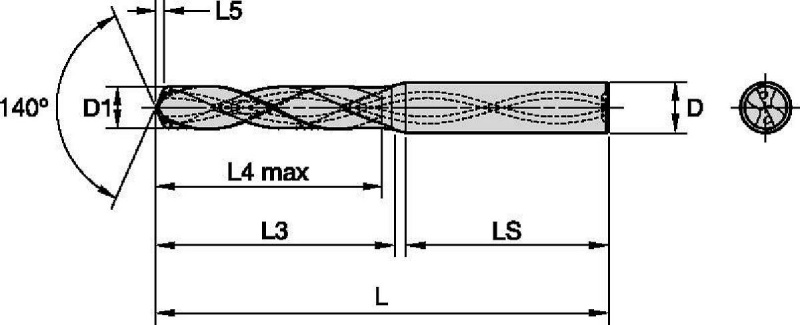

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [D1] Wire Size | [L] Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| 6359000 | B951A03000 | 36.0 | 6.0 | 0.6100 | 14.0000 | 3.0000 | 20.0000 | 62.0000 | |
| 6359011 | B951A03175 | 36.0 | 6.0 | 0.6500 | 14.0000 | 3.1750 | 20.0000 | 62.0000 | |
| 6359012 | B951A03454 | 36.0 | 6.0 | 0.7000 | 14.0000 | 3.4540 | 20.0000 | 62.0000 | |
| 6359013 | B951A03500 | 36.0 | 6.0 | 0.7100 | 14.0000 | 3.5000 | 20.0000 | 62.0000 | |
| 6359014 | B951A03800 | 36.0 | 6.0 | 0.7700 | 17.0000 | 3.8000 | 24.0000 | 66.0000 | |
| 6359015 | B951A04000 | 36.0 | 6.0 | 0.8100 | 17.0000 | 4.0000 | 24.0000 | 66.0000 | |
| 6359016 | B951A04100 | 36.0 | 6.0 | 0.8300 | 17.0000 | 4.1000 | 24.0000 | 66.0000 | |
| 6359017 | B951A04200 | 36.0 | 6.0 | 0.8500 | 17.0000 | 4.2000 | 24.0000 | 66.0000 | |
| 6359018 | B951A04300 | 36.0 | 6.0 | 0.8700 | 17.0000 | 4.3000 | 24.0000 | 66.0000 | |
| 6359019 | B951A04500 | 36.0 | 6.0 | 0.9100 | 17.0000 | 4.5000 | 24.0000 | 66.0000 | |
| 6359020 | B951A04800 | 36.0 | 6.0 | 0.9700 | 20.0000 | 4.8000 | 28.0000 | 66.0000 | |
| 6359021 | B951A04900 | 36.0 | 6.0 | 0.9900 | 20.0000 | 4.9000 | 28.0000 | 66.0000 | |
| 6359022 | B951A05000 | 36.0 | 6.0 | 1.0100 | 20.0000 | 5.0000 | 28.0000 | 66.0000 | |
| 6359023 | B951A05500 | 36.0 | 6.0 | 1.1000 | 20.0000 | 5.5000 | 28.0000 | 66.0000 | |
| 6359024 | B951A05800 | 36.0 | 6.0 | 1.1600 | 20.0000 | 5.8000 | 28.0000 | 66.0000 | |
| 6359025 | B951A06000 | 36.0 | 6.0 | 1.2000 | 20.0000 | 6.0000 | 28.0000 | 66.0000 | |
| 6359026 | B951A06350 | 36.0 | 8.0 | 1.2700 | 24.0000 | 6.3500 | 34.0000 | E | 79.0000 |
| 6359027 | B951A06500 | 36.0 | 8.0 | 1.3000 | 24.0000 | 6.5000 | 34.0000 | 79.0000 | |
| 6359028 | B951A06800 | 36.0 | 8.0 | 1.3600 | 24.0000 | 6.8000 | 34.0000 | 79.0000 | |
| 6359029 | B951A07000 | 36.0 | 8.0 | 1.4000 | 24.0000 | 7.0000 | 34.0000 | 79.0000 | |
| 6359030 | B951A08000 | 36.0 | 8.0 | 1.5900 | 29.0000 | 8.0000 | 41.0000 | 79.0000 | |
| 6359031 | B951A08500 | 40.0 | 10.0 | 1.6900 | 35.0000 | 8.5000 | 47.0000 | 89.0000 | |
| 6359032 | B951A09000 | 40.0 | 10.0 | 1.7900 | 35.0000 | 9.0000 | 47.0000 | 89.0000 | |
| 6359033 | B951A09500 | 40.0 | 10.0 | 1.8900 | 35.0000 | 9.5000 | 47.0000 | 89.0000 | |
| 6359034 | B951A09800 | 40.0 | 10.0 | 1.9500 | 35.0000 | 9.8000 | 47.0000 | 89.0000 | |
| 6359035 | B951A10000 | 40.0 | 10.0 | 1.9900 | 35.0000 | 10.0000 | 47.0000 | 89.0000 | |
| 6359036 | B951A10200 | 45.0 | 12.0 | 2.0200 | 40.0000 | 10.2000 | 55.0000 | 102.0000 | |
| 6594088 | B951A10400 | 45.0 | 12.0 | 2.0600 | 40.0000 | 10.4000 | 55.0000 | 102.0000 | |
| 6359037 | B951A10500 | 45.0 | 12.0 | 2.0800 | 40.0000 | 10.5000 | 55.0000 | 102.0000 | |
| 6359038 | B951A10800 | 45.0 | 12.0 | 2.1400 | 40.0000 | 10.8000 | 55.0000 | 102.0000 | |
| 6359039 | B951A11000 | 45.0 | 12.0 | 2.1800 | 40.0000 | 11.0000 | 55.0000 | 102.0000 | |
| 6359040 | B951A11500 | 45.0 | 12.0 | 2.2800 | 40.0000 | 11.5000 | 55.0000 | 102.0000 | |
| 6359041 | B951A11800 | 45.0 | 12.0 | 2.3400 | 40.0000 | 11.8000 | 55.0000 | 102.0000 | |
| 6359042 | B951A12000 | 45.0 | 12.0 | 2.3800 | 40.0000 | 12.0000 | 55.0000 | 102.0000 | |
| 6359043 | B951A12500 | 45.0 | 14.0 | 2.4700 | 43.0000 | 12.5000 | 60.0000 | 107.0000 | |
| 6359044 | B951A12700 | 45.0 | 14.0 | 2.5100 | 43.0000 | 12.7000 | 60.0000 | 107.0000 | |
| 6359045 | B951A12800 | 45.0 | 14.0 | 2.5300 | 43.0000 | 12.8000 | 60.0000 | 107.0000 | |
| 6359046 | B951A13000 | 45.0 | 14.0 | 2.5700 | 43.0000 | 13.0000 | 60.0000 | 107.0000 | |
| 6359047 | B951A13500 | 45.0 | 14.0 | 2.6700 | 43.0000 | 13.5000 | 60.0000 | 107.0000 | |
| 6359048 | B951A14000 | 45.0 | 14.0 | 2.7600 | 43.0000 | 14.0000 | 60.0000 | 107.0000 | |
| 6359049 | B951A14500 | 48.0 | 16.0 | 2.8600 | 45.0000 | 14.5000 | 65.0000 | 115.0000 | |
| 6359050 | B951A15500 | 48.0 | 16.0 | 3.0600 | 45.0000 | 15.5000 | 65.0000 | 115.0000 | |
| 6359051 | B951A16000 | 48.0 | 16.0 | 3.1500 | 45.0000 | 16.0000 | 65.0000 | 115.0000 |
Tolerance:
| Tolerance • Metric | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
| Tolerance • Inch | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .1181 .2362 | .0002/.0006 | .0000/-.0003 |
| .2362 .3937 | .0002/.0008 | .0000/-.0004 |
| .3937 .7087 | .0003/.0010 | .0000/-.0004 |
| .7087 1.0000 | .0003/.0011 | .0000/-.0005 |
Режимы резания:
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 4 | 50 | 70 | 100 | mm/r | 0,06–0,15 | 0,08–0,17 | 0,12–0,23 | 0,14–0,28 | 0,17–0,33 | 0,19–0,38 | 0,23–0,47 | 0,29–0,59 |
| 5 | 50 | 60 | 80 | mm/r | 0,08–0,14 | 0,10–0,16 | 0,12–0,20 | 0,16–0,24 | 0,20–0,28 | 0,24–0,32 | 0,28–0,40 | 0,32–0,48 | |
| 6 | 40 | 50 | 70 | mm/r | 0,05–0,08 | 0,06–0,10 | 0,08–0,14 | 0,10–0,18 | 0,13–0,22 | 0,14–0,24 | 0,18–0,32 | 0,23–0,41 | |
| K | 1 | 80 | 130 | 170 | mm/r | 0,11–0,22 | 0,12–0,24 | 0,16–0,31 | 0,20–0,38 | 0,23–0,44 | 0,25–0,49 | 0,31–0,06 | 0,38–0,47 |
| 2 | 90 | 110 | 120 | mm/r | 0,10–0,17 | 0,12–0,19 | 0,16–0,25 | 0,20–0,31 | 0,23–0,36 | 0,25–0,40 | 0,31–0,48 | 0,38–0,60 | |
| 3 | 80 | 110 | 130 | mm/r | 0,07–0,15 | 0,09–0,19 | 0,12–0,25 | 0,14–0,30 | 0,17–0,35 | 0,19–0,40 | 0,25–0,48 | 0,30–0,60 | |
| H | 1 | 20 | 35 | 45 | mm/r | 0,03–0,06 | 0,04–0,08 | 0,06–0,10 | 0,08–0,12 | 0,09–0,13 | 0,10–0,14 | 0,12–0,16 | 0,14–0,18 |
| 2 | 15 | 30 | 45 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 | |
| 3 | 15 | 25 | 40 | mm/r | 0,02–0,04 | 0,02–0,05 | 0,04–0,07 | 0,06–0,09 | 0,07–0,10 | 0,08–0,11 | 0,09–0,13 | 0,10–0,15 | |
| 4 | 15 | 20 | 35 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 | |
| Material Group | | | |||||||||||
| Material Group | Cutting Speed vc | Inch | |||||||||||
| Range SFM | Recommended Feed Rate per Rev | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 4 | 160 | 230 | 330 | IPR | .0024-.0059 | .0031-.0067 | .0047-.0091 | .0055-.0110 | .0067-.0130 | .0075-.0150 | .0091-.0185 | .0114-.0232 |
| 5 | 160 | 200 | 260 | IPR | .0031–.0055 | .0039–.0079 | .0047–.0079 | .0063–.0094 | .0079–.0110 | .0094–.0126 | .0110–.0157 | .0126–.0189 | |
| 6 | 130 | 160 | 230 | IPR | .0020-.0031 | .0024-.0039 | .0031-.0055 | .0039-.0071 | .0051-.0087 | .0055-.0094 | .0071-.0126 | .0091-.0161 | |
| K | 1 | 260 | 430 | 560 | IPR | .0043-.0087 | .0047-.0094 | .0063-.0122 | .0079-.0150 | .0091-.0173 | .0098-.0193 | .0122-.0024 | .0150-.0185 |
| 2 | 300 | 360 | 390 | IPR | .0039–.0067 | .0047–.0075 | .0063–.0098 | .0079–.0122 | .0091–.0142 | .0098–.0157 | .0122–.0189 | .0150–.0236 | |
| 3 | 260 | 360 | 430 | IPR | .0028-.0059 | .0035-.0075 | .0047-.0098 | .0055-.0118 | .0067-.0138 | .0075-.0157 | .0098-.0189 | .0118-.0236 | |
| H | 1 | 70 | 110 | 150 | IPR | .0012-.0024 | .0016-.0031 | .0024-.0039 | .0031-.0047 | .0035-.0051 | .0039-.0055 | .0047-.0063 | .0055-.0071 |
| 2 | 50 | 100 | 150 | IPR | .0008–.0016 | .0012–.0024 | .0020–.0031 | .0028–.0039 | .0031–.0043 | .0035–.0047 | .0039–.0055 | .0043–.0063 | |
| 3 | 50 | 80 | 130 | IPR | .0008-.0016 | .0008-.0020 | .0016-.0028 | .0024-.0035 | .0028-.0039 | .0031-.0043 | .0035-.0051 | .0039-.0059 | |
| 4 | 50 | 70 | 110 | IPR | .0008–.0016 | .0012–.0024 | .0020–.0031 | .0028–.0039 | .0031–.0043 | .0035–.0047 | .0039–.0055 | .0043–.0063 | |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate per Rev | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 4 | 50 | 70 | 100 | mm/r | 0,06–0,15 | 0,08–0,17 | 0,12–0,23 | 0,14–0,28 | 0,17–0,33 | 0,19–0,38 | 0,23–0,47 | 0,29–0,59 |
| 5 | 50 | 60 | 80 | mm/r | 0,08–0,14 | 0,10–0,16 | 0,12–0,20 | 0,16–0,24 | 0,20–0,28 | 0,24–0,32 | 0,28–0,40 | 0,32–0,48 | |
| 6 | 40 | 50 | 70 | mm/r | 0,05–0,08 | 0,06–0,10 | 0,08–0,14 | 0,10–0,18 | 0,13–0,22 | 0,14–0,24 | 0,18–0,32 | 0,23–0,41 | |
| K | 1 | 80 | 130 | 170 | mm/r | 0,11–0,22 | 0,12–0,24 | 0,16–0,31 | 0,20–0,38 | 0,23–0,44 | 0,25–0,49 | 0,31–0,06 | 0,38–0,47 |
| 2 | 90 | 110 | 120 | mm/r | 0,10–0,17 | 0,12–0,19 | 0,16–0,25 | 0,20–0,31 | 0,23–0,36 | 0,25–0,40 | 0,31–0,48 | 0,38–0,60 | |
| 3 | 80 | 110 | 130 | mm/r | 0,07–0,15 | 0,09–0,19 | 0,12–0,25 | 0,14–0,30 | 0,17–0,35 | 0,19–0,40 | 0,25–0,48 | 0,30–0,60 | |
| H | 1 | 20 | 35 | 45 | mm/r | 0,03–0,06 | 0,04–0,08 | 0,06–0,10 | 0,08–0,12 | 0,09–0,13 | 0,10–0,14 | 0,12–0,16 | 0,14–0,18 |
| 2 | 15 | 30 | 45 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 | |
| 3 | 15 | 25 | 40 | mm/r | 0,02–0,04 | 0,02–0,05 | 0,04–0,07 | 0,06–0,09 | 0,07–0,10 | 0,08–0,11 | 0,09–0,13 | 0,10–0,15 | |
| 4 | 15 | 20 | 35 | mm/r | 0,02–0,04 | 0,03–0,06 | 0,05–0,08 | 0,07–0,10 | 0,08–0,11 | 0,09–0,12 | 0,10–0,14 | 0,11–0,16 | |
