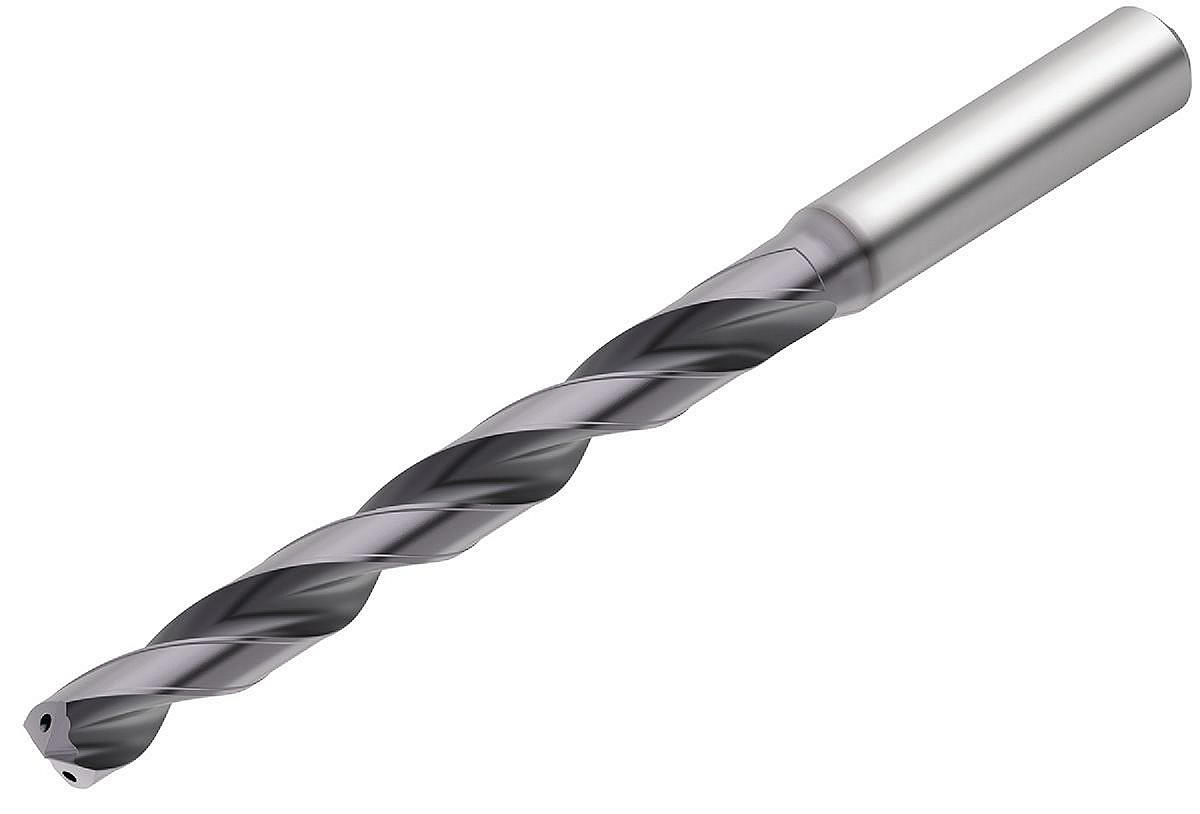

B978A (~8 x D); KC7315; A-Shank; Unidrills

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

B978A (~8 x D); KC7315; A-Shank; Unidrills. Сверла Kenna Universal; Внутренний подвод СОЖ. Сверла Kenna Universal™

Особенности:

Kenna Universal drills with through coolant.
Multipurpose SC drill engineered to deliver superior performance in steel, cast iron, stainless steel, and other applications, making it ideal for small- and medium-sized shops.
The universal application profile reduces tool change times and the number of drills in inventory.
It's a problem solver that works everywhere.
Four-margin land design provides good alignment and stability in tough drilling applications — even when drilling through cross holes.
KC7315 grade is a multilayer, TiAlN-based coating with high hot hardness enables 30% higher cutting speeds and constant tool life.

Применение:

Drilling
Drilling: Inclined Exit
Shank - Cylindrical Plain ≤h6
Helix Angle: 30°
DIN number 6537
DIN number 6535
Drilling - Through Coolant
Tool Dimensions: 2flute/4margin/coolant
Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
Drilling: Cross-Hole Drilling
Drilling: Stacked Plates

SAP Material Number	ISO Catalog Number	[LS] Shank Length	[D] Adapter / Shank / Bore Diameter	[L5] Drill Point Length	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L3] Flute Length	[D1] Wire Size	[L] Overall Length
3782458	B978A03000	36.0	6.0	0.6100	33.0000	3.0000	40.0000		78.0000
3903498	B978A03300	36.0	6.0	0.6700	33.0000	3.3000	40.0000		78.0000
5059278	B978A03400	36.0	6.0	0.6900	33.0000	3.4000	40.0000		78.0000
5132051	B978A03600	36.0	6.0	0.7300	33.0000	3.6000	40.0000		78.0000
3057117	B978A03700	36.0	6.0	0.7500	33.0000	3.7000	40.0000		78.0000
5006833	B978A03800	36.0	6.0	0.7800	41.0000	3.8000	49.0000		87.0000
2658393	B978A03970	36.0	6.0	0.8100	41.0000	3.9700	49.0000		87.0000
2888306	B978A04000	36.0	6.0	0.8200	41.0000	4.0000	49.0000		87.0000
3858210	B978A04200	36.0	6.0	0.8600	41.0000	4.2000	49.0000		87.0000
3593089	B978A04500	36.0	6.0	0.9300	41.0000	4.5000	49.0000		87.0000
2620169	B978A04600	36.0	6.0	0.9500	41.0000	4.6000	49.0000		87.0000
2658394	B978A04763	36.0	6.0	0.9800	48.0000	4.7630	56.0000		94.0000
4025911	B978A04800	36.0	6.0	0.9900	48.0000	4.8000	56.0000	12	94.0000
1913618	B978A05000	36.0	6.0	1.0300	48.0000	5.0000	56.0000		94.0000
2264933	B978A05100	36.0	6.0	1.0500	48.0000	5.1000	56.0000		94.0000
2264934	B978A05200	36.0	6.0	1.0800	48.0000	5.2000	56.0000		94.0000
2264889	B978A05300	36.0	6.0	1.1000	48.0000	5.3000	56.0000		94.0000
1913619	B978A05500	36.0	6.0	1.1400	48.0000	5.5000	56.0000		94.0000
2658395	B978A05558	36.0	6.0	1.1500	48.0000	5.5580	56.0000		94.0000
3592190	B978A05600	36.0	6.0	1.1600	48.0000	5.6000	56.0000		94.0000
2043415	B978A05700	36.0	6.0	1.1800	48.0000	5.7000	56.0000		94.0000
2875584	B978A05800	36.0	6.0	1.2100	48.0000	5.8000	56.0000		94.0000
2979048	B978A05900	36.0	6.0	1.2300	48.0000	5.9000	56.0000		94.0000
1913620	B978A06000	36.0	6.0	1.2500	48.0000	6.0000	56.0000		94.0000
2261701	B978A06100	36.0	8.0	1.2700	57.0000	6.1000	67.0000		105.0000
2264928	B978A06200	36.0	8.0	1.2900	57.0000	6.2000	67.0000		105.0000
2264970	B978A06300	36.0	8.0	1.3100	57.0000	6.3000	67.0000		105.0000
2658396	B978A06350	36.0	8.0	1.3200	57.0000	6.3500	67.0000	E	105.0000
2264971	B978A06400	36.0	8.0	1.3300	57.0000	6.4000	67.0000		105.0000
1913621	B978A06500	36.0	8.0	1.3600	57.0000	6.5000	67.0000		105.0000
2242780	B978A06600	36.0	8.0	1.3800	57.0000	6.6000	67.0000		105.0000
2264972	B978A06700	36.0	8.0	1.4000	57.0000	6.7000	67.0000		105.0000
2658397	B978A06746	36.0	8.0	1.4100	57.0000	6.7460	67.0000		105.0000
1913622	B978A06800	36.0	8.0	1.4200	57.0000	6.8000	67.0000		105.0000
1913623	B978A07000	36.0	8.0	1.4600	57.0000	7.0000	67.0000		105.0000
2658398	B978A07145	36.0	8.0	1.5000	64.0000	7.1450	74.0000		113.0000
3057121	B978A07400	36.0	8.0	1.5500	64.0000	7.4000	74.0000		113.0000
1913624	B978A07500	36.0	8.0	1.5700	64.0000	7.5000	74.0000		113.0000
2658399	B978A07541	36.0	8.0	1.5800	64.0000	7.5406	74.0000		113.0000
2407297	B978A07700	36.0	8.0	1.6200	64.0000	7.7000	74.0000		113.0000
1913625	B978A07800	36.0	8.0	1.6400	64.0000	7.8000	74.0000		113.0000
2647029	B978A07900	36.0	8.0	1.6600	64.0000	7.9000	74.0000		113.0000
2658400	B978A07938	36.0	8.0	1.6700	64.0000	7.9375	74.0000		113.0000
1913626	B978A08000	36.0	8.0	1.6800	64.0000	8.0000	74.0000		113.0000
2264953	B978A08100	40.0	10.0	1.7000	80.0000	8.1000	92.0000		135.0000
2940518	B978A08200	40.0	10.0	1.7200	80.0000	8.2000	92.0000		135.0000
2658401	B978A08334	40.0	10.0	1.7500	80.0000	8.3344	92.0000		135.0000
6962062	B978A08400	40.0	10.0	1.7700	80.0000	8.4000	92.0000		135.0000
1913627	B978A08500	40.0	10.0	1.7900	80.0000	8.5000	92.0000		135.0000
2264954	B978A08600	40.0	10.0	1.8100	80.0000	8.6000	92.0000		135.0000
2264955	B978A08700	40.0	10.0	1.8300	80.0000	8.7000	92.0000		135.0000
2658402	B978A08733	40.0	10.0	1.8400	80.0000	8.7330	92.0000		135.0000
2255896	B978A08800	40.0	10.0	1.8500	80.0000	8.8000	92.0000		135.0000
1913628	B978A09000	40.0	10.0	1.9000	80.0000	9.0000	92.0000		135.0000
2442642	B978A09100	40.0	10.0	1.9200	80.0000	9.1000	92.0000		135.0000
2658403	B978A09129	40.0	10.0	1.9200	80.0000	9.1290	92.0000		135.0000
3057122	B978A09300	40.0	10.0	1.9600	80.0000	9.3000	92.0000		135.0000
1913629	B978A09500	40.0	10.0	2.0000	80.0000	9.5000	92.0000		135.0000
2658404	B978A09525	40.0	10.0	2.0100	80.0000	9.5250	92.0000		135.0000
2249180	B978A09700	40.0	10.0	2.0500	80.0000	9.7000	92.0000		135.0000
1971584	B978A09750	40.0	10.0	2.0600	80.0000	9.7500	92.0000		135.0000
2050230	B978A09800	40.0	10.0	2.0700	80.0000	9.8000	92.0000		135.0000
2264956	B978A09900	40.0	10.0	2.0900	80.0000	9.9000	92.0000		135.0000
2658405	B978A09921	40.0	10.0	2.1000	80.0000	9.9210	92.0000		135.0000
1913630	B978A10000	40.0	10.0	2.1100	80.0000	10.0000	92.0000		135.0000
2264938	B978A10100	45.0	12.0	2.1300	96.0000	10.1000	110.0000		158.0000
1913631	B978A10200	45.0	12.0	2.1600	96.0000	10.2000	110.0000		158.0000
2264939	B978A10300	45.0	12.0	2.1800	96.0000	10.3000	110.0000		158.0000
2658406	B978A10320	45.0	12.0	2.1800	96.0000	10.3200	110.0000		158.0000
1913632	B978A10500	45.0	12.0	2.2200	96.0000	10.5000	110.0000		158.0000
2658407	B978A10716	45.0	12.0	2.2700	96.0000	10.7156	110.0000		158.0000
1985985	B978A10800	45.0	12.0	2.2900	96.0000	10.8000	110.0000		158.0000
1913633	B978A11000	45.0	12.0	2.3300	96.0000	11.0000	110.0000		158.0000
2658408	B978A11113	45.0	12.0	2.3500	96.0000	11.1130	110.0000		158.0000
1984545	B978A11200	45.0	12.0	2.3700	96.0000	11.2000	110.0000		158.0000
2436719	B978A11300	45.0	12.0	2.4000	96.0000	11.3000	110.0000		158.0000
2045616	B978A11400	45.0	12.0	2.4200	96.0000	11.4000	110.0000		158.0000
1913634	B978A11500	45.0	12.0	2.4400	96.0000	11.5000	110.0000		158.0000
2658409	B978A11509	45.0	12.0	2.4400	96.0000	11.5094	110.0000		158.0000
2404433	B978A11700	45.0	12.0	2.4800	96.0000	11.7000	110.0000		158.0000
2044606	B978A11800	45.0	12.0	2.5000	96.0000	11.8000	110.0000		158.0000
2658410	B978A11908	45.0	12.0	2.5300	96.0000	11.9080	110.0000		158.0000
1913635	B978A12000	45.0	12.0	2.5500	96.0000	12.0000	110.0000		158.0000
2658411	B978A12304	45.0	14.0	2.6100	112.0000	12.3040	128.0000		176.0000
1913636	B978A12500	45.0	14.0	2.6600	112.0000	12.5000	128.0000		176.0000
2658412	B978A12700	45.0	14.0	2.7000	112.0000	12.7000	128.0000		176.0000
1942450	B978A12800	45.0	14.0	2.7200	112.0000	12.8000	128.0000		176.0000
1913637	B978A13000	45.0	14.0	2.7700	112.0000	13.0000	128.0000		176.0000
3491692	B978A13100	45.0	14.0	2.7900	112.0000	13.1000	128.0000		176.0000
1913638	B978A13500	45.0	14.0	2.8700	112.0000	13.5000	128.0000		176.0000
1913639	B978A14000	45.0	14.0	2.9800	112.0000	14.0000	128.0000		176.0000
2658413	B978A14288	48.0	16.0	3.0500	128.0000	14.2880	146.0000		197.0000
1913640	B978A14500	48.0	16.0	3.0900	128.0000	14.5000	146.0000		197.0000
1913641	B978A15000	48.0	16.0	3.2000	128.0000	15.0000	146.0000		197.0000
2263727	B978A15100	48.0	16.0	3.2200	128.0000	15.1000	146.0000		197.0000
2214237	B978A15200	48.0	16.0	3.2400	128.0000	15.2000	146.0000		197.0000
2428744	B978A15300	48.0	16.0	3.2700	128.0000	15.3000	146.0000		197.0000
1913642	B978A15500	48.0	16.0	3.3100	128.0000	15.5000	146.0000		197.0000
2264901	B978A15800	48.0	16.0	3.3800	128.0000	15.8000	146.0000		197.0000
2658414	B978A15875	48.0	16.0	3.3900	128.0000	15.8750	146.0000		197.0000
1913643	B978A16000	48.0	16.0	3.4200	128.0000	16.0000	146.0000		197.0000
2658415	B978A16078	48.0	18.0	3.4400	144.0000	16.0780	163.0000		214.0000
2436798	B978A16200	48.0	18.0	3.4600	144.0000	16.2000	163.0000		214.0000
1913644	B978A16500	48.0	18.0	3.5300	144.0000	16.5000	163.0000		214.0000
1913645	B978A17000	48.0	18.0	3.6400	144.0000	17.0000	163.0000		214.0000
2658416	B978A17463	48.0	18.0	3.7400	144.0000	17.4630	163.0000		214.0000
1913646	B978A17500	48.0	18.0	3.7500	144.0000	17.5000	163.0000		214.0000
1913647	B978A18000	48.0	18.0	3.8600	144.0000	18.0000	163.0000		214.0000
1913648	B978A18500	50.0	20.0	3.9600	160.0000	18.5000	181.0000		234.0000
1913649	B978A19000	50.0	20.0	4.0700	160.0000	19.0000	181.0000		234.0000
2658417	B978A19050	50.0	20.0	4.0800	160.0000	19.0500	181.0000		234.0000
2658418	B978A19253	50.0	20.0	4.1300	160.0000	19.2530	181.0000		234.0000
1913650	B978A19500	50.0	20.0	4.1800	160.0000	19.5000	181.0000		234.0000
2275452	B978A19800	50.0	20.0	4.2500	160.0000	19.8000	181.0000		234.0000
2235124	B978A19840	50.0	20.0	4.2600	160.0000	19.8400	181.0000		234.0000
1913651	B978A20000	50.0	20.0	4.2900	160.0000	20.0000	181.0000		234.0000

Tolerance:

Tolerance • Inch
nominal size range	D1 tolerance m7	D tolerance h6
.1181 to .2362	.0002/.0006	.0000/-.0003
.2362 to .3937	.0002/.0008	.0000/-.0004
.3937 to .7087	.0003/.0010	.0000/-.0004
.7087 to 1.0000	.0003/.0011	.0000/-.0005

Tolerance • Metric
nominal size range	D1 tolerance m7	D tolerance h6
3–6	0,004/0,016	0,000/-0,008
6–10	0,006/0,021	0,000/-0,009
10–18	0,007/0,025	0,000/-0,011
18–25,4	0,008/0,029	0,000/-0,013

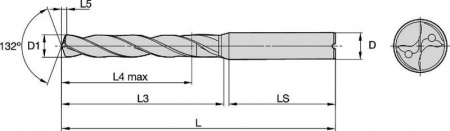

Dimension:

Размеры цельных твердосплавных сверл Kennametal (серия B*)

mm				SHORT*			LONG*			EXTRA LONG**
Ø		DIN 6535		~3 x D			~5 x D			~8 x D
D1 min	D1 max	D	LS min	L	L3	L4	L	L3	L4	L	L3	L4
1,000	1,400	4	28	58	7	5	58	9	6	58	12	10
1,401	1,900	4	28	58	9	6	58	12	9	58	18	15
1,901	2,300	4	28	58	13	9	58	18	14	66	26	22
2,301	2,990	4	28	58	17	12	58	22	17	66	30	25
3,000	3,750	6	36	62	20	14	66	28	23	78	40	33
3,751	4,750	6	36	66	24	17	74	36	29	87	49	41
4,751	6,000	6	36	66	28	20	82	44	35	94	56	48
6,001	7,000	8	36	79	34	24	91	53	43	105	67	57
7,001	8,000	8	36	79	41	29	91	53	43	110	72	61
8,001	10,000	10	40	89	47	35	103	61	49	122	80	68
10,001	12,000	12	45	102	55	40	118	71	56	141	94	79
12,001	14,000	14	45	107	60	43	124	77	60	155	108	91
14,001	16,000	16	48	115	65	45	133	83	63	171	121	101
16,001	18,000	18	48	123	73	51	143	93	71	185	135	113
18,001	20,000	20	50	131	79	55	153	101	77	200	148	124
20,001	22,000	20	50	141	86	60	167	112	85	217	162	136
22,001	25,000	25	56	153	95	65	184	126	98	238	180	150
* D1 20mm to DIN 6537K
* D1 20mm to factory standard
** to factory standard

Режимы резания:

Сверла Kenna Universal; Серия B97_; Сплав KC7315; Внутренний подвод СОЖ;
Диаметр сверления 2–20 мм; Метрическая система

Material Group		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate per Rev
		Min	Starting Value	Max		5/64 .078	1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750
P	0	260	390	520	IPR	.002-.004	.002-.005	.003-.005	.004-.007	.004-.009	.005-.010	.006-.012	.007-.014	.009-.018
	1	230	330	460	IPR	.002-.005	.003-.006	.003-.006	.004-.009	.005-.010	.006-.012	.007-.014	.009-.017	.011-.021
	2	300	390	460	IPR	.002-.005	.003-.006	.003-.006	.005-.009	.006-.010	.007-.012	.008-.014	.009-.017	.012-.021
	3	200	260	330	IPR	.002-.005	.003-.006	.004-.007	.005-.009	.006-.011	.008-.013	.009-.015	.010-.019	.013-.023
	4	160	260	330	IPR	.002-.005	.003-.006	.003-.007	.005-.009	.006-.011	.007-.013	.008-.015	.009-.019	.011-.023
	5	160	200	260	IPR	.002-.005	.003-.005	.004-.006	.005-.008	.006-.009	.008-.011	.009-.012	.011-.015	.013-.017
	6	130	160	230	IPR	.002-.002	.002-.003	.002-.004	.003-.006	.004-.007	.005-.009	.006-.009	.007-.013	.009-.016
M	1	100	130	160	IPR	.001-.002	.002-.003	.002-.004	.003-.004	.004-.005	.004-.006	.005-.006	.006-.007	.006-.008
	2	130	160	200	IPR	.001-.003	.002-.003	.002-.004	.003-.005	.004-.006	.004-.006	.005-.007	.006-.008	.006-.009
	3	100	130	160	IPR	.001-.002	.002-.003	.002-.004	.003-.004	.004-.005	.004-.006	.005-.006	.006-.007	.006-.008
K	1	300	430	560	IPR	.004-.007	.004-.009	.005-.009	.006-.012	.008-.015	.009-.017	.010-.019	.012-.024	.015-.029
	2	260	390	490	IPR	.004-.006	.005-.006	.005-.008	.006-.010	.008-.012	.009-.014	.010-.016	.012-.019	.015-.024
	3	230	300	360	IPR	.003-.006	.003-.007	.004-.008	.005-.010	.006-.012	.007-.014	.008-.016	.009-.019	.012-.024
N	1	300	750	1030	IPR	.002-.005	.003-.006	.004-.006	.005-.008	.006-.009	.008-.011	.009-.013	.011-.016	.013-.019
	2	300	740	890	IPR	.002-.005	.003-.006	.004-.008	.005-.009	.006-.011	.008-.013	.009-.014	.011-.017	.013-.021
	3	300	590	890	IPR	.004-.006	.005-.006	.005-.006	.006-.008	.006-.009	.008-.011	.009-.013	.011-.016	.013-.017
	4	300	440	590	IPR	.002-.005	.003-.006	.000-.008	.005-.009	.006-.011	.008-.013	.009-.014	.011-.016	.013-.019
S	1	30	70	100	IPR	.001-.003	.001-.003	.002-.004	.002-.004	.003-.005	.004-.006	.004-.006	.005-.007	.006-.008
	2	30	70	100	IPR	.001-.003	.001-.003	.002-.004	.002-.004	.003-.005	.004-.006	.004-.006	.005-.007	.006-.008
	3	50	80	110	IPR	.001-.003	.001-.003	.002-.004	.002-.004	.003-.005	.004-.006	.004-.006	.005-.007	.006-.008
	4	70	100	130	IPR	.001-.002	.001-.002	.001-.002	.002-.003	.002-.004	.002-.004	.003-.005	.003-.005	.004-.006

Material Group		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate per Rev
		Min	Starting Value	Max		2,0	3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
P	0	80	120	160	mm/r	0,04–0,10	0,06–0,12	0,07–0,14	0,09–0,19	0,11–0,22	0,13–0,26	0,15–0,30	0,19–0,36	0,24–0,46
	1	70	100	140	mm/r	0,05–0,12	0,07–0,14	0,08–0,16	0,11–0,22	0,13–0,26	0,15–0,31	0,18–0,35	0,22–0,42	0,28–0,54
	2	90	120	140	mm/r	0,05–0,12	0,07–0,14	0,08–0,16	0,12–0,22	0,14–0,26	0,17–0,31	0,20–0,35	0,24–0,42	0,31–0,53
	3	60	80	100	mm/r	0,06–0,13	0,08–0,15	0,09–0,17	0,13–0,23	0,15–0,28	0,19–0,33	0,22–0,38	0,26–0,47	0,34–0,59
	4	50	80	100	mm/r	0,06–0,13	0,07–0,15	0,08–0,17	0,12–0,23	0,14–0,28	0,17–0,33	0,19–0,38	0,23–0,47	0,29–0,59
	5	50	60	80	mm/r	0,06–0,12	0,08–0,13	0,10–0,15	0,12–0,19	0,16–0,24	0,20–0,27	0,24–0,30	0,28–0,38	0,32–0,44
	6	40	50	70	mm/r	0,04–0,06	0,05–0,08	0,06–0,10	0,08–0,14	0,10–0,18	0,13–0,22	0,14–0,24	0,18–0,32	0,23–0,41
M	1	30	40	50	mm/r	0,03–0,06	0,04–0,07	0,05–0,09	0,08–0,11	0,09–0,12	0,10–0,14	0,12–0,16	0,14–0,18	0,16–0,20
	2	40	50	60	mm/r	0,03–0,07	0,04–0,08	0,06–0,10	0,08–0,12	0,09–0,14	0,10–0,16	0,12–0,18	0,14–0,20	0,16–0,22
	3	30	40	50	mm/r	0,03–0,06	0,04–0,07	0,05–0, Задать вопрос Вопрос * Ваше имя * Телефон * E-mail * Подтвердите, что вы не робот * Все товары категории Все товары бренда KENNAMETAL Нужна консультация? Наши специалисты ответят на любой интересующий вопрос Задать вопрос Каталог Подбор запчастей Ремонт Доставка Контакты Магнитно-сверлильные станки Корончатые сверла Станки для сверления труб Промышленные пылесосы Ленточно-шлифовальные станки Фаскосниматели Труборезы Трубогибы Отрезные станки Газорезательные машины Опоры для труб Металлорежущий инстурмент Станочная оснастка Динамометрический инстурмент Ручной инструмент Knipex Ручной инструмент Wera +7 495 979-05-66 Заказать звонок info@metal-tek.ru Москва, ул. Кирпичная, д. 48 2006 - 2026 © МЕТАЛ-ТЕК - продажа оборудования и инструмента для металлообработки.
