Хвостовики KSEM PLUS WD; 1,5 x D; Метрическая система

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

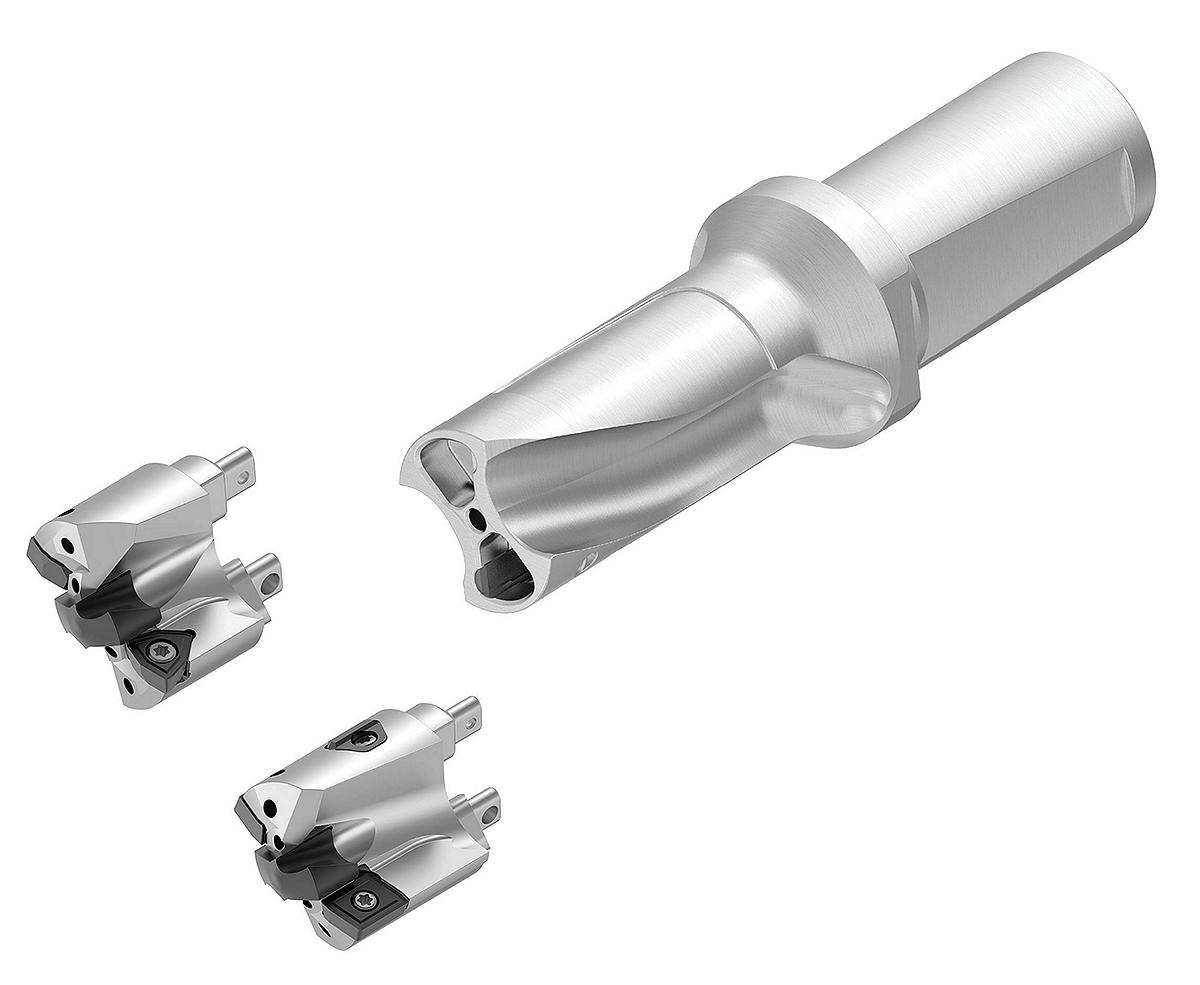

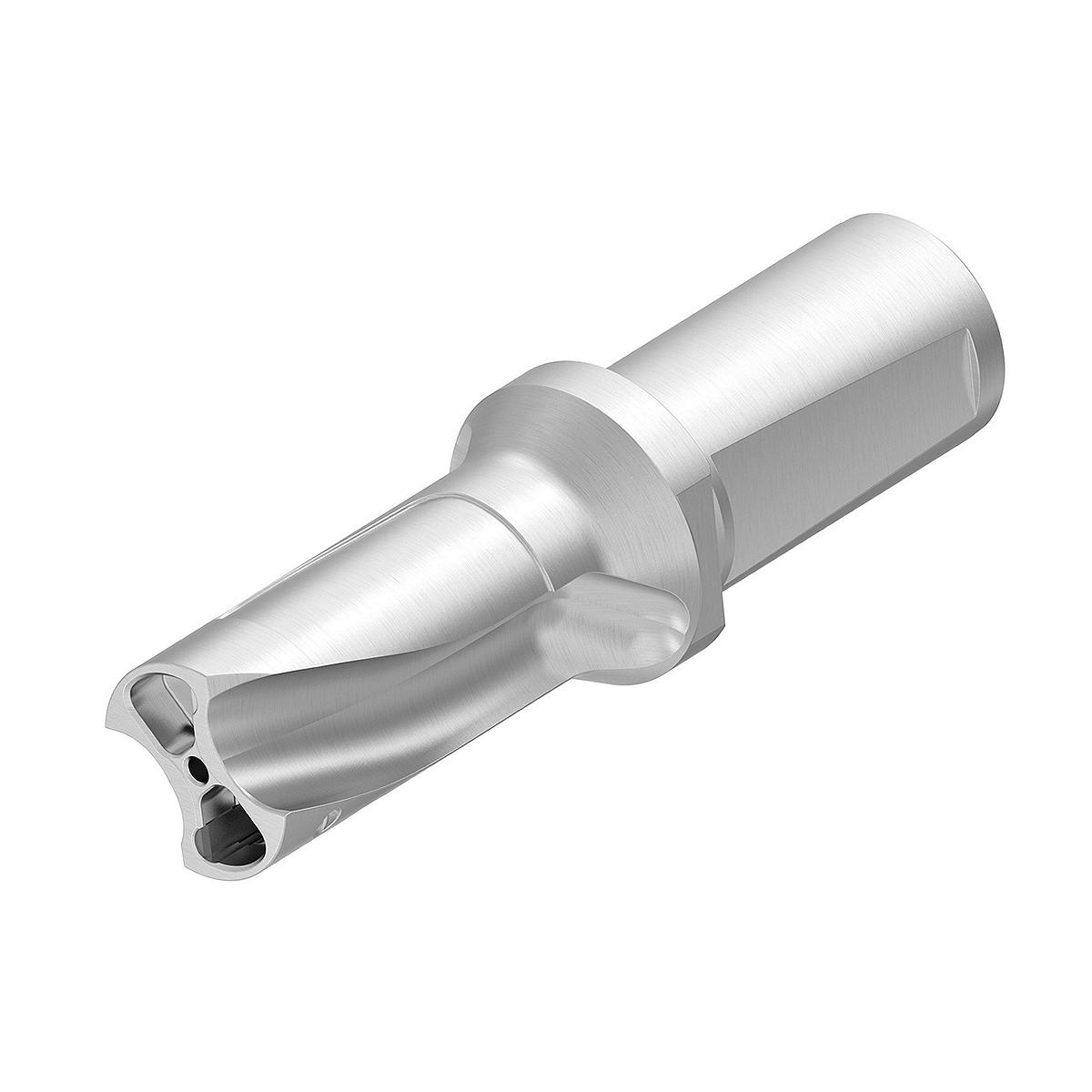

Хвостовики KSEM PLUS WD; 1,5 x D; Метрическая система. Корпуса KSEM PLUS с хвостовиком Whistle Notch 2°. Корпуса KSEM PLUS™

Особенности:

Размер головки KSEM PLUS должен соответствовать посадочному размеру корпуса (CSWS).
Головки KSEM PLUS заказываются отдельно; см. стр. [REFERENCE].
Ключ поставляется в комплекте с головкой KSEM PLUS.
Специальное решение с винтовыми канавками для обработки чугуна.

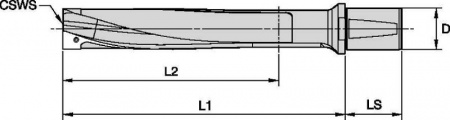

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[CSWS] System Size Workpiece Side	[L1] Gage Length	[L2] Usable Length
6123570	WD32FDS28076M	32.0	58.0	FDS28	76.0000	32.0000
6123571	WD32FDS32082M	32.0	58.0	FDS32	82.0000	34.0000
6123572	WD32FDS36092M	32.0	58.0	FDS36	92.0000	40.0000
6123573	WD50FDS40100M	50.0	68.0	FDS40	100.0000	43.0000
6123575	WD50FDS45112M	50.0	68.0	FDS45	112.0000	50.0000
6123576	WD50FDS50122M	50.0	68.0	FDS50	122.0000	54.0000
6123577	WD50FDS56140M	50.0	68.0	FDS56	140.0000	65.0000
6123578	WD50FDS63154M	50.0	68.0	FDS63	154.0000	71.0000
6123579	WD50FDS71172M	50.0	68.0	FDS71	172.0000	80.0000
6123580	WD50FDS80192M	50.0	68.0	FDS80	192.0000	90.0000
6123581	WD50FDS90212M	50.0	68.0	FDS90	212.0000	100.0000

Tolerance:

D1	tolerance h8 + / -
.500–.709	+.000/-.0010
.709–1.181	+.000/-.0013
1.181–1.575	+.000/-.0015

D1	tolerance h8 + / -
12,5–18	+0,000/-0,027
18–30	+0,000/-0,033
30–40	+0,000/-0,039

Режимы резания:

Metric
Material Group		Condition	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
			Range m/min			Recommended Feed Rate (fz) by Diameter
			Min	Starting Value	Max	Ø	KSEM 14….17 DFR/DFC04... 28.00 31,74	KSEM 15….18 DFT/DFC05… 31,74 35,99	KSEM 13….22 DFT/DFC06... 36,00 44,99	KSEM 18….28 DFT/DFC07... 45,00 55,99	KSEM 20….34 DFT/DFC09... 56,00 70
P	1	S	115	235	290	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	90	160	215	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	65	100	140	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	2	S	90	190	230	mm/r	0,160–0,280	0,160–0,280	0,200–0,360	0,200–0,400	0,200–0,450
		U	71	130	170	mm/r	0,160–0,280	0,160–0,280	0,200–0,360	0,200–0,400	0,200–0,450
		I	50	80	110	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	3	S	90	180	230	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	120	170	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	70	106	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	4	S	90	140	220	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	110	160	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	80	110	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	5	S	90	130	210	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	100	150	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	70	100	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	6	S	70	90	180	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	50	75	120	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	40	60	100	mm/r	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
M	1	S	60	110	135	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	40	70	90	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	30	50	65	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	2	S	60	100	135	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	40	60	90	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	30	50	65	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	3	S	50	90	135	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	40	60	90	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	25	40	65	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
K	1	S	90	170	230	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		U	60	120	160	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		I	40	70	90	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
	2	S	90	160	220	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		U	60	110	160	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		I	40	70	100	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
	3	S	90	150	210	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		U	60	100	150	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
		I	35	60	90	mm/r	0,180–0,300	0,180–0,300	0,216–0,360	0,240–0,420	0,300–0,480
N	1	S	150	240	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	160	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	100	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	2	S	150	220	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	150	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	100	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	3	S	150	200	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	140	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	90	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	4	S	150	200	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	140	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	90	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	5	S	150	200	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	140	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	90	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	6	S	150	200	360	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	100	140	240	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	60	90	160	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
	7	S	110	220	260	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		U	70	140	170	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
		I	45	90	110	mm/r	0,120–0,200	0,120–0,200	0,144–0,280	0,160–0,320	0,200–0,400
S	1	S	25	50	75	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	20	40	60	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	15	30	50	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	2	S	20	40	60	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	15	30	45	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	12	25	35	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	3	S	20	40	60	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	15	30	45	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	12	25	40	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	4	S	20	40	60	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	15	30	45	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	12	25	40	mm/r	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360

Inch
Material Group		Condition	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
			Range SFM			Recommended Feed Rate (fz) by Diameter
			Min	Starting Value	Max	Ø	KSEM 14….17 DFR/DFC04... 1.102 1.249	KSEM 15….18 DFT/DFC05… 1.250 1.416	KSEM 13….22 DFT/DFC06... 1.417 1.771	KSEM 18….28 DFT/DFC07... 1.772 2.204	KSEM 20….34 DFT/DFC09... 2.205 4.0295
P	1	S	370	775	944	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	290	532	698	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	205	327	451	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	2	S	295	623	755	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		U	233	427	558	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		I	164	262	361	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
	3	S	295	591	755	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		U	230	394	558	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		I	164	230	361	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
	4	S	295	459	722	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		U	230	361	525	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		I	264	262	361	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
	5	S	295	427	689	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		U	230	328	689	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		I	164	230	492	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
	6	S	230	295	591	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		U	164	246	394	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
		I	131	197	328	IPR	0.006–0.011	0.006–0.011	0.008–0.014	0.008–0.016	0.008–0.018
M	1	S	197	361	443	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	131	230	295	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	98	164	213	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	2	S	197	328	443	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	131	197	295	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	98	164	213	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	3	S	164	295	443	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	131	197	295	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	82	131	213	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
K	1	S	295	558	755	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		U	197	394	525	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		I	131	230	295	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
	2	S	295	525	722	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		U	197	361	525	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		I	131	230	328	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
	3	S	295	492	689	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		U	197	328	492	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
		I	115	197	295	IPR	0.007–0.012	0.007–0.012	0.009–0.014	0.009–0.017	0.012–0.019
N	1	S	492	787	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	525	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	328	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	2	S	492	722	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	492	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	328	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	3	S	492	722	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	492	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	328	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	4	S	492	722	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	492	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	328	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	5	S	492	722	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	492	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	328	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	6	S	492	656	1181	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	328	459	787	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	197	295	525	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
	7	S	361	722	853	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		U	230	459	558	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
		I	148	295	361	IPR	0.005–0.008	0.005–0.008	0.006–0.011	0.006–0.013	0.008–0.016
S	1	S	82	164	246	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	66	131	197	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	49	98	164	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	2	S	66	131	197	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	49	98	148	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	39	82	115	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	3	S	66	131	197	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	49	98	148	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	39	82	131	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
	4	S	66	131	197	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		U	49	98	148	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014
		I	39	82	131	IPR	0.005–0.010	0.005–0.010	0.006–0.011	0.006–0.013	0.008–0.014

Задать вопрос

Вопрос *

Ваше имя *

Телефон *

E-mail *

Подтвердите, что вы не робот *

Все товары категории

Все товары бренда KENNAMETAL

Нужна консультация?

Наши специалисты ответят на любой интересующий вопрос

Задать вопрос

Metric
		Condition	Cutting Speed vc
			Range m/min			Recommended Feed Rate (fz) by Diameter
Material Group			Min	Starting Value	Max	Ø	KSEM 14….17 DFR/DFC04... 28,00 31,74	KSEM 15….18 DFT/DFC05… 31,75 35,99	KSEM 13….22 DFT/DFC06... 36,00 44,99	KSEM 18….28 DFT/DFC07... 45,00 55,99	KSEM 20….34 DFT/DFC09... 56,00 70,00
P	1	S	115	235	290	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	90	160	215	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	65	100	140	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	2	S	90	190	230	mm/dev	0,160–0,280	0,160–0,280	0,200–0,360	0,200–0,400	0,200–0,450
		U	71	130	170	mm/dev	0,160–0,280	0,160–0,280	0,200–0,360	0,200–0,400	0,200–0,450
		I	50	80	110	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	3	S	90	180	230	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	120	170	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	70	106	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	4	S	90	140	220	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	110	160	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	80	110	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	5	S	90	130	210	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	70	100	150	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	50	70	100	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
	6	S	70	90	180	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		U	50	75	120	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
		I	40	60	100	mm/dev	0,160–0,280	0,160–0,280	0,200–0,320	0,200–0,400	0,200–0,450
M	1	S	60	110	135	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		U	40	70	90	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
		I	30	50	65	mm/dev	0,130–0,250	0,130–0,250	0,160–0,280	0,160–0,320	0,200–0,360
	2	S	60	100	135	mm/dev
