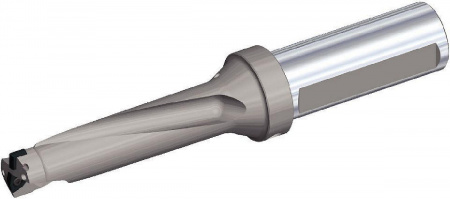

DFSP Flanged Shank; Right Hand; 4 x D

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DFSP Flanged Shank; Right Hand; 4 x D. Drill Fix DFSP Bodies. Drill Fix DFSP • Метрическая система

Особенности:

DFSP combines the economical squared outboard insert with the superior centering capabilities of the trigon inboard insert.
Drill shipped with insert screws, side pipe plug, and Torx wrench.
Order inserts for DFSP separately. See pages [REFERENCE] for inserts.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: X-Offset
Drilling: Convex
Shank - Cylindrical with Flat and Flange
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[L5] Drill Point Length	Gage Insert	Gage Insert 2	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L1] Insert Gage Length	[CS] Coolant Supply Size	[CF] Coolant Size Radial	[D1MAX] Drill Diameter Maximum
5689822	DFSP0750R4SSF100	25.4	76.2	0.5800	SPGX0603..	DFT0303..	76.2000	19.0500	100.5000	1/4 - 18 NPT	1/8 - 27 NPT	20.0510
5689825	DFSP0781R4SSF100	25.4	76.2	0.6200	SPGX0603..	DFT0303..	79.3500	19.8370	104.0900	1/4 - 18 NPT	1/8 - 27 NPT	20.8380
5689827	DFSP0813R4SSF100	25.4	76.2	0.6600	SPGX0603..	DFT0303..	82.6010	20.6500	107.7500	1/4 - 18 NPT	1/8 - 27 NPT	21.6510
5689829	DFSP0844R4SSF100	25.4	76.2	0.7000	SPGX0603..	DFT0303..	85.7500	21.4380	111.2500	1/4 - 18 NPT	1/8 - 27 NPT	22.4380
5689831	DFSP0875R4SSF100	25.4	76.2	0.5200	SPGX0703..	DFT05T3..	88.9000	22.2250	114.7500	1/4 - 18 NPT	1/8 - 27 NPT	23.2260
5689833	DFSP0906R4SSF100	25.4	76.2	0.5700	SPGX0703..	DFT05T3..	92.0500	23.0120	118.2500	1/4 - 18 NPT	1/8 - 27 NPT	24.0130
5689835	DFSP0938R4SSF100	25.4	76.2	0.6200	SPGX0703..	DFT05T3..	95.3010	23.8250	122.0000	1/4 - 18 NPT	1/8 - 27 NPT	24.8260
5689837	DFSP0969R4SSF100	25.4	76.2	0.6700	SPGX0703..	DFT05T3..	98.4500	24.6130	125.5000	1/4 - 18 NPT	1/8 - 27 NPT	25.6130
5689838	DFSP0984R4SSF100	25.4	76.2	0.6900	SPGX0703..	DFT05T3..	99.9740	24.9940	127.2500	1/4 - 18 NPT	1/8 - 27 NPT	25.9950
5691897	DFSP1000R4SSF100	25.4	76.2	0.7100	SPGX0703..	DFT05T3..	101.6000	25.4000	133.3500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691898	DFSP1000R4SSF125	31.75	82.55	0.7100	SPGX0703..	DFT05T3..	101.6000	25.4000	133.3500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691899	DFSP1000R4SSF150	38.1	95.25	0.7100	SPGX0703..	DFT05T3..	101.6000	25.4000	133.3500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5692150	DFSP1031R4SSF125	31.75	82.55	0.7200	SPPX09T3..	DFT05T3..	104.7500	26.1870	139.6700	1/4 -18 NPT	1/8 - 27 NPT	27.2030
5692151	DFSP1063R4SSF125	31.75	82.55	0.7600	SPPX09T3..	DFT05T3..	107.9500	27.0000	142.8700	1/4 -18 NPT	1/8 - 27 NPT	28.0160
5692152	DFSP1094R4SSF125	31.75	82.55	0.7900	SPPX09T3..	DFT05T3..	111.1500	27.7880	146.0800	1/4 -18 NPT	1/8 - 27 NPT	28.8040
5692153	DFSP1125R4SSF125	31.75	82.55	0.8300	SPPX09T3..	DFT05T3..	114.3000	28.5750	152.4000	1/4 -18 NPT	1/8 - 27 NPT	29.5910
5692154	DFSP1156R4SSF125	31.75	82.55	0.8600	SPPX09T3..	DFT05T3..	117.4500	29.3620	155.5500	1/4 -18 NPT	1/8 - 27 NPT	30.3780
5692156	DFSP1188R4SSF125	31.75	82.55	0.9000	SPPX09T3..	DFT05T3..	120.7010	30.1750	158.8000	1/4 -18 NPT	1/8 - 27 NPT	31.1910
5692157	DFSP1219R4SSF125	31.75	82.55	0.9300	SPPX09T3..	DFT05T3..	123.8500	30.9630	165.1300	1/4 -18 NPT	1/8 - 27 NPT	31.9790
5692158	DFSP1250R4SSF125	31.75	82.55	0.9600	SPPX09T3..	DFT05T3..	127.0000	31.7500	168.2700	1/4 -18 NPT	1/8 - 27 NPT	32.7660
5692159	DFSP1250R4SSF150	38.1	95.25	0.9600	SPPX09T3..	DFT05T3..	127.0000	31.7500	168.2700	1/4 -18 NPT	1/8 - 27 NPT	32.7660
5692200	DFSP1313R4SSF125	31.75	82.55	0.9000	SPPX1204..	DFT06T3..	133.4010	33.3500	174.6800	1/4 -18 NPT	1/8 - 27 NPT	34.3660
5692201	DFSP1375R4SSF125	31.75	82.55	0.9800	SPPX1204..	DFT06T3..	139.7000	34.9250	180.9700	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5692202	DFSP1375R4SSF150	38.1	95.25	0.9800	SPPX1204..	DFT06T3..	139.7000	34.9250	180.9700	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5692203	DFSP1406R4SSF150	38.1	95.25	1.0200	SPPX1204..	DFT06T3..	142.8500	35.7120	184.1200	1/4 -18 NPT	1/8 - 27 NPT	36.7280
5692204	DFSP1438R4SSF125	31.75	82.55	1.0600	SPPX1204..	DFT06T3..	146.1010	36.5250	190.5500	1/4 -18 NPT	1/8 - 27 NPT	37.5410
5692205	DFSP1500R4SSF125	31.75	82.55	1.1300	SPPX1204..	DFT06T3..	152.4000	38.1000	196.8500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5692206	DFSP1500R4SSF150	38.1	95.25	1.1300	SPPX1204..	DFT06T3..	152.4000	38.1000	196.8500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5692208	DFSP1563R4SSF150	38.1	95.25	1.2000	SPPX1204..	DFT06T3..	158.8010	39.7000	203.2500	1/4 -18 NPT	1/8 - 27 NPT	40.7160
5692209	DFSP1625R4SSF150	38.1	95.25	1.2400	SPPX1204..	DFT0704..	165.1000	41.2750	209.5500	1/4 -18 NPT	1/8 - 27 NPT	42.2910
5692210	DFSP1656R4SSF150	38.1	95.25	1.2700	SPPX1204..	DFT0704..	168.2500	42.0620	212.3100	1/4 -18 NPT	1/8 - 27 NPT	43.0780
5692211	DFSP1750R4SSF150	38.1	95.25	1.3800	SPPX15T5..	DFT0704..	177.8000	44.4500	222.2500	1/4 -18 NPT	1/8 - 27 NPT	45.4660
5692212	DFSP1813R4SSF150	38.1	95.25	1.1400	SPPX15T5..	DFT0704..	184.2010	46.0500	231.8300	1/4 -18 NPT	1/8 - 27 NPT	47.0660
5692213	DFSP1875R4SSF150	38.1	95.25	1.5200	SPPX15T5..	DFT0704..	190.5000	47.6250	238.1200	1/4 -18 NPT	1/8 - 27 NPT	48.6250
5692214	DFSP1938R4SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0905..	196.9010	49.2250	247.7000	1/4 -18 NPT	1/8 - 27 NPT	50.2250
5692215	DFSP2000R4SSF150	38.1	95.25	1.5400	SPPX15T5..	DFT0905..	203.2000	50.8000	254.0000	1/4 -18 NPT	1/8 - 27 NPT	51.8000
5692216	DFSP2000R4SSF200	50.8	101.6	1.5400	SPPX15T5..	DFT0905..	203.2000	50.8000	254.0000	1/4 -18 NPT	1/8 - 27 NPT	51.8000
5692217	DFSP2125R4SSF150	38.1	95.25	1.7000	SPPX15T5..	DFT0905..	215.9000	53.9750	269.8700	1/4 -18 NPT	1/8 - 27 NPT	54.9750
5692218	DFSP2125R4SSF200	50.8	101.6	1.7000	SPPX15T5..	DFT0905..	215.9000	53.9750	269.8700	1/4 -18 NPT	1/8 - 27 NPT	54.9750

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

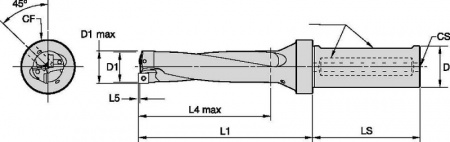

Dimension:


D	LS	CF	CS	pipe plug
0.750	2.00	1/8-27 NPT	R 1/8-27 NPT	1025612
1.000	3.00	1/8-27 NPT	R 1/4-18 NPT	1025612
1.250	3.25	1/8-27 NPT	R 1/4-18 NPT	1025612
1.500	3.75	1/8-27 NPT	R 1/4-18 NPT	1025612
2.000	4.00	1/8-27 NPT	R 1/4-18 NPT	1025612

Режимы резания:

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	S	I	MD	KC7140	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	U	I	MD	KC7140	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	I	MD	KC7140	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	S	I	MD	KC7140	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	U	I	MD	KC7140	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	I	MD	KC7140	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
M	1	S	O	FP	KCU25	492	623	754	SFM	0.0020–0.0035	0.0024–0.0047	0.0031–0.0059	0.0047–0.0079	0.0055–0.0098	0.0063–0.0110
			I	MD	KC7140
		U	O	MD	KCU40	328	426	525	SFM	0.0012–0.0020	0.0016–0.0028	0.0020–0.0035	0.0028–0.0051	0.0031–0.0063	0.0039–0.0079
			I	MD	KC7140
		I	O	MD	KC7140	197	262	328	SFM	0.0012–0.0020	0.0016–0.0028	0.0020–0.0035	0.0028–0.0051	0.0031–0.0063	0.0039–0.0071
			I	MD	KC7140
	2	S	O	FP	KCU25	492	590	689	SFM	0.0020–0.0035	0.0024–0.0047	0.0031–0.0059	0.0047–0.0079	0.0055–0.0098	0.0063–0.0110
			I	MD	KC7140
		U	O	MD	KCU40	328	426	525	SFM	0.0012–0.0020	0.0016–0.0028	0.0020–0.0035	0.0028–0.0051	0.0031–0.0063	0.0039–0.0079
			I	MD	KC7140
