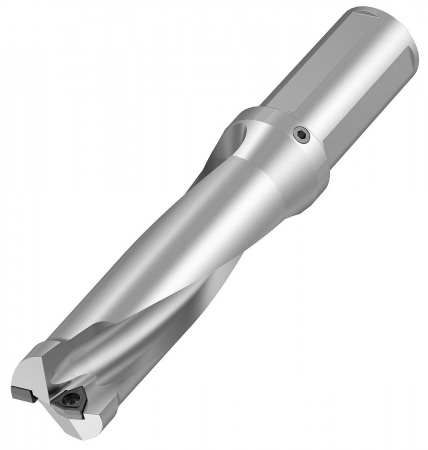

DFSP Flanged Shank; Right Hand; 3 x D

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DFSP Flanged Shank; Right Hand; 3 x D. Drill Fix DFSP Bodies. Drill Fix DFSP • Метрическая система

Особенности:

DFSP combines the economical squared outboard insert with the superior centering capabilities of the trigon inboard insert.
Drill shipped with insert screws, side pipe plug, and Torx wrench.
Order inserts for DFSP separately. See pages [REFERENCE] for inserts.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: X-Offset
Drilling: Convex
Shank - Cylindrical with Flat and Flange
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[L5] Drill Point Length	Gage Insert	Gage Insert 2	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L1] Insert Gage Length	[CS] Coolant Supply Size	[CF] Coolant Size Radial	[D1MAX] Drill Diameter Maximum
5689646	DFSP0563R3SSF075	19.05	50.8	0.3500	SPGX0502..	DFTX202..	42.9010	14.3000	66.6200	1/8 - 27 NPT	1/8 - 27 NPT	15.3010
5689647	DFSP0594R3SSF075	19.05	50.8	0.3800	SPGX0502..	DFTX202..	45.2630	15.0880	69.0000	1/8 - 27 NPT	1/8 - 27 NPT	16.0880
5689648	DFSP0625R3SSF075	19.05	50.8	0.4000	SPGX0502..	DFTX202..	47.6250	15.8750	71.3380	1/8 - 27 NPT	1/8 - 27 NPT	16.8760
5689649	DFSP0656R3SSF075	19.05	50.8	0.4600	SPGX0502..	DFTX202..	49.9870	16.6620	73.8700	1/8 - 27 NPT	1/8 - 27 NPT	17.6630
5689670	DFSP0688R3SSF075	19.05	50.8	0.5100	SPGX0502..	DFTX202..	52.4260	17.4750	76.2500	1/8 - 27 NPT	1/8 - 27 NPT	18.4760
5689671	DFSP0703R3SSF075	19.05	50.8	0.5100	SPGX0603..	DFT0303..	53.5690	17.8560	77.5000	1/8 - 27 NPT	1/8 - 27 NPT	18.8570
5689672	DFSP0734R3SSF075	19.05	50.8	0.5600	SPGX0603..	DFT0303..	55.9310	18.6440	80.7500	1/8 - 27 NPT	1/8 - 27 NPT	19.6440
5689673	DFSP0750R3SSF100	25.4	76.2	0.5800	SPGX0603..	DFT0303..	57.1500	19.0500	81.5000	1/4 - 18 NPT	1/8 - 27 NPT	20.0510
5689674	DFSP0781R3SSF100	25.4	76.2	0.6200	SPGX0603..	DFT0303..	59.5120	19.8370	84.2500	1/4 - 18 NPT	1/8 - 27 NPT	20.8380
5689675	DFSP0813R3SSF100	25.4	76.2	0.6600	SPGX0603..	DFT0303..	61.9510	20.6500	87.0000	1/4 - 18 NPT	1/8 - 27 NPT	21.6510
5689676	DFSP0844R3SSF100	25.4	76.2	0.7000	SPGX0603..	DFT0303..	64.3130	21.4380	89.7500	1/4 - 18 NPT	1/8 - 27 NPT	22.4390
5689677	DFSP0875R3SSF100	25.4	76.2	0.5200	SPGX0703..	DFT05T3..	66.6750	22.2250	92.6000	1/4 - 18 NPT	1/8 - 27 NPT	23.2260
5689678	DFSP0906R3SSF100	25.4	76.2	0.5700	SPGX0703..	DFT05T3..	69.0370	23.0120	95.2500	1/4 - 18 NPT	1/8 - 27 NPT	24.0130
5689679	DFSP0938R3SSF100	25.4	76.2	0.6200	SPGX0703..	DFT05T3..	71.4760	23.8250	98.1200	1/4 - 18 NPT	1/8 - 27 NPT	24.8260
5689680	DFSP0969R3SSF100	25.4	76.2	0.6700	SPGX0703..	DFT05T3..	73.8380	24.6130	101.0000	1/4 - 18 NPT	1/8 - 27 NPT	25.6130
5689681	DFSP0984R3SSF100	25.4	76.2	0.6900	SPGX0703..	DFT05T3..	74.9810	24.9940	102.2500	1/4 - 18 NPT	1/8 - 27 NPT	25.9950
5691735	DFSP1000R3SSF100	25.4	76.2	0.7100	SPGX0703..	DFT05T3..	76.2000	25.4000	107.9500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691736	DFSP1000R3SSF125	31.75	82.55	0.7100	SPGX0703..	DFT05T3..	76.2000	25.4000	107.9500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691737	DFSP1000R3SSF150	38.1	95.25	0.7100	SPGX0703..	DFT05T3..	76.2000	25.4000	107.9500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691738	DFSP1031R3SSF125	31.75	82.55	0.7200	SPPX09T3..	DFT05T3..	78.5620	26.1870	113.4900	1/4 -18 NPT	1/8 - 27 NPT	27.2030
5691739	DFSP1063R3SSF125	31.75	82.55	0.7600	SPPX09T3..	DFT05T3..	81.0010	27.0000	115.9300	1/4 -18 NPT	1/8 - 27 NPT	28.0160
5691790	DFSP1094R3SSF125	31.75	82.55	0.7900	SPPX09T3..	DFT05T3..	83.3630	27.7880	118.2900	1/4 -18 NPT	1/8 - 27 NPT	28.8040
5691791	DFSP1125R3SSF125	31.75	82.55	0.8300	SPPX09T3..	DFT05T3..	85.7250	28.5750	123.8200	1/4 -18 NPT	1/8 - 27 NPT	29.5910
5691792	DFSP1156R3SSF125	31.75	82.55	0.8600	SPPX09T3..	DFT05T3..	88.0870	29.3620	126.1900	1/4 -18 NPT	1/8 - 27 NPT	30.3780
5691793	DFSP1188R3SSF125	31.75	82.55	0.9000	SPPX09T3..	DFT05T3..	90.5260	30.1750	128.6300	1/4 -18 NPT	1/8 - 27 NPT	31.1910
5691794	DFSP1219R3SSF125	31.75	82.55	0.9300	SPPX09T3..	DFT05T3..	92.8880	30.9630	134.1600	1/4 -18 NPT	1/8 - 27 NPT	31.9790
5691795	DFSP1250R3SSF125	31.75	82.55	0.9600	SPPX09T3..	DFT05T3..	95.2500	31.7500	136.5200	1/4 -18 NPT	1/8 - 27 NPT	32.7660
5691796	DFSP1281R3SSF125	31.75	82.55	0.9900	SPPX09T3..	DFT05T3..	97.6120	32.5370	138.8900	1/4 -18 NPT	1/8 - 27 NPT	33.5530
5691797	DFSP1313R3SSF125	31.75	82.55	0.9000	SPPX1204..	DFT06T3..	100.0510	33.3500	141.3300	1/4 -18 NPT	1/8 - 27 NPT	34.3660
5691798	DFSP1313R3SSF150	38.1	95.25	0.9000	SPPX1204..	DFT06T3..	100.0510	33.3500	141.3300	1/4 -18 NPT	1/8 - 27 NPT	34.3660
5691799	DFSP1375R3SSF125	31.75	82.55	0.9800	SPPX1204..	DFT06T3..	104.7750	34.9250	146.0500	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5691800	DFSP1375R3SSF150	38.1	95.25	0.9800	SPPX1204..	DFT06T3..	104.7750	34.9250	146.0500	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5691801	DFSP1438R3SSF125	31.75	82.55	1.0600	SPPX1204..	DFT06T3..	109.5760	36.5250	154.0300	1/4 -18 NPT	1/8 - 27 NPT	37.5410
5691802	DFSP1469R3SSF125	31.75	82.55	1.1000	SPPX1204..	DFT06T3..	111.9380	37.3130	156.3900	1/4 -18 NPT	1/8 - 27 NPT	38.3290
5691803	DFSP1500R3SSF125	31.75	82.55	1.1300	SPPX1204..	DFT06T3..	114.3000	38.1000	158.7500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5691804	DFSP1500R3SSF150	38.1	95.25	1.1300	SPPX1204..	DFT06T3..	114.3000	38.1000	158.7500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5691805	DFSP1563R3SSF150	38.1	95.25	1.2000	SPPX1204..	DFT06T3..	119.1010	39.7000	163.5500	1/4 -18 NPT	1/8 - 27 NPT	40.7160
5691806	DFSP1625R3SSF125	31.75	82.55	1.2400	SPPX1204..	DFT0704..	123.8250	41.2750	168.2700	1/4 -18 NPT	1/8 - 27 NPT	42.2750
5691807	DFSP1625R3SSF150	38.1	95.25	1.2400	SPPX1204..	DFT0704..	123.8250	41.2750	168.2700	1/4 -18 NPT	1/8 - 27 NPT	42.2750
5691808	DFSP1656R3SSF150	38.1	95.25	1.2700	SPPX1204..	DFT0704..	126.1870	42.0620	170.2500	1/4 -18 NPT	1/8 - 27 NPT	43.0620
5691809	DFSP1688R3SSF150	38.1	95.25	1.3100	SPPX1204..	DFT0704..	128.6260	42.8750	173.0800	1/4 -18 NPT	1/8 - 27 NPT	43.8750
5691810	DFSP1750R3SSF150	38.1	95.25	1.3800	SPPX15T5..	DFT0704..	133.3500	44.4500	177.8000	1/4 -18 NPT	1/8 - 27 NPT	45.4500
5691811	DFSP1813R3SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0704..	138.1510	46.0500	185.7800	1/4 -18 NPT	1/8 - 27 NPT	47.0500
5691812	DFSP1875R3SSF150	38.1	95.25	1.5200	SPPX15T5..	DFT0704..	142.8750	47.6250	190.5000	1/4 -18 NPT	1/8 - 27 NPT	48.6250
5691813	DFSP1938R3SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0905..	147.6760	49.2250	198.4800	1/4 -18 NPT	1/8 - 27 NPT	50.2250
5691814	DFSP2000R3SSF150	38.1	95.25	1.5400	SPPX15T5..	DFT0905..	152.4000	50.8000	203.2000	1/4 -18 NPT	1/8 - 27 NPT	51.8000
5691815	DFSP2000R3SSF200	50.8	101.6	1.5400	SPPX15T5..	DFT0905..	152.4000	50.8000	203.2000	1/4 -18 NPT	1/8 - 27 NPT	51.8000
5691816	DFSP2125R3SSF150	38.1	95.25	1.7000	SPPX15T5..	DFT0905..	161.9250	53.9750	215.9000	1/4 -18 NPT	1/8 - 27 NPT	54.9750
5691817	DFSP2125R3SSF200	50.8	101.6	1.7000	SPPX15T5..	DFT0905..	161.9250	53.9750	215.9000	1/4 -18 NPT	1/8 - 27 NPT	54.9750

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

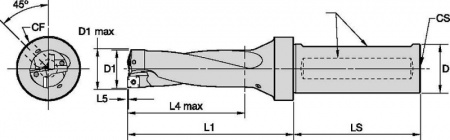

Dimension:


D	LS	CF	CS	pipe plug
0.750	2.00	1/8-27 NPT	R 1/8-27 NPT	1025612
1.000	3.00	1/8-27 NPT	R 1/4-18 NPT	1025612
1.250	3.25	1/8-27 NPT	R 1/4-18 NPT	1025612
1.500	3.75	1/8-27 NPT	R 1/4-18 NPT	1025612
2.000	4.00	1/8-27 NPT	R 1/4-18 NPT	1025612

Режимы резания:

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	S	I	MD	KC7140	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	U	I	MD	KC7140	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	I	MD	KC7140	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	S	I	MD	KC7140	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	U	I	MD	KC7140	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	I	MD	KC7140	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098

Inch
Material Group	Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
					Range SFM
					Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT Задать вопрос Вопрос * Ваше имя * Телефон * E-mail * Подтвердите, что вы не робот * Все товары категории Все товары бренда KENNAMETAL Нужна консультация? Наши специалисты ответят на любой интересующий вопрос Задать вопрос Каталог Подбор запчастей Ремонт Доставка Контакты Магнитно-сверлильные станки Корончатые сверла Станки для сверления труб Промышленные пылесосы Ленточно-шлифовальные станки Фаскосниматели Труборезы Трубогибы Отрезные станки Газорезательные машины Опоры для труб Металлорежущий инстурмент Станочная оснастка Динамометрический инстурмент Ручной инструмент Knipex Ручной инструмент Wera +7 495 979-05-66 Заказать звонок info@metal-tek.ru Москва, ул. Кирпичная, д. 48 2006 - 2026 © МЕТАЛ-ТЕК - продажа оборудования и инструмента для металлообработки.
