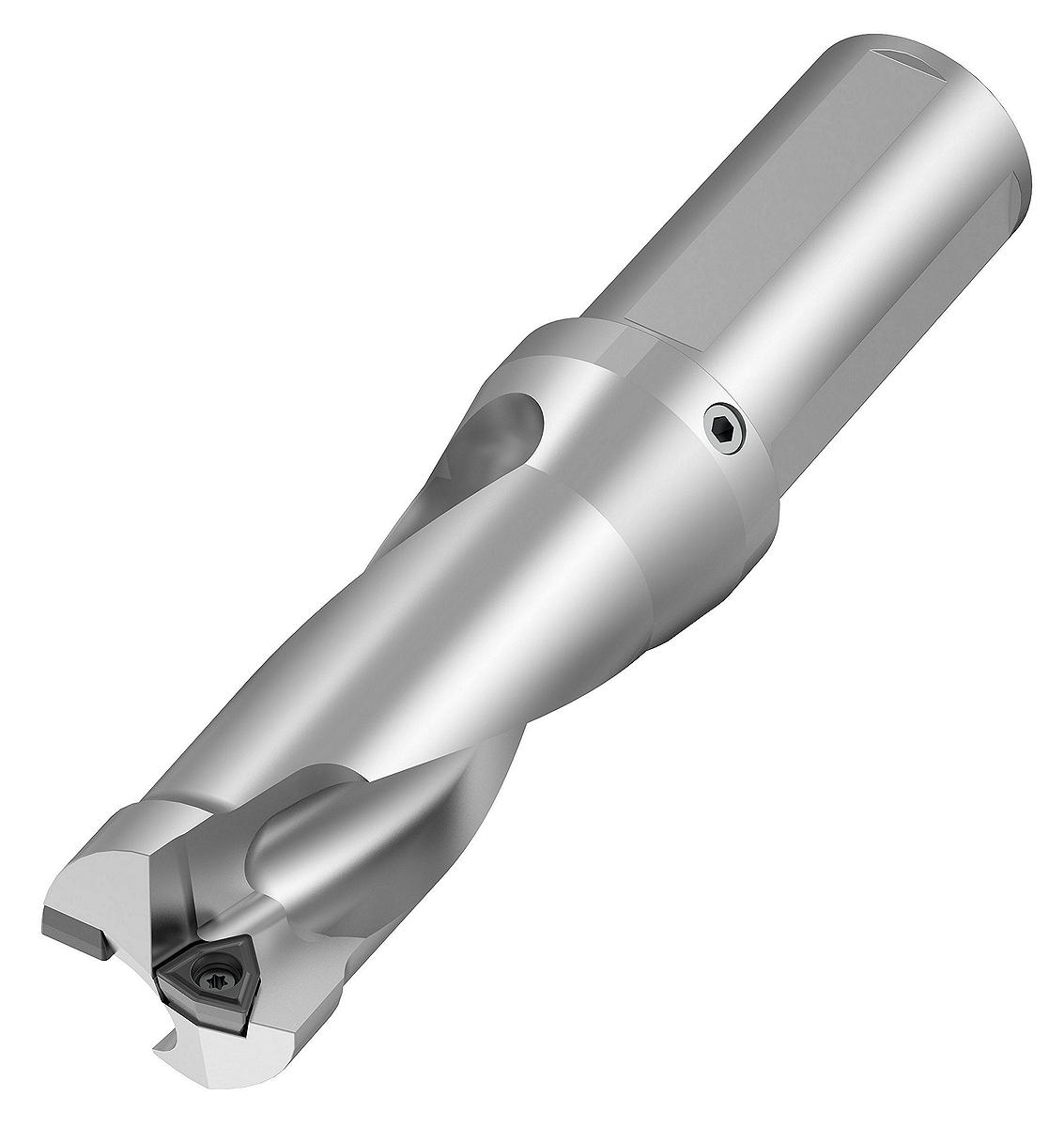

DFSP Flanged Shank; Right Hand; 2 x D

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DFSP Flanged Shank; Right Hand; 2 x D. Drill Fix DFSP Bodies. Drill Fix DFSP • Метрическая система

Особенности:

DFSP combines the economical squared outboard insert with the superior centering capabilities of the trigon inboard insert.
Drill shipped with insert screws, side pipe plug, and Torx wrench.
Order inserts for DFSP separately. See pages [REFERENCE] for inserts.

Применение:

Drilling: X-Offset
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: Convex
Drilling
Shank - Cylindrical with Flat and Flange
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[L5] Drill Point Length	Gage Insert	Gage Insert 2	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L1] Insert Gage Length	[CS] Coolant Supply Size	[CF] Coolant Size Radial	[D1MAX] Drill Diameter Maximum
5689602	DFSP0563R2SSF075	19.05	50.8	0.3500	SPGX0502..	DFTX202..	28.6000	14.3000	52.3700	1/8 - 27 NPT	1/8 - 27 NPT	15.3010
5689603	DFSP0594R2SSF075	19.05	50.8	0.3800	SPGX0502..	DFTX202..	30.1750	15.0880	54.0000	1/8 - 27 NPT	1/8 - 27 NPT	16.0880
5689604	DFSP0625R2SSF075	19.05	50.8	0.4000	SPGX0502..	DFTX202..	31.7500	15.8750	55.5000	1/8 - 27 NPT	1/8 - 27 NPT	16.8760
5689605	DFSP0656R2SSF075	19.05	50.8	0.4600	SPGX0502..	DFTX202..	33.3250	16.6620	57.2500	1/8 - 27 NPT	1/8 - 27 NPT	17.6630
5689606	DFSP0688R2SSF075	19.05	50.8	0.5100	SPGX0502..	DFTX202..	34.9500	17.4750	58.7500	1/8 - 27 NPT	1/8 - 27 NPT	18.4760
5689607	DFSP0703R2SSF075	19.05	50.8	0.5100	SPGX0603..	DFT0303..	35.7120	17.8560	59.5000	1/8 - 27 NPT	1/8 - 27 NPT	18.8570
5689608	DFSP0734R2SSF075	19.05	50.8	0.5600	SPGX0603..	DFT0303..	37.2870	18.6440	61.3700	1/8 - 27 NPT	1/8 - 27 NPT	19.6440
5689609	DFSP0750R2SSF100	25.4	76.2	0.5800	SPGX0603..	DFT0303..	38.1000	19.0500	62.5000	1/4 - 18 NPT	1/8 - 27 NPT	20.0510
5689620	DFSP0781R2SSF100	25.4	76.2	0.6200	SPGX0603..	DFT0303..	39.6750	19.8370	64.5000	1/4 - 18 NPT	1/8 - 27 NPT	20.8380
5689621	DFSP0813R2SSF100	25.4	76.2	0.6600	SPGX0603..	DFT0303..	41.3000	20.6500	66.5000	1/4 - 18 NPT	1/8 - 27 NPT	21.6510
5689622	DFSP0844R2SSF100	25.4	76.2	0.7000	SPGX0603..	DFT0303..	42.8750	21.4380	68.5000	1/4 - 18 NPT	1/8 - 27 NPT	22.4380
5689623	DFSP0875R2SSF100	25.4	76.2	0.5200	SPGX0703..	DFT05T3..	44.4500	22.2250	70.3700	1/4 - 18 NPT	1/8 - 27 NPT	23.2260
5689624	DFSP0906R2SSF100	25.4	76.2	0.5700	SPGX0703..	DFT05T3..	46.0250	23.0120	72.2500	1/4 - 18 NPT	1/8 - 27 NPT	24.0130
5689625	DFSP0938R2SSF100	25.4	76.2	0.6200	SPGX0703..	DFT05T3..	47.6500	23.8250	74.3700	1/4 - 18 NPT	1/8 - 27 NPT	24.8260
5689626	DFSP0969R2SSF100	25.4	76.2	0.6700	SPGX0703..	DFT05T3..	49.2250	24.6130	76.5000	1/4 - 18 NPT	1/8 - 27 NPT	25.6130
5689627	DFSP0984R2SSF100	25.4	76.2	0.6900	SPGX0703..	DFT05T3..	49.9870	24.9940	77.2600	1/4 - 18 NPT	1/8 - 27 NPT	25.9940
5691818	DFSP1000R2SSF100	25.4	76.2	0.7100	SPGX0703..	DFT05T3..	50.8000	25.4000	82.5500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691819	DFSP1000R2SSF125	31.75	82.55	0.7100	SPGX0703..	DFT05T3..	50.8000	25.4000	82.5500	1/4 -18 NPT	1/8 - 27 NPT	26.4160
5691830	DFSP1000R2SSF150	38.1	95.25	0.7100	SPGX0703..	DFT05T3..	50.8000	25.4000	82.5500	1/4 -18 NPT	1/8 - 27 NPT	26.4000
5691831	DFSP1031R2SSF125	31.75	82.55	0.7200	SPPX09T3..	DFT05T3..	52.3750	26.1870	87.3000	1/4 -18 NPT	1/8 - 27 NPT	27.2030
5691832	DFSP1063R2SSF125	31.75	82.55	0.7600	SPPX09T3..	DFT05T3..	53.9750	27.0000	88.9000	1/4 -18 NPT	1/8 - 27 NPT	28.0160
5691833	DFSP1094R2SSF125	31.75	82.55	0.7900	SPPX09T3..	DFT05T3..	55.5750	27.7880	90.5000	1/4 -18 NPT	1/8 - 27 NPT	28.8040
5691834	DFSP1125R2SSF125	31.75	82.55	0.8300	SPPX09T3..	DFT05T3..	57.1500	28.5750	95.2500	1/4 -18 NPT	1/8 - 27 NPT	29.5910
5691835	DFSP1156R2SSF125	31.75	82.55	0.8600	SPPX09T3..	DFT05T3..	58.7250	29.3620	96.8200	1/4 -18 NPT	1/8 - 27 NPT	30.3780
5691836	DFSP1188R2SSF125	31.75	82.55	0.9000	SPPX09T3..	DFT05T3..	60.3500	30.1750	98.4500	1/4 -18 NPT	1/8 - 27 NPT	31.1910
5691837	DFSP1219R2SSF125	31.75	82.55	0.9300	SPPX09T3..	DFT05T3..	61.9250	30.9630	103.2000	1/4 -18 NPT	1/8 - 27 NPT	31.9790
5691838	DFSP1250R2SSF125	31.75	82.55	0.9600	SPPX09T3..	DFT05T3..	63.5000	31.7500	104.7700	1/4 -18 NPT	1/8 - 27 NPT	32.7660
5691839	DFSP1313R2SSF125	31.75	82.55	0.9000	SPPX1204..	DFT06T3..	66.7000	33.3500	107.9800	1/4 -18 NPT	1/8 - 27 NPT	34.3660
5691840	DFSP1313R2SSF150	38.1	82.55	0.9000	SPPX1204..	DFT06T3..	66.7000	33.3500	107.9800	1/4 -18 NPT	1/8 - 27 NPT	34.3660
5691841	DFSP1375R2SSF125	31.75	82.55	0.9800	SPPX1204..	DFT06T3..	69.8500	34.9250	111.1200	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5691842	DFSP1375R2SSF150	38.1	95.25	0.9800	SPPX1204..	DFT06T3..	69.8500	34.9250	111.1200	1/4 -18 NPT	1/8 - 27 NPT	35.9410
5691843	DFSP1438R2SSF125	31.75	82.55	1.0600	SPPX1204..	DFT06T3..	73.0500	36.5250	117.5000	1/4 -18 NPT	1/8 - 27 NPT	37.5410
5691844	DFSP1469R2SSF125	31.75	82.55	1.1000	SPPX1204..	DFT06T3..	74.6250	37.3130	119.0800	1/4 -18 NPT	1/8 - 27 NPT	38.3290
5691845	DFSP1500R2SSF125	31.75	82.55	1.1300	SPPX1204..	DFT06T3..	76.2000	38.1000	120.6500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5691846	DFSP1500R2SSF150	38.1	95.25	1.1300	SPPX1204..	DFT06T3..	76.2000	38.1000	120.6500	1/4 -18 NPT	1/8 - 27 NPT	39.1160
5691847	DFSP1563R2SSF125	31.75	82.55	1.2000	SPPX1204..	DFT06T3..	79.4000	39.7000	123.8500	1/4 -18 NPT	1/8 - 27 NPT	40.7160
5691848	DFSP1563R2SSF150	38.1	92.25	1.2000	SPPX1204..	DFT06T3..	79.4000	39.7000	123.8500	1/4 -18 NPT	1/8 - 27 NPT	40.7160
5691849	DFSP1625R2SSF125	31.75	82.55	1.2400	SPPX1204..	DFT0704..	82.5500	41.2750	127.0000	1/4 -18 NPT	1/8 - 27 NPT	42.2910
5691850	DFSP1625R2SSF150	38.1	95.25	1.2400	SPPX1204..	DFT0704..	82.5500	41.2750	127.0000	1/4 -18 NPT	1/8 - 27 NPT	42.2910
5691851	DFSP1656R2SSF150	38.1	95.25	1.2700	SPPX1204..	DFT0704..	84.1250	42.0620	128.5700	1/4 -18 NPT	1/8 - 27 NPT	43.0780
5691852	DFSP1688R2SSF150	38.1	95.25	1.3100	SPPX1204..	DFT0704..	85.7500	42.8750	130.2000	1/4 -18 NPT	1/8 - 27 NPT	43.8910
5691853	DFSP1750R2SSF150	38.1	95.25	1.3800	SPPX15T5..	DFT0704..	88.9000	44.4500	133.3500	1/4 -18 NPT	1/8 - 27 NPT	45.4660
5691854	DFSP1813R2SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0704..	92.1000	46.0500	139.7300	1/4 -18 NPT	1/8 - 27 NPT	47.0660
5691855	DFSP1875R2SSF150	38.1	95.25	1.5200	SPPX15T5..	DFT0704..	95.2500	47.6250	142.8800	1/4 -18 NPT	1/8 - 27 NPT	48.6410
5691856	DFSP1938R2SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0905..	98.4500	49.2250	149.2500	1/4 -18 NPT	1/8 - 27 NPT	50.2410
5691857	DFSP2000R2SSF150	38.1	95.25	1.5400	SPPX15T5..	DFT0905..	101.6000	50.8000	152.4000	1/4 -18 NPT	1/8 - 27 NPT	51.8160
5691858	DFSP2000R2SSF200	50.8	101.6	1.5400	SPPX15T5..	DFT0905..	101.6000	50.8000	152.4000	1/4 -18 NPT	1/8 - 27 NPT	51.8160
5691859	DFSP2125R2SSF150	38.1	95.25	1.7000	SPPX15T5..	DFT0905..	107.9500	53.9750	161.9200	1/4 -18 NPT	1/8 - 27 NPT	54.9910
5691860	DFSP2125R2SSF200	50.8	101.6	1.7000	SPPX15T5..	DFT0905..	107.9500	53.9750	161.9200	1/4 -18 NPT	1/8 - 27 NPT	54.9910

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

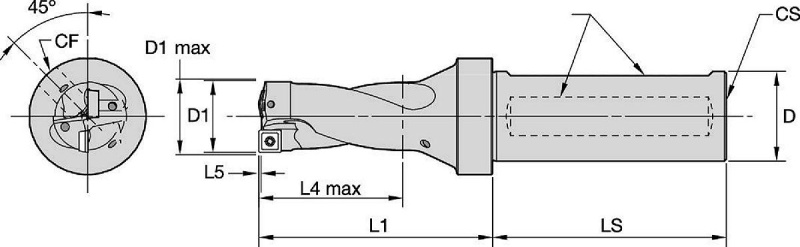

Dimension:


D	LS	CF	CS	pipe plug
0.750	2.00	1/8-27 NPT	R 1/8-27 NPT	1025612
1.000	3.00	1/8-27 NPT	R 1/4-18 NPT	1025612
1.250	3.25	1/8-27 NPT	R 1/4-18 NPT	1025612
1.500	3.75	1/8-27 NPT	R 1/4-18 NPT	1025612
2.000	4.00	1/8-27 NPT	R 1/4-18 NPT	1025612

Режимы резания:

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	S	I	MD	KC7140	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	U	I	MD	KC7140	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	I	MD	KC7140	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	S	I	MD	KC7140	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	U	I	MD	KC7140	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	I	MD	KC7140	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098

Inch
Material Group	Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
					Range SFM
					Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	Задать вопрос Вопрос * Ваше имя * Телефон * E-mail * Подтвердите, что вы не робот * Все товары категории Все товары бренда KENNAMETAL Нужна консультация? Наши специалисты ответят на любой интересующий вопрос Задать вопрос Каталог Подбор запчастей Ремонт Доставка Контакты Магнитно-сверлильные станки Корончатые сверла Станки для сверления труб Промышленные пылесосы Ленточно-шлифовальные станки Фаскосниматели Труборезы Трубогибы Отрезные станки Газорезательные машины Опоры для труб Металлорежущий инстурмент Станочная оснастка Динамометрический инстурмент Ручной инструмент Knipex Ручной инструмент Wera +7 495 979-05-66 Заказать звонок info@metal-tek.ru Москва, ул. Кирпичная, д. 48 2006 - 2026 © МЕТАЛ-ТЕК - продажа оборудования и инструмента для металлообработки.
