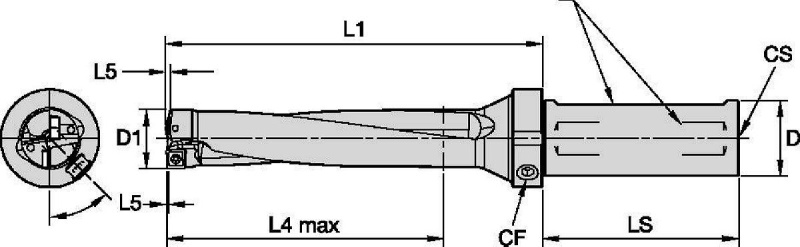

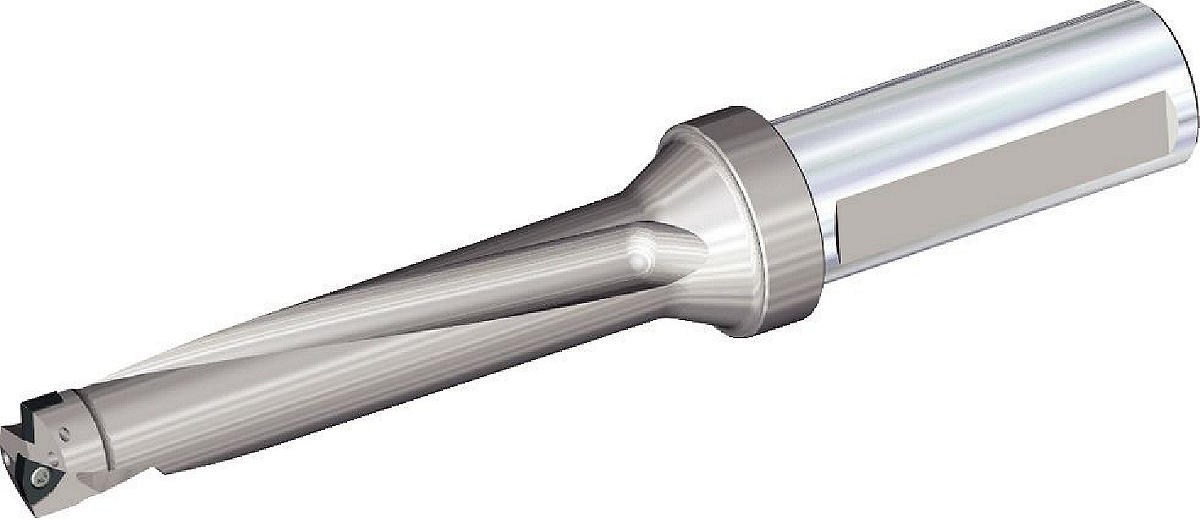

DFSP Flanged Shank; Right Hand; 5 x D

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DFSP Flanged Shank; Right Hand; 5 x D. Drill Fix DFSP Bodies. Drill Fix DFSP • Метрическая система

Особенности:

DFSP combines the economical squared outboard insert with the superior centering capabilities of the trigon inboard insert.
Drill shipped with insert screws, side pipe plug, and Torx wrench.
Order inserts for DFSP separately. See pages [REFERENCE] for inserts.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: Convex
Shank - Cylindrical with Flat and Flange
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind
Drilling: X-Offset

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[L5] Drill Point Length	Gage Insert	Gage Insert 2	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L1] Insert Gage Length	[CS] Coolant Supply Size	[CF] Coolant Size Radial	[D1MAX] Drill Diameter Maximum
5689909	DFSP0813R5SSF100	25.4	76.2	0.6600	SPGX0603..	DFT0303..	103.2510	20.6500	128.5000	1/4 - 18 NPT	1/8 - 27 NPT	21.6510
5689970	DFSP0844R5SSF100	25.4	76.2	0.7000	SPGX0603..	DFT0303..	107.1880	21.4380	132.6200	1/4 - 18 NPT	1/8 - 27 NPT	22.4380
5689971	DFSP0875R5SSF100	25.4	76.2	0.5200	SPGX0703..	DFT05T3..	111.1250	22.2250	137.0000	1/4 - 18 NPT	1/8 - 27 NPT	23.2260
5689972	DFSP0906R5SSF100	25.4	76.2	0.5700	SPGX0703..	DFT05T3..	115.0620	23.0120	141.3700	1/4 - 18 NPT	1/8 - 27 NPT	24.0130
5689973	DFSP0938R5SSF100	25.4	76.2	0.6200	SPGX0703..	DFT05T3..	119.1260	23.8250	145.7500	1/4 - 18 NPT	1/8 - 27 NPT	24.8260
5689974	DFSP0969R5SSF100	25.4	76.2	0.6700	SPGX0703..	DFT05T3..	123.0630	24.6130	150.1200	1/4 - 18 NPT	1/8 - 27 NPT	25.6130
5689975	DFSP0984R5SSF100	25.4	76.2	0.6900	SPGX0703..	DFT05T3..	124.9680	24.9940	152.2500	1/4 - 18 NPT	1/8 - 27 NPT	25.9940
5692355	DFSP1000R5SSF100	25.4	76.2	0.6100	SPGX0703..	DFT05T3..	127.0000	25.4000	158.7500	1/4 - 18 NPT	1/8 - 27 NPT
5692356	DFSP1000R5SSF125	31.75	82.55	0.7100	SPGX0703..	DFT05T3..	127.0000	25.4000	158.7500	1/4 -18 NPT	1/8 - 27 NPT
5692357	DFSP1000R5SSF150	38.1	95.25	0.7100	SPGX0703..	DFT05T3..	127.0000	25.4000	158.7500	1/4 -18 NPT	1/8 - 27 NPT
5692358	DFSP1031R5SSF125	31.75	82.55	0.7200	SPPX09T3..	DFT05T3..	130.9370	26.1870	165.8600	1/4 -18 NPT	1/8 - 27 NPT
5692390	DFSP1063R5SSF125	31.75	82.55	0.7600	SPPX09T3..	DFT05T3..	135.0010	27.0000	169.9300	1/4 -18 NPT	1/8 - 27 NPT
5692392	DFSP1125R5SSF125	31.75	82.55	0.8300	SPPX09T3..	DFT05T3..	142.8750	28.5750	180.9700	1/4 -18 NPT	1/8 - 27 NPT
5692393	DFSP1156R5SSF125	31.75	82.55	0.8600	SPPX09T3..	DFT05T3..	146.8120	29.3620	184.9100	1/4 -18 NPT	1/8 - 27 NPT
5692394	DFSP1188R5SSF125	31.75	82.55	0.9000	SPPX09T3..	DFT05T3..	150.8760	30.1750	188.9800	1/4 -18 NPT	1/8 - 27 NPT
5692395	DFSP1219R5SSF125	31.75	82.55	0.9300	SPPX09T3..	DFT05T3..	150.4810	30.9630	191.7600	1/4 -18 NPT	1/8 - 27 NPT
5692396	DFSP1250R5SSF125	31.75	82.55	0.9600	SPPX09T3..	DFT05T3..	158.7500	31.7500	200.0200	1/4 -18 NPT	1/8 - 27 NPT
5692397	DFSP1250R5SSF150	38.1	95.25	0.9600	SPPX09T3..	DFT05T3..	158.7500	31.7500	200.0200	1/4 -18 NPT	1/8 - 27 NPT
5692398	DFSP1313R5SSF125	31.75	82.55	0.9000	SPPX1204..	DFT06T3..	166.7510	33.3500	208.0300	1/4 -18 NPT	1/8 - 27 NPT
5692399	DFSP1375R5SSF125	31.75	82.55	0.9800	SPPX1204..	DFT06T3..	174.6250	34.9250	215.9000	1/4 -18 NPT	1/8 - 27 NPT
5692400	DFSP1375R5SSF150	38.1	95.25	0.9800	SPPX1204..	DFT06T3..	174.6250	34.9250	215.9000	1/4 -18 NPT	1/8 - 27 NPT
5692401	DFSP1438R5SSF125	31.75	82.55	1.0600	SPPX1204..	DFT06T3..	182.6260	36.5250	227.0800	1/4 -18 NPT	1/8 - 27 NPT
5692402	DFSP1500R5SSF125	31.75	82.55	1.1300	SPPX1204..	DFT06T3..	190.5000	38.1000	234.9500	1/4 -18 NPT	1/8 - 27 NPT
5692403	DFSP1500R5SSF150	38.1	95.25	1.1300	SPPX1204..	DFT06T3..	190.5000	38.1000	234.9500	1/4 -18 NPT	1/8 - 27 NPT
5692404	DFSP1563R5SSF150	38.1	95.25	1.2000	SPPX1204..	DFT06T3..	198.5010	39.7000	242.9500	1/4 -18 NPT	1/8 - 27 NPT
5692405	DFSP1625R5SSF150	38.1	95.25	1.2400	SPPX1204..	DFT0704..	206.3750	41.2750	250.8200	1/4 -18 NPT	1/8 - 27 NPT
5692406	DFSP1656R5SSF150	38.1	95.25	1.2700	SPPX1204..	DFT0704..	210.3120	42.0620	254.7600	1/4 -18 NPT	1/8 - 27 NPT
5692407	DFSP1750R5SSF150	38.1	95.25	1.3800	SPPX15T5..	DFT0704..	222.2500	44.4500	266.7000	1/4 -18 NPT	1/8 - 27 NPT
5692408	DFSP1813R5SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0704..	230.2510	46.0500	277.8800	1/4 -18 NPT	1/8 - 27 NPT
5692409	DFSP1875R5SSF150	38.1	95.25	1.5200	SPPX15T5..	DFT0704..	238.1250	47.6250	285.7500	1/4 -18 NPT	1/8 - 27 NPT
5692420	DFSP1938R5SSF150	38.1	95.25	1.4500	SPPX15T5..	DFT0905..	246.1260	49.2250	296.9300	1/4 -18 NPT	1/8 - 27 NPT
5692421	DFSP2000R5SSF150	38.1	95.25	1.5400	SPPX15T5..	DFT0905..	254.0000	50.8000	304.8000	1/4 -18 NPT	1/8 - 27 NPT
5692422	DFSP2000R5SSF200	50.8	101.6	1.5400	SPPX15T5..	DFT0905..	254.0000	50.8000	304.8000	1/4 -18 NPT	1/8 - 27 NPT
5692423	DFSP2125R5SSF150	38.1	95.25	1.7000	SPPX15T5..	DFT0905..	269.8750	53.9750	323.8500	1/4 -18 NPT	1/8 - 27 NPT
5692424	DFSP2125R5SSF200	50.8	101.6	1.7000	SPPX15T5..	DFT0905..	269.8750	53.9750	323.8500	1/4 -18 NPT	1/8 - 27 NPT

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

Dimension:


D	LS	CF	CS	pipe plug
0.750	2.00	1/8-27 NPT	R 1/8-27 NPT	1025612
1.000	3.00	1/8-27 NPT	R 1/4-18 NPT	1025612
1.250	3.25	1/8-27 NPT	R 1/4-18 NPT	1025612
1.500	3.75	1/8-27 NPT	R 1/4-18 NPT	1025612
2.000	4.00	1/8-27 NPT	R 1/4-18 NPT	1025612

Режимы резания:

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
			I	MD	KC7140
		U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140
		I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
			I	MD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	SPGX05 DFTX2 .563–.688	SPGX06 DFT03 .703–.844	SPGX07 DFT05 .875–1.000	SPGX09 DFT05 1.025–1.250	SPGX12 DFT06/..07 1.313–1.656	SPGX15 DFT07/..09 1.688–2.125
P	1	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	1	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	1	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	S	O	MD	KCPK10	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	S	I	MD	KC7140	1017	1066	1181	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	2	U	O	FP	KCU25	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	U	I	MD	KC7140	656	705	754	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	O	HP	KCU40	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	2	I	I	MD	KC7140	426	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	S	O	MD	KCPK10	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	S	I	MD	KC7140	853	935	1050	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	3	U	O	FP	KCU25	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	U	I	MD	KC7140	590	640	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	O	HP	KCU40	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	3	I	I	MD	KC7140	361	394	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	S	O	FP	KCPK10	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	S	I	MD	KC7140	722	820	984	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	4	U	O	HP	KCU25	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	U	I	MD	KC7140	492	590	722	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	O	HP	KCU40	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	4	I	I	MD	KC7140	295	361	459	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	5	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	5	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	S	O	HP	KCU25	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	S	I	MD	KC7140	590	656	722	SFM	0.0024–0.0043	0.0031–0.0055	0.0039–0.0071	0.0055–0.0098	0.0063–0.0118	0.0071–0.0118
	6	U	O	HP	KCU40	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	U	I	MD	KC7140	394	443	492	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	O	HP	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
	6	I	I	MD	KC7140	230	279	328	SFM	0.0016–0.0024	0.0020–0.0031	0.0024–0.0039	0.0035–0.0059	0.0043–0.0071	0.0051–0.0098
