B551A_DAL; ~3 x D. Сверла DAL; Композиты CFRP-Ti; Без внутреннего подвода СОЖ. Сверла DAL • CFRP-Ti-Stacks
Особенности:

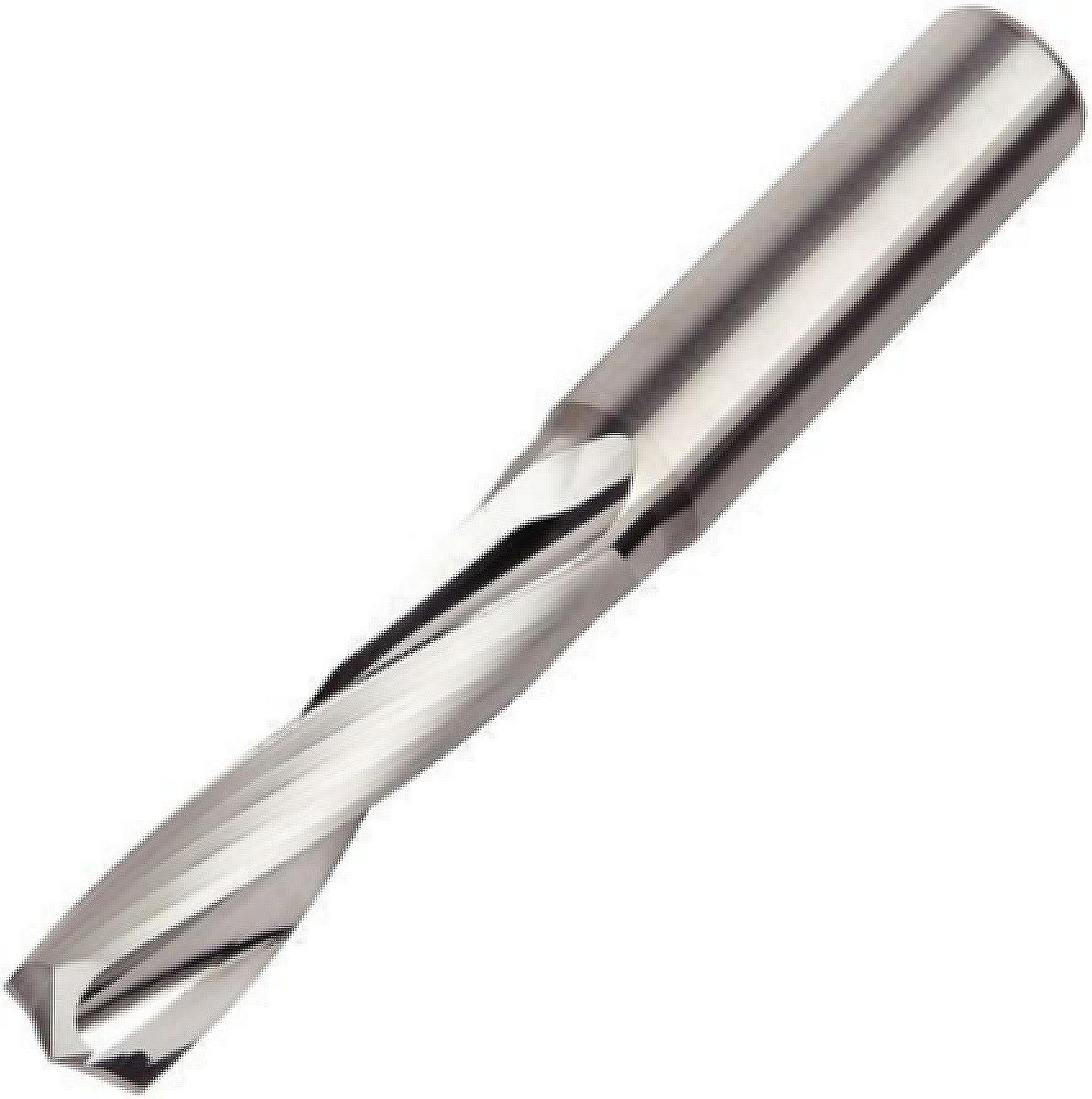

- Сверла DAL для обработки пакетов деталей из композитных (CFRP) и металлических материалов.
- Цельные твердосплавные сверла для обработки комбинированных материалов: CFRP-Ti-Al, а также CFRP-Ti, CFRP-Al, титана и алюминия; конструкция с двойным углом при вершине обеспечивает отсутствие заусенцев при выводе сверла из пакета деталей со стороны металла.
- Острая режущая кромка обеспечивает высокое качество обработки композитных материалов CFRP, находящихся в верхнем слое пакетов деталей из CFRP и металла.
- Сверло отшлифовано с точностью k6; предусмотрена возможность обработки отверстий с точностью H8.
- Превосходные возможности центрирования.
Применение:
- Drilling
- Drilling: Stacked Plates
- Shank - Cylindrical Plain ≤h6
- Helix Angle: 15°
- DIN number 6537
- DIN number 6535
- Drilling - No Coolant
- Tool Dimensions: 2flute/2margin/no cool
- Drilling Depth: 3x
- Drilling: Convex

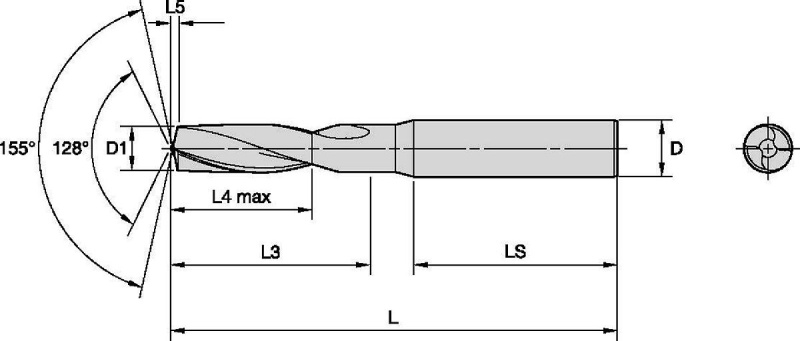

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [D1] Wire Size | [L] Overall Length |
|---|
| 5420672 | B551A04763DAL | 36.0 | 6.0 | 0.8400 | 20.0000 | 4.7630 | 28.0000 | — | 66.0000 |
| 5420673 | B551A06350DAL | 36.0 | 8.0 | 1.1300 | 24.0000 | 6.3500 | 34.0000 | | 79.0000 |
| 5420674 | B551A07938DAL | 36.0 | 8.0 | 1.4100 | 29.0000 | 7.9380 | 41.0000 | | 79.0000 |
| 5420675 | B551A09525DAL | 40.0 | 10.0 | 1.6900 | 35.0000 | 9.5250 | 47.0000 | | 89.0000 |
Tolerance:
| Tolerance • Inch |
| nominal size range | D1 tolerance k6 | D tolerance h6 |
| .1181 - .2362 | .0000/.0004 | .0000/-.0003 |
| .2362 - .3937 | .0000/.0004 | .0000/-.0004 |
| .3937 - .7087 | .0000/.0005 | .0000/-.0004 |
| .7087 - 1.0000 | .0000/.0006 | .0000/-.0005 |
| Tolerance • Metric |
| nominal size range | D1 tolerance k6 | D tolerance h6 |
| 3 – 6 | 0,001/0,009 | 0,000/-0,008 |
| 6 – 10 | 0,001/0,010 | 0,000/-0,009 |
| 10 – 18 | 0,001/0,012 | 0,000/-0,011 |
| 18 – 25,4 | 0,002/0,015 | 0,000/-0,013 |
Режимы резания:
| Material Group | |  | | |
| | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate (f) by Diameter |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 15 | 80 | 120 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| 3 | 10 | 10 | 15 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| 4 | 10 | 15 | 25 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| Material Group | | | | |
| | | | | |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate (f) by Diameter |
| Min | Starting Value | Max | | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| C | 2 | 50 | 260 | 390 | IPR | .000–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| 3 | 30 | 30 | 50 | IPR | .001–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| 4 | 30 | 50 | 80 | IPR | .001–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| | | | | |
| | | | | |
| | Cutting Speed vc | Metric |
| | Range m/min | Recommended Feed Rate (f) by Diameter |
| Material Group | Min | Starting Value | Max | | 3.0 | 4.0 | 6.0 | 8.0 | 10.0 | 12.0 | 16.0 | 20.0 |
| C | 2 | 15 | 80 | 120 | mm/dev | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| 3 | 10 | 10 | 15 | mm/dev | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| 4 | 10 | 15 | 25 | mm/dev | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| Material Group | | | | |
| | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate (f) by Diameter |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 15 | 120 | 150 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| 3 | 10 | 15 | 25 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| 4 | 10 | 25 | 50 | mm/r | 0,01–0,05 | 0,02–0,07 | 0,03–0,10 | 0,04–0,12 | 0,05–0,15 | 0,05–0,18 | 0,06–0,21 | 0,07–0,23 |
| Material Group | | | | |
| | | | | |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate (f) by Diameter |
| Min | Starting Value | Max | | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| C | 2 | 50 | 390 | 490 | IPR | .000–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| 3 | 30 | 50 | 80 | IPR | .001–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| 4 | 30 | 80 | 160 | IPR | .001–.002 | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 | .003–.009 |
| | | | | |
| | | | | |
| | Cutting Speed vc | Metric |
| | Range m/min | Recommended Feed Rate (f) by Diameter |
| Material Group | Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| N | 1 | 120 | 230 | 450 | mm/ot. | 0.12 0.17 | 0.13 0.18 | 0.15 0.24 | 0.19 0.29 | 0.26 0.35 | 0.31 0.40 | 0.41 0.51 | 0.44 0.54 |
| 2 | 120 | 220 | 350 | mm/ot. | 0.13 0.18 | 0.14 0.19 | 0.16 0.25 | 0.20 0.30 | 0.28 0.37 | 0.33 0.42 | 0.44 0.54 | 0.48 0.58 |
| 3 | 100 | 180 | 400 | mm/ot. | 0.13 0.18 | 0.14 0.19 | 0.16 0.25 | 0.20 0.30 | 0.28 0.37 | 0.33 0.42 | 0.44 0.54 | 0.48 0.58 |
| 4 | 100 | 130 | 300 | mm/ot. | 0.10 0.16 | 0.12 0.18 | 0.14 0.24 | 0.16 0.28 | 0.18 0.32 | 0.20 0.36 | 0.24 0.40 | 0.28 0.44 |
| C | 2 | 15 | 120 | 150 | mm/ot. | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| 3 | 10 | 15 | 25 | mm/ot. | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| 4 | 10 | 25 | 50 | mm/ot. | 0.01 0.05 | 0.02 0.07 | 0.03 0.10 | 0.04 0.12 | 0.05 0.15 | 0.05 0.18 | 0.06 0.21 | 0.07 0.23 |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| C | 2 | 230 | 360 | 460 | IPR | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 70 | 110 | 140 | mm/r | 0.03 0.10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 70 | 110 | 140 | mm/tr | 0.03 0.10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| Material Group | Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| S | 4 | 10 | 13 | 20 | mm/r | 0,02–0,08 | 0,03–0,10 | 0,04–0,12 | 0,05–0,16 | 0,05–0,18 | 0,06–0,20 |
| N | 1 | 100 | 230 | 270 | mm/r | 0,13–0,22 | 0,16–0,24 | 0,20–0,28 | 0,24–0,32 | 0,28–0,40 | 0,32–0,48 |
| 2 | 100 | 220 | 270 | mm/r | 0,14–0,23 | 0,16–0,28 | 0,20–0,32 | 0,24–0,36 | 0,28–0,40 | 0,32–0,52 |
| 3 | 90 | 180 | 230 | mm/r | 0,13–0,22 | 0,16–0,24 | 0,20–0,28 | 0,24–0,32 | 0,28–0,40 | 0,32–0,48 |
| 4 | 90 | 130 | 200 | mm/r | 0,10–0,18 | 0,16–0,28 | 0,20–0,32 | 0,24–0,36 | 0,28–0,40 | 0,32–0,52 |
| C | 2 | 70 | 110 | 140 | mm/r | 0,03-0,10 | 0,04-0,12 | 0,05-0,15 | 0,05-0,18 | 0,06-0,21 | 0,07-0,23 |
| 3 | 10 | 13 | 20 | mm/r | 0,02-0,08 | 0,03-0,10 | 0,04-0,12 | 0,05-0,16 | 0,05-0,18 | 0,06-0,20 |
| 4 | 10 | 20 | 40 | mm/r | 0,02-0,08 | 0,03-0,10 | 0,04-0,12 | 0,05-0,16 | 0,05-0,18 | 0,06-0,20 |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| S | 4 | 30 | 40 | 70 | IPR | .001–.003 | .001–.004 | .002–.005 | .002–.006 | .002–.007 | .002–.008 |
| N | 1 | 330 | 750 | 890 | IPR | .005–.009 | .006–.009 | .008–.011 | .009–.013 | .011–.016 | .013–.019 |
| 2 | 330 | 720 | 890 | IPR | .006–.009 | .006–.011 | .008–.013 | .009–.014 | .011–.017 | .013–.021 |
| 3 | 300 | 590 | 750 | IPR | .005–.009 | .006–.009 | .008–.011 | .009–.013 | .011–.016 | .013–.019 |
| 4 | 300 | 430 | 660 | IPR | .004–.007 | .006–.011 | .008–.013 | .009–.014 | .011–.016 | .013–.019 |
| C | 4 | 230 | 360 | 460 | IPR | .001-.004 | .002-.005 | .002-.006 | .002-.007 | .002-.008 | .003-.009 |
| 4 | 30 | 40 | 70 | IPR | .001-.003 | .001-.004 | .002-.005 | .002-.006 | .002-.007 | .002-.008 |
| 4 | 30 | 70 | 130 | IPR | .001-.003 | .001-.004 | .002-.005 | .002-.006 | .002-.007 | .002-.008 |
| Material Group | Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 6.0 | 8.0 | 10.0 | 12.0 | 16.0 | 20.0 |
| S | 4 | 10 | 13 | 20 | mm/r | 0.02～0.08 | 0.03～0.10 | 0.04～0.12 | 0.05～0.16 | 0.05～0.18 | 0.06～0.20 |
| N | 1 | 100 | 230 | 270 | mm/r | 0.13～0.22 | 0.16～0.24 | 0.20～0.28 | 0.24～0.32 | 0.28～0.40 | 0.32～0.48 |
| 2 | 100 | 220 | 270 | mm/r | 0.14～0.23 | 0.16～0.28 | 0.20～0.32 | 0.24～0.36 | 0.28～0.40 | 0.32～0.52 |
| 3 | 90 | 180 | 230 | mm/r | 0.13～0.22 | 0.16～0.24 | 0.20～0.28 | 0.24～0.32 | 0.28～0.40 | 0.32～0.48 |
| 4 | 90 | 130 | 200 | mm/r | 0.10～0.18 | 0.16～0.28 | 0.20～0.32 | 0.24～0.36 | 0.28～0.40 | 0.32～0.52 |
| C | 2 | 70 | 110 | 140 | mm/r | 0.03～0.10 | 0.04～0.12 | 0.05～0.15 | 0.05～0.18 | 0.06～0.21 | 0.07～0.23 |
| 3 | 10 | 13 | 20 | mm/r | 0.02～0.08 | 0.03～0.10 | 0.04～0.12 | 0.05～0.16 | 0.05～0.18 | 0.06～0.20 |
| 4 | 10 | 20 | 40 | mm/r | 0.02～0.08 | 0.03～0.10 | 0.04～0.12 | 0.05～0.16 | 0.05～0.18 | 0.06～0.20 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 80 | 120 | 150 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 3 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 4 | 10 | 25 | 50 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| C | 2 | 260 | 390 | 490 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| 3 | 30 | 50 | 80 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| 4 | 30 | 80 | 160 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 80 | 120 | 150 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 3 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 4 | 10 | 25 | 50 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 80 | 120 | 150 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 3 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 4 | 10 | 25 | 50 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| S | 4 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| N | 1 | 100 | 230 | 270 | mm/r | 0,13 0,25 | 0,14 0,29 | 0,17 0,35 | 0,21 0,42 | 0,27 0,50 | 0,33 0,57 | 0,37 0,69 | 0,43 0,82 |
| 2 | 100 | 220 | 270 | mm/r | 0,14 0,23 | 0,15 0,28 | 0,17 0,34 | 0,22 0,39 | 0,29 0,46 | 0,34 0,54 | 0,39 0,67 | 0,45 0,80 |
| 3 | 90 | 180 | 230 | mm/r | 0,13 0,20 | 0,14 0,21 | 0,16 0,27 | 0,20 0,33 | 0,28 0,40 | 0,33 0,45 | 0,38 0,60 | 0,44 0,68 |
| 4 | 90 | 130 | 200 | mm/r | 0,10 0,18 | 0,12 0,20 | 0,14 0,26 | 0,16 0,30 | 0,18 0,34 | 0,20 0,38 | 0,24 0,42 | 0,28 0,46 |
| Material Group | Cutting Speed vc | Inch |
| Range SFM | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 |
| C | 2 | 260 | 390 | 490 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| 3 | 30 | 50 | 80 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| 4 | 30 | 80 | 160 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| S | 4 | 30 | 50 | 80 | IPR | .001 .002 | .001 003 | .001 .004 | .002 .005 | .002 .006 | .002 .007 | .002 .008 | .003 .009 |
| N | 1 | 330 | 750 | 890 | IPR | .005 .010 | .006 .011 | .007 .014 | .008 .017 | .011 .020 | .013 .022 | .015 .027 | .017 .032 |
| 2 | 330 | 720 | 890 | IPR | .006 .009 | .006 .011 | .007 .013 | .009 .015 | .011 .018 | .013 .021 | .015 .026 | .018 .032 |
| 3 | 300 | 590 | 750 | IPR | .005 .008 | .006 .008 | .006 .011 | .008 .013 | .011 .016 | .013 .018 | .015 .024 | .017 .027 |
| 4 | 300 | 430 | 660 | IPR | .004 .007 | .005 .008 | .006 .010 | .006 .012 | .007 .013 | .008 .015 | .009 .017 | .011 .018 |
| Material Group | | | | |
| Cutting Speed vc | Metric |
| Range m/min | Recommended Feed Rate per Rev |
| Min | Starting Value | Max | | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 |
| C | 2 | 80 | 120 | 150 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 3 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| 4 | 10 | 25 | 50 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| S | 4 | 10 | 15 | 25 | mm/r | 0,01 0,05 | 0,02 0,07 | 0,03 0,10 | 0,04 0,12 | 0,05 0,15 | 0,05 0,18 | 0,06 0,21 | 0,07 0,23 |
| N | 1 | 100 | 230 | 270 | mm/r | 0,13 0,25 | 0,14 0,29 | 0,17 0,35 | 0,21 0,42 | 0,27 0,50 | 0,33 0,57 | 0,37 0,69 | 0,43 0,82 |
| 2 | 100 | 220 | 270 | mm/r | 0,14 0,23 | 0,15 0,28 | 0,17 0,34 | 0,22 0,39 | 0,29 0,46 | 0,34 0,54 | 0,39 0,67 | 0,45 0,80 |
| 3 | 90 | 180 | 230 | mm/r | 0,13 0,20 | 0,14 0,21 | 0,16 0,27 | 0,20 0,33 | 0,28 0,40 | 0,33 0,45 | 0,38 0,60 | 0,44 0,68 |
| 4 | 90 | 130 | 200 | mm/r | 0,10 0,18 | 0,12 0,20 | 0,14 0,26 | 0,16 0,30 | 0,18 0,34 | 0,20 0,38 | 0,24 0,42 | 0,28 0,46 |
