DFR KM40TS Shank; KM50TS Shank; 3 x D; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

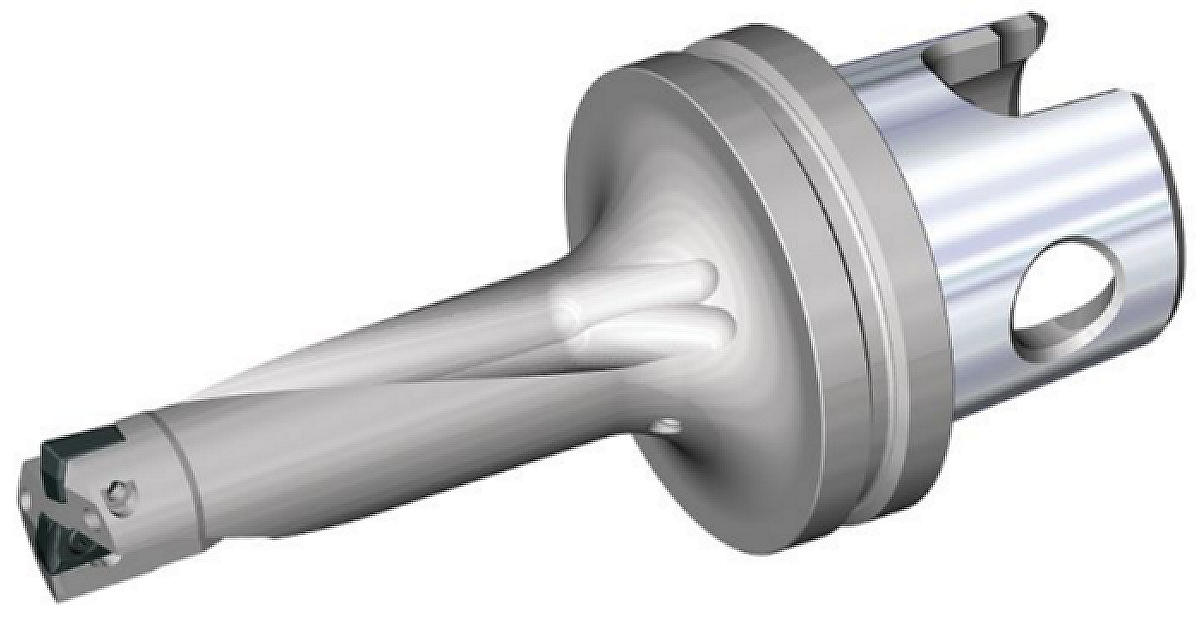

DFR KM40TS Shank; KM50TS Shank; 3 x D; Inch. Корпуса сверл Drill Fix DFR. Drill Fix DFR • KM-TS

Особенности:

Drill Fix DFR with rectangular-shaped inserts offer highest stability and feed rates at smaller sizes.
X-offset design to adjust diameter size on turning machines and optimize tolerances on machining centers.
Benefit from the KM-TS coupling as most precise and most stable tooling system allowing fully automated tool changing.
Drill shipped with insert screws, side pipe plug, and Torx wrench.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: X-Offset
Drilling: Convex
KM Shank
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind

SAP Material Number	ISO Catalog Number	[L5] Drill Point Length	Gage Insert	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[CSMS] System Size Machine Side	[L1] Insert Gage Length	[D1MAX] Drill Diameter Maximum
4122537	KM32TSDFR0500R3	0.5150	DFR0202..	38.1000	12.7000	KM32TS	67.0430	13.7160
4122549	KM32TSDFR0875R3	0.7550	DFR0403..	66.6750	22.2250	KM32TS	102.1520	23.2410
4122553	KM40TSDFR0500R3	0.5150	DFR0202..	38.1000	12.7000	KM40TS	67.0430	13.7160
4122554	KM40TSDFR0531R3	0.5150	DFR0202..	40.4620	13.4870	KM40TS	70.2180	14.5030
4122555	KM40TSDFR0563R3	0.5150	DFR0202..	42.9010	14.3000	KM40TS	73.3930	15.3160
4122556	KM40TSDFR0594R3	0.5150	DFR0202..	45.2630	15.0880	KM40TS	76.5680	16.1040
4122557	KM40TSDFR0625R3	0.5150	DFR0202..	47.6250	15.8750	KM40TS	79.7430	16.8910
4122558	KM40TSDFR0656R3	0.6180	DFR0302..	49.9870	16.6620	KM40TS	82.9970	17.6780
4122559	KM40TSDFR0688R3	0.6180	DFR0302..	52.4260	17.4750	KM40TS	86.1720	18.4910
4122560	KM40TSDFR0734R3	0.6180	DFR0302..	55.9310	18.6440	KM40TS	89.3470	19.6600
4122561	KM40TSDFR0750R3	0.6180	DFR0302..	57.1500	19.0500	KM40TS	89.3470	20.0660
4122562	KM40TSDFR0781R3	0.6180	DFR0302..	59.5120	19.8370	KM40TS	92.5220	20.8530
4122563	KM40TSDFR0813R3	0.7550	DFR0403..	61.9510	20.6500	KM40TS	95.8020	21.6660
4122564	KM40TSDFR0844R3	0.7550	DFR0403..	64.3130	21.4380	KM40TS	98.9770	22.4540
4122565	KM40TSDFR0875R3	0.7550	DFR0403..	66.6750	22.2250	KM40TS	102.1520	23.2410
4122566	KM40TSDFR0906R3	0.7550	DFR0403..	69.0370	23.0120	KM40TS	105.3270	24.0280
4122567	KM40TSDFR0938R3	0.7550	DFR0403..	71.4760	23.8250	KM40TS	108.5020	24.8410
4122568	KM40TSDFR0969R3	0.7550	DFR0403..	73.8380	24.6130	KM40TS	111.6770	25.6290
4122572	KM50TSDFR0594R3	0.5150	DFR0202..	45.2630	15.0880	KM50TS	76.5680	16.1040

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

Dimension:

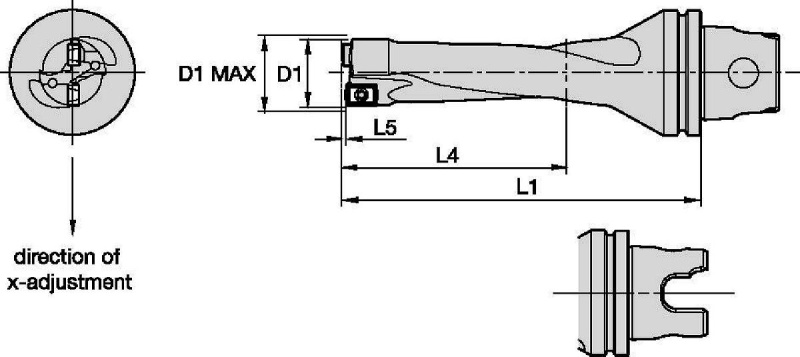

Dimensions; Хвостовик с фланцем DFR


D	LS
20	50

Режимы резания:

DFR; PCD; Дюймовая система

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	DFR02... .500–.625"	DFR03... .688–.750"	DFR04... .813–1.00"
P	1	S	O	MD	KCU25	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
			I	MD	KC7140
		U	O	MD	KCU40	656	705	754	SFM	.004–.006	.004–.007	.006–.010
			I	MD	KC7140
		I	O	MD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
			I	MD	KC7140
	2	S	O	GD	KCPK10	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		U	O	GD	KCU40	656	705	754	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		I	O	MD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
	3	S	O	GD	KCPK10	853	935	1050	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		U	O	GD	KCU40	590	640	722	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		I	O	GD	KC7140	361	394	459	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
	4	S	O	GD	KCU25	722	820	984	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		U	O	GD	KCU40	492	590	722	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		I	O	GD	KC7140	295	361	459	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
	5	S	O	GD	KCU25	590	656	722	SFM	.003–.005	.004–.006	.004–.007
			I	LD	KC7140
		U	O	GD	KCU40	394	443	492	SFM	.003–.005	.004–.006	.004–.007
			I	LD	KC7140
		I	O	GD	KC7140	230	279	328	SFM	.003–.005	.004–.006	.004–.007
			I	LD	KC7140
	6	S	O	GD	KCU25	590	656	722	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		U	O	GD	KCU40	394	443	492	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140
		I	O	GD	KC7140	230	279	328	SFM	.004–.006	.004–.007	.006–.010
			I	LD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	DFR02... .500"–.625"	DFR03... .688"–.750"	DFR04... .813"–1.00"
P	1	S	O	MD	KCU25	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
	1	S	I	MD	KC7140	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
	1	U	O	MD	KCU40	656	705	754	SFM	.004–.006	.004–.007	.006–.010
	1	U	I	MD	KC7140	656	705	754	SFM	.004–.006	.004–.007	.006–.010
	1	I	O	MD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
	1	I	I	MD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
	2	S	O	GD	KCPK10	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
	2	S	I	LD	KC7140	1017	1066	1181	SFM	.004–.006	.004–.007	.006–.010
	2	U	O	GD	KCU40	656	705	754	SFM	.004–.006	.004–.007	.006–.010
	2	U	I	LD	KC7140	656	705	754	SFM	.004–.006	.004–.007	.006–.010
	2	I	O	MD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
	2	I	I	LD	KC7140	426	443	492	SFM	.004–.006	.004–.007	.006–.010
	3	S	O	GD	KCPK10	853	935	1050	SFM	.004–.006	.004–.007	.006–.010
	3	S	I	LD	KC7140	853	935	1050	SFM	.004–.006	.004–.007	.006–.010
	3	U	O	GD	KCU40	590	640	722	SFM	.004–.006	.004–.007	.006–.010
	3	U	I	LD	KC7140	590	640	722	SFM	.004–.006	.004–.007	.006–.010
	3	I	O	GD	KC7140	361	394	459	SFM	.004–.006	.004–.007	.006–.010
	3	I	I	LD	KC7140	361	394	459	SFM	.004–.006	.004–.007	.006–.010
	4	S	O	GD	KCU25	722	820	984	SFM	.004–.006	.004–.007	.006–.010
	4	S	I	LD	KC7140	722	820	984	SFM	.004–.006	.004–.007	.006–.010
	4	U	O	GD	KCU40	492	590	722	SFM	.004–.006	.004–.007	.006–.010
	4	U	I	LD	KC7140	492	590	722	SFM	.004–.006	.004–.007	.006–.010
	4	I	O	GD	KC7140	295	361	459	SFM	.004–.006	.004–.007	.006–.010
	4	I	I	LD	KC7140	295	361	459	SFM	.004–.006	.004–.007	.006–.010
	5	S	O	GD	KCU25	590	656	722	SFM	.003–.005	.004–.006	.004–.007
	5	S	I	LD	KC7140	590	656	722	SFM	.003–.005	.004–.006	.004–.007
	5	U	O	GD	KCU40	394	443	492	SFM	.003–.005	.004–.006	.004–.007
	5	U	I	LD	KC7140	394	443	492	SFM	.003–.005	.004–.006	.004–.007
	5	I	O	GD	KC7140	230	279	328	SFM	.003–.005	.004–.006	.004–.007
	5	I	I	LD	KC7140	230	279	328	SFM	.003–.005	.004–.006	.004–.007
	6	S	O	GD	KCU25	590	656	722	SFM	.004–.006	.004–.007	.006–.010
	6	S	I	LD	KC7140	590	656	722	SFM	.004–.006	.004–.007	.006–.010
	6	U	O	GD	KCU40	394	443	492	SFM	.004–.006	.004–.007	.006–.010
	6	U	I	LD	KC7140	394	443	492	SFM	.004–.006	.004–.007	.006–.010
	6	I	O	GD	KC7140	230	279	328	SFM	.004–.006	.004–.007	.006–.010
	6	I	I	LD	KC7140	230	279	328	SFM	.004–.006	.004–.007	.006–.010

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	DFR02... .500–.625"	DFR03... .688–.750"	DFR04... .813–1.00"
M	1	S	O	MD	KC7140	492	623	754	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		U	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		I	O	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
	2	S	O	MD	KC7140	492	590	689	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		U	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		I	O	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
	3	S	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		U	O	MD	KC7140	262	361	459	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140
		I	O	MD	KC7140	164	230	295	SFM	.003–.005	.003–.006	.004–.007
			I	MD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	DFR02... .500"–.625"	DFR03... .688"–.750"	DFR04... .813"–1.00"
M	1	S	O	MD	KC7140	492	623	754	SFM	.003–.005	.003–.006	.004–.007
	1	S	I	MD	KC7140	492	623	754	SFM	.003–.005	.003–.006	.004–.007
	1	U	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	1	U	I	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	1	I	O	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
	1	I	I	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
	2	S	O	MD	KC7140	492	590	689	SFM	.003–.005	.003–.006	.004–.007
	2	S	I	MD	KC7140	492	590	689	SFM	.003–.005	.003–.006	.004–.007
	2	U	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	2	U	I	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	2	I	O	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
	2	I	I	MD	KC7140	197	262	328	SFM	.003–.005	.003–.006	.004–.007
	3	S	O	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	3	S	I	MD	KC7140	328	426	525	SFM	.003–.005	.003–.006	.004–.007
	3	U	O	MD	KC7140	262	361	459	SFM	.003–.005	.003–.006	.004–.007
	3	U	I	MD	KC7140	262	361	459	SFM	.003–.005	.003–.006	.004–.007
	3	I	O	MD	KC7140	164	230	295	SFM	.003–.005	.003–.006	.004–.007
	3	I	I	MD	KC7140	164	230	295	SFM	.003–.005	.003–.006	.004–.007

Inch
Material Group		Pocket Seat	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (fz) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	DFR02... .500–.625"	DFR03... .688–.750"	DFR04... .813–1.00"
K	1	S	O	GD	KCPK10	656	787	984	SFM	.004–.007	.005–.008	.006–.009
			I	LD	KCU40
		U	O	GD	KCU25	394	508	656	SFM	.004–.007	.005–.008	.006–.009
			I	LD	KC7140
		I	O	GD	KCU40	262	328	410	SFM	.004–.007	.005–.008	.005–.009
			I	LD	KC7140
	2	S	O	GD	KCPK10	590	722	853	SFM	.004–.007	.005–.008	.006–.009
			I	LD	KCU40
		U	O	GD	KCU25	361	459	558	SFM	.004–.007	.005–.008	.005–.009
			I	LD	KC7140
		I	O	GD	KCU40	262	328	394	SFM	.004–.007	.005–.008	.006–.009
			I	LD	KC7140
	3	S	O	GD	KCPK10	590	722	853	SFM	.004–.007	.005–.008	.005–.009
			I	LD	KCU40
		U	O	GD	KCU25	361	459	558	SFM	.004–.007	.005–.008	.006–.009
			I	LD	KC7140
		I	O	GD	KCU40	262	328	394	SFM	.004–.007	.005–.008	.005–.009
			I	LD	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (fz) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	DFR02... .500"–.625"	DFR03... .688"–.750"	DFR04... .813"–1.00"
K	1	S	O	GD	KCPK10	656	787	984	SFM	.004–.007	.005–.008	.006–.009
	1	S	I	LD	KCU40	656	787	984	SFM	.004–.007	.005–.008	.006–.009
	1	U	O	GD	KCU25	394	508	656	SFM	.004–.007	.005–.008	.006–.009
	1	U	I	LD	KC7140	394	508	656	SFM	.004–.007	.005–.008	.006–.009
	1	I	O	GD	KCU40	262	328	410	SFM	.004–.007	.005–.008	.005–.009
	1	I	I	LD	KC7140	262	328	410	SFM	.004–.007	.005–.008	.005–.009
	2	S	O	GD	KCPK10	590	722	853	SFM	.004–.007	.005–.008	.006–.009
	2	S	I	LD	KCU40	590	722	853	SFM	.004–.007	.005–.008	.006–.009
	2	U	O	GD	KCU25	361	459	558	SFM	.004–.007	.005–.008	.005–.009
	2	U	I	LD	KC7140	361	459	558	SFM	.004–.007	.005–.008	.005–.009
	2	I	O	GD	KCU40	262	328	394	SFM	.004–.007	.005–.008	.006–.009
	2	I	I	LD	KC7140	262	328	394	SFM	.004–.007	.005–.008	.006–.009
	3	S	O	GD	KCPK10	590	722	853	SFM	.004–.007	.005–.008	.005–.009
	3	S	I	LD	KCU40	590	722	853	SFM	.004–.007	.005–.008	.005–.009
	3	U	O	GD	KCU25	361	459	558	SFM	.004–.007	.005–.008	.006–.009
	3	U	I	LD	KC7140	361	459	558	SFM	.004–.007	.005–.008	.006–.009
	3	I	O	GD	KCU40	262	328	394	SFM	.004–.007	.005–.008	.005–.009
	3	I	I	LD	KC7140	262	328	394	SFM	.004–.007	.005–.008	.005–.009

Inch
