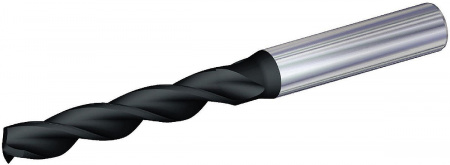

K105 (~5 x D); K10/KC7210; Хвостовик формы A; Сверла TF

K105 (~5 x D); K10/KC7210; Хвостовик формы A; Сверла TF. Сверла TF; Большой удельный съем металла; Без СОЖ. Сверла TF • Большой удельный съем металла

Особенности:

TF drills without through coolant for high metal removal rates and excellent hole quality in short chipping materials such as grey cast iron, ductile iron, and aluminium, as well as in short-hole titanium applications.
Material-specific SC drill with three cutting edges for higher feed rates than with two-edged drills.
Three spacious flutes for rapid chip evacuation.
Three-margin lands deliver better hole quality and straightness than two-flute drills.
TiAlN-coated KC7210 grade for higher wear resistance at elevated speeds.
Uncoated K10 grade helps to prevent built-up edge in drilling aluminium and high-temp alloys.

Применение:

Drilling
Drilling: Inclined Exit
Drilling Depth: 5x
Shank - Cylindrical Plain ≤h6
Helix Angle: 30°
Flood Coolant: Drilling
Drilling: Cross-Hole Drilling

SAP Material Number	ISO Catalog Number	[LS] Shank Length	[D] Adapter / Shank / Bore Diameter	[L5] Drill Point Length	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L3] Flute Length	[D1] Wire Size	[L] Overall Length
1235769	K105A01130	36.5	4.763	0.7620	21.4000	2.8700	27.0000	33	66.0000
1153168	K105A01250	36.5	4.763	0.7960	21.4000	3.1750	27.0000		66.0000
1613350	K105A01250	36.5	4.763	0.7930	21.4000	3.1750	27.0000		66.0000
1235378	K105A01285	36.5	4.763	0.8150	21.4000	3.2640	27.0000	30	66.0000
1235770	K105A01360	36.5	4.763	0.8630	21.4000	3.4540	27.0000	29	66.0000
1790728	K105A01364	36.5	4.763	0.8660	21.4000	3.4650	27.0000		66.0000
1790729	K105A01395	36.5	4.763	0.8850	21.4000	3.5430	27.0000		66.0000
1235379	K105A01406	36.5	4.763	0.8920	21.4000	3.5720	27.0000		66.0000
1235768	K105A01440	36.5	4.763	0.9140	21.4000	3.6580	27.0000	27	66.0000
1790731	K105A01502	36.5	4.763	0.9530	21.4000	3.8150	27.0000		66.0000
1790732	K105A01517	36.5	4.763	0.9630	21.4000	3.8530	27.0000		66.0000
1790874	K105A01532	36.5	4.763	0.9720	21.4000	3.8910	27.0000		66.0000
1153169	K105A01563	36.5	4.763	0.9910	21.4000	3.9690	27.0000		66.0000
1235265	K105A01590	36.5	4.763	1.0090	28.6000	4.0390	35.0000	21	74.0000
1790875	K105A01624	36.5	4.763	1.0310	28.6000	4.1250	35.0000		74.0000
1235736	K105A01660	36.5	4.763	1.0530	28.6000	4.2160	35.0000	19	74.0000
1591921	K105A01695	36.5	4.763	1.0760	28.6000	4.3050	35.0000	18	74.0000
1235380	K105A01719	36.5	4.763	1.0910	28.6000	4.3660	35.0000		74.0000
1591922	K105A01730	36.5	4.763	1.0980	28.6000	4.3940	35.0000	17	74.0000
1790878	K105A01762	36.5	4.763	1.1180	28.6000	4.4760	35.0000		74.0000
1790879	K105A01781	36.5	4.763	1.1300	28.6000	4.5240	35.0000		74.0000
1773298	K105A01820	36.5	4.763	1.1550	28.6000	4.6230	35.0000	14	74.0000
1790880	K105A01835	36.5	4.763	1.1640	28.6000	4.6610	35.0000		74.0000
1153170	K105A01875	36.5	4.763	1.1900	28.6000	4.7620	35.0000		74.0000
1591923	K105A01890	36.5	6.35	1.1990	34.9000	4.8010	43.0000	12	82.0000
1235701	K105A01910	36.5	6.35	1.2120	34.9000	4.8510	43.0000	11	82.0000
1235609	K105A01935	36.5	6.35	1.2280	34.9000	4.9150	43.0000	10	82.0000
1790881	K105A01976	36.5	6.35	1.2500	34.9000	5.0190	43.0000		82.0000
1790882	K105A02002	36.5	6.35	1.2730	34.9000	5.0850	43.0000		82.0000
1790903	K105A02045	36.5	6.35	1.3000	34.9000	5.1940	43.0000		82.0000
1773299	K105A02130	36.5	6.35	1.3520	34.9000	5.4100	43.0000	3	82.0000
1153171	K105A02188	36.5	6.35	1.3880	34.9000	5.5560	43.0000		82.0000
1790905	K105A02279	36.5	6.35	1.4490	34.9000	5.7890	43.0000		82.0000
1591924	K105A02280	36.5	6.35	1.4470	34.9000	5.7910	43.0000	1	82.0000
1790906	K105A02342	36.5	6.35	1.4890	34.9000	5.9490	43.0000		82.0000
1153172	K105A02500	36.5	6.35	1.5860	34.9000	6.3500	43.0000	E	82.0000
1314013	K105A02530	38.499	7.938	1.6050	40.3000	6.4260	50.0000		91.0000
1235611	K105A02570	38.499	7.938	1.6310	40.3000	6.5280	50.0000	F	91.0000
1790907	K105A02620	38.499	7.938	1.6660	40.3000	6.6550	50.0000		91.0000
1153173	K105A02656	38.499	7.938	1.6860	40.3000	6.7470	50.0000		91.0000
1613424	K105A02656	38.499	7.938	1.6860	40.3000	6.7470	50.0000		91.0000
1153174	K105A02813	38.499	7.938	1.7850	40.3000	7.1450	50.0000		91.0000
1591925	K105A02870	38.499	7.938	1.8210	40.3000	7.2900	50.0000		91.0000
1790909	K105A02879	38.499	7.938	1.8300	40.3000	7.3130	50.0000		91.0000
1153175	K105A02969	38.499	7.938	1.8840	40.3000	7.5410	50.0000		91.0000
1153176	K105A03125	38.499	7.938	1.9830	40.3000	7.9380	50.0000		91.0000
1153177	K105A03281	40.5	9.525	2.0820	48.7000	8.3340	60.0000		103.0000
1790912	K105A03371	40.5	9.525	2.1420	48.7000	8.5620	60.0000		103.0000
1153178	K105A03438	40.5	9.525	2.1810	48.7000	8.7310	60.0000		103.0000
1790923	K105A03474	40.5	9.525	2.2080	48.7000	8.8240	60.0000		103.0000
1790924	K105A03566	40.5	9.525	2.2660	48.7000	9.0580	60.0000		103.0000
1153179	K105A03594	40.5	9.525	2.2800	48.7000	9.1280	60.0000		103.0000
1153180	K105A03750	40.5	9.525	2.3800	48.7000	9.5250	60.0000		103.0000
1153181	K105A03906	42.499	11.113	2.4790	53.1000	9.9220	66.0000		111.0000
1613432	K105A03906	42.499	11.113	2.4790	53.1000	9.9220	66.0000		111.0000
1790927	K105A04059	42.499	11.113	2.5800	53.1000	10.3100	66.0000		111.0000
1153182	K105A04063	42.499	11.113	2.5780	53.1000	10.3190	66.0000		111.0000
1153183	K105A04219	42.499	11.113	2.6770	53.1000	10.7160	66.0000		111.0000
1153184	K105A04375	42.499	11.113	2.7760	53.1000	11.1120	66.0000		111.0000
1153185	K105A04531	45.499	12.7	2.8750	55.6000	11.5090	70.0000		118.0000
1790930	K105A04545	45.499	12.7	2.8880	55.6000	11.5440	70.0000		118.0000
1153186	K105A04688	45.499	12.7	2.9740	55.6000	11.9060	70.0000		118.0000
1153187	K105A04844	45.499	12.7	3.0740	55.6000	12.3030	70.0000		118.0000
1153188	K105A05000	45.499	12.7	3.1730	55.6000	12.7000	70.0000		118.0000
1153189	K105A05625	45.499	14.288	3.5690	60.0000	14.2880	76.0000		124.0000
1153190	K105A06250	48.499	15.875	3.9660	64.5000	15.8750	82.0000		133.0000
1153191	K105A06875	48.499	17.463	4.3620	73.0000	17.4620	92.0000		143.0000
1153192	K105A07500	50.5	19.05	4.7590	74.5000	19.0500	95.0000		148.0000
1790966	K105A08101	50.5	20.638	5.1400	78.0000	20.5760	100.0000		153.0000

Tolerance:

Tolerance • Inch
nominal size range	D1 tolerance m7	D tolerance h6
.1181–.2362	.0002/.0006	.0000/-.0003
.2362–.3937	.0002/.0008	.0000/-.0004
.3937–.7087	.0003/.0010	.0000/-.0004
.7087–1.0000	.0003/.0011	.0000/-.0005

Tolerance • Metric
nominal size range	D1 tolerance m7	D tolerance h6
3–6	0,004/0,016	0,000/-0,008
6–10	0,006/0,021	0,000/-0,009
10–18	0,007/0,025	0,000/-0,011
18–25,4	0,008/0,029	0,000/-0,013

Режимы резания:

Сверла TF; Серия B105; Сплав K10; Наружный подвод СОЖ; Диаметр сверления 0,1181–0,7874″; Дюймовая система

Material Group

		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
K	1	60	85	110	mm/r	0,11–0,20	0,12–0,20	0,16–0,28	0,20–0,35	0,22–0,42	0,24–0,50	0,28–0,61	0,30–0,68
	2	70	70	90	mm/r	0,11–0,20	0,12–0,20	0,16–0,28	0,20–0,35	0,22–0,42	0,24–0,50	0,28–0,61	0,30–0,68
	3	50	50	70	mm/r	0,09–0,18	0,10–0,18	0,14–0,26	0,18–0,33	0,02–0,40	0,22–0,48	0,26–0,59	0,28–0,66
N	1	100	210	410	mm/r	0,09–0,15	0,10–0,20	0,18–0,33	0,20–0,38	0,25–0,43	0,03–0,51	0,43–0,58	0,64–0,79
	2	100	250	250	mm/r	0,10–0,19	0,12–0,21	0,18–0,33	0,25–0,42	0,30–0,50	0,35–0,58	0,44–0,74	0,52–0,88
	3	100	180	400	mm/r	0,09–0,16	0,10–0,20	0,12–0,26	0,16–0,36	0,20–0,40	0,24–0,45	0,30–0,50	0,34–0,60
	4	60	170	250	mm/r	0,08–0,15	0,13–0,18	0,18–0,33	0,20–0,36	0,23–0,38	0,33–0,46	0,38–0,48	0,58–0,76
S	4	20	20	50	mm/r	0,03–0,05	0,04–0,07	0,07–0,09	0,09–0,12	0,11–0,15	0,13–0,18	0,17–0,24	0,22–0,30

Material Group

Material Group		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750
K	1	200	280	360	IPR	.004–.008	.005–.008	.006–.011	.008–.014	.009–.017	.009–.020	.011–.024	.012–.027
	2	230	230	300	IPR	.004–.008	.005–.008	.006–.011	.008–.014	.009–.017	.009–.020	.011–.024	.012–.027
	3	160	160	230	IPR	.004–.007	.004–.007	.006–.010	.007–.013	.001–.016	.009–.019	.010–.023	.011–.026
N	1	330	690	1340	IPR	.004–.006	.004–.008	.007–.013	.008–.015	.010–.017	.001–.020	.017–.023	.025–.031
	2	330	820	820	IPR	.004–.008	.005–.008	.007–.013	.010–.017	.012–.020	.014–.023	.017–.029	.021–.035
	3	330	590	1310	IPR	.004–.006	.004–.008	.005–.010	.006–.014	.008–.016	.009–.018	.012–.020	.013–.024
	4	200	560	820	IPR	.003–.006	.005–.007	.007–.013	.008–.014	.009–.015	.013–.018	.015–.019	.023–.030
S	4	70	70	160	IPR	.001–.002	.002–.003	.003–.004	.004–.005	.004–.006	.005–.007	.007–.009	.009–.012


		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
Material Group		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
K	1	60	85	110	mm/dev	0,11–0,20	0,12–0,20	0,16–0,28	0,20–0,35	0,22–0,42	0,24–0,50	0,28–0,61	0,30–0,68
	2	70	72	90	mm/dev	0,11–0,20	0,12–0,20	0,16–0,28	0,20–0,35	0,22–0,42	0,24–0,50	0,28–0,61	0,30–0,68
	3	50	51	70	mm/dev	0,09–0,18	0,10–0,18	0,14–0,26	0,18–0,33	,020–0,40	0,22–0,48	0,26–0,59	0,28–0,66
N	1	100	210	410	mm/dev	0,09–0,15	0,10–0,20	0,18–0,33	0,20–0,38	0,25–0,43	,033–0,51	0,43–0,58	0,64–0,79
	2	100	248	250	mm/dev	0,10–0,19	0,12–0,21	0,18–0,33	0,25–0,42	0,30–0,50	0,35–0,58	0,44–0,74	0,52–0,88
	4	60	173	250	mm/dev	0,08–0,15	0,13–0,18	0,18–0,33	0,20–0,36	0,23–0,38	0,33–0,46	0,38–0,48	0,58–0,76
S	4	30	20	51	mm/dev	0,03–0,05	0,04–0,07	0,07–0,09	0,09–0,12	0,11–0,15	0,13–0,18	0,17–0,24	0,22–0,30

Material Group

Material Group		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750
S	4	70	100	160	IPR	–	–	.001–.003	.001–.003	.001–.003	.003–.006	.003–.006	–

Material Group

		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
S	4	20	30	50	mm/r	–	–	0,03–0,08	0,03–0,08	0,03–0,08	0,08–0,15	0,08–0,15	–


		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
Material Group		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0
S	4	20	30	50	mm/dev	–	–	0,03–0,08	0,03–0,08	0,03–0,08	0,08–0,15	0,08–0,15	–

Особенности:

Применение:

Tolerance:

Режимы резания:

Сверла TF; Серия B105; Сплав K10; Наружный подвод СОЖ; Диаметр сверления 0,1181–0,7874″; Дюймовая система

Задать вопрос
