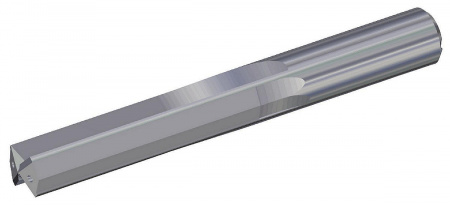

K411• KF1; Сверла TX с хвостовиком формы A; ~5xD

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

K411• KF1; Сверла TX с хвостовиком формы A; ~5xD. Сверла TX; Обработка прецизионных отверстий; Внутренний подвод СОЖ. Сверла TX • Обработка прецизионных отверстий

Особенности:

TX drills with through coolant for close tolerance holes.
Material-specific SC drill that has an X-shaped, free-cutting 130° point design and is designed for grey cast iron, nodular iron, and non-ferrous and aluminium alloy materials.
Can run into cored holes.
Two cutting edges with straight flutes for precise shape of the hole even if used as platform for complex step drills.
Four-margin land design with second set of cutting margin lands improve the surface quality and achieve tight diameter tolerances.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: Stacked Plates
Shank - Cylindrical Plain ≤h6
Helix Angle: 0°
Drilling - Through Coolant
Tool Dimensions: 2flute/4margin/X/cool
Drilling: Cross-Hole Drilling

SAP Material Number	ISO Catalog Number	[LS] Shank Length	[D] Adapter / Shank / Bore Diameter	[L5] Drill Point Length	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L3] Flute Length	[D1] Wire Size	[L] Overall Length
1201023	K411A01250	36.5	4.763	0.7400	21.4000	3.1750	27.5000		66.0000
1201024	K411A01406	36.5	4.763	0.8330	21.4000	3.5720	27.5000		66.0000
1201025	K411A01563	36.5	4.763	0.9250	21.4000	3.9690	27.5000		66.0000
1201026	K411A01719	36.5	4.763	1.0180	28.6000	4.3660	35.5000		74.0000
1201027	K411A01875	36.5	4.763	1.1100	28.6000	4.7620	35.5000		74.0000
1201028	K411A02031	36.5	6.35	1.2030	34.9000	5.1590	43.5000		82.0000
1201029	K411A02188	36.5	6.35	1.2950	34.9000	5.5560	43.5000		82.0000
1201030	K411A02344	36.5	6.35	1.3880	34.9000	5.9530	43.5000		82.0000
1201031	K411A02500	36.5	6.35	1.4810	34.9000	6.3500	43.5000	E	82.0000
1201033	K411A02812	38.5	7.9375	1.5500	81.2000	7.1420	101.0000		153.0000
1201035	K411A03125	38.499	7.938	1.8510	40.3000	7.9380	50.5000		91.0000
1201036	K411A03281	40.5	9.525	1.9430	48.7000	8.3340	60.5000		103.0000
1201037	K411A03438	40.5	9.525	2.0360	48.7000	8.7310	60.5000		103.0000
1201038	K411A03594	40.5	9.525	2.0000	48.7000	9.1288	60.5000		103.0000
1201039	K411A03750	40.5	9.525	2.2210	48.7000	9.5250	60.5000		103.0000
1201040	K411A03906	42.499	11.113	2.3130	53.1000	9.9220	66.5000		111.0000
1201041	K411A04063	42.5	11.1125	2.2600	53.1000	10.3200	66.5000		111.0000
1201042	K411A04219	42.499	11.113	2.4980	53.1000	10.7160	66.5000		111.0000
1201043	K411A04375	42.499	11.113	2.5910	53.1000	11.1120	66.5000		111.0000
1201044	K411A04531	45.499	12.7	2.6830	55.6000	11.5090	70.5000		118.0000
1201046	K411A04844	45.499	12.7	2.8690	55.6000	12.3030	70.5000		118.0000
1201047	K411A05000	45.499	12.7	2.9610	55.6000	12.7000	70.5000		118.0000
1201048	K411A05156	45.5	14.2875	2.8800	60.0000	13.0962	76.5000		124.0000
1201049	K411A05313	45.499	14.288	3.1460	60.0000	13.4940	76.5000		124.0000
1201051	K411A05625	45.499	14.288	3.3310	60.0000	14.2880	76.5000		124.0000
1201052	K411A05781	48.499	15.875	3.4240	64.5000	14.6840	82.5000		133.0000
1201055	K411A06250	48.499	15.875	3.7010	64.5000	15.8750	82.5000		133.0000
1796444	K411A06875	48.499	17.463	4.0730	73.0000	17.4630	92.5000		143.0000
1796445	K411A07500	50.5	19.05	4.4420	74.5000	19.0500	95.5000		148.0000

Tolerance:

Tolerance • Metric
nominal size range	D1 tolerance k6	D tolerance h6
3 - 6	0,001/0,009	0,000/-0,008
6 - 10	0,001/0,010	0,000/-0,009
10 - 18	0,001/0,012	0,000/-0,011
18 - 25,4	0,002/0,015	0,000/-0,013

Tolerance • Inch
nominal size range	D1 tolerance k6	D tolerance h6
.1181–.2362	.0000/.0004	.0000/-.0003
.2362–.3937	.0000/.0004	.0000/-.0004
.3937–.7087	.0000/.0005	.0000/-.0004
.7087–1.0000	.0000/.0006	.0000/-.0005

Dimension:

Размеры цельных твердосплавных сверл Kennametal

			short			long			extra long
Ø	DIN 6535		~3 x D			~5 x D			~8 x D
D1	D	LS min	L	L3	L4	L	L3	L4	L	L3	L4
-1.40	4	28	58	7	5	58	9	6	58	12	10
-1.90	4	28	58	9	6	58	12	9	58	18	15
-2.30	4	28	58	13	9	58	18	14	66	26	22
-2.99	4	28	58	17	12	58	22	17	66	30	25
-3.75	6	36	62	20	14	66	28	23	78	40	33
-4.75	6	36	66	24	17	74	36	29	87	49	41
-6.00	6	36	66	28	20	82	44	35	94	56	48
-7.00	8	36	79	34	24	91	53	43	105	67	57
-8.00	8	36	79	41	29	91	53	43	110	72	61
-10.00	10	40	89	47	35	103	61	49	122	80	68
-12.00	12	45	102	55	40	118	71	56	141	94	79
-14.00	14	45	107	60	43	124	77	60	155	108	91
-16.00	16	48	115	65	45	133	83	63	171	121	101
-18.00	18	48	123	73	51	143	93	71	185	135	113
-20.00	20	50	131	79	55	153	101	77	200	148	124
-22.00	20	50	141	86	60	167	112	85	217	162	136
-25.00	25	56	153	95	65	184	126	98	238	180	150

Режимы резания:

Сверла TX; Серия B411; Сплав KF1; Внутренний подвод СОЖ; Диаметр сверления 0,1181–0,9843″; Дюймовая система

Material Group

		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0	25,4
K	1	115	120	140	mm/r	0,11–0,20	0,12–0,24	0,15–0,28	0,18–0,33	0,20–0,38	0,23–0,44	0,30–0,53	0,34–0,65	0,40–0,76
N	1	100	250	450	mm/r	0,12–0,25	0,13–0,29	0,16–0,35	0,20–0,42	0,26–0,50	0,32–0,57	0,36–0,69	0,42–0,82	0,59–0,96
	2	200	250	300	mm/r	0,13–0,21	0,14–0,26	0,16–0,32	0,20–0,37	0,27–0,44	0,32–0,52	0,38–0,64	0,44–0,78	0,60–0,96
	3	100	150	300	mm/r	0,11–0,18	0,12–0,20	0,15–0,24	0,18–0,30	0,20–0,38	0,23–0,44	0,30–0,53	0,34–0,65	0,40–0,76
	4	100	170	250	mm/r	0,10–0,16	0,12–0,20	0,14–0,26	0,16–0,28	0,18–0,32	0,20–0,36	0,22–0,40	0,24–0,44	0,28–0,50

Material Group

Material Group		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750	1/1 1.000
K	1	380	390	460	IPR	.004–.008	.005–.009	.006–.011	.007–.013	.008–.015	.009–.017	.012–.021	.013–.026	.016–.030
N	1	330	820	1480	IPR	.005–.010	.005–.011	.006–.014	.008–.017	.010–.020	.013–.022	.014–.027	.017–.032	.023–.038
	2	660	820	980	IPR	.005–.008	.006–.010	.006–.013	.008–.015	.011–.017	.013–.021	.015–.025	.017–.031	.024–.038
	3	330	490	980	IPR	.004–.007	.005–.008	.006–.009	.007–.012	.008–.015	.009–.017	.012–.021	.013–.026	.016–.030
	4	330	560	820	IPR	.004–.006	.005–.008	.006–.010	.006–.011	.007–.013	.008–.014	.009–.016	.009–.017	.011–.020



		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
Material Group		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	20,0	25,4
K	1	115	60	140	mm/dev	0,11–0,20	0,12–0,24	0,15–0,28	0,18–0,33	0,20–0,38	0,23–0,44	0,30–0,53	0,34–0,65	0,40–0,76
N	1	100	250	450	mm/dev	0,16–0,25	0,19–0,29	0,23–0,35	0,27–0,42	0,31–0,50	0,36–0,57	0,44–0,69	0,52–0,82	0,62–0,96
	2	200	100	300	mm/dev	0,15–0,23	0,17–0,28	0,21–0,34	0,25–0,39	0,30–0,46	0,34–0,54	0,42–0,67	0,52–0,82	0,61–0,96
	4	100	170	250	mm/dev	0,16–0,28	0,15–0,32	0,19–0,36	0,23–0,40	0,25–0,44	0,28–0,48	0,32–0,56	0,35–0,63	0,42–0,72
