Описание

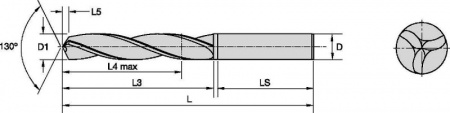

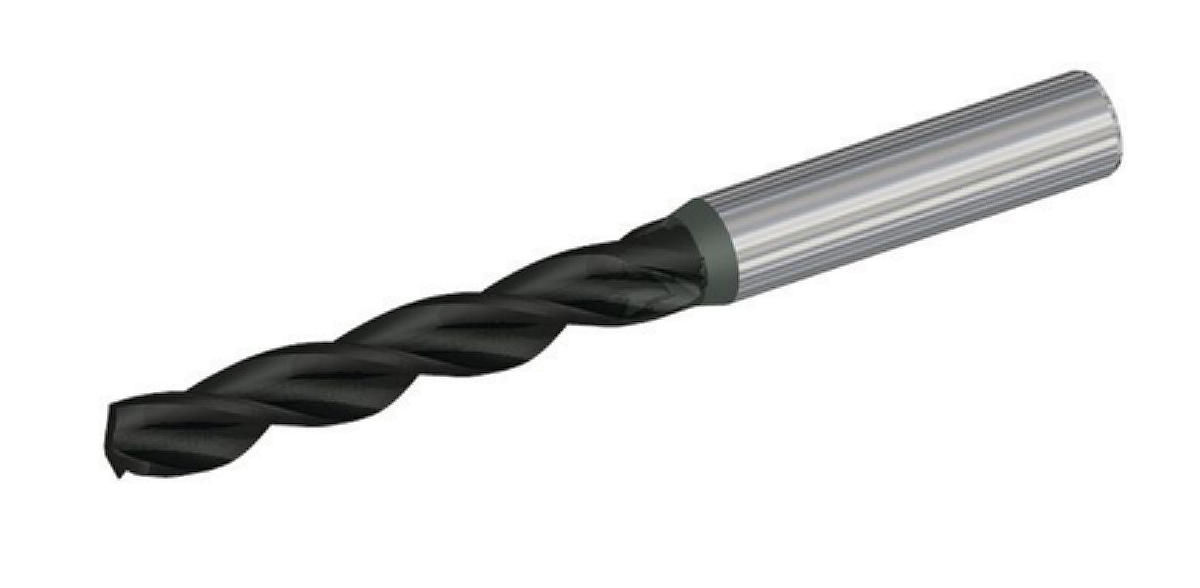

B105 (~5 x D); K10/KC7210; Хвостовик формы A; Сверла TF. Сверла TF; Большой удельный съем металла; Без СОЖ. Сверла TF • Большой удельный съем металла
Особенности:
- Сверла TF без внутреннего подвода СОЖ рекомендуются для обработки с большим удельным съемом металла. Они обеспечивают превосходное качество отверстия в материалах, образующих короткую стружку, таких как серый чугун, ковкий чугун и алюминий, а также при обработке неглубоких отверстий в деталях из титана.
- Цельное твердосплавное сверло с тремя режущими кромками для обработки конкретных материалов позволяет использовать более высокие подачи по сравнению со сверлами с двумя режущими кромками.
- Три широких стружечных канавки обеспечивают быстрый стружкоотвод.
- Три ленточки обеспечивают более высокое качество и прямолинейность отверстия по сравнению с двухленточными сверлами.
- Сплав KC7210 с покрытием из TiAlN обеспечивает повышенную износостойкость при обработке на высоких скоростях.
- Сплав K10 без покрытия препятствует образованию нароста на режущей кромке при сверлении алюминия и жаропрочных сплавов.
Применение:
- Drilling
- Drilling: Inclined Exit
- Drilling Depth: 5x
- Shank - Cylindrical Plain ≤h6
- Helix Angle: 30°
- Flood Coolant: Drilling
- DIN number 6535
- DIN number 6537
- Tool Dimensions: 3flute/3margin/no cool
- Drilling: Cross-Hole Drilling

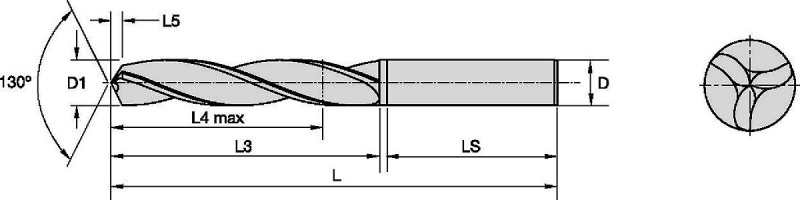

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [D1] Wire Size | [L] Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| 1191414 | B105A03000 | 36.0 | 6.0 | 0.7490 | 23.0000 | 3.0000 | 28.0000 | 66.0000 | |
| 1191415 | B105A03100 | 36.0 | 6.0 | 0.7740 | 23.0000 | 3.1000 | 28.0000 | 66.0000 | |
| 1191416 | B105A03200 | 36.0 | 6.0 | 0.7990 | 23.0000 | 3.2000 | 28.0000 | 66.0000 | |
| 1191417 | B105A03300 | 36.0 | 6.0 | 0.8240 | 23.0000 | 3.3000 | 28.0000 | 66.0000 | |
| 1201617 | B105A03400 | 36.0 | 6.0 | 0.8490 | 23.0000 | 3.4000 | 28.0000 | 66.0000 | |
| 1191418 | B105A03500 | 36.0 | 6.0 | 0.8740 | 23.0000 | 3.5000 | 28.0000 | 66.0000 | |
| 1201621 | B105A03600 | 36.0 | 6.0 | 0.8990 | 23.0000 | 3.6000 | 28.0000 | 66.0000 | |
| 1199334 | B105A03700 | 36.0 | 6.0 | 0.9240 | 23.0000 | 3.7000 | 28.0000 | 66.0000 | |
| 1199337 | B105A03800 | 36.0 | 6.0 | 0.9490 | 29.0000 | 3.8000 | 36.0000 | 74.0000 | |
| 1258625 | B105A03900 | 36.0 | 6.0 | 0.9740 | 29.0000 | 3.9000 | 36.0000 | 74.0000 | |
| 1191419 | B105A04000 | 36.0 | 6.0 | 0.9990 | 29.0000 | 4.0000 | 36.0000 | 74.0000 | |
| 1199682 | B105A04100 | 36.0 | 6.0 | 1.0240 | 29.0000 | 4.1000 | 36.0000 | 74.0000 | |
| 1191420 | B105A04200 | 36.0 | 6.0 | 1.0490 | 29.0000 | 4.2000 | 36.0000 | 74.0000 | |
| 1230196 | B105A04300 | 36.0 | 6.0 | 1.0740 | 29.0000 | 4.3000 | 36.0000 | 74.0000 | |
| 1191421 | B105A04500 | 36.0 | 6.0 | 1.1240 | 29.0000 | 4.5000 | 36.0000 | 74.0000 | |
| 1992822 | B105A04600 | 36.0 | 6.0 | 1.1490 | 29.0000 | 4.6000 | 36.0000 | 74.0000 | |
| 1199348 | B105A04650 | 36.0 | 6.0 | 1.1620 | 29.0000 | 4.6500 | 36.0000 | 74.0000 | |
| 1199228 | B105A04700 | 36.0 | 6.0 | 1.1740 | 29.0000 | 4.7000 | 36.0000 | 13 | 74.0000 |
| 1199351 | B105A04800 | 36.0 | 6.0 | 1.1990 | 35.0000 | 4.8000 | 44.0000 | 12 | 82.0000 |
| 1201661 | B105A04900 | 36.0 | 6.0 | 1.2240 | 35.0000 | 4.9000 | 44.0000 | 82.0000 | |
| 1191422 | B105A05000 | 36.0 | 6.0 | 1.2490 | 35.0000 | 5.0000 | 44.0000 | 82.0000 | |
| 1199003 | B105A05000 | 36.0 | 6.0 | 1.2490 | 35.0000 | 5.0000 | 44.0000 | 82.0000 | |
| 1191423 | B105A05100 | 36.0 | 6.0 | 1.2740 | 35.0000 | 5.1000 | 44.0000 | 82.0000 | |
| 1199360 | B105A05200 | 36.0 | 6.0 | 1.2990 | 35.0000 | 5.2000 | 44.0000 | 82.0000 | |
| 1255968 | B105A05400 | 36.0 | 6.0 | 1.3490 | 35.0000 | 5.4000 | 44.0000 | 82.0000 | |
| 1191424 | B105A05500 | 36.0 | 6.0 | 1.3740 | 35.0000 | 5.5000 | 44.0000 | 82.0000 | |
| 1199365 | B105A05550 | 36.0 | 6.0 | 1.3870 | 35.0000 | 5.5500 | 44.0000 | 82.0000 | |
| 1201677 | B105A05600 | 36.0 | 6.0 | 1.3990 | 35.0000 | 5.6000 | 44.0000 | 82.0000 | |
| 1191425 | B105A05700 | 36.0 | 6.0 | 1.4240 | 35.0000 | 5.7000 | 44.0000 | 82.0000 | |
| 1191426 | B105A05800 | 36.0 | 6.0 | 1.4490 | 35.0000 | 5.8000 | 44.0000 | 82.0000 | |
| 1191427 | B105A06000 | 36.0 | 6.0 | 1.4990 | 35.0000 | 6.0000 | 44.0000 | 82.0000 | |
| 1199229 | B105A06100 | 36.0 | 8.0 | 1.5240 | 43.0000 | 6.1000 | 53.0000 | 91.0000 | |
| 1201708 | B105A06200 | 36.0 | 8.0 | 1.5490 | 43.0000 | 6.2000 | 53.0000 | 91.0000 | |
| 1191428 | B105A06300 | 36.0 | 8.0 | 1.5740 | 43.0000 | 6.3000 | 53.0000 | 91.0000 | |
| 1201713 | B105A06350 | 36.0 | 8.0 | 1.5860 | 43.0000 | 6.3500 | 53.0000 | E | 91.0000 |
| 1191429 | B105A06400 | 36.0 | 8.0 | 1.5990 | 43.0000 | 6.4000 | 53.0000 | 91.0000 | |
| 1191430 | B105A06500 | 36.0 | 8.0 | 1.6240 | 43.0000 | 6.5000 | 53.0000 | 91.0000 | |
| 1199380 | B105A06600 | 36.0 | 8.0 | 1.6490 | 43.0000 | 6.6000 | 53.0000 | 91.0000 | |
| 1201723 | B105A06600 | 36.0 | 8.0 | 1.6490 | 43.0000 | 6.6000 | 53.0000 | 91.0000 | |
| 1191431 | B105A06700 | 36.0 | 8.0 | 1.6740 | 43.0000 | 6.7000 | 53.0000 | 91.0000 | |
| 1191432 | B105A06800 | 36.0 | 8.0 | 1.6990 | 43.0000 | 6.8000 | 53.0000 | 91.0000 | |
| 1199013 | B105A06800 | 36.0 | 8.0 | 1.6990 | 43.0000 | 6.8000 | 53.0000 | 91.0000 | |
| 1191433 | B105A07000 | 36.0 | 8.0 | 1.7490 | 43.0000 | 7.0000 | 53.0000 | 91.0000 | |
| 1199016 | B105A07000 | 36.0 | 8.0 | 1.7490 | 43.0000 | 7.0000 | 53.0000 | 91.0000 | |
| 1191434 | B105A07100 | 36.0 | 8.0 | 1.7740 | 43.0000 | 7.1000 | 53.0000 | 91.0000 | |
| 1199387 | B105A07400 | 36.0 | 8.0 | 1.8490 | 43.0000 | 7.4000 | 53.0000 | 91.0000 | |
| 1191435 | B105A07500 | 36.0 | 8.0 | 1.8740 | 43.0000 | 7.5000 | 53.0000 | 91.0000 | |
| 1199306 | B105A07600 | 36.0 | 8.0 | 1.8990 | 43.0000 | 7.6000 | 53.0000 | 91.0000 | |
| 1191436 | B105A07800 | 36.0 | 8.0 | 1.9490 | 43.0000 | 7.8000 | 53.0000 | 91.0000 | |
| 1191437 | B105A08000 | 36.0 | 8.0 | 2.0000 | 43.0000 | 8.0000 | 53.0000 | 91.0000 | |
| 1199019 | B105A08000 | 36.0 | 8.0 | 1.9990 | 43.0000 | 8.0000 | 53.0000 | 91.0000 | |
| 1199238 | B105A08100 | 40.0 | 10.0 | 2.0240 | 49.0000 | 8.1000 | 61.0000 | 103.0000 | |
| 1176134 | B105A08200 | 40.0 | 10.0 | 2.0490 | 49.0000 | 8.2000 | 61.0000 | 103.0000 | |
| 1199225 | B105A08300 | 40.0 | 10.0 | 2.0740 | 49.0000 | 8.3000 | 61.0000 | 103.0000 | |
| 1191438 | B105A08400 | 40.0 | 10.0 | 2.0980 | 49.0000 | 8.4000 | 61.0000 | 103.0000 | |
| 1191439 | B105A08500 | 40.0 | 10.0 | 2.1230 | 49.0000 | 8.5000 | 61.0000 | 103.0000 | |
| 1199023 | B105A08500 | 40.0 | 10.0 | 2.1230 | 49.0000 | 8.5000 | 61.0000 | 103.0000 | |
| 1199685 | B105A08600 | 40.0 | 10.0 | 2.1480 | 49.0000 | 8.6000 | 61.0000 | 103.0000 | |
| 1191440 | B105A08700 | 40.0 | 10.0 | 2.1730 | 49.0000 | 8.7000 | 61.0000 | 103.0000 | |
| 1191441 | B105A08800 | 40.0 | 10.0 | 2.1980 | 49.0000 | 8.8000 | 61.0000 | 103.0000 | |
| 1191442 | B105A09000 | 40.0 | 10.0 | 2.2480 | 49.0000 | 9.0000 | 61.0000 | 103.0000 | |
| 1199025 | B105A09000 | 40.0 | 10.0 | 2.2480 | 49.0000 | 9.0000 | 61.0000 | 103.0000 | |
| 1199311 | B105A09100 | 40.0 | 10.0 | 2.2730 | 49.0000 | 9.1000 | 61.0000 | 103.0000 | |
| 1199406 | B105A09300 | 40.0 | 10.0 | 2.3230 | 49.0000 | 9.3000 | 61.0000 | 103.0000 | |
| 1191443 | B105A09500 | 40.0 | 10.0 | 2.3730 | 49.0000 | 9.5000 | 61.0000 | 103.0000 | |
| 1191444 | B105A09700 | 40.0 | 10.0 | 2.4230 | 49.0000 | 9.7000 | 61.0000 | 103.0000 | |
| 1191445 | B105A09800 | 40.0 | 10.0 | 2.4480 | 49.0000 | 9.8000 | 61.0000 | 103.0000 | |
| 1191446 | B105A10000 | 40.0 | 10.0 | 2.4980 | 49.0000 | 10.0000 | 61.0000 | 103.0000 | |
| 1199029 | B105A10000 | 40.0 | 10.0 | 2.4980 | 49.0000 | 10.0000 | 61.0000 | 103.0000 | |
| 1199243 | B105A10100 | 45.0 | 12.0 | 2.5230 | 56.0000 | 10.1000 | 71.0000 | 118.0000 | |
| 1191448 | B105A10200 | 45.0 | 12.0 | 2.5480 | 56.0000 | 10.2000 | 71.0000 | 118.0000 | |
| 1199032 | B105A10200 | 45.0 | 12.0 | 2.5480 | 56.0000 | 10.2000 | 71.0000 | 118.0000 | |
| 1191449 | B105A10300 | 45.0 | 12.0 | 2.5730 | 56.0000 | 10.3000 | 71.0000 | 118.0000 | |
| 1201892 | B105A10400 | 45.0 | 12.0 | 2.5980 | 56.0000 | 10.4000 | 71.0000 | 118.0000 | |
| 1191450 | B105A10500 | 45.0 | 12.0 | 2.6230 | 56.0000 | 10.5000 | 71.0000 | 118.0000 | |
| 1199034 | B105A10500 | 45.0 | 12.0 | 2.6230 | 56.0000 | 10.5000 | 71.0000 | 118.0000 | |
| 1191451 | B105A10700 | 45.0 | 12.0 | 2.6730 | 56.0000 | 10.7000 | 71.0000 | 118.0000 | |
| 1199251 | B105A10800 | 45.0 | 12.0 | 2.6980 | 56.0000 | 10.8000 | 71.0000 | 118.0000 | |
| 1191452 | B105A11000 | 45.0 | 12.0 | 2.7480 | 56.0000 | 11.0000 | 71.0000 | 118.0000 | |
| 1199038 | B105A11000 | 45.0 | 12.0 | 2.7480 | 56.0000 | 11.0000 | 71.0000 | 118.0000 | |
| 1199308 | B105A11100 | 45.0 | 12.0 | 2.7730 | 56.0000 | 11.1000 | 71.0000 | 118.0000 | |
| 1199421 | B105A11200 | 45.0 | 12.0 | 2.7980 | 56.0000 | 11.2000 | 71.0000 | 118.0000 | |
| 1615872 | B105A11200 | 45.0 | 12.0 | 2.7980 | 56.0000 | 11.2000 | 71.0000 | 118.0000 | |
| 1199424 | B105A11500 | 45.0 | 12.0 | 2.8730 | 56.0000 | 11.5000 | 71.0000 | 118.0000 | |
| 1199316 | B105A11700 | 45.0 | 12.0 | 2.9230 | 56.0000 | 11.7000 | 71.0000 | 118.0000 | |
| 1191453 | B105A11800 | 45.0 | 12.0 | 2.9480 | 56.0000 | 11.8000 | 71.0000 | 118.0000 | |
| 1191454 | B105A12000 | 45.0 | 12.0 | 2.9980 | 56.0000 | 12.0000 | 71.0000 | 118.0000 | |
| 1199042 | B105A12000 | 45.0 | 12.0 | 2.9980 | 56.0000 | 12.0000 | 71.0000 | 118.0000 | |
| 1199223 | B105A12100 | 45.0 | 14.0 | 3.0230 | 60.0000 | 12.1000 | 77.0000 | 124.0000 | |
| 1191455 | B105A12500 | 45.0 | 14.0 | 3.1230 | 60.0000 | 12.5000 | 77.0000 | 124.0000 | |
| 1199044 | B105A12500 | 45.0 | 14.0 | 3.1230 | 60.0000 | 12.5000 | 77.0000 | 124.0000 | |
| 1191456 | B105A12700 | 45.0 | 14.0 | 3.1730 | 60.0000 | 12.7000 | 77.0000 | 124.0000 | |
| 1191457 | B105A12800 | 45.0 | 14.0 | 3.1980 | 60.0000 | 12.8000 | 77.0000 | 124.0000 | |
| 1191458 | B105A13000 | 45.0 | 14.0 | 3.2480 | 60.0000 | 13.0000 | 77.0000 | 124.0000 | |
| 1199434 | B105A13100 | 45.0 | 14.0 | 3.2730 | 60.0000 | 13.1000 | 77.0000 | 124.0000 | |
| 1199438 | B105A13500 | 45.0 | 14.0 | 3.3730 | 60.0000 | 13.5000 | 77.0000 | 124.0000 | |
| 1191459 | B105A13800 | 45.0 | 14.0 | 3.4480 | 60.0000 | 13.8000 | 77.0000 | 124.0000 | |
| 1191460 | B105A14000 | 45.0 | 14.0 | 3.4970 | 60.0000 | 14.0000 | 77.0000 | 124.0000 | |
| 1199051 | B105A14000 | 45.0 | 14.0 | 3.4970 | 60.0000 | 14.0000 | 77.0000 | 124.0000 | |
| 1191461 | B105A14200 | 48.0 | 16.0 | 3.5470 | 63.0000 | 14.2000 | 83.0000 | 133.0000 | |
| 1191462 | B105A14500 | 48.0 | 16.0 | 3.6220 | 63.0000 | 14.5000 | 83.0000 | 133.0000 | |
| 1191463 | B105A15000 | 48.0 | 16.0 | 3.7470 | 63.0000 | 15.0000 | 83.0000 | 133.0000 | |
| 1191464 | B105A15100 | 48.0 | 16.0 | 3.7720 | 63.0000 | 15.1000 | 83.0000 | 133.0000 | |
| 1199455 | B105A15500 | 48.0 | 16.0 | 3.8720 | 63.0000 | 15.5000 | 83.0000 | 133.0000 | |
| 1191465 | B105A15800 | 48.0 | 16.0 | 3.9470 | 63.0000 | 15.8000 | 83.0000 | 133.0000 | |
| 1191466 | B105A16000 | 48.0 | 16.0 | 3.9970 | 63.0000 | 16.0000 | 83.0000 | 133.0000 | |
| 1191467 | B105A16500 | 48.0 | 18.0 | 4.1220 | 71.0000 | 16.5000 | 93.0000 | 143.0000 | |
| 1199469 | B105A17000 | 48.0 | 18.0 | 4.2470 | 71.0000 | 17.0000 | 93.0000 | 143.0000 | |
| 1199472 | B105A17500 | 48.0 | 18.0 | 4.3720 | 71.0000 | 17.5000 | 93.0000 | 143.0000 | |
| 1191468 | B105A18000 | 48.0 | 18.0 | 4.4970 | 71.0000 | 18.0000 | 93.0000 | 143.0000 | |
| 1199480 | B105A18500 | 50.0 | 20.0 | 4.6220 | 77.0000 | 18.5000 | 101.0000 | 153.0000 | |
| 1199488 | B105A19000 | 50.0 | 20.0 | 4.7470 | 77.0000 | 19.0000 | 101.0000 | 153.0000 | |
| 1199492 | B105A19500 | 50.0 | 20.0 | 4.8710 | 77.0000 | 19.5000 | 101.0000 | 153.0000 | |
| 1191469 | B105A20000 | 50.0 | 20.0 | 4.9960 | 77.0000 | 20.0000 | 101.0000 | 153.0000 | |
| 1191470 | B105A20500 | 50.0 | 20.0 | 5.1210 | 85.0000 | 20.5000 | 112.0000 | 167.0000 | |
| 1199675 | B105A21000 | 50.0 | 20.0 | 5.2460 | 85.0000 | 21.0000 | 112.0000 | 167.0000 |
Tolerance:
| Tolerance • Inch | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .1181–.2362 | .0002/.0006 | .0000/-.0003 |
| .2362–.3937 | .0002/.0008 | .0000/-.0004 |
| .3937–.7087 | .0003/.0010 | .0000/-.0004 |
| .7087–1.0000 | .0003/.0011 | .0000/-.0005 |
| Tolerance • Metric | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
Режимы резания:
Сверла TF; Серия B105; Сплав K10; Наружный подвод СОЖ; Диаметр сверления 3–20 мм; Метрическая система
| Material Group |  |  | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| K | 1 | 60 | 85 | 110 | mm/r | 0,11–0,20 | 0,12–0,20 | 0,16–0,28 | 0,20–0,35 | 0,22–0,42 | 0,24–0,50 | 0,28–0,61 | 0,30–0,68 |
| 2 | 70 | 70 | 90 | mm/r | 0,11–0,20 | 0,12–0,20 | 0,16–0,28 | 0,20–0,35 | 0,22–0,42 | 0,24–0,50 | 0,28–0,61 | 0,30–0,68 | |
| 3 | 50 | 50 | 70 | mm/r | 0,09–0,18 | 0,10–0,18 | 0,14–0,26 | 0,18–0,33 | 0,02–0,40 | 0,22–0,48 | 0,26–0,59 | 0,28–0,66 | |
| N | 1 | 100 | 210 | 410 | mm/r | 0,09–0,15 | 0,10–0,20 | 0,18–0,33 | 0,20–0,38 | 0,25–0,43 | 0,03–0,51 | 0,43–0,58 | 0,64–0,79 |
| 2 | 100 | 250 | 250 | mm/r | 0,10–0,19 | 0,12–0,21 | 0,18–0,33 | 0,25–0,42 | 0,30–0,50 | 0,35–0,58 | 0,44–0,74 | 0,52–0,88 | |
| 3 | 100 | 180 | 400 | mm/r | 0,09–0,16 | 0,10–0,20 | 0,12–0,26 | 0,16–0,36 | 0,20–0,40 | 0,24–0,45 | 0,30–0,50 | 0,34–0,60 | |
| 4 | 60 | 170 | 250 | mm/r | 0,08–0,15 | 0,13–0,18 | 0,18–0,33 | 0,20–0,36 | 0,23–0,38 | 0,33–0,46 | 0,38–0,48 | 0,58–0,76 | |
| S | 4 | 20 | 20 | 50 | mm/r | 0,03–0,05 | 0,04–0,07 | 0,07–0,09 | 0,09–0,12 | 0,11–0,15 | 0,13–0,18 | 0,17–0,24 | 0,22–0,30 |
| Material Group | | | |||||||||||
| Material Group | Cutting Speed vc | Inch | |||||||||||
| Range SFM | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| K | 1 | 200 | 280 | 360 | IPR | .004–.008 | .005–.008 | .006–.011 | .008–.014 | .009–.017 | .009–.020 | .011–.024 | .012–.027 |
| 2 | 230 | 230 | 300 | IPR | .004–.008 | .005–.008 | .006–.011 | .008–.014 | .009–.017 | .009–.020 | .011–.024 | .012–.027 | |
| 3 | 160 | 160 | 230 | IPR | .004–.007 | .004–.007 | .006–.010 | .007–.013 | .001–.016 | .009–.019 | .010–.023 | .011–.026 | |
| N | 1 | 330 | 690 | 1340 | IPR | .004–.006 | .004–.008 | .007–.013 | .008–.015 | .010–.017 | .001–.020 | .017–.023 | .025–.031 |
| 2 | 330 | 820 | 820 | IPR | .004–.008 | .005–.008 | .007–.013 | .010–.017 | .012–.020 | .014–.023 | .017–.029 | .021–.035 | |
| 3 | 330 | 590 | 1310 | IPR | .004–.006 | .004–.008 | .005–.010 | .006–.014 | .008–.016 | .009–.018 | .012–.020 | .013–.024 | |
| 4 | 200 | 560 | 820 | IPR | .003–.006 | .005–.007 | .007–.013 | .008–.014 | .009–.015 | .013–.018 | .015–.019 | .023–.030 | |
| S | 4 | 70 | 70 | 160 | IPR | .001–.002 | .002–.003 | .003–.004 | .004–.005 | .004–.006 | .005–.007 | .007–.009 | .009–.012 |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| K | 1 | 60 | 85 | 110 | mm/dev | 0,11–0,20 | 0,12–0,20 | 0,16–0,28 | 0,20–0,35 | 0,22–0,42 | 0,24–0,50 | 0,28–0,61 | 0,30–0,68 |
| 2 | 70 | 72 | 90 | mm/dev | 0,11–0,20 | 0,12–0,20 | 0,16–0,28 | 0,20–0,35 | 0,22–0,42 | 0,24–0,50 | 0,28–0,61 | 0,30–0,68 | |
| 3 | 50 | 51 | 70 | mm/dev | 0,09–0,18 | 0,10–0,18 | 0,14–0,26 | 0,18–0,33 | ,020–0,40 | 0,22–0,48 | 0,26–0,59 | 0,28–0,66 | |
| N | 1 | 100 | 210 | 410 | mm/dev | 0,09–0,15 | 0,10–0,20 | 0,18–0,33 | 0,20–0,38 | 0,25–0,43 | ,033–0,51 | 0,43–0,58 | 0,64–0,79 |
| 2 | 100 | 248 | 250 | mm/dev | 0,10–0,19 | 0,12–0,21 | 0,18–0,33 | 0,25–0,42 | 0,30–0,50 | 0,35–0,58 | 0,44–0,74 | 0,52–0,88 | |
| 4 | 60 | 173 | 250 | mm/dev | 0,08–0,15 | 0,13–0,18 | 0,18–0,33 | 0,20–0,36 | 0,23–0,38 | 0,33–0,46 | 0,38–0,48 | 0,58–0,76 | |
| S | 4 | 30 | 20 | 51 | mm/dev | 0,03–0,05 | 0,04–0,07 | 0,07–0,09 | 0,09–0,12 | 0,11–0,15 | 0,13–0,18 | 0,17–0,24 | 0,22–0,30 |
| Material Group |  |  | |||||||||||
| Material Group | Cutting Speed vc | Inch | |||||||||||
| Range SFM | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| S | 4 | 70 | 100 | 160 | IPR | – | – | .001–.003 | .001–.003 | .001–.003 | .003–.006 | .003–.006 | – |
| Material Group | | | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| S | 4 | 20 | 30 | 50 | mm/r | – | – | 0,03–0,08 | 0,03–0,08 | 0,03–0,08 | 0,08–0,15 | 0,08–0,15 | – |
| | ||||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| S | 4 | 20 | 30 | 50 | mm/dev | – | – | 0,03–0,08 | 0,03–0,08 | 0,03–0,08 | 0,08–0,15 | 0,08–0,15 | – |
Задать вопрос
Нужна консультация?
Наши специалисты ответят на любой интересующий вопрос
Задать вопрос
