Описание

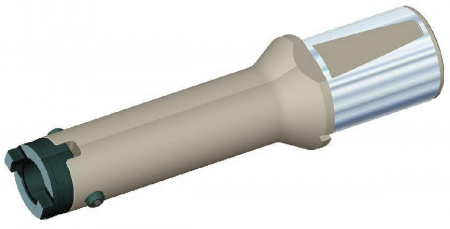

HTS; Базовый хвостовик WN/WD; Хвостовик WN(WD) 2°; Метрическая система. Сверла HTS для обработки глубоких отверстий. HTS • Компоненты
Особенности:
- Базовый конус поставляется с приводным кольцоми крепежными винтами.
Применение:
- Shank - Cylindrical Whistle Notch with Drive and Flange
- Coolant - Through Coolant

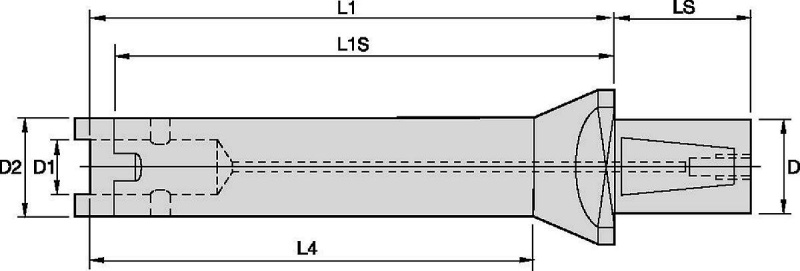

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [LS] Shank Length | [L1] Gage Length | [L4] Flange Length | [D2] Body Diameter 1 Workpiece Side | Torque Newton Meters | [L1S] Secondary Tool Length | Coupling Size Workpiece Side |
|---|---|---|---|---|---|---|---|---|---|
| 1928643 | 5.34032-025115 | 32.0 | 58.0 | 125.0000 | 110.0000 | 25.0000 | 10.169 | 115.0000 | 13A |
| 1928644 | 5.34032-025200 | 32.0 | 58.0 | 210.0000 | 195.0000 | 25.0000 | 10.169 | 200.0000 | 13A |
| 1134353 | 5.34032-028115 | 32.0 | 58.0 | 125.0000 | 110.0000 | 28.0000 | 10.169 | 115.0000 | 13B |
| 1134361 | 5.34032-028200 | 32.0 | 58.0 | 210.0000 | 195.0000 | 28.0000 | 10.169 | 200.0000 | 13B |
| 1134388 | 5.34032-032125 | 32.0 | 58.0 | 135.0000 | 120.0000 | 32.0000 | 10.169 | 125.0000 | 16 |
| 1928645 | 5.34050-025300 | 50.0 | 68.0 | 310.0000 | 270.0000 | 25.0000 | 10.169 | 300.0000 | 13A |
| 1928646 | 5.34050-025450 | 50.0 | 68.0 | 460.0000 | 420.0000 | 25.0000 | 10.169 | 450.0000 | 13A |
| 1134415 | 5.34050-028300 | 50.0 | 68.0 | 310.0000 | 265.0000 | 28.0000 | 10.169 | 300.0000 | 13B |
| 1129375 | 5.34050-028450 | 50.0 | 68.0 | 460.0000 | 415.0000 | 28.0000 | 10.169 | 450.0000 | 13B |
| 1134425 | 5.34050-032200 | 50.0 | 68.0 | 210.0000 | 165.0000 | 32.0000 | 10.169 | 200.0000 | 16 |
| 1129376 | 5.34050-032350 | 50.0 | 68.0 | 360.0000 | 315.0000 | 32.0000 | 10.169 | 350.0000 | 16 |
| 1129377 | 5.34050-032500 | 50.0 | 68.0 | 510.0000 | 465.0000 | 32.0000 | 10.169 | 500.0000 | 16 |
| 1134434 | 5.34050-040148 | 50.0 | 68.0 | 160.0000 | 140.0000 | 40.0000 | 16.270 | 148.0000 | 22 |
| 1134440 | 5.34050-040300 | 50.0 | 68.0 | 312.0000 | 267.0000 | 40.0000 | 10.169 | 300.0000 | 22 |
| 1129378 | 5.34050-040450 | 50.0 | 68.0 | 462.0000 | 417.0000 | 40.0000 | 10.169 | 450.0000 | 22 |
| 1129379 | 5.34050-040600 | 50.0 | 68.0 | 612.0000 | 567.0000 | 40.0000 | 10.169 | 600.0000 | 22 |
| 1134457 | 5.34050-048168 | 50.0 | 68.0 | 175.0000 | 160.0000 | 48.0000 | 20.337 | 168.0000 | 27 |
| 1134464 | 5.34050-048300 | 50.0 | 68.0 | 312.0000 | 267.0000 | 48.0000 | 16.270 | 300.0000 | 27 |
| 1129380 | 5.34050-048450 | 50.0 | 68.0 | 462.0000 | 417.0000 | 48.0000 | 16.270 | 450.0000 | 27 |
| 1129381 | 5.34050-048600 | 50.0 | 68.0 | 612.0000 | 567.0000 | 48.0000 | 16.270 | 600.0000 | 27 |
| 1134472 | 5.34050-058186 | 50.0 | 68.0 | 200.0000 | 180.0000 | 58.0000 | 20.337 | 186.0000 | 32 |
| 1134482 | 5.34050-058300 | 50.0 | 68.0 | 314.0000 | 254.0000 | 58.0000 | 20.337 | 300.0000 | 32 |
| 1129382 | 5.34050-058450 | 50.0 | 68.0 | 464.0000 | 404.0000 | 58.0000 | 20.337 | 450.0000 | 32 |
| 1129383 | 5.34050-058600 | 50.0 | 68.0 | 614.0000 | 554.0000 | 58.0000 | 20.337 | 600.0000 | 32 |
Dimension:
Размеры адаптера
| d3 | d4 | d5 | d6 | l1 | l2 | l3 | t1 | t2 | b | r | f1 | f2 |
| 25 | 13 | 8,50 | 6,5 | 35 | 22,0 | 7,00 | 6,7 | 6,50 | 8,0 | 3 | 0,5 | 0,5 |
| 28 | 13 | 8,50 | 6,5 | 35 | 22,0 | 7,00 | 7,0 | 6,50 | 8,0 | 3 | 0,5 | 0,5 |
| 32 | 16 | 8,30 | 6,5 | 40 | 24,0 | 7,50 | 8,5 | 7,50 | 8,0 | 3 | 0,5 | 0,5 |
| 40 | 22 | 10,50 | 7,0 | 45 | 25,0 | 8,50 | 11,5 | 10,00 | 10,0 | 3 | 0,5 | 0,5 |
| 48 | 27 | 12,75 | 9,0 | 50 | 27,0 | 9,00 | 14,0 | 12,00 | 12,0 | 3 | 1,0 | 1,0 |
| 58 | 32 | 11,50 | 9,0 | 50 | 29,0 | 10,00 | 16,5 | 7,25 | 14,0 | 3 | 1,0 | 1,0 |
| 70 | 40 | 15,25 | 12,2 | 55 | 30,0 | 10,50 | 20,5 | 10,00 | 16,0 | 3 | 1,0 | 1,0 |
| 80 | 50 | 15,25 | 12,2 | 60 | 36,0 | 12,50 | 25,5 | 12,50 | 18,0 | 4 | 1,0 | 1,0 |
| 90 | 50 | 16,50 | 12,2 | 60 | 36,0 | 12,50 | 25,5 | 12,50 | 18,0 | 4 | 1,0 | 1,0 |
| 110 | 60 | 14,50 | 12,2 | 60 | 36,0 | 13,65 | 30,5 | 10,00 | 20,0 | 4 | 1,0 | 1,0 |
| 125 1) | 60 | 25,00 | 18,0 | 75 | 39,5 | 17,00 | 35,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
| 140 1) | 70 | 25,00 | 18,0 | 80 | 39,5 | 17,00 | 42,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
| 160 1) | 80 | 25,00 | 18,0 | 80 | 39,5 | 17,00 | 42,0 | 20,25 | 25,5 | 6 | 1,0 | 1,0 |
 |  |  |  |  | |||||||||||
| d3 | d4 | l1 | l2 | l3 | M | b | r | f1 | f2 | drive ring | clamping screw | thread | MAn* Nm | sliding block | clamping screw M 12 x 25 for sliding block |
| 25 | 13 | 28 | 12,4 | 7,0 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 193.371 | 193.372 | M8 x 1,0 | 10 | – | – |
| 28 | 13 | 28 | 12,4 | 7,0 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 192.419 | 193.372 | M8 x 1,0 | 10 | – | – |
| 32 | 16 | 32 | 14,4 | 7,5 | M8 x 1,0 | 8,0 | 3 | 0,5 | 0,5 | 192.420 | 192.156 | M8 x 1,0 | 10 | – | – |
| 40 | 22 | 35 | 13,4 | 8,5 | M10 x 1,0 | 10,0 | 3 | 0,5 | 0,5 | 192.421 | 192.157 | M10 x 1,0 | 16 | – | – |
| 48 | 27 | 40 | 15,4 | 9,0 | M12 x 1,0 | 12,0 | 3 | 1,0 | 1,0 | 192.422 | 191.727 | M12 x 1,0 | 16 | – | – |
| 58 | 32 | 38 | 15,4 | 10,0 | M12 x 1,0 | 14,0 | 3 | 1,0 | 1,0 | 192.423 | 191.727 | M12 x 1,0 | 20 | – | – |
| 70 | 40 | 43 | 16,4 | 10,0 | M16 x 1,5 | 16,0 | 3 | 1,0 | 1,0 | 192.424 | 191.728 | M16 x 1,5 | 34 | – | – |
| 80 | 50 | 46 | 20,4 | 12,5 | M16 x 1,5 | 18,0 | 4 | 1,0 | 1,0 | 192.425 | 191.728 | M16 x 1,5 | 34 | – | – |
| 90 | 50 | 46 | 20,4 | 12,5 | M16 x 1,5 | 18,0 | 4 | 1,0 | 1,0 | 192.426 | 191.729 | M16 x 1,5 | 34 | – | – |
| 110 | 60 | 46 | 20,4 | 12,5 | M16 x 1,5 | 20,0 | 4 | 1,0 | 1,0 | 192.427 | 191.729 | M16 x 1,5 | 34 | – | – |
| 125 1) | 60 | 77 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
| 140 1) | 70 | 82 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
| 160 1) | 80 | 82 | 40,0 | 12,5 | M24 x 2,0 | 25,5 | 4 | 1,0 | 1,0 | – | 193.107 | M24 x 2,0 | 120 | 191.019 | 125.225 |
