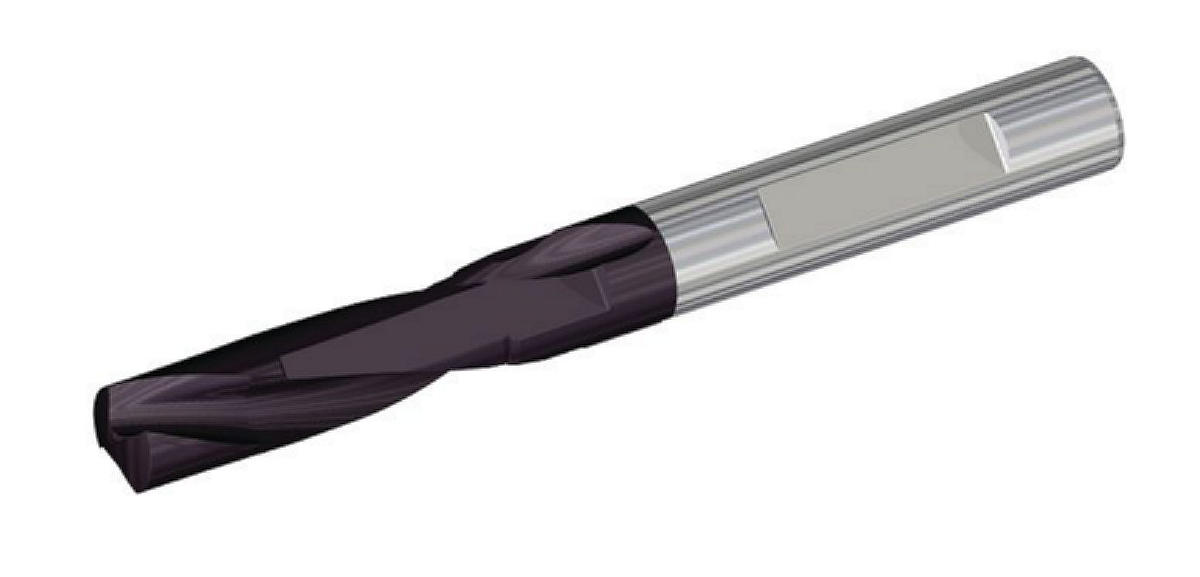

B343_HPG S-Shank; High-Performance BF Solid Carbide Drills

B343_HPG S-Shank; High-Performance BF Solid Carbide Drills. Система BF; Сверла HP; Внутренний подвод СОЖ. Серия K/B343_ HPG • Сверла SE_ HPG с внутренним подводом СОЖ

Применение:

Counter Sinking/ Stroke Chamfering
Counter Boring
Drilling
Drilling: Inclined Exit
Drilling - Through Coolant

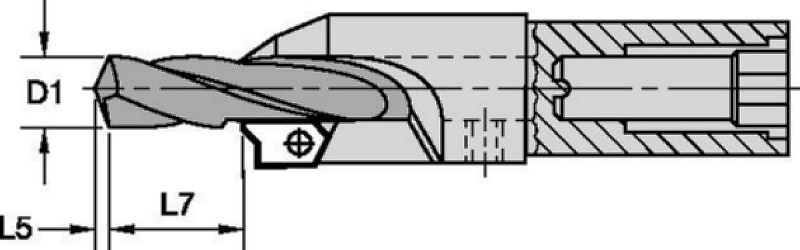

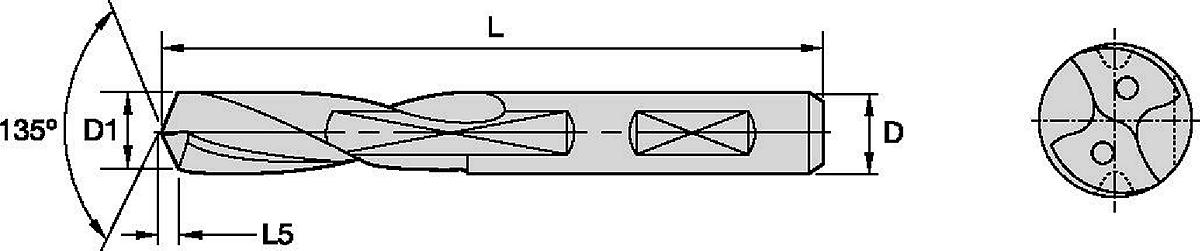

Tool Dimensions: 2flute/2margin/coolant

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[L5] Drill Point Length	[L7M] Adjustable Length Minimum	[D1] Drill Diameter M	[L7MAX] Adjustable Length Maximum	[L] Overall Length
2646276	B343S03175HPG	4.0	0.6000	1.0000	3.1750	8.6000	55.0000
2646277	B343S03400HPG	4.0	0.6280	1.0000	3.4000	10.0000	55.0000
2646280	B343S03800HPG	4.0	0.7010	3.3000	3.8000	12.3000	55.0000
2646281	B343S03970HPG	4.0	0.7300	4.3000	3.9700	13.3000	55.0000
2646282	B343S04000HPG	4.0	0.7400	4.4000	4.0000	13.4000	55.0000
2646333	B343S04100HPG	5.0	0.7600	3.7000	4.1000	13.7000	62.0000
2646334	B343S04200HPG	5.0	0.7800	4.2000	4.2000	14.2000	62.0000
2646335	B343S04300HPG	5.0	0.7900	4.7000	4.3000	14.7000	62.0000
2646336	B343S04500HPG	5.0	0.8300	5.6000	4.5000	15.6000	62.0000
2646337	B343S04600HPG	5.0	0.8500	5.8000	4.6000	15.8000	62.0000
2646338	B343S04623HPG	5.0	0.8500	5.9000	4.6230	15.9000	62.0000
2646339	B343S04763HPG	5.0	0.8790	6.6000	4.7630	16.6000	62.0000
2646341	B343S05000HPG	5.0	0.9200	7.6000	5.0000	17.6000	62.0000
2646342	B343S05100HPG	6.0	0.9400	6.8000	5.1000	17.8000	66.0000
2646343	B343S05200HPG	6.0	0.9600	7.2000	5.2000	18.2000	66.0000
2646344	B343S05300HPG	6.0	0.9800	7.6000	5.3000	18.6000	66.0000
2646345	B343S05400HPG	6.0	1.0000	8.0000	5.4000	19.0000	66.0000
2646347	B343S05500HPG	6.0	1.0150	8.4000	5.5000	19.4000	66.0000
2646348	B343S05550HPG	6.0	1.0200	8.3000	5.5500	19.3000	66.0000
2646349	B343S05558HPG	6.0	1.0300	8.4000	5.5580	19.4000	66.0000
2646350	B343S05600HPG	6.0	1.0340	8.5000	5.6000	19.5000	66.0000
2646351	B343S05800HPG	6.0	1.0700	9.3000	5.8000	20.3000	66.0000
2646352	B343S06000HPG	6.0	1.1100	10.0000	6.0000	21.0000	66.0000
2646112	B343S06100HPG	7.0	1.1300	9.1000	6.1000	21.1000	74.0000
2646253	B343S06200HPG	7.0	1.1400	9.5000	6.2000	21.5000	74.0000
2646255	B343S06350HPG	7.0	1.1700	10.0000	6.3500	22.0000	74.0000
2646256	B343S06400HPG	7.0	1.1800	10.2000	6.4000	22.2000	74.0000
2646257	B343S06500HPG	7.0	1.2000	10.5000	6.5000	22.5000	74.0000
2646258	B343S06528HPG	7.0	1.2050	10.6000	6.5280	22.6000	74.0000
2646259	B343S06600HPG	7.0	1.2200	10.9000	6.6000	22.9000	74.0000
2646260	B343S06700HPG	7.0	1.2400	11.2000	6.7000	23.2000	74.0000
2646261	B343S06746HPG	7.0	1.2500	11.4000	6.7460	23.4000	74.0000
2646262	B343S06800HPG	7.0	1.2600	11.5000	6.8000	23.5000	74.0000
2646263	B343S06900HPG	7.0	1.2700	11.9000	6.9000	23.9000	74.0000
2646265	B343S07000HPG	7.0	1.2900	12.2000	7.0000	24.2000	74.0000
2646267	B343S07300HPG	8.0	1.3500	11.6000	7.3000	24.6000	79.0000
2646268	B343S07400HPG	8.0	1.3700	11.9000	7.4000	24.9000	79.0000
2646269	B343S07500HPG	8.0	1.3800	12.3000	7.5000	25.3000	79.0000
2646270	B343S07541HPG	8.0	1.3900	12.4000	7.5410	25.4000	79.0000
2646272	B343S07800HPG	8.0	1.4400	13.2000	7.8000	26.2000	79.0000
2646273	B343S07900HPG	8.0	1.4600	13.5000	7.9000	26.5000	79.0000
2646274	B343S07938HPG	8.0	1.4700	13.6000	7.9380	26.6000	79.0000
2646275	B343S08000HPG	8.0	1.4800	13.8000	8.0000	26.8000	79.0000
2651013	B343S08100HPG	9.0	1.5000	12.6000	8.1000	26.6000	84.0000
2651014	B343S08200HPG	9.0	1.5140	12.8000	8.2000	26.8000	84.0000
2651015	B343S08300HPG	9.0	1.5300	13.1000	8.3000	27.1000	84.0000
2651018	B343S08433HPG	9.0	1.5600	13.5000	8.4330	27.5000	84.0000
2651019	B343S08500HPG	9.0	1.5700	13.7000	8.5000	27.7000	84.0000
2651020	B343S08600HPG	9.0	1.5900	14.0000	8.6000	28.0000	84.0000
2651021	B343S08700HPG	9.0	1.6100	14.3000	8.7000	28.3000	84.0000
2651023	B343S08800HPG	9.0	1.6200	14.5000	8.8000	28.5000	84.0000
2651025	B343S09000HPG	9.0	1.6600	15.1000	9.0000	29.1000	84.0000
2651026	B343S09100HPG	10.0	1.6800	14.3000	9.1000	28.8000	89.0000
2651028	B343S09347HPG	10.0	1.7300	15.0000	9.3470	29.5000	89.0000
2651029	B343S09400HPG	10.0	1.7400	15.1000	9.4000	29.6000	89.0000
2651034	B343S09800HPG	10.0	1.8090	16.2000	9.8000	30.7000	89.0000
2651036	B343S10000HPG	10.0	1.8460	16.7000	10.0000	31.2000	89.0000
2646423	B343S10200HPG	11.0	1.8830	16.2000	10.2000	31.2000	95.0000
2646424	B343S10300HPG	11.0	1.9010	16.4000	10.3000	31.4000	95.0000
2646425	B343S10320HPG	11.0	1.9050	16.5000	10.3190	31.5000	95.0000
2646426	B343S10400HPG	11.0	1.9200	16.7000	10.4000	31.7000	95.0000
2646427	B343S10500HPG	11.0	1.9380	16.9000	10.5000	31.9000	95.0000
2646428	B343S10600HPG	11.0	1.9570	17.2000	10.6000	32.2000	95.0000
2646430	B343S10710HPG	11.0	1.9770	17.4000	10.7100	32.4000	95.0000
2646431	B343S10800HPG	11.0	1.9940	17.7000	10.8000	32.7000	95.0000
2646432	B343S11000HPG	11.0	2.0300	18.1000	11.0000	33.1000	95.0000
2646433	B343S11100HPG	12.0	2.0490	17.4000	11.1000	32.9000	102.0000
2646434	B343S11110HPG	12.0	2.0510	17.4000	11.1100	32.9000	102.0000
2646435	B343S11200HPG	12.0	2.0670	17.6000	11.2000	33.1000	102.0000
2646437	B343S11500HPG	12.0	2.1230	18.3000	11.5000	33.8000	102.0000
2646438	B343S11508HPG	12.0	2.1240	18.3000	11.5080	33.8000	102.0000
2646439	B343S11700HPG	12.0	2.1600	18.8000	11.7000	34.3000	102.0000
2646440	B343S11800HPG	12.0	2.1780	19.0000	11.8000	34.5000	102.0000
2646441	B343S11900HPG	12.0	2.1970	19.3000	11.9000	34.8000	102.0000
2646442	B343S12000HPG	12.0	2.2150	19.5000	12.0000	35.0000	102.0000
2646106	B343S12200HPG	13.0	2.2520	18.9000	12.2000	34.9000	102.0000
2646108	B343S12500HPG	13.0	2.3070	19.6000	12.5000	35.5600	102.0000
2646110	B343S12800HPG	13.0	2.3630	20.3000	12.8000	36.3000	102.0000
2646111	B343S13000HPG	13.0	2.4000	20.7000	13.0000	36.7000	102.0000
2646386	B343S13500HPG	14.0	2.4920	21.1000	13.5000	37.6000	107.0000
2646387	B343S14000HPG	14.0	2.5840	22.1000	14.0000	38.6000	107.0000
2646389	B343S14200HPG	15.0	2.6210	21.5000	14.2000	38.5000	111.0000
2646390	B343S14280HPG	15.0	2.6360	21.7000	14.2800	38.7000	111.0000
2646391	B343S15000HPG	15.0	2.7690	23.2000	15.0000	40.2000	111.0000
2646392	B343S15500HPG	16.0	2.8610	23.2000	15.5000	40.7000	115.0000
2646393	B343S15870HPG	16.0	2.9290	23.9000	15.8700	41.4000	115.0000
2646394	B343S16000HPG	16.0	2.9530	24.2000	16.0000	41.7000	115.0000
2646395	B343S16500HPG	17.0	3.0460	24.2000	16.5000	42.2000	115.0000
2646397	B343S17000HPG	17.0	3.1380	25.1000	17.0000	43.1000	115.0000
2646399	B343S17500HPG	18.0	3.2300	25.1000	17.5000	43.6000	117.0000
2646401	B343S18000HPG	18.0	3.3230	26.0000	18.0000	44.5000	117.0000

Tolerance:

tolerance
D1	tolerance h7	D	tolerance h6 + / -
3 - 6	0,000/-0,012	6	0,000/-0,008
6 - 10	0,000/-0,016	8 - 10	0,000/-0,009
10 - 18	0,000/-0,018	12 - 18	0,000/-0,011

Режимы резания:

Material Group

		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	18,0
P	0	140	240	290	mm/r	0,08–0,15	0,09–0,18	0,12–0,21	0,14–0,29	0,15–0,33	0,17–0,37	0,19–0,43	0,22–0,49
	1	100	140	180	mm/r	0,07–0,16	0,08–0,19	0,10–0,23	0,13–0,29	0,15–0,33	0,17–0,37	0,19–0,44	0,22–0,44
	2	90	115	140	mm/r	0,07–0,13	0,08–0,17	0,10–0,19	0,13–0,23	0,15–0,27	0,17–0,30	0,19–0,35	0,22–0,39
	3	80	100	120	mm/r	0,10–0,16	0,11–0,19	0,13–0,23	0,16–0,29	0,19–0,33	0,21–0,37	0,25–0,44	0,28–0,49
	4	70	90	110	mm/r	0,08–0,16	0,10–0,19	0,11–0,22	0,12–0,25	0,14–0,29	0,16–0,32	0,21–0,41	0,24–0,46
	5	70	85	110	mm/r	0,07–0,12	0,08–0,14	0,10–0,16	0,12–0,20	0,14–0,23	0,16–0,26	0,18–0,31	0,21–0,34
	6	60	70	80	mm/r	0,07–0,12	0,08–0,14	0,10–0,16	0,12–0,20	0,14–0,23	0,16–0,26	0,18–0,31	0,21–0,34
K	1	100	120	140	mm/r	0,09 0,17	0,10 0,21	0,12 0,25	0,15 0,31	0,17 0,35	0,20 0,39	0,23 0,46	0,26 0,52
	2	80	105	130	mm/r	0,09–0,15	0,10–0,18	0,12–0,21	0,15–0,26	0,18–0,30	0,20–0,33	0,23–0,39	0,26–0,44
	3	70	85	100	mm/r	0,08 0,13	0,10 0,15	0,11 0,19	0,14 0,23	0,16 0,26	0,18 0,30	0,21 0,35	0,23 0,39

Material Group

		Cutting Speed vc			Inch
		Range SFM			Recommended Feed Rate (f) by Diameter
		Min	Starting Value	Max		1/8 .125	3/16 .188	1/4 .250	5/16 .313	3/8 .375	1/2 .500	5/8 .625	3/4 .750
P	0	460	790	950	IPR	.003–.006	.004–.007	.005–.008	.006–.011	.006–.013	.007–.015	.007–.017	.009–.019
	1	330	460	590	IPR	.003–.006	.003–.008	.004–.009	.005–.011	.006–.013	.007–.015	.007–.017	.009–.017
	2	300	380	460	IPR	.003–.005	.003–.007	.004–.008	.005–.009	.008–.011	.007–.012	.007–.014	.009–.015
	3	260	330	390	IPR	.004–.006	.004–.008	.005–.009	.006–.011	.008–.013	.008–.015	.010–.017	.011–.019
	4	230	300	360	IPR	.003–.006	.004–.008	.004–.009	.005–.010	.006–.011	.006–.013	.008–.016	.009–.018
	5	230	280	360	IPR	.003–.005	.003–.006	.004–.006	.005–.008	.006–.009	.006–.010	.007–.012	.008–.013
	6	200	230	260	IPR	.003–.005	.003–.006	.004–.006	.005–.008	.006–.009	.006–.010	.007–.012	.008–.013
K	1	330	390	460	IPR	.004–.007	.004–.008	.005–.010	.006–.012	.007–.014	.008–.015	.009–.018	.010–.021
	2	260	340	430	IPR	.004–.006	.004–.007	.005–.008	.006–.010	.007–.012	.008–.013	.009–.015	.010–.017
	3	230	280	330	IPR	.003-.005	.004-.006	.004-.008	.006-.009	.006-.010	.007-.012	.008-.014	.009-.015


		Cutting Speed vc			Metric
		Range m/min			Recommended Feed Rate (f) by Diameter
Material Group		Min	Starting Value	Max		3,0	4,0	6,0	8,0	10,0	12,0	16,0	18,0
P	0	140	240	290	mm/r	0,08–0,15	0,09–0,18	0,12–0,21	0,14–0,29	0,15–0,33	0,17–0,37	0,19–0,43	0,22–0,49
	1	100	140	180	mm/r	0,07–0,16	0,08–0,19	0,10–0,23	0,13–0,29	0,15–0,33	0,17–0,37	0,19–0,44	0,22–0,44
	2	90	115	140	mm/r	0,07–0,13	0,08–0,17	0,10–0,19	0,13–0,23	0,15–0,27	0,17–0,30	0,19–0,35	0,22–0,39
	3	80	100	120	mm/r	0,10–0,16	0,11–0,19	0,13–0,23	0,16–0,29	0,19–0,33	0,21–0,37	0,25–0,44	0,28–0,49
	4	70	90	110	mm/r	0,08–0,16	0,10–0,19	0,11–0,22	0,12–0,25	0,14–0,29	0,16–0,32	0,21–0,41	0,24–0,46
	5	70	85	110	mm/r	0,07–0,12	0,08–0,14	0,10–0,16	0,12–0,20	0,14–0,23	0,16–0,26	0,18–0,31	0,21–0,34
	6	60	70	80	mm/r	0,07–0,12	0,08–0,14	0,10–0,16	0,12–0,20	0,14–0,23	0,16–0,26	0,18–0,31	0,21–0,34
K	1	100	120	140	mm/r	0,09 0,17	0,10 0,21	0,12 0,25	0,15 0,31	0,17 0,35	0,20 0,39	0,23 0,46	0,26 0,52
	2	80	105	130	mm/r	0,09–0,15	0,10–0,18	0,12–0,21	0,15–0,26	0,18–0,30	0,20–0,33	0,23–0,39	0,26–0,44
–	3	70	85	100	mm/r	0,08 0,13	0,10 0,15	0,11 0,19	0,14 0,23	0,16 0,26	0,18 0,30	0,21 0,35	0,23 0,39
