Хвостовик с фланцем 4xD DFT(правосторонний)

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

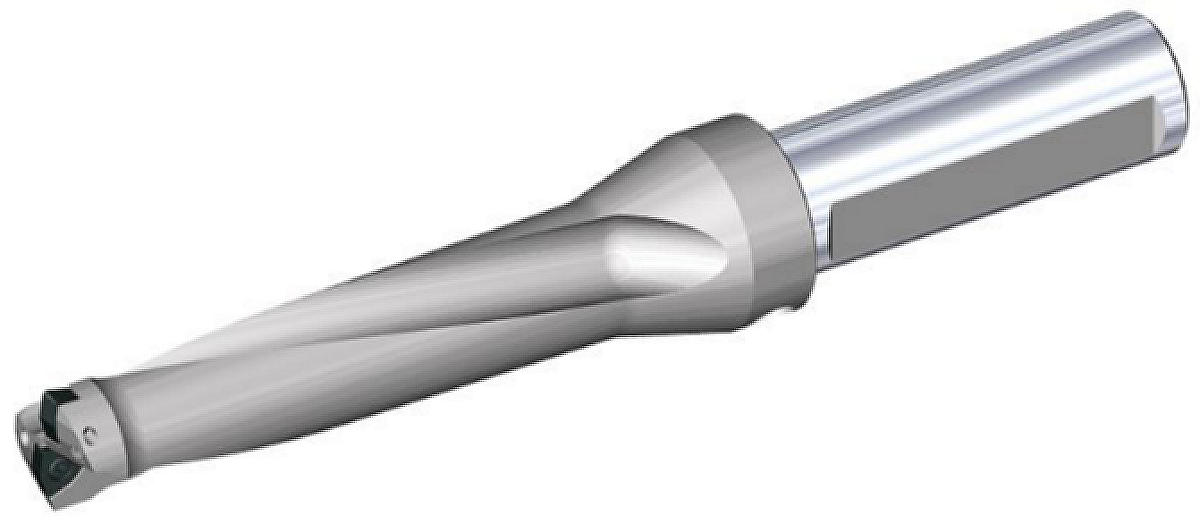

Хвостовик с фланцем 4xD DFT(правосторонний). Рабочие части сверл с механическим креплением двух твердосплавных пластин DFT. Drill Fix DFT • Метрическая система

Особенности:

Drill Fix DFT is one of the most versatile and reliable tool solutions covering a large diameter range and offers portfolio of insert geometries and grades.
Trigon-shaped inserts are used for both inboard and outboard inserts and offer the highest centering capabilities and three cutting edges each.
Drill shipped with insert screws, side pipe plug, and Torx wrench.

Применение:

Drilling
Drilling: Inclined Entry
Drilling: Inclined Exit
Drilling: X-Offset
Drilling: Convex
Shank - Cylindrical with Flat and Flange
Through Coolant: Radial: Indexable Drilling
Chain Drilling
Drilling: Cross-Hole Drilling
Drilling: Half-Cylindrical Drilling
Drilling: Corner Drilling 45°
Drilling: Blind

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[LS] Shank Length	[L5] Drill Point Length	Gage Insert	[L4] Maximum Drilling Depth	[D1] Drill Diameter M	[L1] Insert Gage Length	[D1MAX] Drill Diameter Maximum
1522176	DFT0625R4SSF075	19.05	50.8	0.4390	DFT0302..	63.5000	15.8750	98.4250	19.8120
1522174	DFT0656R4SSF075	19.05	50.8	0.4390	DFT0302..	66.6750	16.6620	98.4250	20.4720
1522175	DFT0688R4SSF075	19.05	50.8	0.4390	DFT0302..	69.8500	17.4750	107.9500	21.2850
1522173	DFT0703R4SSF075	19.05	50.8	0.4390	DFT0302..	71.4250	17.8560	107.9500	21.6660
1522172	DFT0734R4SSF075	19.05	50.8	0.4390	DFT0302..	74.6250	18.6440	107.9500	22.4540
1521790	DFT0750R4SSF075	19.05	50.8	0.5710	DFT0303..	76.2000	19.0500	114.3000	21.5900
1522171	DFT0750R4SSF100	25.4	76.2	0.5710	DFT0303..	76.2000	19.0500	114.3000	21.5900
1522132	DFT0750R4SSF125	31.75	82.55	0.5710	DFT0303..	76.2000	19.0500	114.3000	21.5900
1522140	DFT0781R4SSF100	25.4	76.2	0.6480	DFT0303..	79.3750	19.8370	117.4750	22.3770
1522139	DFT0813R4SSF100	25.4	76.2	0.7150	DFT0303..	82.5500	20.6500	120.6500	23.1900
1522138	DFT0844R4SSF100	25.4	76.2	0.7960	DFT0303..	85.7250	21.4380	120.6500	23.3430
1521789	DFT0875R4SSF100	25.4	76.2	0.8370	DFT0303..	88.9000	22.2250	127.0000	24.1300
1522131	DFT0875R4SSF125	31.75	82.55	0.8370	DFT0303..	88.9000	22.2250	127.0000	24.1300
1522137	DFT0906R4SSF100	25.4	76.2	0.9230	DFT0303..	92.0750	23.0120	127.0000	24.9170
1522136	DFT0938R4SSF100	25.4	76.2	0.9430	DFT0303..	95.2500	23.8250	136.5250	25.4000
1522134	DFT0969R4SSF100	25.4	76.2	0.9880	DFT0303..	98.4250	24.6130	136.5250	25.8830
1522135	DFT0984R4SSF100	25.4	76.2	0.1040	DFT05T3..	100.0250	25.0040	139.7000	28.1790
1522133	DFT1000R4SSF100	25.4	76.2	0.8220	DFT05T3..	101.6000	25.4000	142.8750	28.5750
1522242	DFT1000R4SSF125	31.75	82.55	0.8220	DFT05T3..	101.6000	25.4000	142.8750	28.5750
1522108	DFT1000R4SSF150	38.1	95.25	0.8220	DFT05T3..	101.6000	25.4000	142.8750	28.5750
1522130	DFT1031R4SSF125	31.75	82.55	0.9050	DFT05T3..	104.7750	26.1870	146.0500	29.3620
1522127	DFT1063R4SSF125	31.75	82.55	0.9710	DFT05T3..	107.9500	27.0000	149.2250	30.1750
1522129	DFT1094R4SSF125	31.75	82.55	1.0600	DFT05T3..	111.1250	27.7880	149.2250	30.9630
1522126	DFT1125R4SSF125	31.75	82.55	1.0930	DFT05T3..	114.3000	28.5750	155.5750	31.7500
1522109	DFT1125R4SSF150	38.1	95.25	1.0930	DFT05T3..	114.3000	28.5750	155.5750	31.7500
1522125	DFT1156R4SSF125	31.75	82.55	1.1520	DFT05T3..	117.4750	29.3620	155.5750	32.5370
1522124	DFT1188R4SSF125	31.75	82.55	1.1950	DFT05T3..	120.6500	30.1750	165.1000	32.7150
1522123	DFT1219R4SSF125	31.75	82.55	1.2480	DFT05T3..	123.8250	30.9630	168.2750	33.5030
1522121	DFT1250R4SSF125	31.75	82.55	1.2950	DFT05T3..	127.0000	31.7500	171.4500	33.6550
1522107	DFT1250R4SSF150	38.1	95.25	1.2950	DFT05T3..	127.0000	31.7500	171.4500	33.6550
1522120	DFT1281R4SSF125	31.75	82.55	1.3490	DFT05T3..	130.1750	32.5370	174.6250	34.1630
1522119	DFT1313R4SSF125	31.75	82.55	1.1600	DFT06T3..	133.3500	33.3500	177.8000	36.5250
1522117	DFT1375R4SSF125	31.75	82.55	1.3090	DFT06T3..	139.7000	34.9250	184.1500	38.1000
1522105	DFT1375R4SSF150	38.1	95.25	1.3090	DFT06T3..	139.7000	34.9250	184.1500	38.1000
1522118	DFT1406R4SSF125	31.75	82.55	1.3880	DFT06T3..	142.8750	35.7120	184.1500	38.8870
1522115	DFT1438R4SSF125	31.75	82.55	1.4630	DFT06T3..	146.0500	36.5250	193.6750	39.7000
1522101	DFT1438R4SSF150	38.1	95.25	1.4630	DFT06T3..	146.0500	36.5250	193.6750	39.7000
1522114	DFT1469R4SSF125	31.75	82.55	1.5120	DFT06T3..	149.2250	37.3130	196.8500	40.4880
1522113	DFT1500R4SSF125	31.75	82.55	1.5620	DFT06T3..	152.4000	38.1000	200.0250	41.2750
1522106	DFT1500R4SSF150	38.1	95.25	1.5620	DFT06T3..	152.4000	38.1000	200.0250	41.2750
1522112	DFT1531R4SSF125	31.75	82.55	1.6150	DFT06T3..	155.5750	38.8870	200.0250	42.0620
1522103	DFT1531R4SSF150	38.1	95.25	1.6150	DFT06T3..	155.5750	38.8870	200.0250	42.0700
1522111	DFT1563R4SSF125	31.75	82.55	1.6490	DFT06T3..	158.7500	39.7000	206.3750	42.8750
1522028	DFT1563R4SSF150	38.1	95.25	1.6490	DFT06T3..	158.7500	39.7000	206.3750	42.8620
1522110	DFT1625R4SSF125	31.75	82.55	1.6580	DFT0704..	165.1000	41.2750	212.7250	44.4500
1522027	DFT1625R4SSF150	38.1	95.25	1.6580	DFT0704..	165.1000	41.2750	212.7250	44.4500
1522517	DFT1688R4SSF125	31.75	82.55	1.7500	DFT0704..	171.4500	42.8750	222.2500	46.0500
1522030	DFT1688R4SSF150	38.1	95.25	1.7500	DFT0704..	171.4500	42.8750	222.2500	46.0500
1522102	DFT1750R4SSF150	38.1	95.25	1.8490	DFT0704..	177.8000	44.4500	228.6000	47.6250
1522026	DFT1813R4SSF150	38.1	95.25	1.9530	DFT0704..	184.1500	46.0500	234.9500	49.2250
1522029	DFT1875R4SSF150	38.1	95.25	2.0440	DFT0704..	190.5000	47.6250	241.3000	50.8000
1522104	DFT1938R4SSF150	38.1	95.25	1.7430	DFT0905..	196.8500	49.2250	250.8250	55.5750
1522248	DFT2000R4SSF150	38.1	95.25	1.8940	DFT0905..	203.2000	50.8000	257.1750	57.1500
1522250	DFT2000R4SSF200	50.8	101.6	1.8940	DFT0905..	203.2000	50.8000	257.1750	57.1500
1522249	DFT2125R4SSF150	38.1	95.25	2.2010	DFT0905..	215.9000	53.9750	269.8750	60.3250
1522321	DFT2125R4SSF200	50.8	101.6	2.2010	DFT0905..	215.9000	53.9750	269.8750	60.3250

Warning:

ВНИМАНИЕ; Drill Fix DFR

WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders.

Dimension:

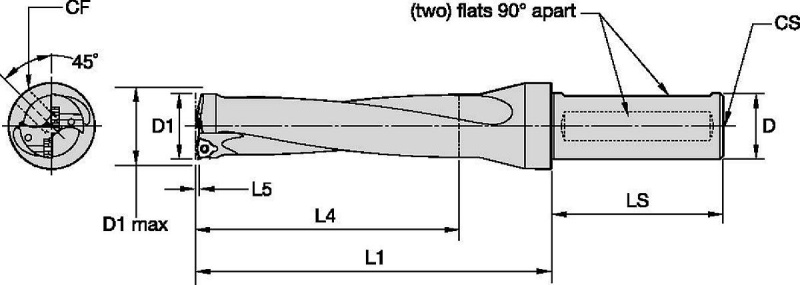

D	LS	CF	CS	pipe plug
0.750	2.00	1/8-27 NPT	R 1/8-27 NPT	1025612
1.000	3.00	1/8-27 NPT	R 1/4-18 NPT	1025612
1.250	3.25	1/8-27 NPT	R 1/4-18 NPT	1025612
1.500	3.75	1/8-27 NPT	R 1/4-18 NPT	1025612
2.000	4.00	1/8-27 NPT	R 1/4-18 NPT	1025612

Режимы резания:

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (f) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	DFT03... .625"–.969"	DFT05... .984"–1.250"	DFT06... 1.313"–1.563"	DFT07... 1.625"–1.875"	DFT09... 1.938"–2.125"	DFT011... 2.750"–3.250"
P	1	S	O	MD	KCU25	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	MD	KC7140
		U	O	MD	KCU25	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	MD	KC7140
		I	O	MD	KCU40	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	MD	KC7140
	2	S	O	HP	KCPK10	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		U	O	HP	KCU25	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		I	O	HP	KCU40	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
	3	S	O	HP	KCPK10	853	935	1050	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		U	O	HP	KCU25	590	640	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		I	O	HP	KCU40	361	394	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
	4	S	O	HP	KCU25	722	820	984	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		U	O	HP	KCU40	492	590	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		I	O	HP	KC7140	295	361	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
	5	S	O	HP	KCU25	590	656	722	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
			I	HP	KC7140
		U	O	HP	KCU40	394	443	492	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
			I	HP	KC7140
		I	O	HP	KC7140	230	279	328	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
			I	HP	KC7140
	6	S	O	HP	KCU25	590	656	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		U	O	HP	KCU40	394	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140
		I	O	HP	KC7140	230	279	328	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
			I	HP	KC7140

Inch
						Cutting Speed vc
						Range SFM			Recommended Feed Rate (f) by Diameter
Material Group		Condition	Pocket Seat	Geometry	Grade	Min	Starting Value	Max	Ø	DFT03... .625"–.969"	DFT05... .984"–1.250"	DFT06... 1.313"–1.563"	DFT07... 1.625"–1.875"	DFT09... 1.938"–2.125"	DFT011... 2.750"–3.250"
P	1	S	O	MD	KCU25	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	1	S	I	MD	KC7140	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	1	U	O	MD	KCU25	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	1	U	I	MD	KC7140	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	1	I	O	MD	KCU40	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	1	I	I	MD	KC7140	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	S	O	HP	KCPK10	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	S	I	HP	KC7140	1017	1066	1181	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	U	O	HP	KCU25	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	U	I	HP	KC7140	656	705	754	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	I	O	HP	KCU40	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	2	I	I	HP	KC7140	426	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	S	O	HP	KCPK10	853	935	1050	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	S	I	HP	KC7140	853	935	1050	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	U	O	HP	KCU25	590	640	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	U	I	HP	KC7140	590	640	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	I	O	HP	KCU40	361	394	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	3	I	I	HP	KC7140	361	394	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	S	O	HP	KCU25	722	820	984	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	S	I	HP	KC7140	722	820	984	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	U	O	HP	KCU40	492	590	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	U	I	HP	KC7140	492	590	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	I	O	HP	KC7140	295	361	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	4	I	I	HP	KC7140	295	361	459	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	5	S	O	HP	KCU25	590	656	722	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	5	S	I	HP	KC7140	590	656	722	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	5	U	O	HP	KCU40	394	443	492	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	5	U	I	HP	KC7140	394	443	492	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	5	I	O	HP	KC7140	230	279	328	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	5	I	I	HP	KC7140	230	279	328	IPR	.002–.004	.003–.005	.004–.006	.004–.007	.005–.009	.005–.009
	6	S	O	HP	KCU25	590	656	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	6	S	I	HP	KC7140	590	656	722	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	6	U	O	HP	KCU40	394	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	6	U	I	HP	KC7140	394	443	492	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	6	I	O	HP	KC7140	230	279	328	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012
	6	I	I	HP	KC7140	230	279	328	IPR	.002–.004	.004–.006	.004–.007	.006–.010	.007–.012	.007–.012

Inch
Material Group		Condition	Pocket Seat	Geometry	Grade	Cutting Speed vc			Recommended Feed Rate (f) by Diameter
						Range SFM
						Min	Starting Value	Max	Ø	DFT03... .625"–.969"	DFT05... .984"–1.250"	DFT06... 1.313"–1.563"	DFT07... 1.625"–1.875"	DFT09... 1.938"–2.125"	DFT011... 2.750"–3.250"
M	1	S	O	MD	KC7140	492	623	754	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
		U	O	MD	KC7140	328	426	525	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
		I	O	MD	KC7140	197	262	328	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
	2	S	O	MD	KC7140	492	590	689	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
		U	O	MD	KC7140	328	426	525	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
		I	O	MD	KC7140	197	262	328	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
	3	S	O	MD	KC7140	328	426	525	IPR	.002–.004	.003–.005	.003–.006	.004–.007	.004–.008	.004–.008
			I	MD	KC7140
		U	O	MD	KC7140	262	361	459	IPR Задать вопрос Вопрос * Ваше имя * Телефон * E-mail * Подтвердите, что вы не робот * Все товары категории Все товары бренда KENNAMETAL Нужна консультация? Наши специалисты ответят на любой интересующий вопрос Задать вопрос Каталог Подбор запчастей Ремонт Доставка Контакты Магнитно-сверлильные станки Корончатые сверла Станки для сверления труб Промышленные пылесосы Ленточно-шлифовальные станки Фаскосниматели Труборезы Трубогибы Отрезные станки Газорезательные машины Опоры для труб Металлорежущий инстурмент Станочная оснастка Динамометрический инстурмент Ручной инструмент Knipex Ручной инструмент Wera +7 495 979-05-66 Заказать звонок info@metal-tek.ru Москва, ул. Кирпичная, д. 48 2006 - 2026 © МЕТАЛ-ТЕК - продажа оборудования и инструмента для металлообработки.
