Описание

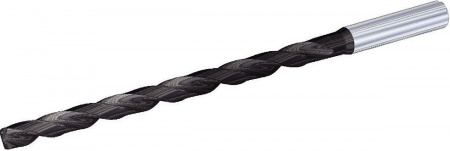

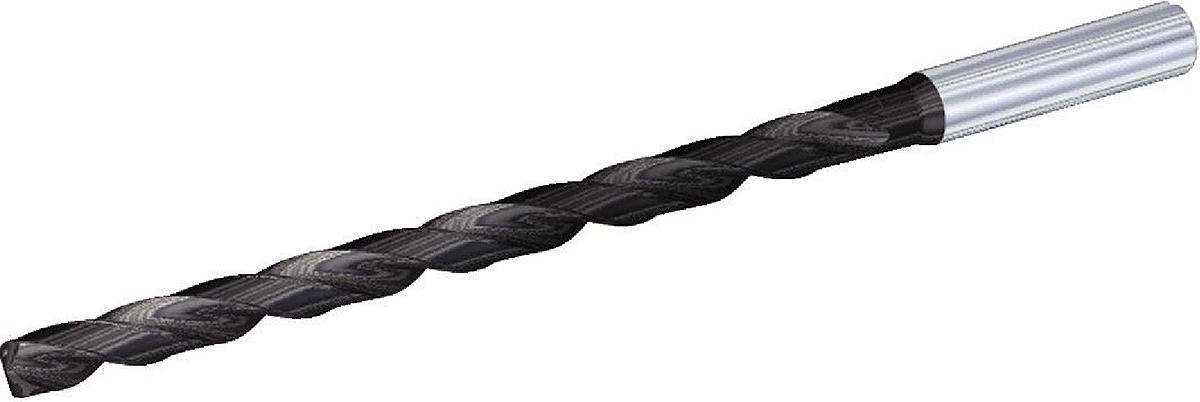

B269 (~12 x D); KCPK15; Хвостовик формы A; Удлиненные сверла HP Beyond. Удлиненные сверла HP Beyond с четырьмя ленточками; Внутренний подвод СОЖ; 12 x D. Высокопроизводительные цельные твердосплавные сверла для глубоких отверстий
Особенности:
- Удлиненные сверла HP Beyond с четырьмя ленточками и внутренним подводом СОЖ.
- Цельные твердосплавные сверла специального применения, предназначенные для обработки глубоких отверстий в деталях из стали, чугуна и нержавеющей стали без применения пилотного сверла.
- Сверла характеризуются увеличенной длиной для обработки отверстий глубиной до 12 x D и заполняют нишу между сверлами 8 x D (B256_SE) и 15 x D (B271_HP).
- Сверла имеют стандартный хвостовик формы А в соответствии с DIN 6535 HA (цилиндрический, с шагом 2 мм).
- Сплав KCPK15 Beyond имеет многослойное покрытие на основе TiAlN с повышенной красностойкостью.
- Хорошо отполированная поверхность обеспечивает превосходный стружкоотвод даже при низком давлении СОЖ.
Применение:
- Drilling
- Drilling: Inclined Exit
- Drilling: Stacked Plates
- Drilling Depth: 12x
- Shank - Cylindrical Plain ≤h6
- Helix Angle: 30°
- DIN number 6535
- Drilling - Through Coolant
- Through Coolant: MQL (Minimum Quantity Lubricant): Drilling
- Tool Dimensions: 2flute/4margin/coolant
- Drilling: Cross-Hole Drilling

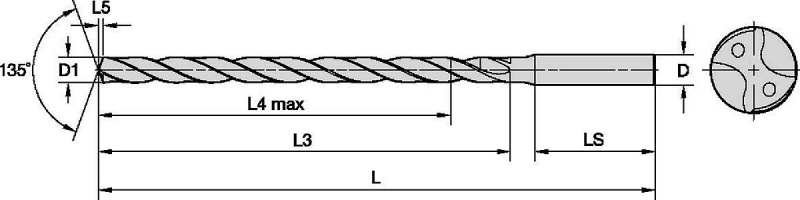

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [D1] Wire Size | [L] Overall Length |
|---|---|---|---|---|---|---|---|---|---|
| 6083010 | B269A02400KMG | 28.0 | 4.0 | 0.4930 | 35.0000 | 2.4000 | 42.0000 | 75.0000 | |
| 6083071 | B269A02500KMG | 28.0 | 4.0 | 0.5140 | 35.0000 | 2.5000 | 42.0000 | 75.0000 | |
| 6083072 | B269A02600KMG | 28.0 | 4.0 | 0.5360 | 35.0000 | 2.6000 | 42.0000 | 75.0000 | |
| 6083073 | B269A02800KMG | 28.0 | 4.0 | 0.5780 | 36.0000 | 2.8000 | 43.0000 | 75.0000 | |
| 6083074 | B269A02900KMG | 28.0 | 4.0 | 0.6000 | 36.0000 | 2.9000 | 43.0000 | 75.0000 | |
| 4136208 | B269A03000HP | 36.0 | 6.0 | 0.5700 | 44.0000 | 3.0000 | 52.0000 | 93.0000 | |
| 4169239 | B269A03175HP | 36.0 | 6.0 | 0.6000 | 44.0000 | 3.1750 | 52.0000 | 93.0000 | |
| 4169240 | B269A03264HP | 36.0 | 6.0 | 0.6200 | 44.0000 | 3.2640 | 53.0000 | 30 | 93.0000 |
| 5077334 | B269A03300HP | 36.0 | 6.0 | 0.6200 | 44.0000 | 3.3000 | 53.0000 | 93.0000 | |
| 6083075 | B269A03400HP | 36.0 | 6.0 | 0.6400 | 44.0000 | 3.4000 | 53.0000 | 93.0000 | |
| 4169241 | B269A03500HP | 36.0 | 6.0 | 0.6600 | 44.0000 | 3.5000 | 53.0000 | 93.0000 | |
| 5131942 | B269A03600HP | 36.0 | 6.0 | 0.6800 | 45.0000 | 3.6000 | 54.0000 | 93.0000 | |
| 5023558 | B269A03700HP | 36.0 | 6.0 | 0.7000 | 45.0000 | 3.7000 | 54.0000 | 93.0000 | |
| 5214053 | B269A03800HP | 36.0 | 6.0 | 0.7200 | 55.0000 | 3.8000 | 65.0000 | 107.0000 | |
| 4169242 | B269A03970HP | 36.0 | 6.0 | 0.7500 | 56.0000 | 3.9700 | 66.0000 | 107.0000 | |
| 4169243 | B269A04000HP | 36.0 | 6.0 | 0.7500 | 56.0000 | 4.0000 | 66.0000 | 107.0000 | |
| 6083076 | B269A04100HP | 36.0 | 6.0 | 0.7700 | 55.0000 | 4.1000 | 66.0000 | 107.0000 | |
| 5077336 | B269A04200HP | 36.0 | 6.0 | 0.7900 | 56.0000 | 4.2000 | 67.0000 | 107.0000 | |
| 5039055 | B269A04300HP | 36.0 | 6.0 | 0.8100 | 56.0000 | 4.3000 | 67.0000 | 107.0000 | |
| 4169244 | B269A04500HP | 36.0 | 6.0 | 0.8500 | 56.0000 | 4.5000 | 67.0000 | 107.0000 | |
| 5492520 | B269A04550HP | 36.0 | 6.0 | 0.8600 | 57.0000 | 4.5500 | 68.0000 | 107.0000 | |
| 4169245 | B269A04600HP | 36.0 | 6.0 | 0.8700 | 57.0000 | 4.6000 | 68.0000 | 107.0000 | |
| 5377581 | B269A04700HP | 36.0 | 6.0 | 0.8800 | 57.0000 | 4.7000 | 68.0000 | 13 | 107.0000 |
| 4169246 | B269A04763HP | 36.0 | 6.0 | 0.9000 | 69.0000 | 4.7630 | 82.0000 | 125.0000 | |
| 4169247 | B269A04800HP | 36.0 | 6.0 | 0.9000 | 69.0000 | 4.8000 | 82.0000 | 12 | 125.0000 |
| 4169248 | B269A05000HP | 36.0 | 6.0 | 0.9400 | 70.0000 | 5.0000 | 83.0000 | 125.0000 | |
| 4169249 | B269A05100HP | 36.0 | 6.0 | 0.9600 | 70.0000 | 5.1000 | 83.0000 | 125.0000 | |
| 4169250 | B269A05200HP | 36.0 | 6.0 | 0.9800 | 70.0000 | 5.2000 | 83.0000 | 125.0000 | |
| 4169251 | B269A05300HP | 36.0 | 6.0 | 1.0000 | 71.0000 | 5.3000 | 84.0000 | 125.0000 | |
| 4169252 | B269A05410HP | 36.0 | 6.0 | 1.0200 | 71.0000 | 5.4100 | 84.0000 | 3 | 125.0000 |
| 4169253 | B269A05500HP | 36.0 | 6.0 | 1.0300 | 71.0000 | 5.5000 | 84.0000 | 125.0000 | |
| 4169254 | B269A05558HP | 36.0 | 6.0 | 1.0400 | 71.0000 | 5.5580 | 84.0000 | 125.0000 | |
| 4169255 | B269A05600HP | 36.0 | 6.0 | 1.0500 | 72.0000 | 5.6000 | 85.0000 | 125.0000 | |
| 4169256 | B269A05700HP | 36.0 | 6.0 | 1.0700 | 72.0000 | 5.7000 | 85.0000 | 125.0000 | |
| 4169257 | B269A05800HP | 36.0 | 6.0 | 1.0900 | 71.0000 | 5.8000 | 85.0000 | 125.0000 | |
| 4169258 | B269A06000HP | 36.0 | 6.0 | 1.1200 | 72.0000 | 6.0000 | 86.0000 | 125.0000 | |
| 5377582 | B269A06100HP | 36.0 | 8.0 | 1.1400 | 82.0000 | 6.1000 | 97.0000 | 139.0000 | |
| 4169259 | B269A06200HP | 36.0 | 8.0 | 1.1600 | 82.0000 | 6.2000 | 97.0000 | 139.0000 | |
| 4169260 | B269A06350HP | 36.0 | 8.0 | 1.1900 | 83.0000 | 6.3500 | 98.0000 | E | 139.0000 |
| 6083077 | B269A06400HP | 36.0 | 8.0 | 1.2000 | 83.0000 | 6.4000 | 98.0000 | 139.0000 | |
| 4169261 | B269A06500HP | 36.0 | 8.0 | 1.2200 | 83.0000 | 6.5000 | 98.0000 | 139.0000 | |
| 4169262 | B269A06528HP | 36.0 | 8.0 | 1.2200 | 83.0000 | 6.5280 | 98.0000 | F | 139.0000 |
| 4169263 | B269A06600HP | 36.0 | 8.0 | 1.2400 | 84.0000 | 6.6000 | 99.0000 | 139.0000 | |
| 4169264 | B269A06746HP | 36.0 | 8.0 | 1.2600 | 83.0000 | 6.7460 | 99.0000 | 139.0000 | |
| 4169265 | B269A06800HP | 36.0 | 8.0 | 1.2700 | 83.0000 | 6.8000 | 99.0000 | 139.0000 | |
| 4169266 | B269A06909HP | 36.0 | 8.0 | 1.2900 | 84.0000 | 6.9090 | 100.0000 | I | 139.0000 |
| 4169267 | B269A07000HP | 36.0 | 8.0 | 1.3100 | 84.0000 | 7.0000 | 100.0000 | 139.0000 | |
| 4169268 | B269A07145HP | 36.0 | 8.0 | 1.3400 | 94.0000 | 7.1450 | 111.0000 | 153.0000 | |
| 4169269 | B269A07500HP | 36.0 | 8.0 | 1.4000 | 95.0000 | 7.5000 | 112.0000 | 153.0000 | |
| 4169270 | B269A07541HP | 36.0 | 8.0 | 1.4100 | 95.0000 | 7.5406 | 112.0000 | 153.0000 | |
| 4169271 | B269A07700HP | 36.0 | 8.0 | 1.4400 | 96.0000 | 7.7000 | 113.0000 | 153.0000 | |
| 4169272 | B269A07800HP | 36.0 | 8.0 | 1.4600 | 95.0000 | 7.8000 | 113.0000 | 153.0000 | |
| 4169273 | B269A07938HP | 36.0 | 8.0 | 1.4800 | 96.0000 | 7.9375 | 114.0000 | 153.0000 | |
| 4169274 | B269A08000HP | 36.0 | 8.0 | 1.5000 | 96.0000 | 8.0000 | 114.0000 | 153.0000 | |
| 4169275 | B269A08100HP | 40.0 | 10.0 | 1.5100 | 116.0000 | 8.1000 | 136.0000 | 185.0000 | |
| 5077337 | B269A08200HP | 40.0 | 10.0 | 1.5300 | 116.0000 | 8.2000 | 136.0000 | 185.0000 | |
| 4169276 | B269A08334HP | 40.0 | 10.0 | 1.5600 | 117.0000 | 8.3344 | 137.0000 | 185.0000 | |
| 4169277 | B269A08433HP | 40.0 | 10.0 | 1.5800 | 117.0000 | 8.4330 | 137.0000 | Q | 185.0000 |
| 4136209 | B269A08500HP | 40.0 | 10.0 | 1.5900 | 117.0000 | 8.5000 | 137.0000 | 185.0000 | |
| 6962064 | B269A08525HP | 40.0 | 10.0 | 1.5900 | 117.0000 | 8.5250 | 137.0000 | 185.0000 | |
| 5189859 | B269A08600HP | 40.0 | 10.0 | 1.6100 | 118.0000 | 8.6000 | 138.0000 | 185.0000 | |
| 4169278 | B269A08700HP | 40.0 | 10.0 | 1.6200 | 118.0000 | 8.7000 | 138.0000 | 185.0000 | |
| 4169279 | B269A08733HP | 40.0 | 10.0 | 1.6300 | 117.0000 | 8.7330 | 138.0000 | 185.0000 | |
| 5166218 | B269A08800HP | 40.0 | 10.0 | 1.6400 | 117.0000 | 8.8000 | 138.0000 | 185.0000 | |
| 4169280 | B269A09000HP | 40.0 | 10.0 | 1.6800 | 118.0000 | 9.0000 | 139.0000 | 185.0000 | |
| 4169281 | B269A09100HP | 40.0 | 10.0 | 1.7000 | 118.0000 | 9.1000 | 139.0000 | 185.0000 | |
| 4169282 | B269A09129HP | 40.0 | 10.0 | 1.7000 | 118.0000 | 9.1290 | 139.0000 | 185.0000 | |
| 4169283 | B269A09500HP | 40.0 | 10.0 | 1.7700 | 119.0000 | 9.5000 | 140.0000 | 185.0000 | |
| 4169284 | B269A09525HP | 40.0 | 10.0 | 1.7800 | 119.0000 | 9.5250 | 140.0000 | 185.0000 | |
| 5117311 | B269A09800HP | 40.0 | 10.0 | 1.8300 | 119.0000 | 9.8000 | 141.0000 | 185.0000 | |
| 4169285 | B269A09921HP | 40.0 | 10.0 | 1.8500 | 120.0000 | 9.9210 | 142.0000 | 185.0000 | |
| 4169286 | B269A10000HP | 40.0 | 10.0 | 1.8700 | 120.0000 | 10.0000 | 142.0000 | 185.0000 | |
| 4169287 | B269A10200HP | 45.0 | 12.0 | 1.9000 | 140.0000 | 10.2000 | 164.0000 | 218.0000 | |
| 4169288 | B269A10300HP | 45.0 | 12.0 | 1.9200 | 141.0000 | 10.3000 | 165.0000 | 218.0000 | |
| 4169289 | B269A10320HP | 45.0 | 12.0 | 1.9200 | 141.0000 | 10.3200 | 165.0000 | 218.0000 | |
| 4169290 | B269A10500HP | 45.0 | 12.0 | 1.9600 | 141.0000 | 10.5000 | 165.0000 | 218.0000 | |
| 4169291 | B269A10716HP | 45.0 | 12.0 | 2.0000 | 142.0000 | 10.7156 | 166.0000 | 218.0000 | |
| 4169292 | B269A10800HP | 45.0 | 12.0 | 2.0100 | 141.0000 | 10.8000 | 166.0000 | 218.0000 | |
| 4169293 | B269A11000HP | 45.0 | 12.0 | 2.0500 | 142.0000 | 11.0000 | 167.0000 | 218.0000 | |
| 4169294 | B269A11113HP | 45.0 | 12.0 | 2.0700 | 142.0000 | 11.1130 | 167.0000 | 218.0000 | |
| 5378294 | B269A11200HP | 45.0 | 12.0 | 2.0900 | 142.0000 | 11.2000 | 167.0000 | 218.0000 | |
| 4169295 | B269A11500HP | 45.0 | 12.0 | 2.1400 | 143.0000 | 11.5000 | 168.0000 | 218.0000 | |
| 4169296 | B269A11800HP | 45.0 | 12.0 | 2.2000 | 143.0000 | 11.8000 | 169.0000 | 218.0000 | |
| 4169297 | B269A12000HP | 45.0 | 12.0 | 2.2400 | 144.0000 | 12.0000 | 170.0000 | 218.0000 | |
| 4169298 | B269A12100HP | 45.0 | 14.0 | 2.2500 | 164.0000 | 12.1000 | 192.0000 | 246.0000 | |
| 5140368 | B269A12200HP | 45.0 | 14.0 | 2.2700 | 164.0000 | 12.2000 | 192.0000 | 246.0000 | |
| 4169299 | B269A12304HP | 45.0 | 14.0 | 2.2900 | 165.0000 | 12.3040 | 193.0000 | 246.0000 | |
| 4148872 | B269A12500HP | 45.0 | 14.0 | 2.3300 | 165.0000 | 12.5000 | 193.0000 | 246.0000 | |
| 4169300 | B269A12700HP | 45.0 | 14.0 | 2.3700 | 166.0000 | 12.7000 | 194.0000 | 246.0000 | |
| 4169301 | B269A13000HP | 45.0 | 14.0 | 2.4200 | 166.0000 | 13.0000 | 195.0000 | 246.0000 | |
| 4169302 | B269A13100HP | 45.0 | 14.0 | 2.4400 | 166.0000 | 13.1000 | 195.0000 | 246.0000 | |
| 4169303 | B269A13500HP | 45.0 | 14.0 | 2.5100 | 167.0000 | 13.5000 | 196.0000 | 246.0000 | |
| 5604719 | B269A13800HP | 45.0 | 14.0 | 2.5700 | 168.0000 | 13.8000 | 197.0000 | 246.0000 | |
| 4136210 | B269A14000HP | 45.0 | 14.0 | 2.6100 | 168.0000 | 14.0000 | 198.0000 | 246.0000 | |
| 4169304 | B269A14100HP | 48.0 | 16.0 | 2.6200 | 188.0000 | 14.1000 | 220.0000 | 277.0000 | |
| 4169305 | B269A14288HP | 48.0 | 16.0 | 2.6600 | 188.0000 | 14.2880 | 220.0000 | 277.0000 | |
| 4169306 | B269A14500HP | 48.0 | 16.0 | 2.7000 | 189.0000 | 14.5000 | 221.0000 | 277.0000 | |
| 6003372 | B269A14600HP | 48.0 | 16.0 | 2.7200 | 189.0000 | 14.6000 | 221.0000 | 277.0000 | |
| 4169308 | B269A15000HP | 48.0 | 16.0 | 2.7900 | 190.0000 | 15.0000 | 223.0000 | 277.0000 | |
| 6003373 | B269A15200HP | 48.0 | 16.0 | 2.8300 | 190.0000 | 15.2000 | 223.0000 | 277.0000 | |
| 4169309 | B269A15500HP | 48.0 | 16.0 | 2.8800 | 191.0000 | 15.5000 | 224.0000 | 277.0000 | |
| 4169310 | B269A15875HP | 48.0 | 16.0 | 2.9500 | 192.0000 | 15.8750 | 225.0000 | 277.0000 | |
| 4169311 | B269A16000HP | 48.0 | 16.0 | 2.9800 | 192.0000 | 16.0000 | 226.0000 | 277.0000 | |
| 4169312 | B269A16500HP | 48.0 | 18.0 | 3.0700 | 213.0000 | 16.5000 | 249.0000 | 305.0000 | |
| 4169313 | B269A17000HP | 48.0 | 18.0 | 3.1600 | 214.0000 | 17.0000 | 250.0000 | 305.0000 | |
| 4169314 | B269A17463HP | 48.0 | 18.0 | 3.2500 | 215.0000 | 17.4630 | 252.0000 | 305.0000 | |
| 4169315 | B269A17500HP | 48.0 | 18.0 | 3.2500 | 215.0000 | 17.5000 | 252.0000 | 305.0000 | |
| 6003401 | B269A17600HP | 48.0 | 18.0 | 3.2700 | 215.0000 | 17.6000 | 252.0000 | 305.0000 | |
| 4169316 | B269A18000HP | 48.0 | 18.0 | 3.3500 | 216.0000 | 18.0000 | 253.0000 | 305.0000 | |
| 6003402 | B269A18600HP | 50.0 | 20.0 | 3.4600 | 237.0000 | 18.6000 | 277.0000 | 334.0000 | |
| 4169318 | B269A19000HP | 50.0 | 20.0 | 3.5300 | 238.0000 | 19.0000 | 278.0000 | 334.0000 | |
| 4169319 | B269A19050HP | 50.0 | 20.0 | 3.5400 | 239.0000 | 19.0500 | 279.0000 | 334.0000 | |
| 4169321 | B269A20000HP | 50.0 | 20.0 | 3.7200 | 240.0000 | 20.0000 | 281.0000 | 334.0000 |
Tolerance:
| Tolerance • Inch | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .0394–.1181 | .0000/-.0004 | .0000/-.0006 |
| .1181–.2362 | .0002/.0006 | .0000/-.0003 |
| .2362–.3937 | .0002/.0008 | .0000/-.0004 |
| .3937–.7087 | .0003/.0010 | .0000/-.0004 |
| .7087–1.0000 | .0003/.0011 | .0000/-.0005 |
| Tolerance • Metric | ||
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 1–3 | 0,000/-0,010 | 0,000/-0,014 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
Режимы резания:
Сверла HP; Серия B269_HP; Сплав KCPK15; Внутренний подвод СОЖ; Диаметр сверления 3–20 мм; Метрическая система
| Material Group |  |  |  | ||||||||||
| Material Group | Cutting Speed vc | Inch | |||||||||||
| Range SFM | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 1/8 .125 | 3/16 .188 | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| P | 0 | 360 | 460 | 560 | IPR | .004–.006 | .005–.008 | .006–.008 | .007–.010 | .010–.011 | .008–.014 | .009–.017 | .011–.019 |
| 1 | 330 | 470 | 490 | IPR | .005–.007 | .006–.009 | .007–.009 | .008–.011 | .011–.013 | .009–.016 | .011–.020 | .013–.022 | |
| 2 | 230 | 330 | 360 | IPR | .005–.007 | .005–.008 | .006–.010 | .009–.013 | .009–.015 | .011–.020 | .013–.025 | .015–.030 | |
| 3 | 230 | 300 | 360 | IPR | .005–.007 | .006–.009 | .007–.009 | .008–.011 | .011–.013 | .009–.016 | .011–.020 | .013–.022 | |
| 4 | 200 | 230 | 300 | IPR | .004–.006 | .004–.008 | .006–.008 | .007–.009 | .007–.010 | .008–.013 | .009–.016 | .010–.018 | |
| 5 | 200 | 260 | 330 | IPR | .001–.004 | .002–.004 | .002–.004 | .002–.006 | .003–.007 | .004–.008 | .006–.009 | .006–.010 | |
| 6 | 200 | 230 | 260 | IPR | .001–.004 | .002–.004 | .002–.004 | .002–.006 | .003–.007 | .004–.008 | .006–.009 | .006–.010 | |
| M | 1 | 160 | 200 | 260 | IPR | .002–.003 | .002–.005 | .003–.006 | .004–.007 | .005–.008 | .005–.009 | .006–.009 | .007–.011 |
| 2 | 130 | 160 | 260 | IPR | .002–.003 | .002–.005 | .003–.006 | .004–.007 | .005–.008 | .005–.009 | .006–.009 | .007–.011 | |
| 3 | 130 | 160 | 230 | IPR | .001–.003 | .002–.004 | .002–.006 | .003–.006 | .004–.007 | .005–.008 | .006–.009 | .006–.010 | |
| K | 1 | 300 | 490 | 490 | IPR | .004–.006 | .006–.008 | .008–.012 | .009–.014 | .010–.017 | .012–.018 | .014–.023 | .016–.028 |
| 2 | 260 | 400 | 400 | IPR | .004–.006 | .006–.008 | .008–.012 | .009–.014 | .010–.017 | .012–.018 | .014–.023 | .016–.028 | |
| 3 | 260 | 260 | 460 | IPR | .004–.006 | .006–.008 | .009–.013 | .009–.015 | .010–.018 | .011–.020 | .012–.024 | .013–.028 | |
| Material Group | | | | ||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| P | 0 | 110 | 140 | 170 | mm/r | 0,10–0,14 | 0,12–0,20 | 0,14–0,20 | 0,17–0,25 | 0,25–0,28 | 0,20–0,35 | 0,23–0,43 | 0,28–0,48 |
| 1 | 100 | 140 | 150 | mm/r | 0,12–0,17 | 0,14–0,23 | 0,17–0,23 | 0,20–0,29 | 0,29–0,33 | 0,23–0,41 | 0,27–0,50 | 0,33–0,56 | |
| 2 | 70 | 100 | 110 | mm/r | 0,12–0,17 | 0,12–0,20 | 0,14–0,26 | 0,23–0,32 | 0,24–0,38 | 0,27–0,50 | 0,33–0,63 | 0,39–0,75 | |
| 3 | 70 | 90 | 110 | mm/r | 0,12–0,17 | 0,14–0,23 | 0,17–0,23 | 0,20–0,29 | 0,29–0,33 | 0,23–0,41 | 0,27–0,50 | 0,33–0,56 | |
| 4 | 60 | 70 | 90 | mm/r | 0,09–0,14 | 0,11–0,20 | 0,14–0,20 | 0,17–0,23 | 0,17–0,26 | 0,20–0,33 | 0,23–0,41 | 0,26–0,45 | |
| 5 | 60 | 80 | 100 | mm/r | 0,03–0,11 | 0,04–0,11 | 0,05–0,11 | 0,05–0,14 | 0,08–0,18 | 0,11–0,21 | 0,14–0,24 | 0,16–0,26 | |
| 6 | 60 | 70 | 80 | mm/r | 0,03–0,11 | 0,04–0,11 | 0,05–0,11 | 0,05–0,14 | 0,08–0,18 | 0,11–0,21 | 0,14–0,24 | 0,16–0,26 | |
| M | 1 | 50 | 60 | 80 | mm/r | 0,04–0,08 | 0,06–0,13 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,13–0,22 | 0,15–0,24 | 0,18–0,28 |
| 2 | 40 | 50 | 80 | mm/r | 0,04–0,08 | 0,06–0,13 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,13–0,22 | 0,15–0,24 | 0,18–0,28 | |
| 3 | 40 | 50 | 70 | mm/r | 0,03–0,07 | 0,05–0,10 | 0,06–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,26 | |
| K | 1 | 90 | 150 | 150 | mm/r | 0,10–0,15 | 0,14–0,20 | 0,20–0,30 | 0,22–0,36 | 0,26–0,42 | 0,30–0,45 | 0,36–0,59 | 0,40–0,72 |
| 2 | 80 | 120 | 120 | mm/r | 0,10–0,15 | 0,14–0,20 | 0,20–0,30 | 0,22–0,36 | 0,26–0,42 | 0,30–0,45 | 0,36–0,59 | 0,40–0,72 | |
| 3 | 80 | 80 | 140 | mm/r | 0,11–0,15 | 0,15–0,21 | 0,22–0,32 | 0,22–0,39 | 0,26–0,45 | 0,28–0,50 | 0,30–0,60 | 0,34–0,72 | |
| | | |||||||||||
| Cutting Speed vc | Metric | ||||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||||
| Material Group | Min | Starting Value | Max | 3,0 | 4,0 | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | ||
| P | 0 | 110 | 140 | 170 | mm/r | 0,10–0,14 | 0,12–0,20 | 0,14–0,20 | 0,17–0,25 | 0,25–0,28 | 0,20–0,35 | 0,23–0,43 | 0,28–0,48 |
| 1 | 100 | 140 | 150 | mm/r | 0,12–0,17 | 0,14–0,23 | 0,17–0,23 | 0,20–0,29 | 0,29–0,33 | 0,23–0,41 | 0,27–0,50 | 0,33–0,56 | |
| 2 | 70 | 100 | 110 | mm/r | 0,12–0,17 | 0,12–0,20 | 0,14–0,26 | 0,23–0,32 | 0,24–0,38 | 0,27–0,50 | 0,33–0,63 | 0,39–0,75 | |
| 3 | 70 | 90 | 110 | mm/r | 0,12–0,17 | 0,14–0,23 | 0,17–0,23 | 0,20–0,29 | 0,29–0,33 | 0,23–0,41 | 0,27–0,50 | 0,33–0,56 | |
| 4 | 60 | 70 | 90 | mm/r | 0,09–0,14 | 0,11–0,20 | 0,14–0,20 | 0,17–0,23 | 0,17–0,26 | 0,20–0,33 | 0,23–0,41 | 0,26–0,45 | |
| 5 | 60 | 80 | 100 | mm/r | 0,03–0,11 | 0,04–0,11 | 0,05–0,11 | 0,05–0,14 | 0,08–0,18 | 0,11–0,21 | 0,14–0,24 | 0,16–0,26 | |
| 6 | 60 | 70 | 80 | mm/r | 0,03–0,11 | 0,04–0,11 | 0,05–0,11 | 0,05–0,14 | 0,08–0,18 | 0,11–0,21 | 0,14–0,24 | 0,16–0,26 | |
| M | 1 | 50 | 60 | 80 | mm/r | 0,04–0,08 | 0,06–0,13 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,13–0,22 | 0,15–0,24 | 0,18–0,28 |
| 2 | 40 | 50 | 80 | mm/r | 0,04–0,08 | 0,06–0,13 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,13–0,22 | 0,15–0,24 | 0,18–0,28 | |
| 3 | 40 | 50 | 70 | mm/r | 0,03–0,07 | 0,05–0,10 | 0,06–0,14 | 0,08–0,16 | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,26 | |
| K | 1 | 90 | 150 | 150 | mm/r | 0,10–0,15 | 0,14–0,20 | 0,20–0,30 | 0,22–0,36 | 0,26–0,42 | 0,30–0,45 | 0,36–0,59 | 0,40–0,72 |
| 2 | 80 | 120 | 120 | mm/r | 0,10–0,15 | 0,14–0,20 | 0,20–0,30 | 0,22–0,36 | 0,26–0,42 | 0,30–0,45 | 0,36–0,59 | 0,40–0,72 | |
| 3 | 80 | 80 | 140 | mm/r | 0,11–0,15 | 0,15–0,21 | 0,22–0,32 | 0,22–0,39 | 0,26–0,45 | 0,28–0,50 | 0,30–0,60 | 0,34–0,72 | |
Задать вопрос
Нужна консультация?
Наши специалисты ответят на любой интересующий вопрос
Задать вопрос
