Описание
KenCut AQ; ALCR; Radiused; 2 Flutes; 2 x D; Internal Coolant; Plain Shank; Inch. PCD End Mill for Roughing and Finishing of Aluminum. PCD End Mills
Особенности:
- End mills with polycrystalline diamond (PCD) for high-speed aluminum machining, reducing maching time drastically.
- PCD end mills provide up to ten times higher productivity compared to solid carbide end mills.
- Minimum quantity lubrication ready (MQL Ready).
- Sharp cutting edges and low friction rake surfaces guarantee high quality surface finishes.
- Centre cutting for plunging and ramping operations.
Применение:
- Face Milling
- Side Milling/Shoulder Milling: Roughing
- Side Milling/Shoulder Milling: Square End
- Trochoidal Milling
- Slotting: Square End
- Slotting: Square End
- Helical Milling
- Plunge Milling
- Pocketing
- Ramping: Blank
- Drilling
- 100665610

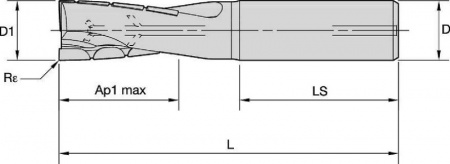

SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D1] Effective Cutting Diameter | [D] Adapter / Shank / Bore Diameter | [L] Overall Length | [AP1MAX] 1st Maximum Cutting Depth | [Z] Number of Flutes | [Re] Corner Radius |
---|---|---|---|---|---|---|---|---|
6752761 | ALCR2RA0500N100HAR015I | 45.5 | 12.7000 | 12.7 | 82.5500 | 25.4000 | 2 | 0.3810 |
6752762 | ALCR2RA0625N125HAR015I | 48.5 | 15.8750 | 15.875 | 95.2500 | 31.7500 | 2 | 0.3810 |
6752763 | ALCR2RA0750N150HAR015I | 50.5 | 19.0500 | 19.05 | 107.9500 | 38.1000 | 2 | 0.3810 |
