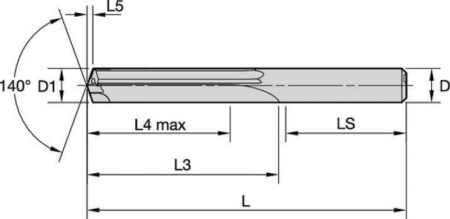

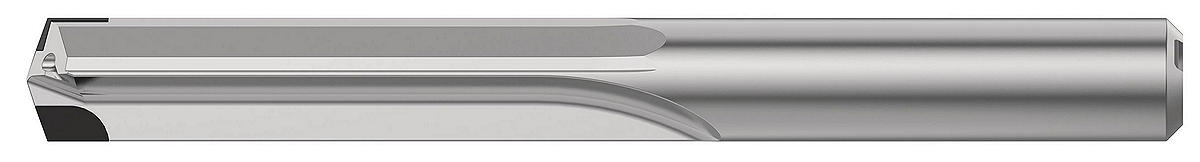

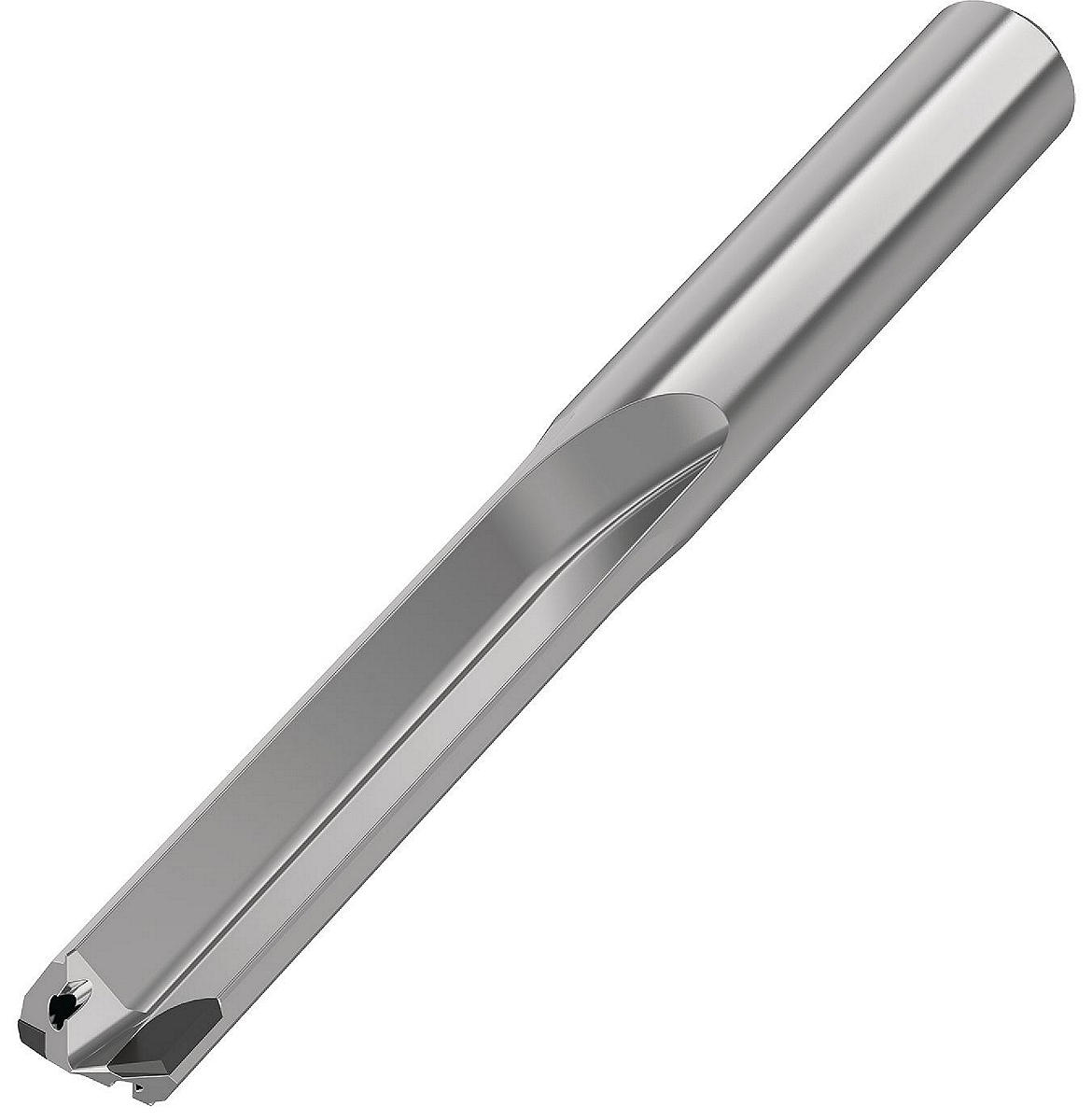

KenDrill TXD; 5 x D; Straight Fluted; Internal Coolant; Straight Shank; Inch. Solid Carbide Drill with PCD tip for Close Tolerances in Non-Ferrous Materials. PCD Drills • Aluminum Machining
Применение:
- Drilling
- Corner Style: Corner Chamfer

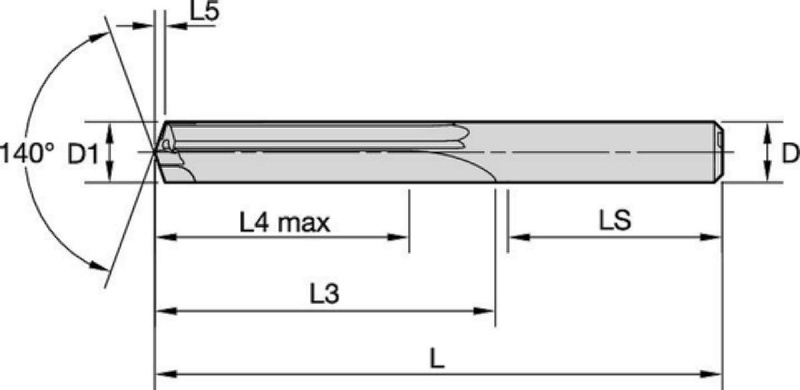

| SAP Material Number | ISO Catalog Number | [LS] Shank Length | [D] Adapter / Shank / Bore Diameter | [L5] Drill Point Length | [L4] Maximum Drilling Depth | [D1] Drill Diameter M | [L3] Flute Length | [L] Overall Length |
|---|---|---|---|---|---|---|---|---|
| 6761197 | K467A02344SP | 36.5 | 6.35 | 1.0058 | 34.9000 | 5.9531 | 43.5000 | 82.5000 |
| 6761198 | K467A02500SP | 36.5 | 6.35 | 1.0744 | 34.9000 | 6.3500 | 43.5000 | 82.5000 |
| 6761199 | K467A02812SP | 38.5 | 7.9375 | 1.2141 | 40.3000 | 7.1438 | 50.5000 | 91.5000 |
| 6761200 | K467A03125SP | 38.5 | 7.9375 | 1.3538 | 40.3000 | 7.9375 | 50.8000 | 91.5000 |
| 6761211 | K467A03281SP | 40.5 | 9.525 | 1.4021 | 48.7000 | 8.3344 | 60.5000 | 103.5000 |
| 6761212 | K467A03437SP | 40.5 | 9.525 | 1.4732 | 48.7000 | 8.7313 | 60.5000 | 103.5000 |
| 6761213 | K467A03750SP | 40.5 | 9.525 | 1.6129 | 48.7000 | 9.5250 | 60.5000 | 103.5000 |
| 6761215 | K467A03906SP | 42.5 | 11.1125 | 1.6815 | 53.1000 | 9.9219 | 66.5000 | 111.5000 |
| 6761216 | K467A04063SP | 42.5 | 11.1125 | 1.7526 | 53.1000 | 10.3188 | 66.5000 | 111.5000 |
| 6761217 | K467A04219SP | 42.5 | 11.1125 | 1.8212 | 53.1000 | 10.7156 | 66.5000 | 111.5000 |
| 6761218 | K467A04375SP | 42.5 | 11.1125 | 1.8923 | 53.1000 | 11.1125 | 66.5000 | 111.5000 |
| 6761219 | K467A04531SP | 45.5 | 12.7 | 1.9609 | 55.6000 | 11.5094 | 70.5000 | 118.5000 |
| 6761220 | K467A04844SP | 45.5 | 12.7 | 2.0752 | 55.6000 | 12.3031 | 70.5000 | 118.5000 |
| 6761221 | K467A05000SP | 45.5 | 12.7 | 2.1463 | 55.6000 | 12.7000 | 70.5000 | 118.5000 |
| 6761222 | K467A05313SP | 45.5 | 14.2875 | 2.2860 | 60.0000 | 13.4938 | 76.5000 | 124.5000 |
| 6761223 | K467A05625SP | 45.5 | 14.2875 | 2.4232 | 60.0000 | 14.2875 | 76.5000 | 124.5000 |
| 6761224 | K467A05781SP | 48.5 | 15.875 | 2.4943 | 64.5000 | 14.6844 | 82.5000 | 133.5000 |
| 6761225 | K467A06250SP | 48.5 | 15.875 | 2.7026 | 64.5000 | 15.8750 | 82.5000 | 133.5000 |
| 6761226 | K467A06875SP | 48.5 | 17.4625 | 2.9489 | 73.0000 | 17.0656 | 92.5000 | 143.5000 |
| 6761227 | K467A07500SP | 50.5 | 19.05 | 3.2283 | 74.5000 | 19.0500 | 95.5000 | 148.5000 |
Tolerance:
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| 1–3 | 0,002/0,012 | 0,000/-0,006 |
| 3–6 | 0,004/0,016 | 0,000/-0,008 |
| 6–10 | 0,006/0,021 | 0,000/-0,009 |
| 10–18 | 0,007/0,025 | 0,000/-0,011 |
| 18–25,4 | 0,008/0,029 | 0,000/-0,013 |
| nominal size range | D1 tolerance m7 | D tolerance h6 |
| .0394–.1181 | .0001/.0005 | .0000/-.0002 |
| .1181–.2362 | .0002/.0006 | .0000/-.0003 |
| .2362–.3937 | .0002/.0008 | .0000/-.0004 |
| .3937–.7087 | .0003/.0010 | .0000/-.0004 |
| .7087–1.0000 | .0003/.0011 | .0000/-.0005 |
Режимы резания:
| Material Group |  |  | |||||||||
| Cutting Speed vc | Inch | ||||||||||
| Range SFM | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 1/4 .250 | 5/16 .313 | 3/8 .375 | 1/2 .500 | 5/8 .625 | 3/4 .750 | |||
| N | 1 | 490 | 980 | 1970 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 |
| 2 | 490 | 820 | 1640 | IPR | .005–008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | .009–.012 | |
| 3 | 490 | 490 | 1310 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | |
| 4 | 330 | 560 | 820 | IPR | .004–.007 | .005–.008 | .006–.009 | .006–.009 | .007–.010 | .008–.011 | |
| Material Group | |  | |||||||||
| Cutting Speed vc | Metric | ||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 150 | 300 | 600 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 |
| 2 | 150 | 250 | 500 | mm/r | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | 0,22–0,30 | |
| 3 | 150 | 150 | 400 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| 4 | 100 | 170 | 250 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| Material Group | | | |||||||||
| Cutting Speed vc | Metric | ||||||||||
| Range m/min | Recommended Feed Rate (f) by Diameter | ||||||||||
| Min | Starting Value | Max | 6,0 | 8,0 | 10,0 | 12,0 | 16,0 | 20,0 | |||
| N | 1 | 150 | 300 | 600 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 |
| 2 | 150 | 250 | 500 | mm/r | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | 0,22–0,30 | |
| 3 | 150 | 150 | 400 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
| 4 | 100 | 170 | 250 | mm/r | 0,10–0,18 | 0,12–0,20 | 0,14–0,22 | 0,16–0,24 | 0,18–0,26 | 0,20–0,28 | |
