DUO-LOCK; HARVI I; Square End; 4 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

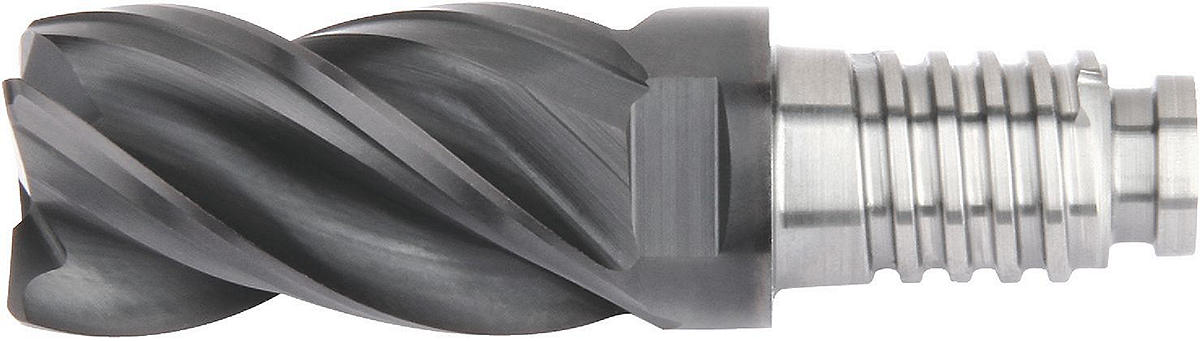

DUO-LOCK; HARVI I; Square End; 4 Flutes; Inch. HARVI; UKDV; Asymmetrical Flute Spacing. Модульные концевые фрезы DUO-λOCK® • HARVI™

Asymmetrical flute spacing and variable helix configuration minimize chatter and harmonics for smoother machining.
Center cutting.
Single tool for both roughing and finishing, reducing setups.
Standard items listed. Additional styles and coatings made-to-order.

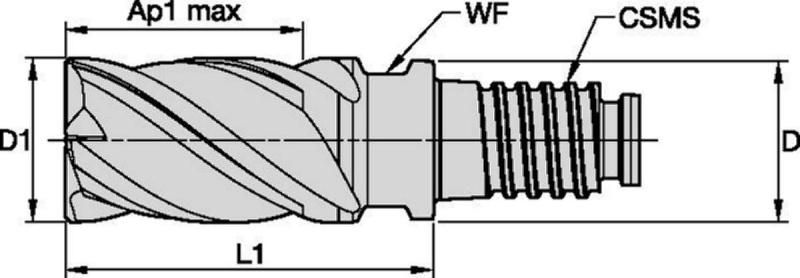

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[CSMS] System Size Machine Side	[Z] Number of Flutes	[WF] Width of Flat	[L1] Gage Length	[D] Adapter / Shank / Bore Diameter	[AP1MAX] 1st Maximum Cutting Depth
6072333	UKDV0375Y4CU	9.5250	DUO-LOCK	DL10	4	8.0000	21.4000	9.125	14.2880
6072334	UKDV0500Y4CU	12.7000	DUO-LOCK	DL12	4	9.5000	28.6000	12.2	19.0500
6072335	UKDV0625Y4CU	15.8750	DUO-LOCK	DL16	4	13.0000	35.7000	15.375	23.8120
6072337	UKDV0750Y4CU	19.0500	DUO-LOCK	DL20	4	16.0000	42.9000	18.55	28.5750
6072338	UKDV1000Y4CU	25.4000	DUO-LOCK	DL25	4	21.0000	57.2000	24.4	38.1000
6072339	UKDV1250Y4CU	31.7500	DUO-LOCK	DL32	4	28.0000	71.2000	30.75	47.6250

Tolerance:

Material Group
		Side Milling (A) and Slotting (B)			short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	adapter reach									D1 Diameter
					KCPM15			KCPM15			KCPM15
					Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1	1 1/4
		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.0000	1.2500
P	0	1.5 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	1	1.5 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	2	1.5 x D	0.5 x D	1 x D	460	–	620	414	–	558	414	–	558	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	3	1.5 x D	0.5 x D	1 x D	390	–	520	351	–	468	351	–	468	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	4	1.5 x D	0.4 x D	0.75 x D	300	–	490	270	–	441	270	–	441	IPT	.0017	.0022	.0026	.0029	.0034	.0034
	5	1.5 x D	0.4 x D	1 x D	200	–	330	170	–	280.5	160	–	264	IPT	.0016	.0020	.0023	.0026	.0033	.0033
	6	1.5 x D	0.4 x D	0.75 x D	160	–	250	136	–	212.5	128	–	200	IPT	.0013	.0016	.0019	.0021	.0024	.0024
M	1	1.5 x D	0.4 x D	1 x D	300	–	380	240	–	304	210	–	266	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	1.5 x D	0.4 x D	1 x D	200	–	260	160	–	208	140	–	182	IPT	.0016	.0020	.0023	.0026	.0033	.0033
	3	1.5 x D	0.4 x D	1 x D	200	–	230	160	–	184	140	–	161	IPT	.0013	.0016	.0019	.0021	.0024	.0024
S	1	1.5 x D	0.3 x D	0.3 x D	160	–	300	128	–	240	96	–	180	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	1.5 x D	0.3 x D	0.3 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	3	1.5 x D	0.3 x D	0.3 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	4	1.5 x D	0.4 x D	1 x D	160	–	200	128	–	160	96	–	120	IPT	.0014	.0018	.0021	.0024	.0030	.0030
