DUO-LOCK; HARVI II; Chamfered; 5 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DUO-LOCK; HARVI II; Chamfered; 5 Flutes; Inch. HARVI II; UCDV; Unequal Flute Spacing. Модульные концевые фрезы DUO-λOCK® • HARVI™

Особенности:

Unequal flute spacing and variable helix configuration minimize chatter and harmonics for smoother machining.
Non-center cutting.
Ramping up to 3°.
Five-flute geometry able to slot up to 1 x D.
Single tool for both roughing and finishing, reducing setups.
Standard items listed. Additional styles and coatings made-to-order.

Применение:

Plunge Milling
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Helix Angle: 37°/39°
Tool Dimensions: Flute Configuration: 5
Corner Style: Corner Chamfer

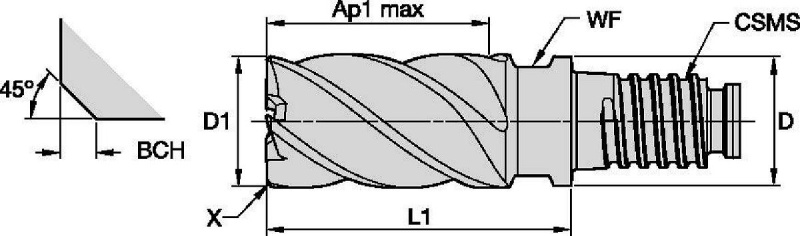

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[CSMS] System Size Machine Side	[Z] Number of Flutes	[WF] Width of Flat	[L1] Gage Length	[D] Adapter / Shank / Bore Diameter	[BCH] Corner Chamfer Width	[AP1MAX] 1st Maximum Cutting Depth
6072205	UCDV0375Y5CV	9.5250	DUO-LOCK	DL10	5	8.0000	21.4000	9.125	0.5080	14.2880
6072206	UCDV0500Y5CV	12.7000	DUO-LOCK	DL12	5	9.5000	28.6000	12.2	0.5080	19.0500
6072207	UCDV0625Y5CV	15.8750	DUO-LOCK	DL16	5	13.0000	35.7000	15.375	0.5080	23.8130
6072208	UCDV0750Y5CV	19.0500	DUO-LOCK	DL20	5	16.0000	42.9000	18.55	0.5080	28.5750
6072209	UCDV1000Y5CV	25.4000	DUO-LOCK	DL25	5	21.0000	57.2000	24.4	0.5080	38.1000
6072210	UCDV1250Y5CV	31.7500	DUO-LOCK	DL32	5	28.0000	71.2000	30.75	0.5080	47.6250

Tolerance:

End Mill Tolerances
D1	tolerance e8
13/32 23/32"	-0,00126"/-0,00232"
23/32 1-3/16"	-0,00157"/-0,00287"
1-3/16"	-0,00197''/-0,00350''

Режимы резания:

HARVI II; UCDV; Unequal Flute Spacing


		Side Milling (A) and Slotting (B)			short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	adapter reach									D1 Diameter
					KCPM15			KCPM15			KCPM15
					Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1	1 1/4
Material Group		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.2500	1.2500
P	0	1.5 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	1	1.5 x D	0.5 x D	1 x D	490	–	660	441	–	594	441	–	594	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	2	1.5 x D	0.5 x D	1 x D	460	–	620	414	–	558	414	–	558	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	3	1.5 x D	0.5 x D	1 x D	390	–	520	351	–	468	351	–	468	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	4	1.5 x D	0.4 x D	0.75 x D	300	–	490	270	–	441	270	–	441	IPT	.0017	.0022	.0026	.0029	.0034	.0034
	5	1.5 x D	0.4 x D	1 x D	200	–	330	170	–	280.5	160	–	264	IPT	.0016	.0020	.0023	.0026	.0033	.0033
	6	1.5 x D	0.4 x D	0.75 x D	160	–	250	136	–	212.5	128	–	200	IPT	.0013	.0016	.0019	.0021	.0024	.0024
M	1	1.5 x D	0.4 x D	1 x D	300	–	380	240	–	304	210	–	266	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	1.5 x D	0.4 x D	1 x D	200	–	260	160	–	208	140	–	182	IPT	.0016	.0020	.0023	.0026	.0033	.0033
	3	1.5 x D	0.4 x D	1 x D	200	–	230	160	–	184	140	–	161	IPT	.0013	.0016	.0019	.0021	.0024	.0024
K	1	1.5 x D	0.5 x D	1 x D	390	–	490	351	–	441	351	–	441	IPT	.0023	.0029	.0034	.0037	.0042	.0042
	2	1.5 x D	0.5 x D	1 x D	360	–	460	324	–	414	324	–	414	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	3	1.5 x D	0.5 x D	1 x D	360	–	430	324	–	387	324	–	387	IPT	.0016	.0020	.0023	.0026	.0033	.0033
S	1	1.5 x D	0.3 x D	0.3 x D	160	–	300	128	–	240	96	–	180	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	1.5 x D	0.3 x D	0.3 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	3	1.5 x D	0.3 x D	0.3 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	4	1.5 x D	0.4 x D	1 x D	160	–	200	128	–	160	96	–	120	IPT	.0014	.0018	.0021	.0024	.0030	.0030
H	1	1.5 x D	0.4 x D	0.75 x D	260	–	460	208	–	368	156	–	276	IPT	.0017	.0022	.0026	.0029	.0034	.0034
	2	1.5 x D	0.2 x D	0.5 x D	230	–	390	184	–	312	138	–	234	IPT	.0013	.0016	.0019	.0021	.0024	.0024
