GOmill GP; Square End; 4 Flutes; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

GOmill GP; Square End; 4 Flutes; Plain Shank; Inch. General Purpose Solid Carbide End Mill. Фрезы общего назначения GOmill™ GP • Цельные твердосплавные концевые фрезы • Фрезы с 4 зубьями

Особенности:

Solid carbide end mill with excellent cost-benefit ratio.
Eccentric relief increases cutting edge stability for long tool life and high surface quality.
Eccentric relief eases regrinding and reduces reconditioning cost.
Center cutting for plunging and ramping operations.

Применение:

Helix Angle: 30°
Side Milling/Shoulder Milling: Square End
Ramping: Blank
Tool Dimensions: Flute Configuration: 4
Slotting: Square End
Corner Style: Square End

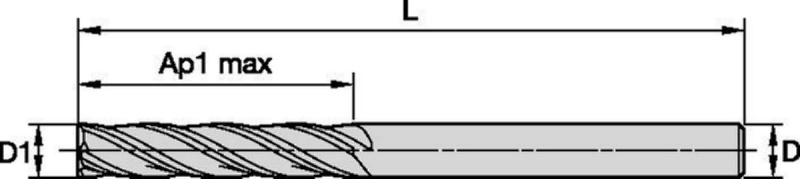

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
6086553	4SE0015IR003A	0.3970	3.175	38.1000	Straight-Cylindrical	0.7940	4
6086554	4SE0031IR008A	0.7940	3.175	38.1000	Straight-Cylindrical	1.9840	4
6086555	4SE0062IR010A	1.5880	3.175	38.1000	Straight-Cylindrical	2.7780	4
6086556	4SE0078IR018A	1.9840	3.175	38.1000	Straight-Cylindrical	4.7620	4
6086559	4SE0093IL062A	2.3810	3.175	50.8000	Straight-Cylindrical	15.8750	4
6086558	4SE0093IR037A	2.3810	3.175	38.1000	Straight-Cylindrical	9.5250	4
6086560	4SE0109IR037A	2.7780	3.175	38.1000	Straight-Cylindrical	9.5250	4
6086563	4SE0125IL075A	3.1750	3.175	57.1500	Straight-Cylindrical	19.0500	4
6086562	4SE0125IR050A	3.1750	3.175	38.1000	Straight-Cylindrical	12.7000	4
6086561	4SE0125IS025A	3.1750	3.175	38.1000	Straight-Cylindrical	6.3500	4
6086564	4SE0125IX100A	3.1750	3.175	76.2000	Straight-Cylindrical	25.4000	4
6086565	4SE0140IR056A	3.5720	4.762	50.8000	Straight-Cylindrical	14.2880	4
6086567	4SE0156IR056A	3.9690	4.762	50.8000	Straight-Cylindrical	14.2880	4
6086570	4SE0187IL075A	4.7630	4.763	63.5000	Straight-Cylindrical	19.0500	4
6086568	4SE0187IR062A	4.7630	4.763	50.8000	Straight-Cylindrical	15.8750	4
6086571	4SE0187IX112A	4.7630	4.763	76.2000	Straight-Cylindrical	28.5750	4
6086572	4SE0203IR062A	5.1590	6.35	63.5000	Straight-Cylindrical	15.8750	4
6086574	4SE0218IL062A	5.5560	6.35	63.5000	Straight-Cylindrical	15.8750	4
6086573	4SE0218IR043A	5.5560	6.35	50.8000	Straight-Cylindrical	11.1120	4
6086575	4SE0234IR075A	5.9530	6.35	63.5000	Straight-Cylindrical	19.0500	4
6086578	4SE0250IL112A	6.3500	6.35	76.2000	Straight-Cylindrical	28.5750	4
6086577	4SE0250IR075A	6.3500	6.35	63.5000	Straight-Cylindrical	19.0500	4
6086576	4SE0250IS050A	6.3500	6.35	50.8000	Straight-Cylindrical	12.7000	4
6086579	4SE0250IX150A	6.3500	6.35	101.6000	Straight-Cylindrical	38.1000	4
6086580	4SE0265IR075A	6.7470	7.938	63.5000	Straight-Cylindrical	19.0500	4
6086581	4SE0281IR075A	7.1440	7.938	63.5000	Straight-Cylindrical	19.0500	4
6086582	4SE0296IR081A	7.5410	7.938	63.5000	Straight-Cylindrical	20.6380	4
6086585	4SE0312IL112A	7.9380	7.938	76.2000	Straight-Cylindrical	28.5750	4
6086584	4SE0312IR081A	7.9380	7.938	63.5000	Straight-Cylindrical	20.6380	4
6086583	4SE0312IS050A	7.9380	7.938	50.8000	Straight-Cylindrical	12.7000	4
6086586	4SE0312IX162A	7.9380	7.938	101.6000	Straight-Cylindrical	41.2750	4
6086587	4SE0328IR100A	8.3340	9.525	63.5000	Straight-Cylindrical	25.4000	4
6086588	4SE0343IR100A	8.7310	9.525	63.5000	Straight-Cylindrical	25.4000	4
6086589	4SE0359IR100A	9.1280	9.525	63.5000	Straight-Cylindrical	25.4000	4
6086592	4SE0375IL112A	9.5250	9.525	76.2000	Straight-Cylindrical	28.5750	4
6086591	4SE0375IR100A	9.5250	9.525	63.5000	Straight-Cylindrical	25.4000	4
6086590	4SE0375IS062A	9.5250	9.525	50.8000	Straight-Cylindrical	15.8750	4
6086593	4SE0375IX175A	9.5250	9.525	101.6000	Straight-Cylindrical	44.4500	4
6086594	4SE0390IR100A	9.9220	11.112	69.8500	Straight-Cylindrical	25.4000	4
6086595	4SE0406IR100A	10.3190	11.112	69.8500	Straight-Cylindrical	25.4000	4
6086596	4SE0421IR100A	10.7160	11.112	69.8500	Straight-Cylindrical	25.4000	4
6086599	4SE0437IL200A	11.1130	11.113	101.6000	Straight-Cylindrical	50.8000	4
6086598	4SE0437IR100A	11.1130	11.113	69.8500	Straight-Cylindrical	25.4000	4
6086597	4SE0437IS100A	11.1130	11.113	63.5000	Straight-Cylindrical	25.4000	4
6086601	4SE0453IR100A	11.5090	12.7	76.2000	Straight-Cylindrical	25.4000	4
6086602	4SE0468IR100A	11.9060	12.7	76.2000	Straight-Cylindrical	25.4000	4
6086603	4SE0484IR100A	12.3030	12.7	76.2000	Straight-Cylindrical	25.4000	4
6086335	4SE0500IL200A	12.7000	12.7	101.6000	Straight-Cylindrical	50.8000	4
6086334	4SE0500IR100A	12.7000	12.7	76.2000	Straight-Cylindrical	25.4000	4
6086333	4SE0500IS062A	12.7000	12.7	63.5000	Straight-Cylindrical	15.8750	4
6086336	4SE0500IX300A	12.7000	12.7	152.4000	Straight-Cylindrical	76.2000	4
6086338	4SE0562IL125A	14.2880	14.288	88.9000	Straight-Cylindrical	31.7500	4
6086337	4SE0562IR075A	14.2880	14.288	76.2000	Straight-Cylindrical	19.0500	4
6086339	4SE0562IX225A	14.2880	14.288	127.0000	Straight-Cylindrical	57.1500	4
6086512	4SE0625IL225A	15.8750	15.875	127.0000	Straight-Cylindrical	57.1500	4
6086511	4SE0625IR125A	15.8750	15.875	88.9000	Straight-Cylindrical	31.7500	4
6086340	4SE0625IS075A	15.8750	15.875	76.2000	Straight-Cylindrical	19.0500	4
6086513	4SE0625IX400A	15.8750	15.875	177.8000	Straight-Cylindrical	101.6000	4
6086514	4SE0687IR137A	17.4620	19.05	101.6000	Straight-Cylindrical	34.9250	4
6086518	4SE0750IL300A	19.0500	19.05	152.4000	Straight-Cylindrical	76.2000	4
6086516	4SE0750IR150A	19.0500	19.05	101.6000	Straight-Cylindrical	38.1000	4
6086517	4SE0750IR225A	19.0500	19.05	127.0000	Straight-Cylindrical	57.1500	4
6086515	4SE0750IS100A	19.0500	19.05	76.2000	Straight-Cylindrical	25.4000	4
6086519	4SE0750IX400A	19.0500	19.05	177.8000	Straight-Cylindrical	101.6000	4
6086521	4SE0875IL225A	22.2250	22.225	127.0000	Straight-Cylindrical	57.1500	4
6086520	4SE0875IR150A	22.2250	22.225	101.6000	Straight-Cylindrical	38.1000	4
6086524	4SE1000IL300A	25.4000	25.4	152.4000	Straight-Cylindrical	76.2000	4
6086523	4SE1000IR225A	25.4000	25.4	127.0000	Straight-Cylindrical	57.1500	4
6086522	4SE1000IS150A	25.4000	25.4	101.6000	Straight-Cylindrical	38.1000	4
6086525	4SE1000IX400A	25.4000	25.4	177.8000	Straight-Cylindrical	101.6000	4

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1 3/16"	+0/-.00051"

Режимы резания:


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/64	1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0156	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0001	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0001	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0002	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820		2450	IPT	.0001	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	360	–	460	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	360	–	460	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090
