GOmill GP; Square End; 2 Flutes; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

GOmill GP; Square End; 2 Flutes; Plain Shank; Inch. General Purpose Solid Carbide End Mill. Фрезы общего назначения GOmill™ GP • Цельные твердосплавные концевые фрезы • Фрезы с 2 зубьями

Особенности:

Solid carbide end mill with excellent cost-benefit ratio.
Eccentric relief increases cutting edge stability for long tool life and high surface quality.
Eccentric relief eases regrinding and reduces reconditioning cost.
Center cutting for plunging and ramping operations.

Применение:

Slotting: Square End
Plunge Milling

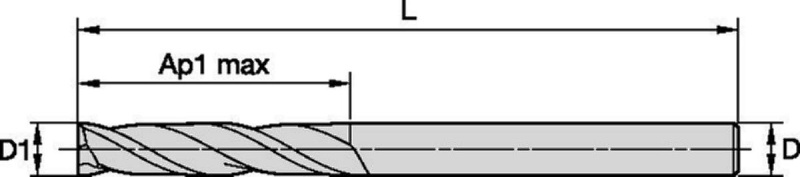

Tool Dimensions: Flute Configuration: 2
Helix Angle: 30°
Corner Style: Square End
Ramping: Blank
Side Milling/Shoulder Milling: Square End

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
6086327	2SE0016IR003A	0.3970	3.175	38.1000	Straight-Cylindrical	0.7940	2
6086328	2SE0031IR007A	0.7940	3.175	38.1000	Straight-Cylindrical	1.9840	2
6086329	2SE0062IL018A	1.5880	3.175	38.1000	Straight-Cylindrical	4.7620	2
6086330	2SE0062IR012A	1.5880	3.175	38.1000	Straight-Cylindrical	3.1750	2
6086381	2SE0062IX050A	1.5880	3.175	50.8000	Straight-Cylindrical	12.7000	2
6086382	2SE0078IR018A	1.9840	3.175	38.1000	Straight-Cylindrical	4.7620	2
6086384	2SE0093IL037A	2.3810	3.175	38.1000	Straight-Cylindrical	9.5250	2
6086383	2SE0093IR018A	2.3810	3.175	38.1000	Straight-Cylindrical	4.7620	2
6086385	2SE0093IX062A	2.3810	3.175	50.8000	Straight-Cylindrical	15.8750	2
6086386	2SE0109IR037A	2.7780	3.175	38.1000	Straight-Cylindrical	9.5250	2
6086388	2SE0125IL050A	3.1750	3.175	38.1000	Straight-Cylindrical	12.7000	2
6086387	2SE0125IR025A	3.1750	3.175	38.1000	Straight-Cylindrical	6.3500	2
6086389	2SE0125IX075A	3.1750	3.175	57.1500	Straight-Cylindrical	19.0500	2
6086390	2SE0140IR056A	3.5720	4.762	50.8000	Straight-Cylindrical	14.2880	2
6086392	2SE0156IL056A	3.9690	4.762	50.8000	Straight-Cylindrical	14.2880	2
6086391	2SE0156IR031A	3.9690	4.762	50.8000	Straight-Cylindrical	7.9380	2
6086393	2SE0171IR062A	4.3660	4.762	50.8000	Straight-Cylindrical	15.8750	2
6086395	2SE0187IL075A	4.7630	4.763	63.5000	Straight-Cylindrical	19.0500	2
6086394	2SE0187IR062A	4.7630	4.763	50.8000	Straight-Cylindrical	15.8750	2
6086396	2SE0187IX112A	4.7630	4.763	76.2000	Straight-Cylindrical	28.5750	2
6086398	2SE0218IL062A	5.5560	6.35	63.5000	Straight-Cylindrical	15.8750	2
6086397	2SE0218IR043A	5.5560	6.35	50.8000	Straight-Cylindrical	11.1120	2
6086401	2SE0250IL112A	6.3500	6.35	76.2000	Straight-Cylindrical	28.5750	2
6086400	2SE0250IR075A	6.3500	6.35	63.5000	Straight-Cylindrical	19.0500	2
6086399	2SE0250IS050A	6.3500	6.35	50.8000	Straight-Cylindrical	12.7000	2
6086402	2SE0250IX150A	6.3500	6.35	101.6000	Straight-Cylindrical	38.1000	2
6086403	2SE0281IR075A	7.1440	7.938	63.5000	Straight-Cylindrical	19.0500	2
6086406	2SE0312IL112A	7.9380	7.938	76.2000	Straight-Cylindrical	28.5750	2
6086405	2SE0312IR081A	7.9380	7.938	63.5000	Straight-Cylindrical	20.6380	2
6086404	2SE0312IS050A	7.9380	7.938	50.8000	Straight-Cylindrical	12.7000	2
6086407	2SE0312IX162A	7.9380	7.938	101.6000	Straight-Cylindrical	41.2750	2
6086408	2SE0343IR100A	8.7310	9.525	63.5000	Straight-Cylindrical	25.4000	2
6086411	2SE0375IL112A	9.5250	9.525	76.2000	Straight-Cylindrical	28.5750	2
6086410	2SE0375IR100A	9.5250	9.525	63.5000	Straight-Cylindrical	25.4000	2
6086409	2SE0375IS062A	9.5250	9.525	50.8000	Straight-Cylindrical	15.8750	2
6086412	2SE0375IX175A	9.5250	9.525	101.6000	Straight-Cylindrical	44.4500	2
6086413	2SE0406IR100A	10.3190	11.112	69.8500	Straight-Cylindrical	25.4000	2
6086415	2SE0437IL100A	11.1130	11.113	63.5000	Straight-Cylindrical	25.4000	2
6086414	2SE0437IR062A	11.1130	11.113	63.5000	Straight-Cylindrical	15.8750	2
6086416	2SE0437IX200A	11.1130	11.113	101.6000	Straight-Cylindrical	50.8000	2
6086417	2SE0468IR100A	11.9060	12.7	76.2000	Straight-Cylindrical	25.4000	2
6086420	2SE0500IL200A	12.7000	12.7	101.6000	Straight-Cylindrical	50.8000	2
6086419	2SE0500IR100A	12.7000	12.7	76.2000	Straight-Cylindrical	25.4000	2
6086418	2SE0500IS062A	12.7000	12.7	63.5000	Straight-Cylindrical	15.8750	2
6086441	2SE0500IX300A	12.7000	12.7	152.4000	Straight-Cylindrical	76.2000	2
6086443	2SE0562IL125A	14.2880	14.288	88.9000	Straight-Cylindrical	31.7500	2
6086442	2SE0562IR075A	14.2880	14.288	76.2000	Straight-Cylindrical	19.0500	2
6086444	2SE0562IX225A	14.2880	14.288	127.0000	Straight-Cylindrical	57.1500	2
6086446	2SE0625IL125A	15.8750	15.875	88.9000	Straight-Cylindrical	31.7500	2
6086445	2SE0625IR075A	15.8750	15.875	76.2000	Straight-Cylindrical	19.0500	2
6086447	2SE0625IX225A	15.8750	15.875	127.0000	Straight-Cylindrical	57.1500	2
6086448	2SE0687IR137A	17.4620	19.05	101.6000	Straight-Cylindrical	34.9250	2
6086452	2SE0750IL300A	19.0500	19.05	152.4000	Straight-Cylindrical	76.2000	2
6086450	2SE0750IR150A	19.0500	19.05	101.6000	Straight-Cylindrical	38.1000	2
6086451	2SE0750IR225A	19.0500	19.05	127.0000	Straight-Cylindrical	57.1500	2
6086449	2SE0750IS100A	19.0500	19.05	76.2000	Straight-Cylindrical	25.4000	2
6086453	2SE0750IX400A	19.0500	19.05	177.8000	Straight-Cylindrical	101.6000	2
6086455	2SE0875IL225A	22.2250	22.225	127.0000	Straight-Cylindrical	57.1500	2
6086454	2SE0875IR150A	22.2250	22.225	101.6000	Straight-Cylindrical	38.1000	2
6086458	2SE1000IL300A	25.4000	25.4	152.4000	Straight-Cylindrical	76.2000	2
6086457	2SE1000IR225A	25.4000	25.4	127.0000	Straight-Cylindrical	57.1500	2
6086456	2SE1000IS150A	25.4000	25.4	101.6000	Straight-Cylindrical	38.1000	2
6086459	2SE1000IX400A	25.4000	25.4	177.8000	Straight-Cylindrical	101.6000	2

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1 3/16"	+0/-.00051"

Режимы резания:


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
		ap	ae	ap	Min		Max	inch	1/64	1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group									.0156	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0001	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0001	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0002	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0156	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
		ap	ae	Min		Max	inch	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group								.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090
