HARVI I; Ball Nose; 4 Flutes; Weldon Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

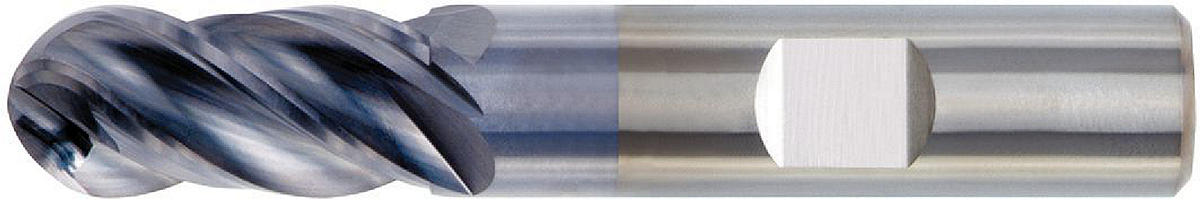

HARVI I; Ball Nose; 4 Flutes; Weldon® Shank; Inch. HARVI I Solid Carbide End Mill for Roughing and Finishing of Multiple Materials. Высокопроизводительные цельные твердосплавные концевые фрезы HARVI™ I

Особенности:

Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys.
HARVI I solid carbide end mills cover a variety of operations, including dynamic milling.
HARVI I solid carbide end mills features unequal flute spacing for chatter-free machining.
Centre cutting for plunging and ramping operations.

Применение:

Side Milling/Shoulder Milling: Ball Nose
Corner Style: Ball Nose
3D Profiling
Helix Angle: 38°
Tool Dimensions: Flute Configuration: 4
Slotting: Ball Nose

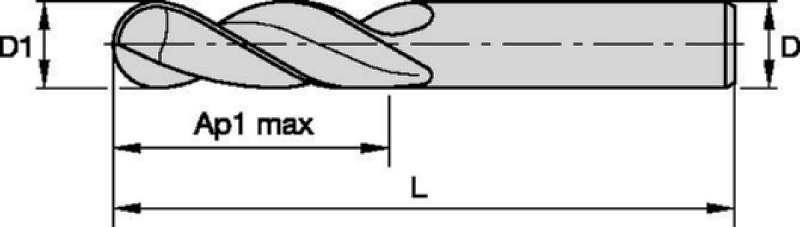

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[L] Overall Length	Adapter Style Machine Side	[Z] Number of Flutes	[D] Adapter / Shank / Bore Diameter	[L3] Usable Length	[AP1MAX] 1st Maximum Cutting Depth
4067286	HPHVBN1000S4150	25.4000	101.6000	Weldon	4	25.4	38.1000	38.1000
4067288	HPHVBN500S4100	12.7000	76.2000	Weldon	4	12.7	25.4000	25.4000
4067289	HPHVBN500S4125	12.7000	76.2000	Weldon	4	12.7	31.7500	31.7500
4067290	HPHVBN625S4125	15.8750	88.9000	Weldon	4	15.875	31.7500	31.7500
4067291	HPHVBN750S4150	19.0500	101.6000	Weldon	4	19.05	38.1000	38.1000

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1-3/16"	0/.00051"

Режимы подачи:


		Side Milling (A) and Slotting (B)			KCPM15		Recommended feed per tooth (IPT=inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM			D1 Diameter
								1/8	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	1
Material Group		ap	ae	ap	min	max	inch	.125	.188	.250	.313	.375	.438	.500	.625	.750	1.000
P	0	1.25 x D	0.5 x D	1 x D	490	660	IPT	.0009	.0013	.0018	.0023	.0027	.0031	.0034	.0039	.0044	.0049
	1	1.25 x D	0.5 x D	1 x D	490	660	IPT	.0009	.0013	.0018	.0023	.0027	.0031	.0034	.0039	.0044	.0049
	2	1.25 x D	0.5 x D	1 x D	460	620	IPT	.0009	.0013	.0018	.0023	.0027	.0031	.0034	.0039	.0044	.0049
	3	1.25 x D	0.5 x D	1 x D	390	520	IPT	.0007	.0011	.0015	.0020	.0023	.0026	.0029	.0034	.0039	.0045
	4	1.25 x D	0.5 x D	0.75 x D	300	490	IPT	.0007	.0010	.0014	.0017	.0020	.0023	.0026	.0030	.0034	.0039
	5	1.25 x D	0.5 x D	1 x D	200	330	IPT	.0006	.0009	.0012	.0016	.0018	.0021	.0023	.0027	.0031	.0036
	6	1.25 x D	0.5 x D	0.75 x D	160	250	IPT	.0005	.0008	.0010	.0013	.0015	.0017	.0019	.0022	.0025	.0028
M	1	1.25 x D	0.5 x D	1 x D	300	380	IPT	.0007	.0011	.0015	.0020	.0023	.0026	.0029	.0034	.0039	.0045
	2	1.25 x D	0.5 x D	1 x D	200	260	IPT	.0006	.0009	.0012	.0016	.0018	.0021	.0023	.0027	.0031	.0036
	3	1.25 x D	0.5 x D	1 x D	200	230	IPT	.0005	.0008	.0010	.0013	.0015	.0017	.0019	.0022	.0025	.0028
K	1	1.25 x D	0.5 x D	1 x D	390	490	IPT	.0009	.0013	.0018	.0023	.0027	.0031	.0034	.0039	.0044	.0049
	2	1.25 x D	0.5 x D	1 x D	360	460	IPT	.0007	.0011	.0015	.0020	.0023	.0026	.0029	.0034	.0039	.0045
	3	1.25 x D	0.5 x D	1 x D	360	430	IPT	.0006	.0009	.0012	.0016	.0018	.0021	.0023	.0027	.0031	.0036
S	1	1 x D	0.3 x D	0.3 x D	160	300	IPT	.0007	.0011	.0015	.0020	.0023	.0026	.0029	.0034	.0039	.0045
	2	1 x D	0.3 x D	0.3 x D	80	130	IPT	.0004	.0006	.0008	.0010	.0012	.0014	.0015	.0018	.0021	.0024
	3	1.25 x D	0.3 x D	0.3 x D	80	130	IPT	.0004	.0006	.0008	.0010	.0012	.0014	.0015	.0018	.0021	.0024
	4	1.25 x D	0.5 x D	1 x D	160	200	IPT	.0005	.0008	.0011	.0014	.0017	.0019	.0021	.0025	.0028	.0033
H	1	1.25 x D	0.5 x D	0.75 x D	260	460	IPT	.0007	.0010	.0014	.0017	.0020	.0023	.0026	.0030	.0034	.0039
