Описание

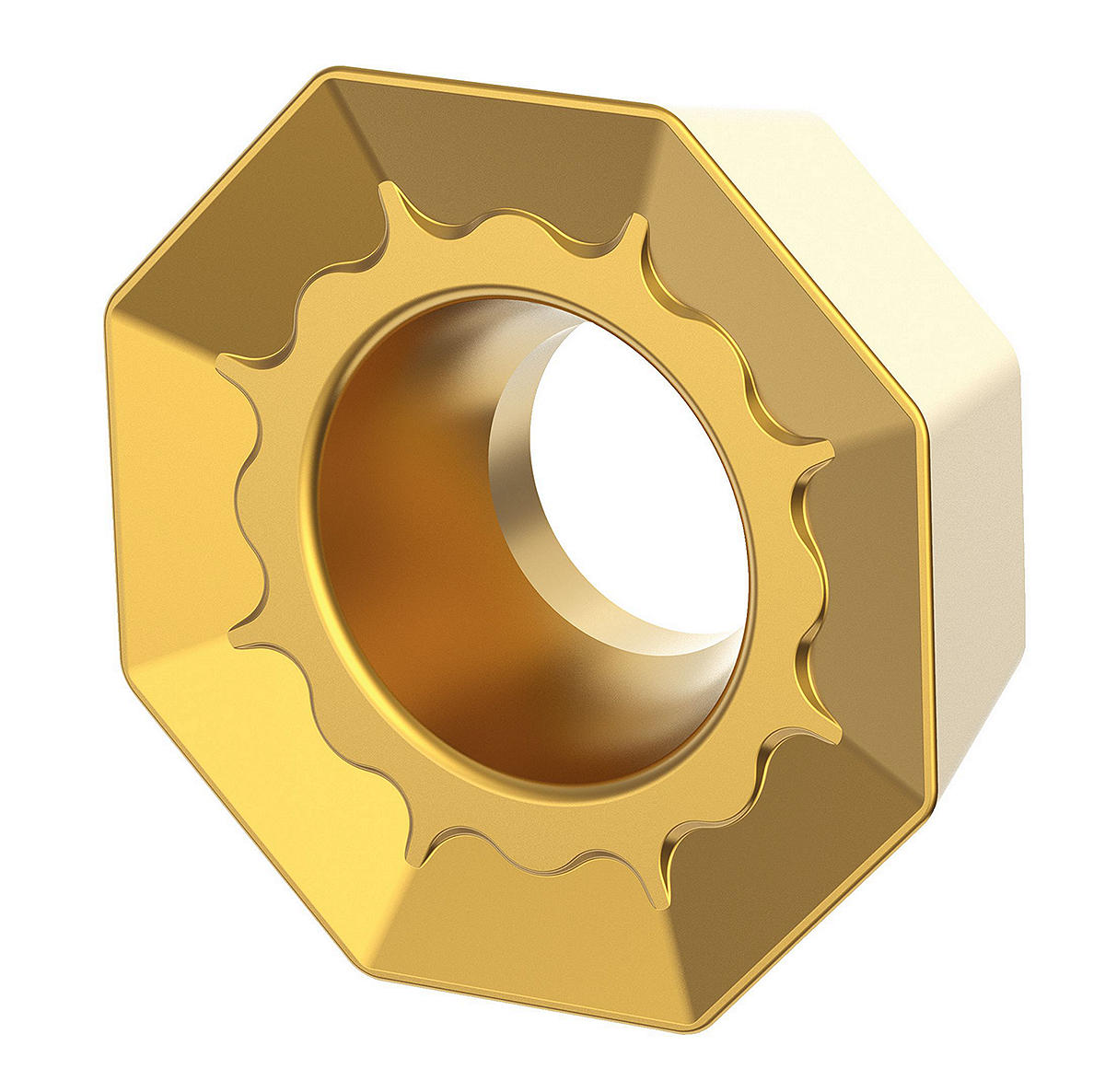

7745VOD04; Inserts; ODMT-EN41. Пластины. 7745VOD04 Series
| SAP Material Number | ISO Catalog Number | [Rε] Corner Radius | Average Chip Thickness [HM] | [S] Insert Thickness | [D] Insert IC Size |
|---|---|---|---|---|---|
| 5667576 | ODMT040408EN41 | 0.8000 | 0.0600 | 4.7600 | 12.8000 |
| 5656811 | ODMT040408EN41 | 0.8000 | 0.0600 | 4.7600 | 12.8000 |
| 5656528 | ODMT040408EN41 | 0.8000 | 0.0600 | 4.7600 | 12.8000 |
| 5656908 | ODMT040408EN41 | 0.8000 | 0.0600 | 4.7600 | 12.8000 |
Подача:
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .E..44 | 0,14 | 0,35 | 0,58 | 0,10 | 0,25 | 0,41 | 0,08 | 0,19 | 0,31 | 0,07 | 0,17 | 0,28 | 0,06 | 0,15 | 0,25 | .E..44 |
| .E..412 | 0,16 | 0,41 | 0,69 | 0,12 | 0,30 | 0,50 | 0,09 | 0,23 | 0,38 | 0,08 | 0,20 | 0,33 | 0,07 | 0,18 | 0,30 | .E..412 |
| .E..41 | 0,18 | 0,51 | 0,81 | 0,13 | 0,36 | 0,58 | 0,10 | 0,28 | 0,44 | 0,09 | 0,24 | 0,39 | 0,08 | 0,22 | 0,35 | .E..41 |
| .S..N | 0,46 | 0,81 | 1,15 | 0,33 | 0,58 | 0,83 | 0,25 | 0,44 | 0,63 | 0,22 | 0,39 | 0,55 | 0,20 | 0,35 | 0,50 | .S..N |
Скорость:
| Material Group | SP6519 | X500 | X700 | |||||||
| P | 1 | 355 | 260 | 155 | 325 | 240 | 155 | – | – | – |
| 2 | 310 | 230 | 140 | 290 | 215 | 140 | – | – | – | |
| 3 | 275 | 200 | 120 | 250 | 185 | 120 | – | – | – | |
| 4 | 210 | 150 | 90 | 190 | 145 | 90 | – | – | – | |
| 5 | 170 | 125 | 85 | 155 | 120 | 85 | 160 | 125 | 85 | |
| 6 | 145 | 100 | 60 | 130 | 95 | 60 | 140 | 100 | 60 | |
| M | 1 | 325 | 235 | 140 | 300 | 220 | 140 | 310 | 230 | 140 |
| 2 | 280 | 205 | 125 | 265 | 190 | 120 | 275 | 205 | 125 | |
| 3 | 235 | 170 | 100 | 215 | 155 | 95 | 230 | 170 | 100 | |
| K | 1 | 355 | 265 | 170 | 310 | 265 | 205 | – | – | – |
| 2 | 290 | 210 | 130 | 265 | 215 | 155 | – | – | – | |
| 3 | 265 | 190 | 120 | 205 | 170 | 120 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| Material Group | SP6519 | X500 | X700 | |||||||
| P | 1 | 285 | 210 | 125 | 260 | 190 | 125 | – | – | – |
| 2 | 250 | 185 | 110 | 230 | 170 | 110 | – | – | – | |
| 3 | 220 | 160 | 95 | 200 | 150 | 95 | – | – | – | |
| 4 | 170 | 120 | 70 | 150 | 115 | 70 | – | – | – | |
| 5 | 135 | 100 | 70 | 125 | 95 | 70 | 130 | 100 | 70 | |
| 6 | 115 | 80 | 50 | 105 | 75 | 50 | 110 | 80 | 50 | |
| M | 1 | 260 | 190 | 110 | 240 | 175 | 110 | 250 | 185 | 110 |
| 2 | 225 | 165 | 100 | 210 | 150 | 95 | 220 | 165 | 100 | |
| 3 | 190 | 135 | 80 | 170 | 125 | 75 | 185 | 135 | 80 | |
| K | 1 | 285 | 210 | 135 | 250 | 210 | 165 | – | – | – |
| 2 | 230 | 170 | 105 | 210 | 170 | 125 | – | – | – | |
| 3 | 210 | 150 | 95 | 165 | 135 | 95 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| S | 1 | 50 | 40 | 25 | 50 | 30 | 25 | 50 | 40 | 25 |
| 2 | 50 | 30 | 20 | 45 | 30 | 20 | 45 | 30 | 20 | |
| 3 | 50 | 40 | 25 | 50 | 40 | 25 | 50 | 40 | 25 | |
| 4 | 75 | 55 | 35 | 70 | 50 | 30 | 70 | 50 | 35 | |
| H | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
