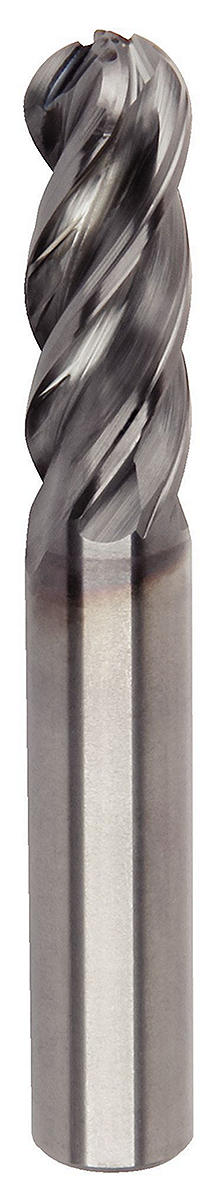

HARVI I TE; Ball Nose; 4 Flutes; Long; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

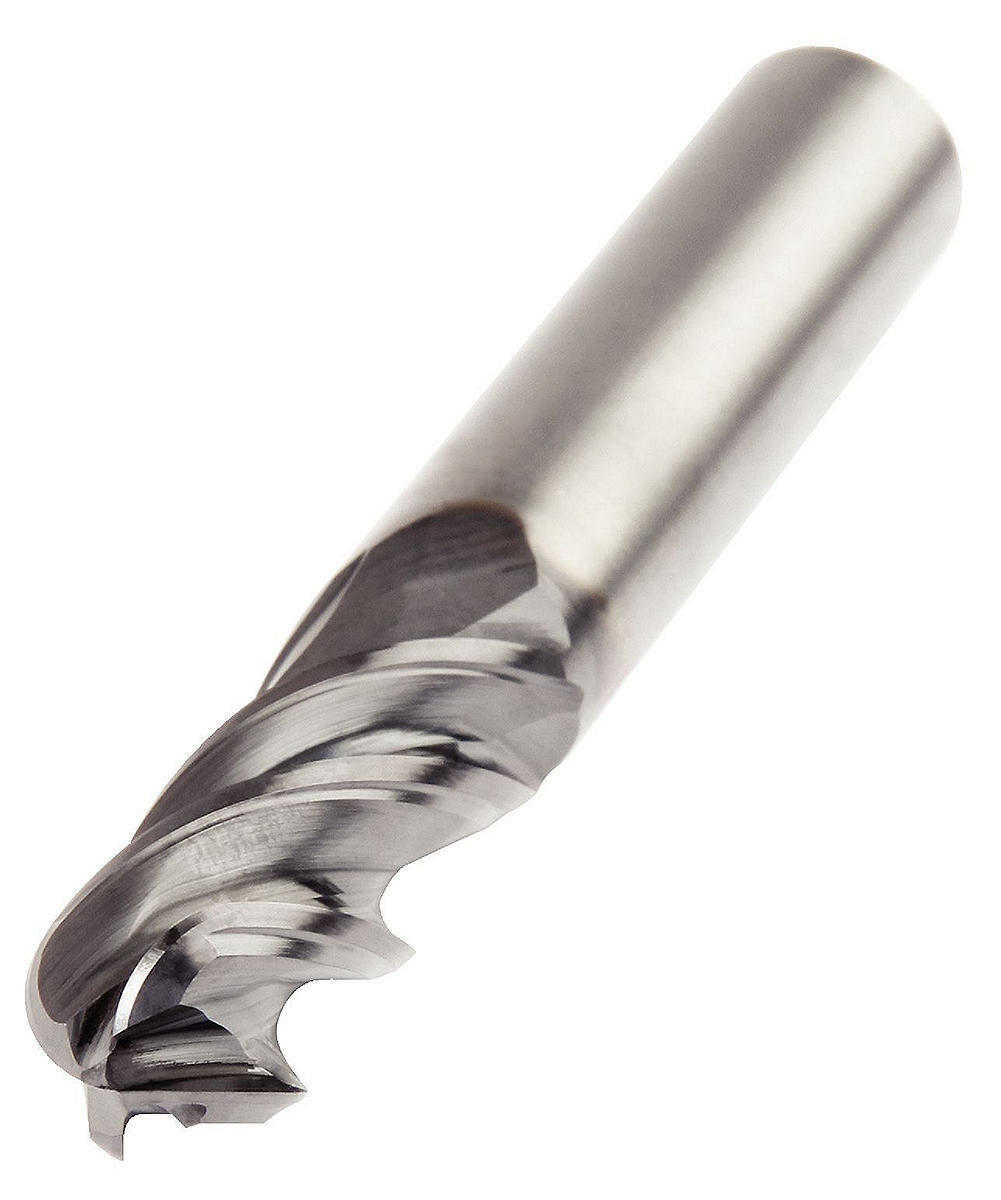

HARVI I TE; Ball Nose; 4 Flutes; Long; Plain Shank; Inch. HARVI I TE Four Flute End Mill for Roughing and Finishing Covering the Broadest Range of Applications and Materials. HARVI™ I TE High-Performance Solid Carbide End Mills

Особенности:

Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys.
HARVI I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations.
HARVI I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit.
HARVI I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, facteted eccentric relief, and chip gashes within the flutes.
Long length-of-cut for side milling with excellent wall-to-floor finishing.
Centre cutting for plunging and ramping operations.

Применение:

Side Milling/Shoulder Milling: Roughing
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Trochoidal Milling
Slotting: Square End
Slotting: Ball Nose
Drilling

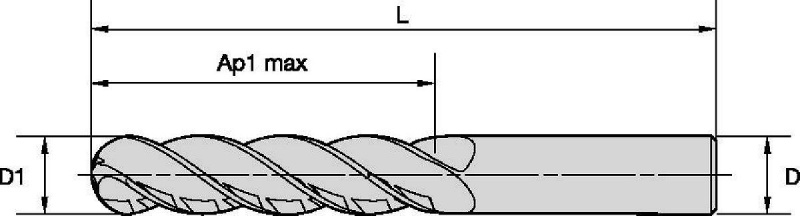

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
6767736	H1TE4BN0125L050HA	3.1750	3.175	50.8000	Straight-Cylindrical	12.7000	4
6767737	H1TE4BN0188L075HA	4.7630	4.763	63.5000	Straight-Cylindrical	19.0500	4
6767738	H1TE4BN0250L100HA	6.3500	6.35	76.2000	Straight-Cylindrical	25.4000	4
6767739	H1TE4BN0313L125HA	7.9380	7.938	76.2000	Straight-Cylindrical	31.7500	4
6767740	H1TE4BN0375L125HA	9.5250	9.525	76.2000	Straight-Cylindrical	31.7500	4
6767751	H1TE4BN0438L150HA	11.1130	11.113	101.6000	Straight-Cylindrical	38.1000	4
6767752	H1TE4BN0500L175HA	12.7000	12.7	101.6000	Straight-Cylindrical	44.4500	4
6767754	H1TE4BN0625L225HA	15.8750	15.875	127.0000	Straight-Cylindrical	57.1500	4
6767755	H1TE4BN0750L263HA	19.0500	19.05	152.4000	Straight-Cylindrical	66.6750	4
6767757	H1TE4BN1000L325HA	25.4000	25.4	152.4000	Straight-Cylindrical	82.5500	4

TechnicalInfo:

	Ae/D	0.50%	1.00%	1.60%	2.00%	4.00%	5.00%	8.00%	10.00%	20.00%	30.00%	40.00%	50.00%
Speed factor	Kv	2.9	2.85	2.8	2	1.5	1.45	1.4	1.35	1.25	1.2	1	1
Feed factor	KFz	2.8	2.6	2.5	2.4	2.3	2.2	2	1.7	1.25	1.02	1	1

Режимы резания:


		Side Milling (A) and Slotting (B)						Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
					KCPM15			D1 Diameter
		A		B	Cutting Speed vc SFM			frac.	1/8	5/32	3/16	7/32	1/4	9/32	5/16	3/8	7/16	1/2	5/8	3/4	1	1 1/4
Material Group		ap	ae	ap	Min		Max	dec.	.1250	.1563	.1875	.2188	.2500	.2813	.3125	.3750	.4375	.5000	.6250	.7500	1.0000	1.2500
P	0	1.5 x D1	0.5 x D1	1.25 x D1	490	–	660	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	1	1.5 x D1	0.5 x D1	1.25 x D1	490	–	660	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	2	1.5 x D1	0.5 x D1	1.25 x D1	460	–	620	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	3	1.5 x D1	0.5 x D1	1.25 x D1	390	–	520	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	4	1.5 x D1	0.5 x D1	1.25 x D1	300	–	490	IPT	.0007	.0009	.0011	.0013	.0015	.0017	.0019	.0022	.0025	.0028	.0033	.0037	.0042	.0044
	5	1.5 x D1	0.5 x D1	1.25 x D1	200	–	330	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	6	1.5 x D1	0.5 x D1	1.25 x D1	160	–	250	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
M	1	1.5 x D1	0.5 x D1	1.25 x D1	300	–	380	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	2	1.5 x D1	0.5 x D1	1.25 x D1	200	–	260	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	3	1.5 x D1	0.5 x D1	1.00 x D1	200	–	230	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
K	1	1.5 x D1	0.5 x D1	1.00 x D1	390	–	490	IPT	.0010	.0012	.0015	.0017	.0020	.0023	.0026	.0030	.0034	.0037	.0043	.0048	.0054	.0054
	2	1.5 x D1	0.5 x D1	1.00 x D1	360	–	460	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	3	1.5 x D1	0.5 x D1	1.00 x D1	360	–	430	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
S	1	1.5 x D1	0.3 x D1	0.75 x D1	160	–	300	IPT	.0008	.0010	.0012	.0014	.0017	.0019	.0021	.0025	.0029	.0032	.0038	.0042	.0050	.0053
	2	1.5 x D1	0.3 x D1	0.75 x D1	160	–	260	IPT	.0007	.0008	.0010	.0012	.0014	.0015	.0017	.0020	.0023	.0025	.0030	.0034	.0040	.0043
	3	1.5 x D1	0.5 x D1	0.50 x D1	80	–	130	IPT	.0004	.0005	.0007	.0008	.0009	.0010	.0011	.0013	.0015	.0017	.0020	.0023	.0027	.0029
	4	1.5 x D1	0.5 x D1	1.25 x D1	160	–	200	IPT	.0005	.0007	.0008	.0010	.0012	.0014	.0016	.0019	.0021	.0023	.0028	.0031	.0036	.0039
H	1	1.5 x D1	0.5 x D1	1.00 x D1	260	–	460	IPT	.0007	.0009	.0011	.0013	.0015	.0017	.0019	.0022	.0025	.0028	.0033	.0037	.0042	.0044
	2	1.5 x D1	0.2 x D1	1.00 x D1	230	–	390	IPT	.0006	.0007	.0008	.0010	.0011	.0013	.0014	.0017	.0019	.0021	.0025	.0027	.0031	.0032
