Описание

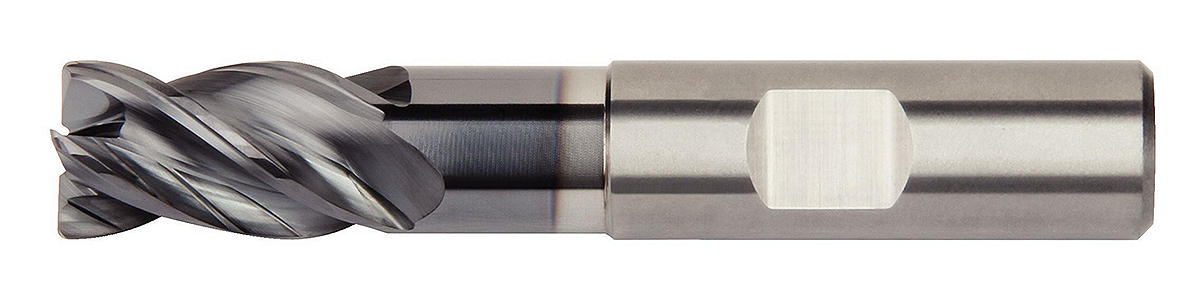

HARVI I TE; Radiused; 4 Flutes; Necked; Weldon® Shank; Inch. HARVI I TE Four Flute End Mill for Roughing and Finishing Covering the Broadest Range of Applications and Materials. HARVI™ I TE High-Performance Solid Carbide End Mills
Особенности:
- Versatile solid carbide end mill for steels, stainless steel, cast iron, and high temperature alloys.
- HARVI I TE solid carbide end mills cover a variety of operations, including dynamic milling, and extreme ramping operations.
- HARVI I TE solid carbide end mills stand for maximum metal removal, maximum productivity, maximum benefit.
- HARVI I TE solid carbide end mills feature asymmetrical divided flutes, variable helix, twisted end face, facteted eccentric relief, and chip gashes within the flutes.
- Centre cutting for plunging and ramping operations.
Применение:
- Tool Dimensions: Flute Configuration: 4
- Plunge Milling
- Slotting: Square End
- Side Milling/Shoulder Milling: Roughing
- Ramping: Blank
- Helical Milling
- Pocketing
- Trochoidal Milling
- Shank - Cylindrical Weldon

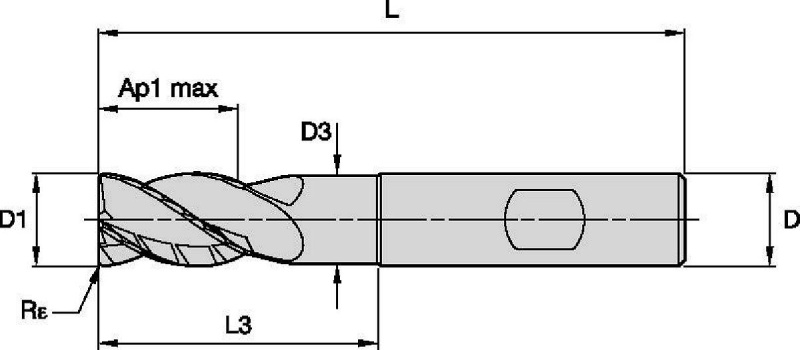

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [D] Adapter / Shank / Bore Diameter | [L] Overall Length | Adapter Style Machine Side | [L3] Usable Length | [D3] Neck Diameter | [AP1MAX] 1st Maximum Cutting Depth | [Z] Number of Flutes | [Re] Corner Radius |
|---|---|---|---|---|---|---|---|---|---|---|
| 6767849 | H1TE4RA0375N050HBR015 | 9.5250 | 9.525 | 101.6000 | Weldon | 50.8000 | 8.9540 | 12.7000 | 4 | 0.3810 |
| 6767850 | H1TE4RA0375N050HBR030 | 9.5250 | 9.525 | 101.6000 | Weldon | 50.8000 | 8.9540 | 12.7000 | 4 | 0.7620 |
| 6767851 | H1TE4RA0375N050HBR060 | 9.5250 | 9.525 | 101.6000 | Weldon | 50.8000 | 8.9540 | 12.7000 | 4 | 1.5240 |
| 6767852 | H1TE4RA0375N050HBR090 | 9.5250 | 9.525 | 101.6000 | Weldon | 50.8000 | 8.9540 | 12.7000 | 4 | 2.2860 |
| 6767853 | H1TE4RA0500N063HBR015 | 12.7000 | 12.7 | 101.6000 | Weldon | 57.1500 | 11.9380 | 15.8750 | 4 | 0.3810 |
| 6767854 | H1TE4RA0500N063HBR030 | 12.7000 | 12.7 | 101.6000 | Weldon | 57.1500 | 11.9380 | 15.8750 | 4 | 0.7620 |
| 6767855 | H1TE4RA0500N063HBR060 | 12.7000 | 12.7 | 101.6000 | Weldon | 57.1500 | 11.9380 | 15.8750 | 4 | 1.5240 |
| 6767856 | H1TE4RA0500N063HBR090 | 12.7000 | 12.7 | 101.6000 | Weldon | 57.1500 | 11.9380 | 15.8750 | 4 | 2.2860 |
| 6767858 | H1TE4RA0500N063HBR120 | 12.7000 | 12.7 | 101.6000 | Weldon | 57.1500 | 11.9380 | 15.8750 | 4 | 3.0480 |
| 6767859 | H1TE4RA0625N075HBR015 | 15.8750 | 15.875 | 101.6000 | Weldon | 57.1500 | 14.9220 | 19.0500 | 4 | 0.3810 |
| 6767860 | H1TE4RA0625N075HBR030 | 15.8750 | 15.875 | 101.6000 | Weldon | 57.1500 | 14.9220 | 19.0500 | 4 | 0.7620 |
| 6767861 | H1TE4RA0625N075HBR060 | 15.8750 | 15.875 | 101.6000 | Weldon | 57.1500 | 14.9220 | 19.0500 | 4 | 1.5240 |
| 6767862 | H1TE4RA0625N075HBR090 | 15.8750 | 15.875 | 101.6000 | Weldon | 57.1500 | 14.9220 | 19.0500 | 4 | 2.2860 |
| 6767863 | H1TE4RA0625N075HBR120 | 15.8750 | 15.875 | 101.6000 | Weldon | 57.1500 | 14.9220 | 19.0500 | 4 | 3.0480 |
| 6767869 | H1TE4RA0750E100HBR030 | 19.0500 | 19.05 | 139.7000 | Weldon | 82.5500 | 17.9070 | 25.4000 | 4 | 0.7620 |
| 6767870 | H1TE4RA0750E100HBR060 | 19.0500 | 19.05 | 139.7000 | Weldon | 82.5500 | 17.9070 | 25.4000 | 4 | 1.5240 |
| 6767892 | H1TE4RA0750E100HBR090 | 19.0500 | 19.05 | 139.7000 | Weldon | 82.5500 | 17.9070 | 25.4000 | 4 | 2.2860 |
| 6767893 | H1TE4RA0750E100HBR120 | 19.0500 | 19.05 | 139.7000 | Weldon | 82.5500 | 17.9070 | 25.4000 | 4 | 3.0480 |
| 6767864 | H1TE4RA0750N100HBR030 | 19.0500 | 19.05 | 114.3000 | Weldon | 57.1500 | 17.9070 | 25.4000 | 4 | 0.7620 |
| 6767865 | H1TE4RA0750N100HBR060 | 19.0500 | 19.05 | 114.3000 | Weldon | 57.1500 | 17.9070 | 25.4000 | 4 | 1.5240 |
| 6767866 | H1TE4RA0750N100HBR090 | 19.0500 | 19.05 | 114.3000 | Weldon | 57.1500 | 17.9070 | 25.4000 | 4 | 2.2860 |
| 6767868 | H1TE4RA0750N100HBR120 | 19.0500 | 19.05 | 114.3000 | Weldon | 57.1500 | 17.9070 | 25.4000 | 4 | 3.0480 |
| 6767894 | H1TE4RA1000N113HBR030 | 25.4000 | 25.4 | 139.7000 | Weldon | 82.5500 | 23.8760 | 28.5750 | 4 | 0.7620 |
| 6767896 | H1TE4RA1000N113HBR060 | 25.4000 | 25.4 | 139.7000 | Weldon | 82.5500 | 23.8760 | 28.5750 | 4 | 1.5240 |
| 6767897 | H1TE4RA1000N113HBR120 | 25.4000 | 25.4 | 139.7000 | Weldon | 82.5500 | 23.8760 | 28.5750 | 4 | 3.0480 |
| 6767898 | H1TE4RA1000N113HBR250 | 25.4000 | 25.4 | 139.7000 | Weldon | 82.5500 | 23.8760 | 28.5750 | 4 | 6.3500 |
TechnicalInfo:
HARVI I TE; 4 Flutes; Adjustment factor table for feed and speed calculation; Inch
| Ae/D | 0.50% | 1.00% | 1.60% | 2.00% | 4.00% | 5.00% | 8.00% | 10.00% | 20.00% | 30.00% | 40.00% | 50.00% | |
| Speed factor | Kv | 2.9 | 2.85 | 2.8 | 2 | 1.5 | 1.45 | 1.4 | 1.35 | 1.25 | 1.2 | 1 | 1 |
| Feed factor | KFz | 2.8 | 2.6 | 2.5 | 2.4 | 2.3 | 2.2 | 2 | 1.7 | 1.25 | 1.02 | 1 | 1 |
Режимы резания:
HARVI I TE; 4 Flutes; Application Data; Inch
 |  |  | ||||||||||||||||||||
| Side Milling (A) and Slotting (B) | Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%. | |||||||||||||||||||||
| KCPM15 | D1 Diameter | |||||||||||||||||||||
| A | B | Cutting Speed vc SFM | frac. | 1/8 | 5/32 | 3/16 | 7/32 | 1/4 | 9/32 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | |||||
| Material Group | ap | ae | ap | Min | Max | dec. | .1250 | .1563 | .1875 | .2188 | .2500 | .2813 | .3125 | .3750 | .4375 | .5000 | .6250 | .7500 | 1.0000 | 1.2500 | ||
| P | 0 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 490 | – | 660 | IPT | .0010 | .0012 | .0015 | .0017 | .0020 | .0023 | .0026 | .0030 | .0034 | .0037 | .0043 | .0048 | .0054 | .0054 |
| 1 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 490 | – | 660 | IPT | .0010 | .0012 | .0015 | .0017 | .0020 | .0023 | .0026 | .0030 | .0034 | .0037 | .0043 | .0048 | .0054 | .0054 | |
| 2 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 460 | – | 620 | IPT | .0010 | .0012 | .0015 | .0017 | .0020 | .0023 | .0026 | .0030 | .0034 | .0037 | .0043 | .0048 | .0054 | .0054 | |
| 3 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 390 | – | 520 | IPT | .0008 | .0010 | .0012 | .0014 | .0017 | .0019 | .0021 | .0025 | .0029 | .0032 | .0038 | .0042 | .0050 | .0053 | |
| 4 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 300 | – | 490 | IPT | .0007 | .0009 | .0011 | .0013 | .0015 | .0017 | .0019 | .0022 | .0025 | .0028 | .0033 | .0037 | .0042 | .0044 | |
| 5 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 200 | – | 330 | IPT | .0007 | .0008 | .0010 | .0012 | .0014 | .0015 | .0017 | .0020 | .0023 | .0025 | .0030 | .0034 | .0040 | .0043 | |
| 6 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 160 | – | 250 | IPT | .0006 | .0007 | .0008 | .0010 | .0011 | .0013 | .0014 | .0017 | .0019 | .0021 | .0025 | .0027 | .0031 | .0032 | |
| M | 1 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 300 | – | 380 | IPT | .0008 | .0010 | .0012 | .0014 | .0017 | .0019 | .0021 | .0025 | .0029 | .0032 | .0038 | .0042 | .0050 | .0053 |
| 2 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 200 | – | 260 | IPT | .0007 | .0008 | .0010 | .0012 | .0014 | .0015 | .0017 | .0020 | .0023 | .0025 | .0030 | .0034 | .0040 | .0043 | |
| 3 | 1.5 x D1 | 0.5 x D1 | 1.00 x D1 | 200 | – | 230 | IPT | .0006 | .0007 | .0008 | .0010 | .0011 | .0013 | .0014 | .0017 | .0019 | .0021 | .0025 | .0027 | .0031 | .0032 | |
| K | 1 | 1.5 x D1 | 0.5 x D1 | 1.00 x D1 | 390 | – | 490 | IPT | .0010 | .0012 | .0015 | .0017 | .0020 | .0023 | .0026 | .0030 | .0034 | .0037 | .0043 | .0048 | .0054 | .0054 |
| 2 | 1.5 x D1 | 0.5 x D1 | 1.00 x D1 | 360 | – | 460 | IPT | .0008 | .0010 | .0012 | .0014 | .0017 | .0019 | .0021 | .0025 | .0029 | .0032 | .0038 | .0042 | .0050 | .0053 | |
| 3 | 1.5 x D1 | 0.5 x D1 | 1.00 x D1 | 360 | – | 430 | IPT | .0007 | .0008 | .0010 | .0012 | .0014 | .0015 | .0017 | .0020 | .0023 | .0025 | .0030 | .0034 | .0040 | .0043 | |
| S | 1 | 1.5 x D1 | 0.3 x D1 | 0.75 x D1 | 160 | – | 300 | IPT | .0008 | .0010 | .0012 | .0014 | .0017 | .0019 | .0021 | .0025 | .0029 | .0032 | .0038 | .0042 | .0050 | .0053 |
| 2 | 1.5 x D1 | 0.3 x D1 | 0.75 x D1 | 160 | – | 260 | IPT | .0007 | .0008 | .0010 | .0012 | .0014 | .0015 | .0017 | .0020 | .0023 | .0025 | .0030 | .0034 | .0040 | .0043 | |
| 3 | 1.5 x D1 | 0.5 x D1 | 0.50 x D1 | 80 | – | 130 | IPT | .0004 | .0005 | .0007 | .0008 | .0009 | .0010 | .0011 | .0013 | .0015 | .0017 | .0020 | .0023 | .0027 | .0029 | |
| 4 | 1.5 x D1 | 0.5 x D1 | 1.25 x D1 | 160 | – | 200 | IPT | .0005 | .0007 | .0008 | .0010 | .0012 | .0014 | .0016 | .0019 | .0021 | .0023 | .0028 | .0031 | .0036 | .0039 | |
| H | 1 | 1.5 x D1 | 0.5 x D1 | 1.00 x D1 | 260 | – | 460 | IPT | .0007 | .0009 | .0011 | .0013 | .0015 | .0017 | .0019 | .0022 | .0025 | .0028 | .0033 | .0037 | .0042 | .0044 |
| 2 | 1.5 x D1 | 0.2 x D1 | 1.00 x D1 | 230 | – | 390 | IPT | .0006 | .0007 | .0008 | .0010 | .0011 | .0013 | .0014 | .0017 | .0019 | .0021 | .0025 | .0027 | .0031 | .0032 | |
