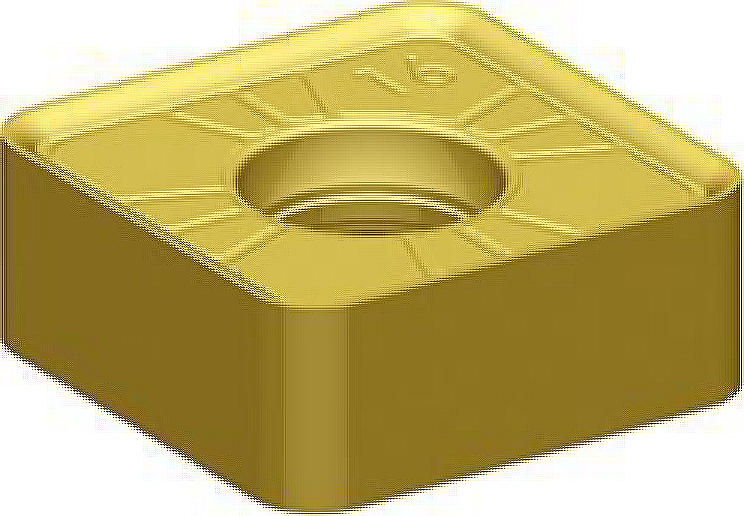

Пластины для фрез KSSM 8+; SNPJ12-GD. Режущие пластины. KSSM8+™
Особенности:
- Рекомендуются для черновой обработки.
| SAP Material Number | ISO Catalog Number | [Rε] Corner Radius | Average Chip Thickness [HM] | Cutting Edges per Insert | [S] Insert Thickness | [L10] Insert Cutting Edge Length | [D] Insert IC Size |
|---|---|---|---|---|---|---|---|
| 5630747 | SNPJ120608SNGD | 0.8000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
| 5630748 | SNPJ120608SNGD | 0.8000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
| 5630749 | SNPJ120608SNGD | 0.8000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
| 6969258 | SNPJ120608SNGD | 0.8000 | 8 | 4.5200 | 12.7000 | 12.7000 | |
| 5630753 | SNPJ120616SNGD | 1.6000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
| 5630752 | SNPJ120616SNGD | 1.6000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
| 5630751 | SNPJ120616SNGD | 1.6000 | 0.1280 | 8 | 4.5200 | 12.7000 | 12.7000 |
Выбор пластины:
Рекомендации по выбору режущих пластин
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | (Strong geometry) | |||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | .E..LD | KC725M | .E..LD | KCPK30 | .S..GD | KCPM40 |
| P3–P4 | .E..LD | KCPK30 | .S..GD | KCPK30 | .S..GD | KCPM40 |
| P5–P6 | .E..LD | KCPK30 | .S..GD | KCPK30 | .S..GD | KCPM40 |
| M1–M2 | .E..LD | KC725M | .S..GD | KC522M | .S..GD | KCSM40 |
| M3 | .E..LD | KC725M | .S..GD | KCPM40 | .S..GD | KCSM40 |
| K1–K2 | .E..LD | KC520M | .E..LD | KCK15 | .S..GD | KC520M |
| K3 | .E..LD | KCK15 | .S..GD | KC520M | .S..GD | KCK15 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .E..LD | KC725M | .S..GD | KCSM40 | .S..GD | KC522M |
| S3 | .E..LD | KC725M | .S..GD | KCSM40 | .S..GD | KCPM40 |
| S4 | .E..LD | KC725M | .S..GD | KCSM40 | .S..GD | KC522M |
| H1 | – | – | – | – | – | – |
Подача:
Recommended Starting Feeds [IPT]
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..LD | .007 | .018 | .033 | .005 | .013 | .024 | .004 | .010 | .018 | .003 | .009 | .015 | .003 | .008 | .014 | .E..LD |
| .S..GD | .009 | .023 | .036 | .007 | .017 | .026 | .005 | .013 | .019 | .004 | .011 | .017 | .004 | .010 | .016 | .S..GD |
Скорость:
Рекомендуемая начальная скорость резания [м/мин]
| Material Group | KC520M | KC522M | KC725M | KCK15 | KCPK30 | KCSM40 | KCPM40 | |||||||||||||||
| P | 1 | – | – | – | 1295 | 1120 | 1060 | 1025 | 905 | 845 | – | – | – | 1790 | 1555 | 1460 | 1165 | 1025 | 965 | – | – | – |
| 2 | – | – | – | 1080 | 940 | 785 | 865 | 750 | 630 | – | – | – | 1105 | 1000 | 905 | 985 | 845 | 710 | – | – | – | |
| 3 | – | – | – | 1000 | 845 | 690 | 785 | 670 | 550 | – | – | – | 1000 | 905 | 805 | 905 | 770 | 630 | – | – | – | |
| 4 | – | – | – | 890 | 725 | 590 | 710 | 590 | 475 | – | – | – | 750 | 690 | 630 | 805 | 670 | 535 | – | – | – | |
| 5 | – | – | – | 725 | 670 | 590 | 590 | 535 | 475 | – | – | – | 1025 | 905 | 830 | 670 | 610 | 535 | – | – | – | |
| 6 | – | – | – | 650 | 490 | 395 | 510 | 395 | 310 | – | – | – | 630 | 535 | 0 | 590 | 450 | 355 | 535 | 395 | 280 | |
| M | 1 | – | – | – | 805 | 710 | 650 | 670 | 590 | 535 | – | – | – | 805 | 725 | 610 | 770 | 670 | 610 | 455 | 315 | 200 |
| 2 | – | – | – | 725 | 630 | 510 | 610 | 510 | 430 | – | – | – | 725 | 630 | 550 | 690 | 590 | 490 | 1025 | 730 | 455 | |
| 3 | – | – | – | 550 | 475 | 370 | 450 | 395 | 310 | – | – | – | 570 | 510 | 450 | 510 | 450 | 355 | 910 | 670 | 415 | |
| K | 1 | 1060 | 965 | 845 | 905 | 805 | 725 | – | – | – | 1655 | 1520 | 1340 | 1165 | 1045 | 940 | – | – | – | 750 | 535 | 335 |
| 2 | 830 | 750 | 690 | 710 | 630 | 590 | – | – | – | 1320 | 1165 | 1080 | 925 | 830 | 750 | – | – | – | – | – | – | |
| 3 | 690 | 630 | 570 | 590 | 535 | 475 | – | – | – | 1105 | 985 | 905 | 770 | 690 | 630 | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | 155 | 140 | 95 | 140 | 120 | 95 | – | – | – | – | – | – | 155 | 140 | 120 | 245 | 180 | 110 |
| 2 | – | – | – | 155 | 140 | 95 | 140 | 120 | 95 | – | – | – | – | – | – | 155 | 140 | 120 | 220 | 160 | 105 | |
| 3 | – | – | – | 200 | 155 | 95 | 180 | 140 | 95 | – | – | – | – | – | – | 200 | 155 | 120 | 255 | 185 | 115 | |
| 4 | – | – | – | 275 | 200 | 140 | 235 | 180 | 120 | – | – | – | 260 | 200 | 130 | 260 | 200 | 140 | 355 | 260 | 165 | |
| H | 1 | – | – | – | 475 | 355 | 275 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
