DUO-LOCK; KenCut RR; Radiused; 3 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

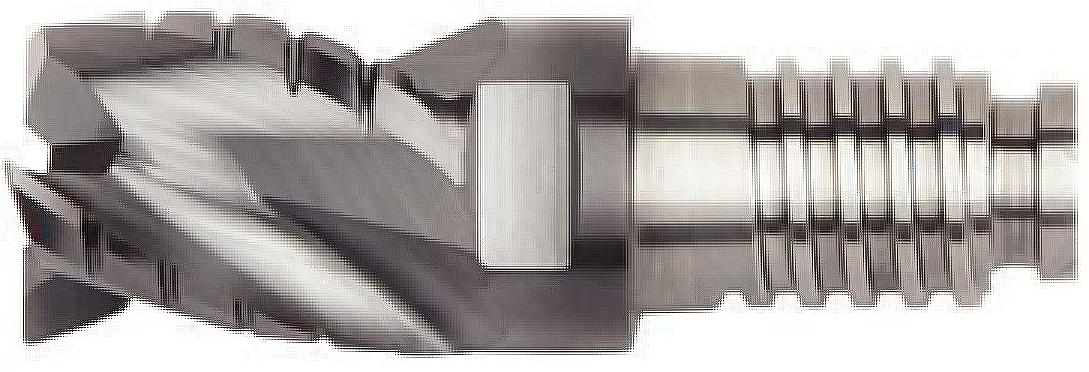

DUO-LOCK; KenCut RR; Radiused; 3 Flutes; Inch. Modular End Milling; RFDD Style; For MillTurn Machines and Lathes. Модульные концевые фрезы DUO-λOCK® • Черновая обработка

Особенности:

RFDD Tips — High-performance roughing solution with excellent chip evacuation, especially in stainless steel.
The short design and corner radii provide stability and reduce deflection forces.
Ideally suited to perform long-reach applications on mill-turn machines, and driven tooling on lathes.
The unique cutting geometry results in low cutting forces, requiring low power consumption.

Применение:

Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Corner Style: Corner Radius
Helix Angle: 35°
Tool Dimensions: Flute Configuration: 3

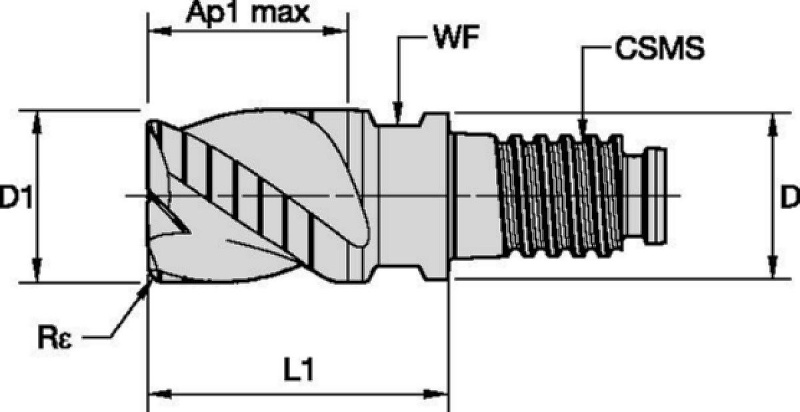

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[L1] Gage Length	[AP1MAX] 1st Maximum Cutting Depth	[CSMS] System Size Machine Side	[Z] Number of Flutes	[Re] Corner Radius	[WF] Width of Flat
6441025	RFDD0375Y3AQA	9.125	9.5250	DUO-LOCK	16.6400	7.1440	DL10	3	0.3810	8.0000
6441026	RFDD0500Y3AQA	12.2	12.7000	DUO-LOCK	22.2500	9.5250	DL12	3	0.3810	9.5000
6441027	RFDD0625Y3AQA	15.375	15.8750	DUO-LOCK	27.7600	11.9060	DL16	3	0.3810	13.0000
6441028	RFDD0750Y3AQA	18.55	19.0500	DUO-LOCK	33.3700	14.2880	DL20	3	0.3810	16.0000

Tolerance:

End Mill Tolerances
D1	tolerance d11
13/32 11/16"	-0.002/-0.0063"
23/32 1-3/16"	-0.026/ -0.0077"

Режимы резания:

RFDD; Inch

Material Group					straight short			conical medium			conical long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	KCPM15			KCPM15			KCPM15			D1 Diameter
		A		B	Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4
		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	0.3750	0.5000	0.6250	0.7500
P	0	0.75 x D	0.5 x D	0.5 x D	490	–	660	441	–	594	441	–	594	IPT	0.0023	0.0029	0.0034	0.0037
	1	0.75 x D	0.5 x D	0.5 x D	490	–	660	441	–	594	441	–	594	IPT	0.0023	0.0029	0.0034	0.0037
	2	0.75 x D	0.5 x D	0.5 x D	460	–	620	414	–	558	414	–	558	IPT	0.0023	0.0029	0.0034	0.0037
	3	0.75 x D	0.5 x D	0.5 x D	390	–	520	351	–	468	351	–	468	IPT	0.0019	0.0025	0.0029	0.0033
	4	0.75 x D	0.4 x D	0.5 x D	300	–	490	270	–	441	270	–	441	IPT	0.0017	0.0022	0.0026	0.0029
	5	0.75 x D	0.5 x D	0.5 x D	200	–	330	170	–	281	160	–	264	IPT	0.0016	0.0020	0.0023	0.0026
	6	0.75 x D	0.4 x D	0.5 x D	160	–	250	136	–	213	128	–	200	IPT	0.0013	0.0016	0.0019	0.0021
M	1	0.75 x D	0.4 x D	0.5 x D	300	–	380	240	–	304	210	–	266	IPT	0.0019	0.0025	0.0029	0.0033
	2	0.75 x D	0.4 x D	0.5 x D	200	–	260	160	–	208	140	–	182	IPT	0.0016	0.0020	0.0023	0.0026
	3	0.75 x D	0.4 x D	0.5 x D	200	–	230	160	–	184	140	–	161	IPT	0.0013	0.0016	0.0019	0.0021
K	1	0.75 x D	0.5 x D	0.5 x D	390	–	490	351	–	441	351	–	441	IPT	0.0023	0.0029	0.0034	0.0037
	2	0.75 x D	0.5 x D	0.5 x D	360	–	460	324	–	414	324	–	414	IPT	0.0019	0.0025	0.0029	0.0033
	3	0.75 x D	0.4 x D	0.5 x D	360	–	430	324	–	387	324	–	387	IPT	0.0016	0.0020	0.0023	0.0026
H	1	0.75 x D	0.2 x D	0.3 x D	260	–	460	208	–	368	156	–	276	IPT	0.0017	0.0022	0.0026	0.0029
