DUO-LOCK; HARVI III; Radiused; 6 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

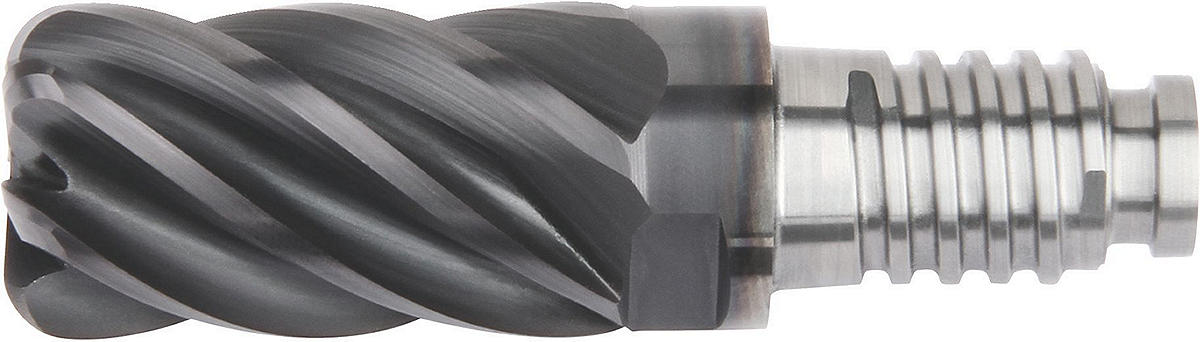

DUO-LOCK; HARVI III; Radiused; 6 Flutes; Inch. HARVI III; UJDV; Unequal Flute Spacing; Eccentric Relief. Модульные концевые фрезы DUO-λOCK® • HARVI™

Особенности:

Unequal flute spacing and variable helix configuration minimize chatter and harmonics for smoother machining.
Center cutting.
Optimized geometry for titanium machining.
Single tool for both roughing and finishing, reducing setups.
Standard items listed. Additional styles and coatings made-to-order.

Применение:

Ramping: Blank
Side Milling/Shoulder Milling: Square End
Corner Style: Corner Radius
Tool Dimensions: Flute Configuration: 6
Helix Angle: 37°/39°

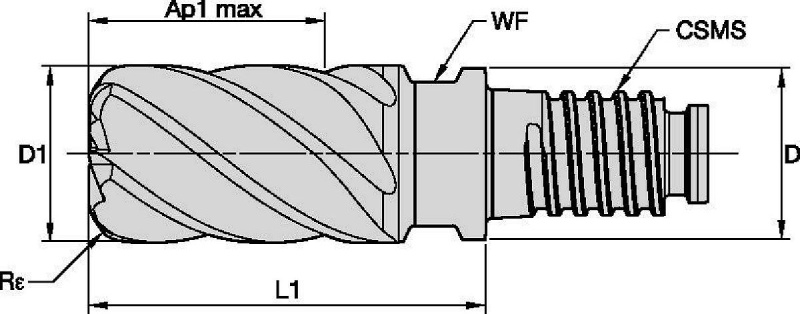

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[CSMS] System Size Machine Side	[Z] Number of Flutes	[WF] Width of Flat	[L1] Gage Length	[D] Adapter / Shank / Bore Diameter	[AP1MAX] 1st Maximum Cutting Depth	[Re] Corner Radius
6072211	UJDV0375Y6CQA	9.5250	DUO-LOCK	DL10	6	8.0000	21.4000	9.125	14.2880	0.3810
6072212	UJDV0375Y6CQB	9.5250	DUO-LOCK	DL10	6	8.0000	21.4000	9.125	14.2880	0.7620
6072213	UJDV0375Y6CQC	9.5250	DUO-LOCK	DL10	6	8.0000	21.4000	9.125	14.2880	1.5240
6072214	UJDV0375Y6CQD	9.5250	DUO-LOCK	DL10	6	8.0000	21.4000	9.125	14.2880	2.2860
6072215	UJDV0500Y6CQA	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	0.3810
6072216	UJDV0500Y6CQB	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	0.7620
6072217	UJDV0500Y6CQC	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	1.5240
6072218	UJDV0500Y6CQD	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	2.2860
6072219	UJDV0500Y6CQE	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	3.0480
6072220	UJDV0625Y6CQA	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8120	0.3810
6072241	UJDV0625Y6CQB	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8120	0.7620
6072242	UJDV0625Y6CQC	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8120	1.5240
6072243	UJDV0625Y6CQD	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8120	2.2860
6072244	UJDV0625Y6CQE	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8120	3.0480
6072245	UJDV0750Y6CQB	19.0500	DUO-LOCK	DL20	6	16.0000	42.9000	18.55	28.5750	0.7620
6072246	UJDV0750Y6CQC	19.0500	DUO-LOCK	DL20	6	16.0000	42.9000	18.55	28.5750	1.5240
6072247	UJDV0750Y6CQD	19.0500	DUO-LOCK	DL20	6	16.0000	42.9000	18.55	28.5750	2.2860
6072248	UJDV0750Y6CQE	19.0500	DUO-LOCK	DL20	6	16.0000	42.9000	18.55	28.5750	3.0480
6072249	UJDV1000Y6CQB	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	0.7620
6072250	UJDV1000Y6CQC	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	1.5240
6072261	UJDV1000Y6CQD	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	2.2860
6072262	UJDV1000Y6CQE	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	3.0480
6072263	UJDV1000Y6CQF	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	6.3500
6072264	UJDV1250Y6CQD	31.7500	DUO-LOCK	DL32	6	28.0000	71.2000	30.75	47.6250	2.2860
6072265	UJDV1250Y6CQF	31.7500	DUO-LOCK	DL32	6	28.0000	71.2000	30.75	47.6250	6.3500

Tolerance:

End Mill Tolerances
D1	tolerance e8
13/32 23/32"	-0,00126"/-0,00232"
23/32 1-3/16"	-0,00157"/-0,00287"
1-3/16"	-0,00197''/-0,00350''

Режимы резания:

HARVI III; UJDV; Unequal Flute Spacing; Roughing

Material Group
		Side Milling (A)		short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		adapter reach									D1 Diameter
				KCSM15			KCSM15			KCSM15
				Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1	1 1/4
		ap	ae	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.2500	1.2500
P	4	Ap max	0.4 x D	300	–	490	270	–	441	270	–	441	IPT	.0017	.0022	.0026	.0029	.0034	.0034
	5	Ap max	0.4 x D	200	–	330	170	–	280.5	160	–	264	IPT	.0016	.0020	.0023	.0026	.0033	.0033
M	1	Ap max	0.4 x D	300	–	380	240	–	304	210	–	266	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	Ap max	0.4 x D	200	–	260	160	–	208	140	–	182	IPT	.0016	.0020	.0023	.0026	.0033	.0033
	3	Ap max	0.4 x D	200	–	230	160	–	184	140	–	161	IPT	.0013	.0016	.0019	.0021	.0024	.0024
S	1	Ap max	0.4 x D	160	–	300	128	–	240	96	–	180	IPT	.0019	.0025	.0029	.0033	.0041	.0041
	2	Ap max	0.4 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	3	Ap max	0.4 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0022	.0022
	4	Ap max	0.4 x D	160	–	200	128	–	160	96	–	120	IPT	.0014	.0018	.0021	.0024	.0030	.0030
H	1	Ap max	0.4 x D	260	–	460	208	–	368	156	–	276	IPT	.0017	.0022	.0026	.0029	.0034	.0034
	2	Ap max	0.4 x D	230	–	390	184	–	312	138	–	234	IPT	.0013	.0016	.0019	.0021	.0024	.0024

Material Group
		Side Milling (A)		short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		adapter reach									D1 Diameter
				KCSM15			KCSM15			KCSM15
				Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	5/8	3/4	1	1 1/4
		ap	ae	Min		Max	Min		Max	Min		Max	dec.	.6250	.7500	1.0000	1.2500
P	5	Ap max	0.06 x D	560	–	940	504	–	846	504	–	846	IPT	.0036	.0040	.0048	.0048
	6	Ap max	0.06 x D	370	–	620	314	–	527	296	–	496	IPT	.0033	.0037	.0047	.0047
M	1	Ap max	0.06 x D	560	–	720	448	–	576	392	–	504	IPT	.0041	.0046	.0058	.0058
	2	Ap max	0.06 x D	370	–	500	296	–	400	259	–	350	IPT	.0033	.0037	.0047	.0047
	3	Ap max	0.06 x D	370	–	440	296	–	352	259	–	308	IPT	.0027	.0030	.0035	.0035
S	1	Ap max	0.06 x D	310	–	560	248	–	448	186	–	336	IPT	.0041	.0046	.0058	.0058
	2	Ap max	0.06 x D	310	–	560	248	–	448	186	–	336	IPT	.0041	.0046	.0058	.0058
	3	Ap max	0.06 x D	160	–	250	128	–	200	96	–	150	IPT	.0022	.0025	.0032	.0032
	4	Ap max	0.06 x D	310	–	370	248	–	296	186	–	222	IPT	.0030	.0034	.0043	.0043
H	1	Ap max	0.06 x D	500	–	870	400	–	696	300	–	522	IPT	.0036	.0040	.0048	.0048
	2	Ap max	0.06 x D	440	–	750	352	–	600	264	–	450	IPT	.0027	.0030	.0035	.0035
