DUO-LOCK; KenCut RR; Chamfered; 4 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

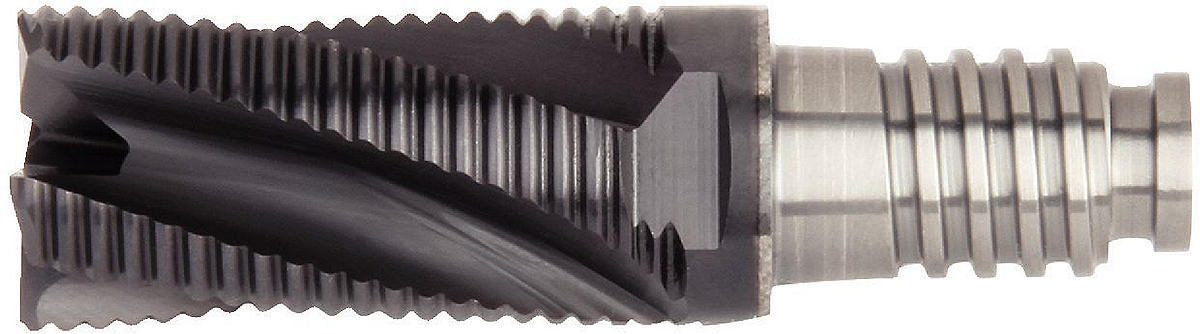

DUO-LOCK; KenCut RR; Chamfered; 4 Flutes; Inch. Modular End Milling; RQDB Style. Модульные концевые фрезы DUO-λOCK® • Черновая обработка

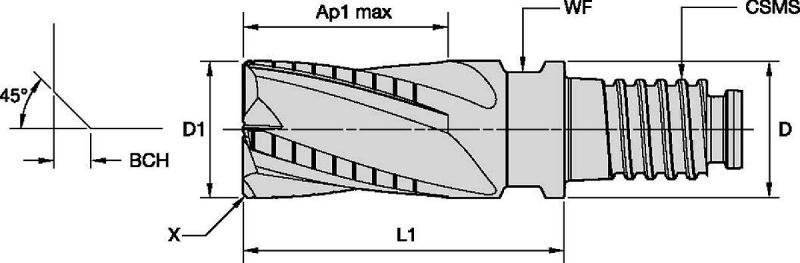

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[D1] Effective Cutting Diameter	[BCH] Corner Chamfer Width	Adapter Style Machine Side	[L1] Gage Length	[AP1MAX] 1st Maximum Cutting Depth	[CSMS] System Size Machine Side	[Z] Number of Flutes	[WF] Width of Flat
6127415	RQDB0375Y4CV	9.125	9.5250	0.5000	DUO-LOCK	21.4000	14.2880	DL10	4	8.0000
6127416	RQDB0500Y4CV	12.2	12.7000	0.5000	DUO-LOCK	28.6000	19.0500	DL12	4	9.5000
6127417	RQDB0625Y4CV	15.375	15.8750	0.5000	DUO-LOCK	35.7000	23.8120	DL16	4	13.0000
6127418	RQDB0750Y4CV	18.55	19.0500	0.5000	DUO-LOCK	42.9000	28.5750	DL20	4	16.0000
6127419	RQDB1000Y5CV	24.4	25.4000	0.5000	DUO-LOCK	57.2000	38.1000	DL25	5	21.0000

Tolerance:

Material Group					short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	adapter reach									D1 Diameter
					KCPM15			KCPM15			KCPM15			D1 Diameter
					Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1
		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.2500
P	0	1.5 x D	0.5 x D	1 x D	390	–	520	351	–	468	351	–	468	IPT	.0020	.0025	.0029	.0032	.0036
	1	1.5 x D	0.5 x D	1 x D	390	–	520	351	–	468	351	–	468	IPT	.0020	.0025	.0029	.0032	.0036
	2	1.5 x D	0.5 x D	1 x D	370	–	500	333	–	450	333	–	450	IPT	.0020	.0025	.0029	.0032	.0036
	3	1.5 x D	0.4 x D	0.75 x D	310	–	420	279	–	378	279	–	378	IPT	.0017	.0021	.0025	.0028	.0035
	4	1.5 x D	0.3 x D	0.3 x D	240	–	390	216	–	351	216	–	351	IPT	.0015	.0019	.0022	.0024	.0029
	5	1.5 x D	0.4 x D	0.75 x D	160	–	260	136	–	221	128	–	208	IPT	.0013	.0017	.0020	.0022	.0028
M	1	1.5 x D	0.4 x D	0.75 x D	240	–	300	192	–	240	168	–	210	IPT	.0017	.0021	.0025	.0028	.0035
	2	1.5 x D	0.4 x D	0.75 x D	160	–	210	128	–	168	112	–	147	IPT	.0013	.0017	.0020	.0022	.0028
	3	1.5 x D	0.4 x D	0.75 x D	160	–	180	128	–	144	112	–	126	IPT	.0011	.0014	.0016	.0018	.0021
K	1	1.5 x D	0.5 x D	1 x D	310	–	390	279	–	351	279	–	351	IPT	.0020	.0025	.0029	.0032	.0036
	2	1.5 x D	0.4 x D	1 x D	290	–	370	261	–	333	261	–	333	IPT	.0017	.0021	.0025	.0028	.0035
	3	1.5 x D	0.4 x D	1 x D	290	–	340	261	–	306	261	–	306	IPT	.0013	.0017	.0020	.0022	.0028
S	1	1.5 x D	0.4 x D	0.75 x D	130	–	240	104	–	192	78	–	144	IPT	.0017	.0021	.0025	.0028	.0035
S	3	1.5 x D	0.4 x D	0.75 x D	70	–	100	56	–	80	42	–	60	IPT	.0009	.0011	.0013	.0015	.0019
H	1	1.5 x D	0.3 x D	0.3 x D	210	–	370	168	–	296	126	–	222	IPT	.0015	.0019	.0022	.0024	.0029
