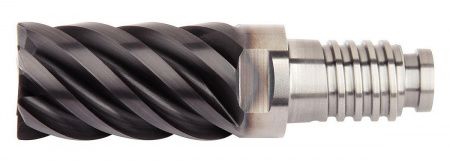

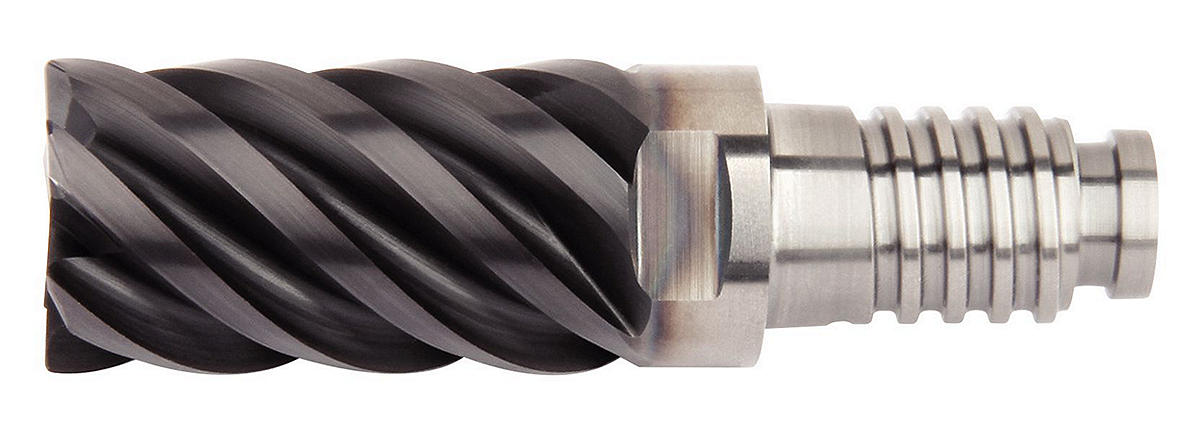

DUO-LOCK; KenCut FF; Radiused; 6 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DUO-LOCK; KenCut FF; Radiused; 6 Flutes; Inch. Modular End Milling; FMDF Style. Модульные концевые фрезы DUO-λOCK® • Чистовая обработка

Особенности:

Center cutting.
Standard items listed. Additional styles and coatings made-to-order.

Применение:

Side Milling/Shoulder Milling: Square End
Helix Angle: 45°
Tool Dimensions: Flute Configuration: 6
Corner Style: Corner Radius

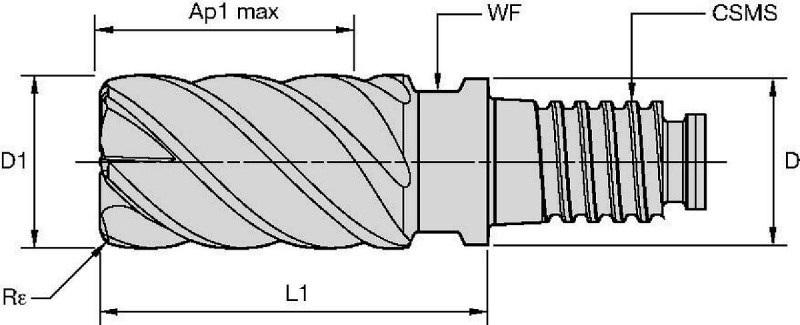

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[CSMS] System Size Machine Side	[Z] Number of Flutes	[WF] Width of Flat	[L1] Gage Length	[D] Adapter / Shank / Bore Diameter	[AP1MAX] 1st Maximum Cutting Depth	[Re] Corner Radius
6127558	FMDF0375Y6CQA	9.5250	DUO-LOCK	DL10	6	8.0000	21.4000	9.125	14.2880	0.3810
6127559	FMDF0500Y6CQB	12.7000	DUO-LOCK	DL12	6	9.5000	28.6000	12.2	19.0500	0.7620
6127560	FMDF0625Y6CQB	15.8750	DUO-LOCK	DL16	6	13.0000	35.7000	15.375	23.8130	0.7620
6127581	FMDF0750Y6CQB	19.0500	DUO-LOCK	DL20	6	16.0000	42.9000	18.55	28.5750	0.7620
6127582	FMDF1000Y6CQB	25.4000	DUO-LOCK	DL25	6	21.0000	57.2000	24.4	38.1000	0.7620

Tolerance:

End Mill Tolerances
D1	tolerance e8
13/32 23/32"	-0,00126"/-0,00232"
23/32 1-3/16"	-0,00157"/-0,00287"
1-3/16"	-0,00197''/-0,00350''

Режимы резания:

FMDF; Inch

Material Group				short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		adapter reach									D1 Diameter
				KCPM15			KCPM15			KCPM15			D1 Diameter
				Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1
		ap	ae	Min		Max	Min		Max	Min		Max	dec.	.375	.500	.625	.750	1.000
P	0	1.5 x D	0.1 x D	490	–	660	441	–	594	441	–	594	IPT	.0027	.0034	.0039	.0044	.0049
	1	1.5 x D	0.1 x D	490	–	660	441	–	594	441	–	594	IPT	.0027	.0034	.0039	.0044	.0049
	2	1.5 x D	0.1 x D	460	–	620	414	–	558	414	–	558	IPT	.0027	.0034	.0039	.0044	.0049
	3	1.5 x D	0.1 x D	390	–	520	351	–	468	351	–	468	IPT	.0023	.0029	.0034	.0039	.0045
	4	1.5 x D	0.1 x D	300	–	490	270	–	441	270	–	441	IPT	.0020	.0026	.0030	.0034	.0039
	5	1.5 x D	0.1 x D	200	–	330	170	–	280.5	160	–	264	IPT	.0018	.0023	.0027	.0031	.0036
	6	1.5 x D	0.1 x D	160	–	250	136	–	212.5	128	–	200	IPT	.0015	.0019	.0022	.0025	.0028
M	1	1.5 x D	0.1 x D	300	–	380	240	–	304	210	–	266	IPT	.0023	.0029	.0034	.0039	.0045
	2	1.5 x D	0.1 x D	200	–	260	160	–	208	140	–	182	IPT	.0018	.0023	.0027	.0031	.0036
	3	1.5 x D	0.1 x D	200	–	230	160	–	184	140	–	161	IPT	.0015	.0019	.0022	.0025	.0028
K	1	1.5 x D	0.1 x D	390	–	490	351	–	441	351	–	441	IPT	.0027	.0034	.0039	.0044	.0049
	2	1.5 x D	0.1 x D	360	–	460	324	–	414	324	–	414	IPT	.0023	.0029	.0034	.0039	.0045
	3	1.5 x D	0.1 x D	360	–	430	324	–	387	324	–	387	IPT	.0018	.0023	.0027	.0031	.0036
S	1	1.5 x D	0.1 x D	160	–	300	128	–	240	96	–	180	IPT	.0023	.0029	.0034	.0039	.0045
	2	1.5 x D	0.1 x D	80	–	130	64	–	104	48	–	78	IPT	.0012	.0015	.0018	.0021	.0024
	3	1.5 x D	0.1 x D	80	–	130	64	–	104	48	–	78	IPT	.0012	.0015	.0018	.0021	.0024
	4	1.5 x D	0.15 x D	160	–	200	128	–	160	96	–	120	IPT	.0017	.0021	.0025	.0028	.0033
H	1	1.5 x D	0.1 x D	260	–	460	208	–	368	156	–	276	IPT	.0020	.0026	.0030	.0034	.0039
H	2	1.5 x D	0.1 x D	230	–	390	184	–	312	138	–	234	IPT	.0015	.0019	.0022	.0025	.0028
