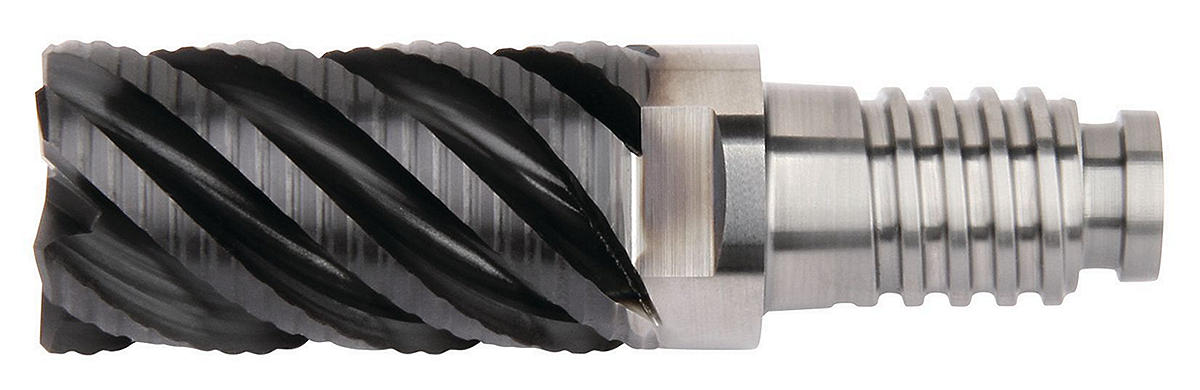

DUO-LOCK; KenCut RR; Radiused; 4 Flutes; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

DUO-LOCK; KenCut RR; Radiused; 4 Flutes; Inch. Modular End Milling; RKDF Style. Модульные концевые фрезы DUO-λOCK® • Черновая обработка

Особенности:

Center cutting.
Shallow-pitch profile reduces machine power consumption.
Standard items listed. Additional styles and coatings made-to-order.

Применение:

Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Helix Angle: 45°
Tool Dimensions: Flute Configuration: X (variable)
Corner Style: Corner Radius

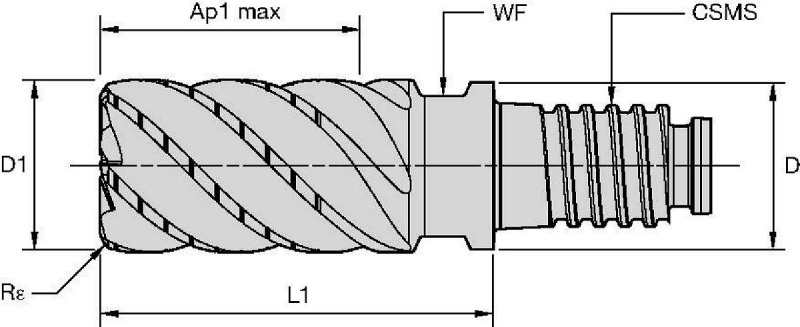

SAP Material Number	ISO Catalog Number	[D] Adapter / Shank / Bore Diameter	[D1] Effective Cutting Diameter	Adapter Style Machine Side	[L1] Gage Length	[AP1MAX] 1st Maximum Cutting Depth	[CSMS] System Size Machine Side	[Z] Number of Flutes	[Re] Corner Radius	[WF] Width of Flat
6126918	RKDF0375Y4CQA	9.125	9.5250	DUO-LOCK	21.4000	14.2880	DL10	4	0.3810	8.0000
6126919	RKDF0500Y4CQB	12.2	12.7000	DUO-LOCK	28.6000	19.0500	DL12	4	0.7620	9.5000
6126920	RKDF0625Y4CQB	15.375	15.8750	DUO-LOCK	35.7000	23.8120	DL16	4	0.7620	13.0000
6127051	RKDF0750Y6CQB	18.55	19.0500	DUO-LOCK	42.9000	28.5750	DL20	6	0.7620	16.0000
6127052	RKDF1000Y6CQB	24.4	25.4000	DUO-LOCK	57.2000	38.1000	DL25	6	0.7620	21.0000

Tolerance:

End Mill Tolerances
D1	tolerance d11
13/32 11/16"	-0.002/-0.0063"
23/32 1-3/16"	-0.026/ -0.0077"

Режимы резания:

RKDF; Inch

Material Group					short			medium			long			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	adapter reach									D1 Diameter
					KCSM15			KCSM15			KCSM15			D1 Diameter
					Cutting Speed vc SFM			Cutting Speed vc SFM			Cutting Speed vc SFM			frac.	3/8	1/2	5/8	3/4	1
		ap	ae	ap	Min		Max	Min		Max	Min		Max	dec.	.3750	.5000	.6250	.7500	1.000
P	3	1.0 x D	0.5 x D	0.75 x D	390	–	520	351	–	468	351	–	468	IPT	.0019	.0025	.0029	.0033	.0033
	4	1.0 x D	0.3 x D	0.75 x D	300	–	490	270	–	441	270	–	441	IPT	.0017	.0022	.0026	.0029	.0028
	5	1.0 x D	0.4 x D	0.75 x D	200	–	330	170	–	280.5	160	–	264	IPT	.0016	.0020	.0023	.0026	.0026
	6	1.0 x D	0.3 x D	0.3 x D	160	–	250	136	–	212.5	128	–	200	IPT	.0013	.0016	.0019	.0021	.0020
M	1	1.0 x D	0.4 x D	0.75 x D	300	–	380	240	–	304	210	–	266	IPT	.0019	.0025	.0029	.0033	.0033
	2	1.0 x D	0.4 x D	0.75 x D	200	–	260	160	–	208	140	–	182	IPT	.0016	.0020	.0023	.0026	.0026
	3	1.0 x D	0.4 x D	0.75 x D	200	–	230	160	–	184	140	–	161	IPT	.0013	.0016	.0019	.0021	.0020
K	1	1.0 x D	0.5 x D	1 x D	390	–	490	351	–	441	351	–	441	IPT	.0023	.0029	.0034	.0037	.0035
	2	1.0 x D	0.5 x D	1 x D	360	–	460	324	–	414	324	–	414	IPT	.0019	.0025	.0029	.0033	.0033
	3	1.0 x D	0.5 x D	1 x D	360	–	430	324	–	387	324	–	387	IPT	.0016	.0020	.0023	.0026	.0026
S	1	1.0 x D	0.3 x D	0.75 x D	160	–	300	128	–	240	96	–	180	IPT	.0019	.0025	.0029	.0033	.0033
	2	1.0 x D	0.3 x D	0.75 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0018
	3	1.0 x D	0.3 x D	0.75 x D	80	–	130	64	–	104	48	–	78	IPT	.0010	.0013	.0015	.0018	.0018
	4	1.0 x D	0.4 x D	0.75 x D	160	–	200	128	–	160	96	–	120	IPT	.0014	.0018	.0021	.0024	.0024
H	1	1.0 x D	0.3 x D	0.3 x D	260	–	460	208	–	368	156	–	276	IPT	.0017	.0022	.0026	.0029	.0028
	2	1.0 x D	0.2 x D	0.2 x D	230	–	390	184	–	312	138	–	234	IPT	.0013	.0016	.0019	.0021	.0020
	3	1.0 x D	0.2 x D	0.2 x D	200	–	300	160	–	240	120	–	180	IPT	.0010	.0013	.0015	.0018	.0018
