GOmill GP; Square End; 3 Flutes; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

GOmill GP; Square End; 3 Flutes; Plain Shank; Inch. General Purpose Solid Carbide End Mill. Фрезы общего назначения GOmill™ GP • Цельные твердосплавные концевые фрезы • Фрезы с 3 зубьями

Особенности:

Solid carbide end mill with excellent cost-benefit ratio.
Eccentric relief increases cutting edge stability for long tool life and high surface quality.
Eccentric relief eases regrinding and reduces reconditioning cost.
Center cutting for plunging and ramping operations.

Применение:

Plunge Milling
Ramping: Blank
Slotting: Square End
Side Milling/Shoulder Milling: Square End
Helix Angle: 30°
Tool Dimensions: Flute Configuration: 3
Corner Style: Square End

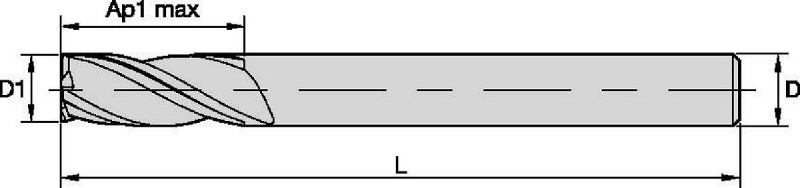

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
6143903	3SE0031IR007A	0.7940	3.175	38.1000	Straight-Cylindrical	1.9840	3
6143904	3SE0047IR011A	1.1910	3.175	38.1000	Straight-Cylindrical	2.7780	3
6143905	3SE0062IR019A	1.5880	3.175	38.1000	Straight-Cylindrical	4.7620	3
6143906	3SE0078IR011A	1.9840	3.175	38.1000	Straight-Cylindrical	2.7780	3
6143907	3SE0094IR037A	2.3810	3.175	38.1000	Straight-Cylindrical	9.5250	3
6143908	3SE0109IR037A	2.7780	3.175	38.1000	Straight-Cylindrical	9.5250	3
6143910	3SE0125IL050A	3.1750	3.175	63.5000	Straight-Cylindrical	12.7000	3
6143909	3SE0125IR025A	3.1750	3.175	38.1000	Straight-Cylindrical	6.3500	3
6143941	3SE0125IX062A	3.1750	3.175	76.2000	Straight-Cylindrical	15.8750	3
6143943	3SE0156IR056A	3.9690	4.762	50.8000	Straight-Cylindrical	14.2880	3
6143946	3SE0188IL062A	4.7630	4.763	76.2000	Straight-Cylindrical	15.8750	3
6143945	3SE0188IR056A	4.7630	4.763	50.8000	Straight-Cylindrical	14.2880	3
6143944	3SE0188IS031A	4.7630	4.763	50.8000	Straight-Cylindrical	7.9380	3
6143947	3SE0188IX100A	4.7630	4.763	101.6000	Straight-Cylindrical	25.4000	3
6143950	3SE0219IL075A	5.5560	6.35	63.5000	Straight-Cylindrical	19.0500	3
6143949	3SE0219IR062A	5.5560	6.35	63.5000	Straight-Cylindrical	15.8750	3
6143953	3SE0250IL100A	6.3500	6.35	76.2000	Straight-Cylindrical	25.4000	3
6143952	3SE0250IR075A	6.3500	6.35	63.5000	Straight-Cylindrical	19.0500	3
6143951	3SE0250IS050A	6.3500	6.35	50.8000	Straight-Cylindrical	12.7000	3
6143954	3SE0250IX150A	6.3500	6.35	101.6000	Straight-Cylindrical	38.1000	3
6143956	3SE0281IL081A	7.1440	7.938	63.5000	Straight-Cylindrical	20.6380	3
6143955	3SE0281IR075A	7.1440	7.938	63.5000	Straight-Cylindrical	19.0500	3
6143958	3SE0312IL081A	7.9380	7.938	63.5000	Straight-Cylindrical	20.6380	3
6143957	3SE0312IR050A	7.9380	7.938	50.8000	Straight-Cylindrical	12.7000	3
6143964	3SE0375IL100A	9.5250	9.525	63.5000	Straight-Cylindrical	25.4000	3
6143963	3SE0375IR088A	9.5250	9.525	63.5000	Straight-Cylindrical	22.2250	3
6143962	3SE0375IS050A	9.5250	9.525	50.8000	Straight-Cylindrical	12.7000	3
6143965	3SE0375IX112A	9.5250	9.525	76.2000	Straight-Cylindrical	28.5750	3
6143968	3SE0437IL088A	11.1130	11.113	63.5000	Straight-Cylindrical	22.2250	3
6143967	3SE0437IR062A	11.1130	11.113	63.5000	Straight-Cylindrical	15.8750	3
6143969	3SE0437IX100A	11.1130	11.113	63.5000	Straight-Cylindrical	25.4000	3
6143971	3SE0500IL200A	12.7000	12.7	101.6000	Straight-Cylindrical	50.8000	3
6143970	3SE0500IR100A	12.7000	12.7	76.2000	Straight-Cylindrical	25.4000	3
6143973	3SE0563IR112A	14.2880	15.875	88.9000	Straight-Cylindrical	28.5750	3
6143975	3SE0625IL125A	15.8750	15.875	88.9000	Straight-Cylindrical	31.7500	3
6143974	3SE0625IR075A	15.8750	15.875	76.2000	Straight-Cylindrical	19.0500	3
6143977	3SE0750IL150A	19.0500	19.05	101.6000	Straight-Cylindrical	38.1000	3
6143976	3SE0750IR100A	19.0500	19.05	76.2000	Straight-Cylindrical	25.4000	3
6143978	3SE0750IX225A	19.0500	19.05	127.0000	Straight-Cylindrical	57.1500	3
6143979	3SE1000IR150A	25.4000	25.4	101.6000	Straight-Cylindrical	38.1000	3
6143980	3SE1000IX225A	25.4000	25.4	127.0000	Straight-Cylindrical	57.1500	3

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1 3/16"	+0/-.00051"

Режимы резания:

GOmill; 3SE..IS-IR; 3 Flute; Short; Regular

Material Group
		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
					Cutting Speed vc SFM			frac.	1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
		ap	ae	ap	Min		Max	dec.	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	2.0 x D	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0005	.0006	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	1	2.0 x D	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0005	.0006	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	2	2.0 x D	0.1 x D	0.5 x D	460	–	620	IPT	.0002	.0005	.0006	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	3	2.0 x D	0.1 x D	0.5 x D	390	–	520	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	2.0 x D	0.1 x D	0.5 x D	300	–	490	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0014	.0017	.0020	.0026	.0030	.0034	.0039
M	1	2.0 x D	0.1 x D	0.5 x D	300	–	380	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	2.0 x D	0.1 x D	0.5 x D	200	–	260	IPT	.0002	.0003	.0004	.0005	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	2.0 x D	0.1 x D	0.5 x D	390	–	490	IPT	.0002	.0005	.0006	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	2	2.0 x D	0.1 x D	0.5 x D	360	–	460	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	2.0 x D	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0007	.0008	.0010	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	2.0 x D	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	2.0 x D	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090

Material Group
		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
		A		Cutting Speed vc SFM			frac.	1/8	5/32	1/4	5/16	3/8	1/2	5/8	3/4	1
		ap	ae	Min		Max	dec.	.1250	.1563	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	2.0 x D	0.1 x D	490	–	660	IPT	.0009	.0011	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	1	2.0 x D	0.1 x D	490	–	660	IPT	.0009	.0011	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	2	2.0 x D	0.1 x D	460	–	620	IPT	.0009	.0011	.0018	.0023	.0027	.0034	.0039	.0044	.0049
	3	2.0 x D	0.1 x D	390	–	520	IPT	.0007	.0009	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	2.0 x D	0.1 x D	300	–	490	IPT	.0007	.0008	.0014	.0017	.0020	.0026	.0030	.0034	.0039
M	1	2.0 x D	0.1 x D	300	–	380	IPT	.0007	.0009	.0015	.0020	.0023	.0029	.0034	.0039	.0045
M	2	2.0 x D	0.1 x D	200	–	260	IPT	.0006	.0007	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	2.0 x D	0.1 x D	390	–	490	IPT	.0009	.0011	.0018	.0023	.0027	.0034	.0039	.0044	.0049
K	2	2.0 x D	0.1 x D	360	–	460	IPT	.0007	.0009	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	2.0 x D	0.1 x D	820	–	3250	IPT	.0013	.0016	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	2.0 x D	0.1 x D	820	–	2450	IPT	.0010	.0013	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	2.0 x D	0.1 x D	820	–	2450	IPT	.0011	.0014	.0023	.0028	.0034	.0045	.0056	.0068	.0090
