Описание

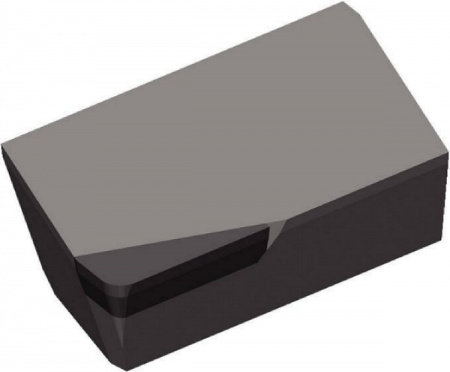

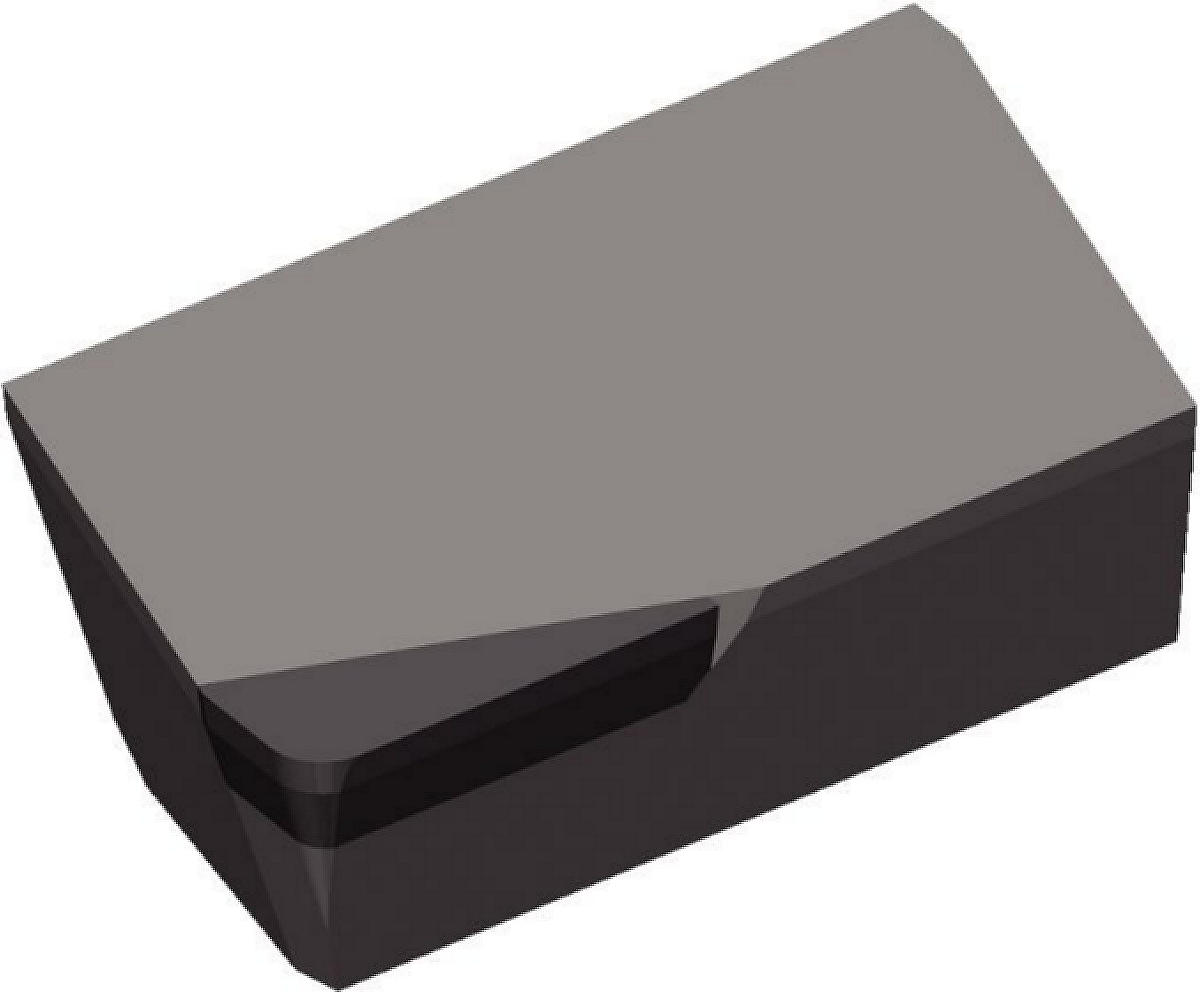

Режущие пластины из PCD; KSDR; E1. Сменные режущие пластины. KBDM
Особенности:
- Ap1 max = 6,3 мм.

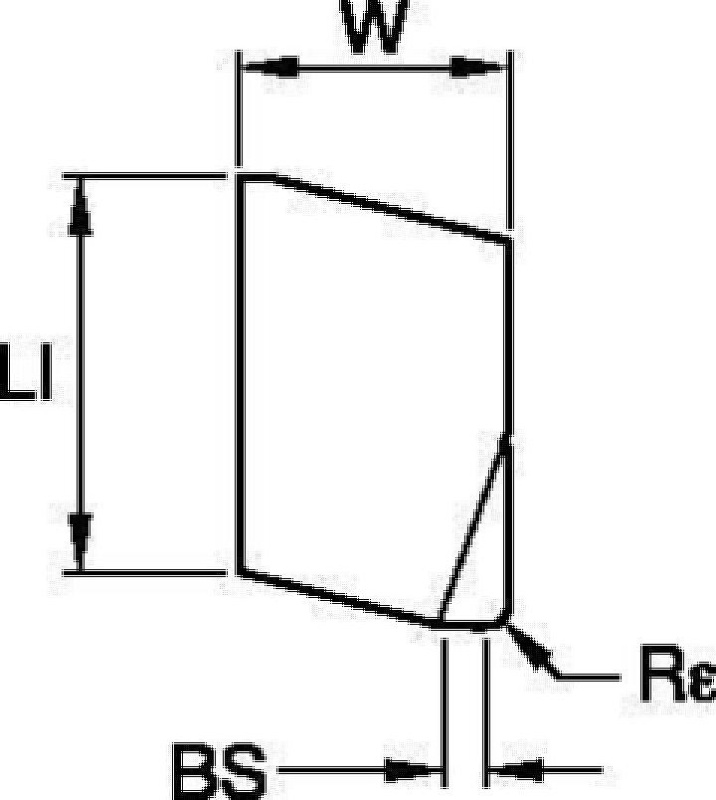

| SAP Material Number | ISO Catalog Number | [W] Insert Width | [BS] Corner Facet Length | [Rε] Corner Radius | Average Chip Thickness [HM] |
|---|---|---|---|---|---|
| 6042984 | KSDR100031E1W4S | 9.5200 | 1.5200 | 0.8000 | 0.0200 |
| 6042985 | KSDR100031E1W4S | 9.5200 | 1.5200 | 0.8000 | 0.0200 |
| 6042989 | KSDR100093E1W4S | 9.5200 | 1.5200 | 2.4000 | 0.0200 |
| 6042988 | KSDR100093E1W4S | 9.5200 | 1.5200 | 2.4000 | 0.0200 |
Выбор пластины:
Рекомендации по выбору режущих пластин; KBDM
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | (Strong geometry) | |||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | .KSDR….. | KD1400 | .KSDR….. | KD1400 | .KSDR….. | KD1400 |
| N3 | .KSDR….. | KD1400 | .KSDR….. | KD1425 | .KSDR….. | KD1425 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 910 | 1980 | 4880 | 910 | 1980 | 4880 |
| 3 | 460 | 610 | 760 | 460 | 610 | 760 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
| Material Group | KD1400 | KD1425 | |||||
| P | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| K | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| N | 1–2 | 3000 | 6500 | 16000 | 3000 | 6500 | 16000 |
| 3 | 1500 | 2000 | 2500 | 1500 | 2000 | 2500 | |
| S | 1 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – |
