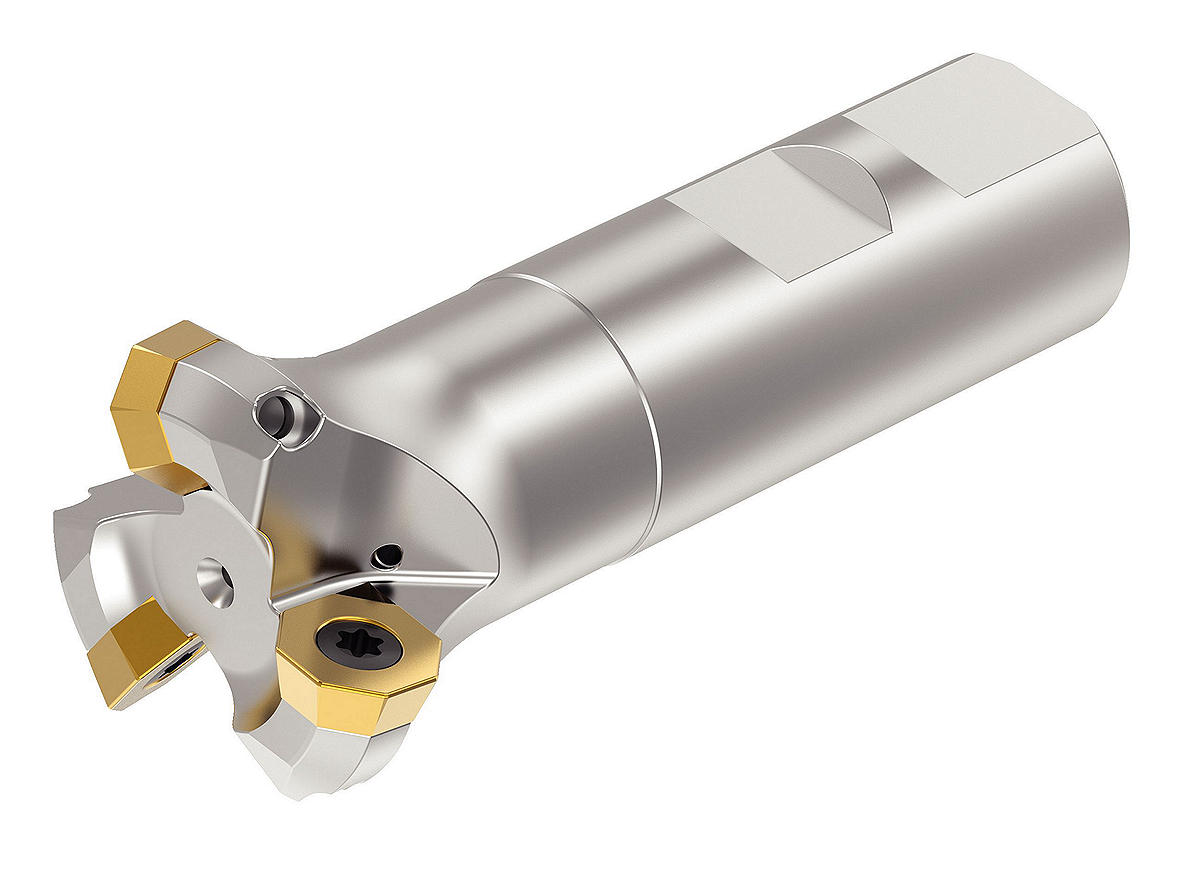

7745VOD04; End Mill Weldon Shank; Inch. 7745VOD04 End Mill Weldon Shank. 7745VOD04 Series
Применение:
- Face Milling
- Ramping: Blank
- Side Milling/Shoulder Milling: Eased Chamfer
- Shank - Cylindrical Weldon
- Milling - Through Coolant

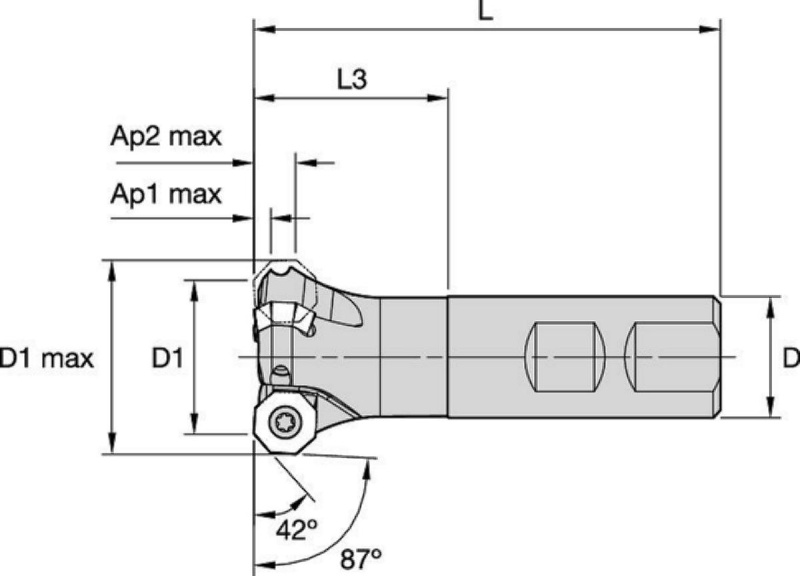

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [L] Overall Length | [L2] Head Length | [D1MAX] Maximum Cutting Diameter | Weight Pounds | Maximum Ramping Angle | [Z] Number of Flutes | Max RPM | Number of Inserts | [D] Adapter / Shank / Bore Diameter | [AP1MAX] 1st Maximum Cutting Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5672224 | C7745VOD04WA1.00R | 25.4000 | 91.5870 | 40.0000 | 33.4020 | 0.41 | 17.000 | 2 | 38200 | 2 | 19.05 | 7.6300 |
| 5672110 | C7745VOD04WA1.25R | 31.7500 | 97.9400 | 40.0000 | 39.6240 | 0.86 | 12.100 | 3 | 35300 | 3 | 25.4 | 7.6300 |
| 5673437 | C7745VOD04WA1.50R | 38.1000 | 107.9400 | 50.0000 | 45.9740 | 1.52 | 8.500 | 4 | 30000 | 4 | 31.75 | 7.6300 |
Подача:
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .E..44 | 0,14 | 0,35 | 0,58 | 0,10 | 0,25 | 0,41 | 0,08 | 0,19 | 0,31 | 0,07 | 0,17 | 0,28 | 0,06 | 0,15 | 0,25 | .E..44 |
| .E..412 | 0,16 | 0,41 | 0,69 | 0,12 | 0,30 | 0,50 | 0,09 | 0,23 | 0,38 | 0,08 | 0,20 | 0,33 | 0,07 | 0,18 | 0,30 | .E..412 |
| .E..41 | 0,18 | 0,51 | 0,81 | 0,13 | 0,36 | 0,58 | 0,10 | 0,28 | 0,44 | 0,09 | 0,24 | 0,39 | 0,08 | 0,22 | 0,35 | .E..41 |
| .S..N | 0,46 | 0,81 | 1,15 | 0,33 | 0,58 | 0,83 | 0,25 | 0,44 | 0,63 | 0,22 | 0,39 | 0,55 | 0,20 | 0,35 | 0,50 | .S..N |
Скорость:
| Material Group | SP6519 | X500 | X700 | |||||||
| P | 1 | 355 | 260 | 155 | 325 | 240 | 155 | – | – | – |
| 2 | 310 | 230 | 140 | 290 | 215 | 140 | – | – | – | |
| 3 | 275 | 200 | 120 | 250 | 185 | 120 | – | – | – | |
| 4 | 210 | 150 | 90 | 190 | 145 | 90 | – | – | – | |
| 5 | 170 | 125 | 85 | 155 | 120 | 85 | 160 | 125 | 85 | |
| 6 | 145 | 100 | 60 | 130 | 95 | 60 | 140 | 100 | 60 | |
| M | 1 | 325 | 235 | 140 | 300 | 220 | 140 | 310 | 230 | 140 |
| 2 | 280 | 205 | 125 | 265 | 190 | 120 | 275 | 205 | 125 | |
| 3 | 235 | 170 | 100 | 215 | 155 | 95 | 230 | 170 | 100 | |
| K | 1 | 355 | 265 | 170 | 310 | 265 | 205 | – | – | – |
| 2 | 290 | 210 | 130 | 265 | 215 | 155 | – | – | – | |
| 3 | 265 | 190 | 120 | 205 | 170 | 120 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| Material Group | SP6519 | X500 | X700 | |||||||
| P | 1 | 285 | 210 | 125 | 260 | 190 | 125 | – | – | – |
| 2 | 250 | 185 | 110 | 230 | 170 | 110 | – | – | – | |
| 3 | 220 | 160 | 95 | 200 | 150 | 95 | – | – | – | |
| 4 | 170 | 120 | 70 | 150 | 115 | 70 | – | – | – | |
| 5 | 135 | 100 | 70 | 125 | 95 | 70 | 130 | 100 | 70 | |
| 6 | 115 | 80 | 50 | 105 | 75 | 50 | 110 | 80 | 50 | |
| M | 1 | 260 | 190 | 110 | 240 | 175 | 110 | 250 | 185 | 110 |
| 2 | 225 | 165 | 100 | 210 | 150 | 95 | 220 | 165 | 100 | |
| 3 | 190 | 135 | 80 | 170 | 125 | 75 | 185 | 135 | 80 | |
| K | 1 | 285 | 210 | 135 | 250 | 210 | 165 | – | – | – |
| 2 | 230 | 170 | 105 | 210 | 170 | 125 | – | – | – | |
| 3 | 210 | 150 | 95 | 165 | 135 | 95 | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| S | 1 | 50 | 40 | 25 | 50 | 30 | 25 | 50 | 40 | 25 |
| 2 | 50 | 30 | 20 | 45 | 30 | 20 | 45 | 30 | 20 | |
| 3 | 50 | 40 | 25 | 50 | 40 | 25 | 50 | 40 | 25 | |
| 4 | 75 | 55 | 35 | 70 | 50 | 30 | 70 | 50 | 35 | |
| H | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
