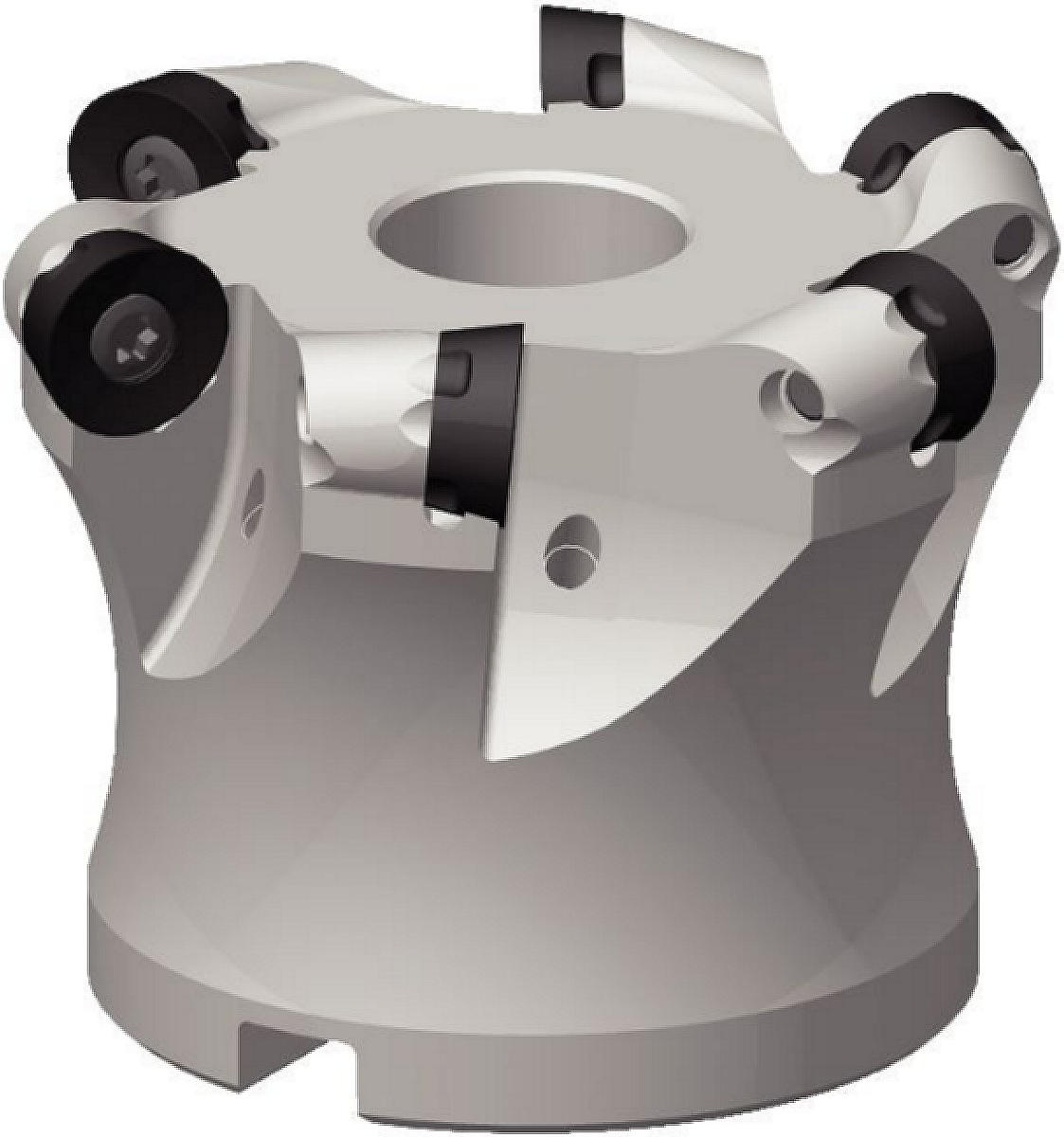

7713VR12 Shell Mill; Medium and Fine Pitch; Inch. Copy/Contour Milling Cutter. 7713VR12 • IC12 • Stellram
Особенности:
- Turbine blade machining and copy/contour milling applications.
- Patented locking system prevents insert rotation during heavy machining.
- Positive flute design for excellent chip evacuation.
Применение:
- Face Milling
- Inclined Square End Mill
- Ramping: Blank
- Spiral Circular
- Helical Milling
- Counter Boring
- Pocketing
- Milling - Through Coolant
- Milling - Side and Face
| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [D1] Effective Cutting Diameter | [L] Overall Length | [D6] Hub Diameter | [D1MAX] Maximum Cutting Diameter | [AP1MAX] 1st Maximum Cutting Depth | Number of Inserts |
|---|
| 5673826 | C7713VR12-A1.50Z4R | 12.7 | 26.1110 | 40.0000 | 33.6000 | 38.1000 | 6.0000 | 4 |
| 5673766 | C7713VR12-A1.50Z5R | 12.7 | 26.1000 | 40.0000 | 33.6000 | 38.1000 | 6.0000 | 5 |
| 5673044 | C7713VR12-A2.00Z4R | 19.06 | 38.8110 | 40.0000 | 46.6000 | 50.8000 | 6.0000 | 4 |
| 5672808 | C7713VR12-A2.00Z5R | 19.05 | 38.8110 | 40.0000 | 46.6000 | 50.8000 | 6.0000 | 5 |
| 5673045 | C7713VR12-A2.00Z6R | 19.05 | 38.8000 | 40.0000 | 46.6000 | 50.8000 | 6.0000 | 6 |
| 5673827 | C7713VR12-A2.50Z6R | 19.05 | 51.5110 | 50.0000 | 51.6000 | 63.5000 | 6.0000 | 6 |
| 5672809 | C7713VR12-A3.00Z8R | 25.4 | 64.2000 | 50.0000 | 51.6000 | 76.2000 | 6.0000 | 8 |
Выбор пластины:
Рекомендации по выбору режущих пластин; IC 12
| Material Group | Light Machining | General Purpose | Heavy Machining |
| – | (Light geometry) | – | (Strong geometry) |
| – | wear resistance |  | toughness |
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | 442-X8 | SC6525 | 432-X5 | SC6525 | GD-X5 | KCM40 |
| P3–P4 | 432-X8 | SP6519 | 432-X5 | SP6519 | GD-X5 | KCM40 |
| P5–P6 | 432-X8 | SP6519 | T-X4 | SP6519 | T-X4 | X500 |
| M1–M2 | 442-X8 | SC6525 | 432-X5 | SC6525 | GD-X5 | KCM40 |
| M3 | 432-X8 | SP6519 | GD-X5 | KCM40 | 442-X4 | X500 |
| K1–K2 | T-X4 | MP91M | T-X4 | MP91M | T-X4 | MP91M |
| K3 | T-X4 | MP91M | T-X4 | MP91M | T-X4 | MP91M |
| N1–N2 | 701-X4 | GH1 | 701-X4 | GH1 | 701-X4 | GH1 |
| N3 | 701-X4 | GH1 | 701-X4 | GH1 | 701-X4 | GH1 |
| S1–S2 | 442-X5 | SP6519 | GD-X5 | KCM40 | 442-X4 | X500 |
| S3 | 442-X5 | SP6519 | GD-X5 | KCM40 | 442-X4 | X500 |
| S4 | 442-X5 | SP6519 | 442-X5 | X500 | 442-X4 | X500 |
| H1 | – | – | T-X4 | MP91M | – | – |
Подача:
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | 0,12 | 0,16 | 0,22 | 0,08 | 0,12 | 0,16 | 0,06 | 0,09 | 0,12 | 0,05 | 0,08 | 0,10 | 0,05 | 0,07 | 0,10 | 701–X4 |
| 432–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | 0,23 | 0,41 | 0,66 | 0,17 | 0,30 | 0,47 | 0,13 | 0,22 | 0,35 | 0,11 | 0,19 | 0,31 | 0,10 | 0,18 | 0,28 | 442–X4 |
| GD–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | 0,23 | 0,41 | 0,66 | 0,17 | 0,30 | 0,47 | 0,13 | 0,22 | 0,35 | 0,11 | 0,19 | 0,31 | 0,10 | 0,18 | 0,28 | T–X4 |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | 0,13 | 0,19 | 0,25 | 0,10 | 0,14 | 0,18 | 0,07 | 0,10 | 0,14 | 0,06 | 0,09 | 0,12 | 0,06 | 0,08 | 0,11 | 701–X4 |
| 432–X5 | 0,16 | 0,49 | 0,93 | 0,12 | 0,35 | 0,66 | 0,09 | 0,26 | 0,49 | 0,08 | 0,23 | 0,43 | 0,07 | 0,21 | 0,39 | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | 0,16 | 0,49 | 0,93 | 0,12 | 0,35 | 0,66 | 0,09 | 0,26 | 0,49 | 0,08 | 0,23 | 0,43 | 0,07 | 0,21 | 0,39 | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | 0,16 | 0,49 | 0,93 | 0,12 | 0,35 | 0,66 | 0,09 | 0,26 | 0,49 | 0,08 | 0,23 | 0,43 | 0,07 | 0,21 | 0,39 | 442–X4 |
| GD–X5 | 0,16 | 0,54 | 0,99 | 0,12 | 0,39 | 0,70 | 0,09 | 0,29 | 0,52 | 0,08 | 0,25 | 0,45 | 0,07 | 0,23 | 0,42 | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | 0,27 | 0,68 | 1,10 | 0,19 | 0,49 | 0,78 | 0,14 | 0,36 | 0,58 | 0,13 | 0,32 | 0,50 | 0,12 | 0,29 | 0,46 | T–X4 |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | 0,17 | 0,24 | 0,33 | 0,13 | 0,18 | 0,24 | 0,09 | 0,13 | 0,18 | 0,08 | 0,12 | 0,16 | 0,08 | 0,11 | 0,14 | 701–X4 |
| 432–X5 | 0,21 | 0,64 | 1,23 | 0,15 | 0,46 | 0,87 | 0,11 | 0,34 | 0,65 | 0,10 | 0,30 | 0,56 | 0,09 | 0,27 | 0,51 | 432–X5 |
| 432–X8 | 0,21 | 0,64 | 1,23 | 0,15 | 0,46 | 0,87 | 0,11 | 0,34 | 0,65 | 0,10 | 0,30 | 0,56 | 0,09 | 0,27 | 0,51 | 432–X8 |
| 442–X5 | 0,21 | 0,64 | 1,23 | 0,15 | 0,46 | 0,87 | 0,11 | 0,34 | 0,65 | 0,10 | 0,30 | 0,56 | 0,09 | 0,27 | 0,51 | 442–X5 |
| 442–X8 | 0,21 | 0,64 | 1,23 | 0,15 | 0,46 | 0,87 | 0,11 | 0,34 | 0,65 | 0,10 | 0,30 | 0,56 | 0,09 | 0,27 | 0,51 | 442–X8 |
| 442–X4 | 0,21 | 0,64 | 1,23 | 0,15 | 0,46 | 0,87 | 0,11 | 0,34 | 0,65 | 0,10 | 0,30 | 0,56 | 0,09 | 0,27 | 0,51 | 442–X4 |
| GD–X5 | 0,21 | 0,71 | 1,31 | 0,15 | 0,51 | 0,93 | 0,11 | 0,38 | 0,68 | 0,10 | 0,33 | 0,60 | 0,09 | 0,30 | 0,54 | GD–X5 |
| GD–X8 | 0,21 | 0,71 | 1,31 | 0,15 | 0,51 | 0,93 | 0,11 | 0,38 | 0,68 | 0,10 | 0,33 | 0,60 | 0,09 | 0,30 | 0,54 | GD–X8 |
| T–X4 | 0,35 | 0,90 | 1,47 | 0,25 | 0,64 | 1,03 | 0,19 | 0,47 | 0,76 | 0,17 | 0,41 | 0,66 | 0,15 | 0,38 | 0,60 | T–X4 |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | 0,14 | 0,20 | 0,27 | 0,10 | 0,14 | 0,20 | 0,08 | 0,11 | 0,15 | 0,07 | 0,09 | 0,13 | 0,06 | 0,09 | 0,12 | 701–X4 |
| 432–X5 | 0,17 | 0,52 | 1,00 | 0,12 | 0,37 | 0,71 | 0,09 | 0,28 | 0,53 | 0,08 | 0,24 | 0,46 | 0,07 | 0,22 | 0,42 | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | 0,17 | 0,52 | 1,00 | 0,12 | 0,37 | 0,71 | 0,09 | 0,28 | 0,53 | 0,08 | 0,24 | 0,46 | 0,07 | 0,22 | 0,42 | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | 0,17 | 0,52 | 1,00 | 0,12 | 0,37 | 0,71 | 0,09 | 0,28 | 0,53 | 0,08 | 0,24 | 0,46 | 0,07 | 0,22 | 0,42 | 442–X4 |
| GD–X5 | 0,17 | 0,58 | 1,06 | 0,12 | 0,41 | 0,75 | 0,09 | 0,31 | 0,56 | 0,08 | 0,27 | 0,48 | 0,07 | 0,25 | 0,44 | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | 0,29 | 0,73 | 1,18 | 0,21 | 0,52 | 0,84 | 0,15 | 0,39 | 0,62 | 0,13 | 0,34 | 0,54 | 0,12 | 0,31 | 0,49 | T–X4 |
| Insert Geometry | Programmed Feed per Tooth (fz) at % Radial Depth of Cut (ae) of Working Diameter (Dw) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | .005 | .008 | .011 | .003 | .006 | .008 | .002 | .004 | .006 | .002 | .004 | .005 | .002 | .004 | .005 | 701–X4 |
| 432–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | .007 | .021 | .037 | .005 | .015 | .027 | .004 | .011 | .020 | .003 | .010 | .017 | .003 | .009 | .016 | 442–X4 |
| GD–X5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | .009 | .023 | .037 | .007 | .017 | .027 | .005 | .012 | .020 | .004 | .011 | .017 | .004 | .010 | .016 | T–X4 |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Programmed Feed per Tooth (fz) at % Radial Depth of Cut (ae) of Working Diameter (Dw) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | .005 | .009 | .013 | .004 | .007 | .009 | .003 | .005 | .007 | .002 | .004 | .006 | .002 | .004 | .005 | 701–X4 |
| 432–X5 | .006 | .019 | .037 | .005 | .014 | .027 | .003 | .010 | .020 | .003 | .009 | .017 | .003 | .008 | .016 | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | .006 | .019 | .037 | .005 | .014 | .027 | .003 | .010 | .020 | .003 | .009 | .017 | .003 | .008 | .016 | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | .008 | .024 | .043 | .006 | .017 | .031 | .004 | .013 | .023 | .004 | .011 | .020 | .003 | .010 | .018 | 442–X4 |
| GD–X5 | .006 | .022 | .040 | .005 | .016 | .028 | .003 | .012 | .021 | .003 | .010 | .018 | .003 | .009 | .017 | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | .011 | .027 | .043 | .008 | .019 | .031 | .006 | .014 | .023 | .005 | .012 | .020 | .005 | .011 | .018 | T–X4 |
| Insert Geometry | Programmed Feed per Tooth (fz) at % Radial Depth of Cut (ae) of Working Diameter (Dw) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | .006 | .010 | .014 | .004 | .007 | .010 | .003 | .005 | .007 | .003 | .005 | .006 | .002 | .004 | .006 | 701–X4 |
| 432–X5 | .007 | .021 | .040 | .005 | .015 | .028 | .004 | .011 | .021 | .003 | .010 | .018 | .003 | .009 | .017 | 432–X5 |
| 432–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 432–X8 |
| 442–X5 | .007 | .021 | .040 | .005 | .015 | .028 | .004 | .011 | .021 | .003 | .010 | .018 | .003 | .009 | .017 | 442–X5 |
| 442–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 442–X8 |
| 442–X4 | .009 | .026 | .046 | .006 | .019 | .033 | .005 | .014 | .024 | .004 | .012 | .021 | .004 | .011 | .019 | 442–X4 |
| GD–X5 | .007 | .023 | .042 | .005 | .017 | .030 | .004 | .012 | .022 | .003 | .011 | .019 | .003 | .010 | .018 | GD–X5 |
| GD–X8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | GD–X8 |
| T–X4 | .011 | .029 | .046 | .008 | .020 | .033 | .006 | .015 | .024 | .005 | .013 | .021 | .005 | .012 | .019 | T–X4 |
| Insert Geometry | Programmed Feed per Tooth (fz) at % Radial Depth of Cut (ae) of Working Diameter (Dw) | Insert Geometry |
| – | 5% | 10% | 20% | 30% | 40–100% | |
| 701–X4 | .007 | .012 | .017 | .005 | .009 | .012 | .004 | .007 | .009 | .003 | .006 | .008 | .003 | .005 | .007 | 701–X4 |
| 432–X5 | .008 | .026 | .049 | .006 | .018 | .035 | .005 | .014 | .026 | .004 | .012 | .022 | .004 | .011 | .021 | 432–X5 |
| 432–X8 | .008 | .026 | .049 | .006 | .018 | .035 | .005 | .014 | .026 | .004 | .012 | .022 | .004 | .011 | .021 | 432–X8 |
| 442–X5 | .008 | .026 | .049 | .006 | .018 | .035 | .005 | .014 | .026 | .004 | .012 | .022 | .004 | .011 | .021 | 442–X5 |
| 442–X8 | .008 | .026 | .049 | .006 | .018 | .035 | .005 | .014 | .026 | .004 | .012 | .022 | .004 | .011 | .021 | 442–X8 |
| 442–X4 | .011 | .032 | .058 | .008 | .023 | .041 | .006 | .017 | .030 | .005 | .015 | .026 | .005 | .014 | .024 | 442–X4 |
| GD–X5 | .008 | .028 | .053 | .006 | .020 | .037 | .005 | .015 | .027 | .004 | .013 | .024 | .004 | .012 | .022 | GD–X5 |
| GD–X8 | .008 | .028 | .053 | .006 | .020 | .037 | .005 | .015 | .027 | .004 | .013 | .024 | .004 | .012 | .022 | GD–X8 |
| T–X4 | .014 | .035 | .058 | .010 | .025 | .041 | .007 | .019 | .030 | .006 | .016 | .026 | .006 | .015 | .024 | T–X4 |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | GH1 | X700 | KCM40 | SP6519 | X500 | MP91M | SC6525 |
| P | 1 | – | – | – | – | – | – | – | – | – | 130 | 213 | 295 | 130 | 200 | 270 | 140 | 243 | 345 | 140 | 255 | 370 |
| 2 | – | – | – | – | – | – | – | – | – | 115 | 188 | 260 | 115 | 178 | 240 | 120 | 213 | 305 | 120 | 223 | 325 |
| 3 | – | – | – | – | – | – | 100 | 170 | 240 | 100 | 165 | 230 | 100 | 155 | 210 | 105 | 188 | 270 | 105 | 198 | 290 |
| 4 | – | – | – | – | – | – | 75 | 128 | 180 | 75 | 125 | 175 | 75 | 118 | 160 | 80 | 143 | 205 | 80 | 145 | 210 |
| 5 | – | – | – | 70 | 103 | 135 | – | – | – | 70 | 105 | 140 | 70 | 100 | 130 | – | – | – | 80 | 120 | 160 |
| 6 | – | – | – | 50 | 83 | 115 | – | – | – | 50 | 85 | 120 | 50 | 80 | 110 | – | – | – | 60 | 100 | 140 |
| M | 1 | – | – | – | 115 | 188 | 260 | 115 | 188 | 260 | 115 | 193 | 270 | 115 | 183 | 250 | – | – | – | 120 | 205 | 290 |
| 2 | – | – | – | 105 | 168 | 230 | 100 | 165 | 230 | 105 | 170 | 235 | 100 | 160 | 220 | – | – | – | 110 | 185 | 260 |
| 3 | – | – | – | 85 | 138 | 190 | 50 | 83 | 115 | 85 | 140 | 195 | 80 | 130 | 180 | – | – | – | 90 | 150 | 210 |
| K | 1 | 135 | 213 | 290 | – | – | – | – | – | – | 140 | 218 | 295 | 120 | 200 | 280 | 145 | 255 | 365 | 145 | 268 | 390 |
| 2 | 120 | 183 | 245 | – | – | – | – | – | – | 110 | 175 | 240 | 105 | 155 | 205 | 115 | 200 | 285 | 115 | 210 | 305 |
| 3 | 115 | 158 | 200 | – | – | – | – | – | – | 100 | 160 | 220 | 95 | 133 | 170 | 105 | 183 | 260 | – | – | – |
| N | 1–2 | 400 | 1725 | 3050 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 295 | 1368 | 2440 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| S | 1 | – | – | – | 23 | 38 | 52 | 23 | 38 | 52 | 23 | 39 | 55 | 23 | 36 | 48 | – | – | – | – | – | – |
| 2 | – | – | – | 22 | 34 | 46 | 22 | 34 | 46 | 22 | 35 | 48 | 21 | 33 | 44 | – | – | – | – | – | – |
| 3 | – | – | – | 25 | 39 | 53 | 25 | 39 | 53 | 25 | 40 | 55 | 24 | 38 | 51 | – | – | – | – | – | – |
| 4 | – | – | – | 36 | 56 | 75 | 36 | 56 | 75 | 36 | 58 | 79 | 35 | 54 | 73 | – | – | – | – | – | – |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 50 | 78 | 105 | 50 | 80 | 110 |
