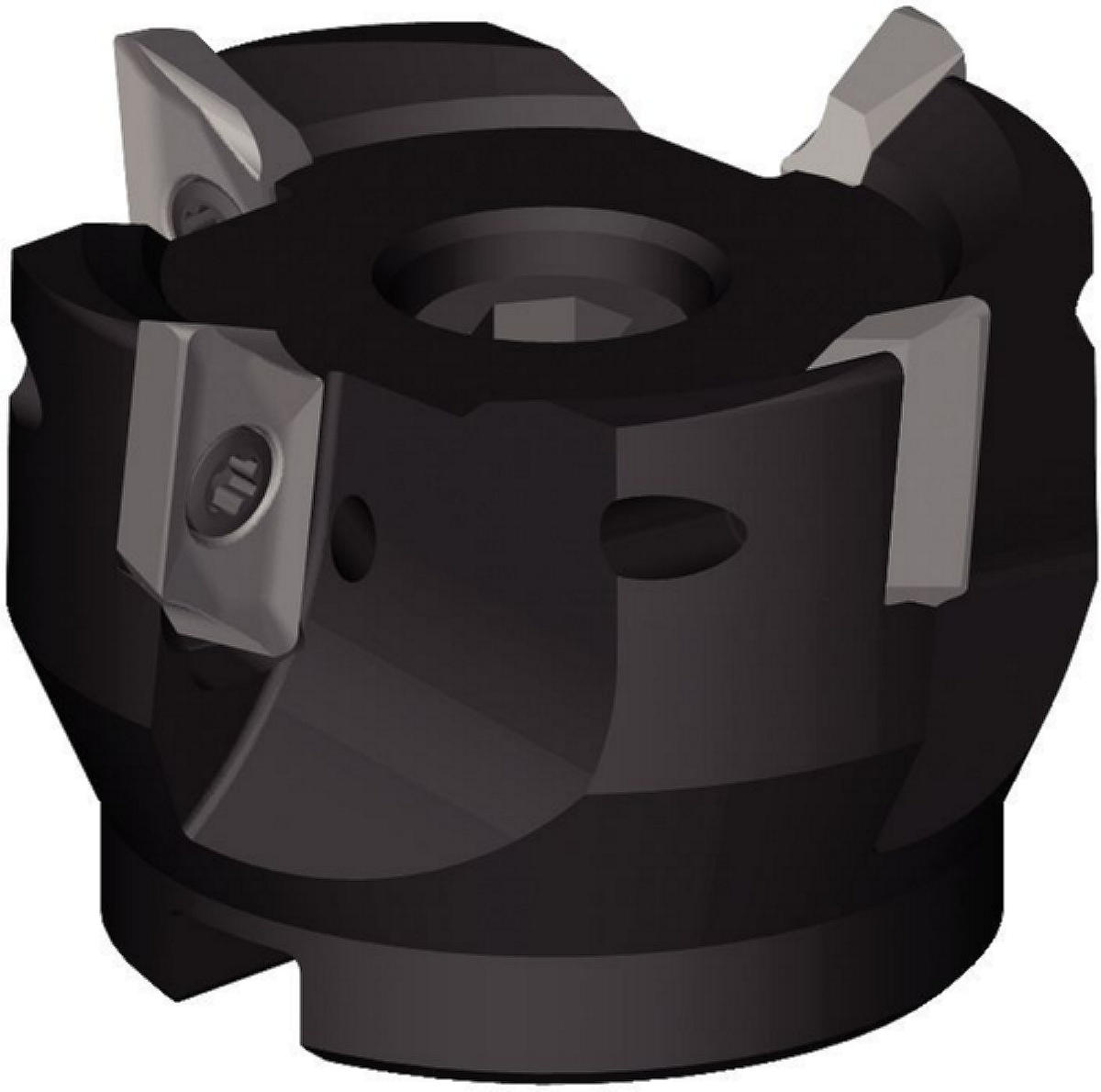

5720VZD16 Shell Mill; Coarse and Medium Pitch; Stellram; Inch. Profiling/Pocketing Milling Cutter; Aluminum. 5720VZD для обработки алюминия • IC 16 • Stellram
Особенности:
- High-speed profiling and pocketing aluminum alloy components in the aerospace industry.
- Maximum stability in high-speed applications.
- Through-tool coolant allows better chip evacuation and higher feed rates.
Применение:
- Face Milling
- Ramping: Blank
- Pocketing
- Helical Milling
- Counter Boring
- Spiral Circular
- Inclined Square End Mill
- Slotting: Shoulder Profiling
- Milling - Through Coolant

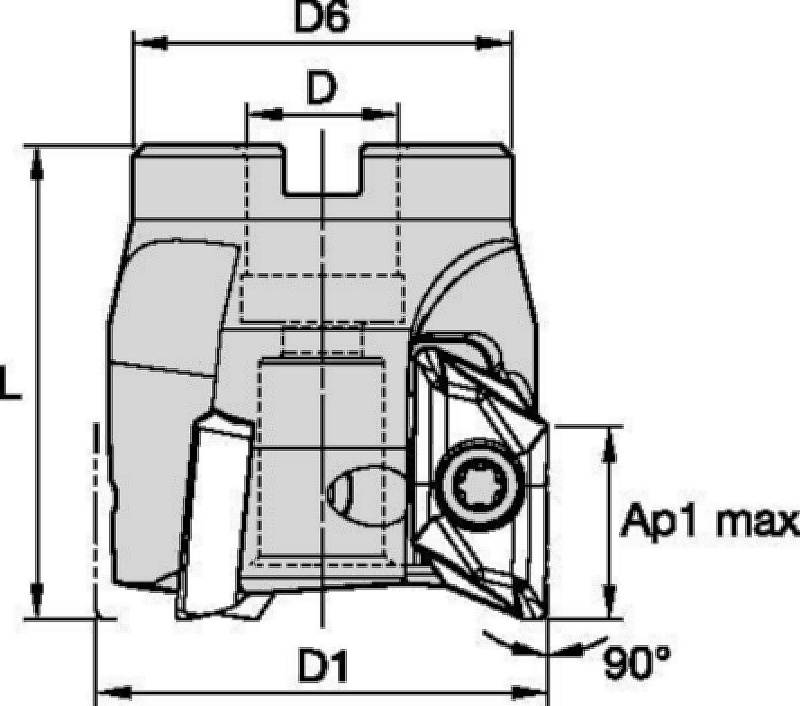

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [D1] Effective Cutting Diameter | [L] Overall Length | [D6] Hub Diameter | Weight Pounds | [AP1MAX] 1st Maximum Cutting Depth | Maximum Ramping Angle | Max RPM | Number of Inserts |
|---|---|---|---|---|---|---|---|---|---|---|
| 5681118 | C5720VZ16-A1.50Z03R | 12.7 | 38.1000 | 40.0000 | 32.0000 | 0.34 | 16.0000 | 8.100 | 36500 | 3 |
| 6241040 | C5720VZ16-A2.00Z03R2.0 | 19.1 | 50.8000 | 50.8000 | 45.0000 | 0.94 | 16.0000 | 7.800 | 30000 | 3 |
| 5673799 | C5720VZ16-A2.00Z3R | 19.05 | 50.8000 | 40.0000 | 45.0000 | 0.70 | 16.0000 | 7.800 | 30000 | 3 |
| 5672871 | C5720VZ16-A2.00Z4R | 19.05 | 50.8000 | 40.0000 | 45.0000 | 0.62 | 16.0000 | 7.800 | 30000 | 4 |
| 5673175 | C5720VZ16-A2.50Z4R | 25.4 | 63.5000 | 50.0000 | 50.0000 | 1.38 | 16.0000 | 5.800 | 26000 | 4 |
| 5672872 | C5720VZ16-A2.50Z5R | 25.4 | 63.5000 | 50.0000 | 50.0000 | 1.31 | 16.0000 | 5.800 | 26000 | 5 |
| 6241081 | C5720VZ16-A3.00Z3R2.0 | 25.4 | 76.2000 | 50.8000 | 50.0000 | 2.06 | 16.0000 | 4.600 | 23000 | 3 |
| 5673338 | C5720VZ16-A3.00Z4R | 25.4 | 76.2000 | 50.0000 | 50.0000 | 1.91 | 16.0000 | 4.600 | 23000 | 4 |
| 5673745 | C5720VZ16-A3.00Z5R | 25.4 | 76.2000 | 50.0000 | 50.0000 | 1.78 | 16.0000 | 4.600 | 23000 | 5 |
Выбор пластины:
Рекомендации по выбору режущих пластин
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear resistance |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | – | – | – | – | – | – |
| K3 | – | – | – | – | – | – |
| N1–N2 | .F..721 | GH1 | .F..721 | GH1 | .F..721 | GH1 |
| N3 | .F..721 | GH1 | .F..721 | GH1 | .F..721 | GH1 |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
Подача:
Рекомендуемые начальные подачи [мм/зуб]
| Insert Geometry | Programmed Feed per Tooth (fz) at % Radial Depth of Cut (ae) of Working Diameter (Dw) | Insert Geometry | ||||||||||||
| 5% | 10% | 20% | 40–100% | |||||||||||
| ...FR721 | 0,03 | 0,33 | 0,41 | 0,025 | 0,25 | 0,31 | 0,021 | 0,21 | 0,27 | 0,02 | 0,20 | 0,25 | ...FR721 | |
| ...ER721 | 0,07 | 0,33 | 0,41 | 0,06 | 0,25 | 0,31 | 0,05 | 0,21 | 0,27 | 0,04 | 0,20 | 0,25 | ...ER721 | |
| Light Machining | General Purpose | Heavy Machining |
| size | Geometry | grade | operation | N | |
| Aluminium and Alloys 16% Si 116 HBN | Aluminium and Silicon 16% Si 92 HBN | ||||
| min–max | min–max | ||||
| 14mm | ...721 | GH1 | Profiling/Pocketing | 0,02 0,25 | 0,02 0,20 |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | |||||||||||
| 10% | 20% | 30% | 40–100% | ||||||||||
| .F..721 | .001 | .013 | .016 | .001 | .010 | .012 | .001 | .008 | .011 | .001 | .008 | .010 | .F..721 |
| .E..721 | .003 | .013 | .016 | .002 | .010 | .012 | .002 | .008 | .011 | .002 | .008 | .010 | .E..721 |
