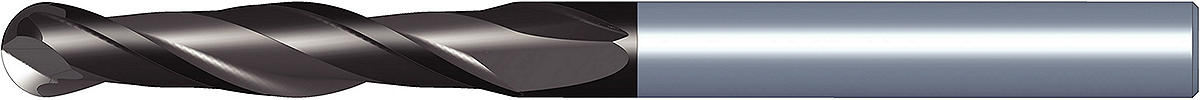

GOmill GP; Ball Nose; 2 Flutes; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

GOmill GP; Ball Nose; 2 Flutes; Plain Shank; Inch. General Purpose Solid Carbide End Mill. Фрезы общего назначения GOmill™ GP • Цельные твердосплавные концевые фрезы • Фрезы с 2 зубьями

Особенности:

Solid carbide end mill with excellent cost-benefit ratio.
Eccentric relief increases cutting edge stability for long tool life and high surface quality.
Eccentric relief eases regrinding and reduces reconditioning cost.
Center cutting for plunging and ramping operations.

Применение:

Slotting: Ball Nose
Side Milling/Shoulder Milling: Ball Nose
3D Profiling
Corner Style: Ball Nose
Helix Angle: 30°
Tool Dimensions: Flute Configuration: 2

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
5876721	2BN0031IR007A	0.7940	3.175	38.1000	Straight-Cylindrical	1.9840	2
5876723	2BN0047IR018A	1.1910	3.175	38.1000	Straight-Cylindrical	4.7620	2
5876722	2BN0063IR018A	1.5880	3.175	38.1000	Straight-Cylindrical	4.7620	2
5876725	2BN0094IL037A	2.3810	3.175	38.1000	Straight-Cylindrical	9.5250	2
5876724	2BN0094IR018A	2.3810	3.175	38.1000	Straight-Cylindrical	4.7620	2
5876726	2BN0109IR037A	2.7780	3.175	38.1000	Straight-Cylindrical	9.5250	2
5876729	2BN0125IL075A	3.1750	3.175	57.1500	Straight-Cylindrical	19.0500	2
5876728	2BN0125IR050A	3.1750	3.175	38.1000	Straight-Cylindrical	12.7000	2
5876727	2BN0125IS025A	3.1750	3.175	38.1000	Straight-Cylindrical	6.3500	2
5876730	2BN0125IX075A	3.1750	3.175	76.2000	Straight-Cylindrical	19.0500	2
5876742	2BN0156IL056A	3.9690	4.762	50.8000	Straight-Cylindrical	14.2880	2
5876741	2BN0156IR031A	3.9690	4.762	50.8000	Straight-Cylindrical	7.9380	2
5876745	2BN0187IL075A	4.7630	4.763	63.5000	Straight-Cylindrical	19.0500	2
5876744	2BN0187IR062A	4.7630	4.763	50.8000	Straight-Cylindrical	15.8750	2
5876743	2BN0187IS031A	4.7630	4.763	38.1000	Straight-Cylindrical	7.9380	2
5876746	2BN0187IX100A	4.7630	4.763	101.6000	Straight-Cylindrical	25.4000	2
5876747	2BN0219IR062A	5.5560	6.35	63.5000	Straight-Cylindrical	15.8750	2
5876751	2BN0250IL150A	6.3500	6.35	101.6000	Straight-Cylindrical	38.1000	2
5876749	2BN0250IR075A	6.3500	6.35	63.5000	Straight-Cylindrical	19.0500	2
5876750	2BN0250IR112A	6.3500	6.35	76.2000	Straight-Cylindrical	28.5750	2
5876748	2BN0250IS050A	6.3500	6.35	50.8000	Straight-Cylindrical	12.7000	2
5876752	2BN0250IX150A	6.3500	6.35	152.4000	Straight-Cylindrical	38.1000	2
5876754	2BN0312IL112A	7.9380	7.938	76.2000	Straight-Cylindrical	28.5750	2
5876753	2BN0312IR081A	7.9380	7.938	63.5000	Straight-Cylindrical	20.6380	2
5876755	2BN0312IX150A	7.9380	7.938	152.4000	Straight-Cylindrical	38.1000	2
5876758	2BN0375IL112A	9.5250	9.525	76.2000	Straight-Cylindrical	28.5750	2
5876757	2BN0375IR087A	9.5250	9.525	63.5000	Straight-Cylindrical	22.2250	2
5876756	2BN0375IS062A	9.5250	9.525	50.8000	Straight-Cylindrical	15.8750	2
5876759	2BN0375IX300A	9.5250	9.525	152.4000	Straight-Cylindrical	76.2000	2
5876760	2BN0406IR100A	10.3190	11.112	63.5000	Straight-Cylindrical	25.4000	2
5876761	2BN0437IR100A	11.1130	11.113	63.5000	Straight-Cylindrical	25.4000	2
5876765	2BN0500IL200A	12.7000	12.7	101.6000	Straight-Cylindrical	50.8000	2
5876763	2BN0500IR100A	12.7000	12.7	76.2000	Straight-Cylindrical	25.4000	2
5876762	2BN0500IS062A	12.7000	12.7	63.5000	Straight-Cylindrical	15.8750	2
5876764	2BN0500IX150A	12.7000	12.7	152.4000	Straight-Cylindrical	38.1000	2
5876766	2BN0500IX300A	12.7000	12.7	152.4000	Straight-Cylindrical	76.2000	2
5876768	2BN0625IL225A	15.8750	15.875	127.0000	Straight-Cylindrical	57.1500	2
5876767	2BN0625IR125A	15.8750	15.875	88.9000	Straight-Cylindrical	31.7500	2
5876769	2BN0625IX300A	15.8750	15.875	152.4000	Straight-Cylindrical	76.2000	2
5876772	2BN0750IL200A	19.0500	19.05	152.4000	Straight-Cylindrical	50.8000	2
5876771	2BN0750IR150A	19.0500	19.05	101.6000	Straight-Cylindrical	38.1000	2
5876770	2BN0750IS100A	19.0500	19.05	76.2000	Straight-Cylindrical	25.4000	2
5876773	2BN0750IX300A	19.0500	19.05	152.4000	Straight-Cylindrical	76.2000	2
5876774	2BN0875IR150A	22.2250	22.225	101.6000	Straight-Cylindrical	38.1000	2
5876776	2BN1000IL300A	25.4000	25.4	152.4000	Straight-Cylindrical	76.2000	2
5876775	2BN1000IR150A	25.4000	25.4	101.6000	Straight-Cylindrical	38.1000	2

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1 3/16"	+0/-.00051"

Режимы резания:


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
		ap	ae	ap	Min		Max	inch	1/64	1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group									.0156	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0001	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0001	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0002	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0156	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
		ap	ae	Min		Max	inch	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group								.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090
