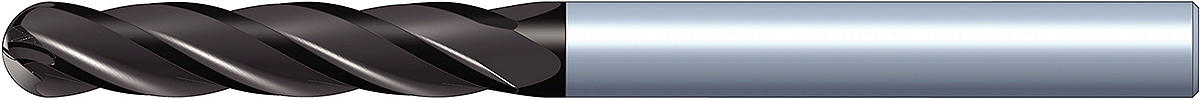

GOmill GP; Ball Nose; 4 Flutes; Plain Shank; Inch

Цена по запросу

Отправить запрос

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Самовывоз.
Доставка по Москве и МО.
Доставка по России.

Внимание! В связи с нестабильным курсом валют, уточняйте цены у менеджеров отдела продаж.

Описание

GOmill GP; Ball Nose; 4 Flutes; Plain Shank; Inch. General Purpose Solid Carbide End Mill. Фрезы общего назначения GOmill™ GP • Цельные твердосплавные концевые фрезы • Фрезы с 4 зубьями

Особенности:

Solid carbide end mill with excellent cost-benefit ratio.
Eccentric relief increases cutting edge stability for long tool life and high surface quality.
Eccentric relief eases regrinding and reduces reconditioning cost.
Center cutting for plunging and ramping operations.

Применение:

Helix Angle: 30°
Tool Dimensions: Flute Configuration: 4
Corner Style: Ball Nose
Slotting: Ball Nose
Side Milling/Shoulder Milling: Ball Nose
3D Profiling

SAP Material Number	ISO Catalog Number	[D1] Effective Cutting Diameter	[D] Adapter / Shank / Bore Diameter	[L] Overall Length	Adapter Style Machine Side	[AP1MAX] 1st Maximum Cutting Depth	[Z] Number of Flutes
5824029	4BN0031IR008A	0.7940	3.175	38.1000	Straight-Cylindrical	1.9840	4
5824030	4BN0047IR012A	1.1906	3.175	38.1000	Straight-Cylindrical	3.1750	4
5824501	4BN0062IR019A	1.5880	3.175	38.1000	Straight-Cylindrical	4.7620	4
5824502	4BN0078IR019A	1.9840	3.175	38.1000	Straight-Cylindrical	4.7620	4
5824504	4BN0094IL037A	2.3813	3.175	38.1000	Straight-Cylindrical	9.5250	4
5824503	4BN0094IR019A	2.3810	3.175	38.1000	Straight-Cylindrical	4.7620	4
5824505	4BN0109IR037A	2.7780	3.175	38.1000	Straight-Cylindrical	9.5250	4
5824508	4BN0125IL075A	3.1750	3.175	57.1500	Straight-Cylindrical	19.0500	4
5824507	4BN0125IR050A	3.1750	3.175	38.1000	Straight-Cylindrical	12.7000	4
5824506	4BN0125IS025A	3.1750	3.175	38.1000	Straight-Cylindrical	6.3500	4
5824509	4BN0125IX075A	3.1750	3.175	76.2000	Straight-Cylindrical	19.0500	4
5824510	4BN0141IR056A	3.5720	4.762	50.8000	Straight-Cylindrical	14.2880	4
5824511	4BN0156IR056A	3.9690	4.762	50.8000	Straight-Cylindrical	14.2880	4
5824512	4BN0172IR062A	4.3660	4.762	50.8000	Straight-Cylindrical	15.8750	4
5824514	4BN0187IL062A	4.7630	4.763	50.8000	Straight-Cylindrical	15.8750	4
5824513	4BN0187IR031A	4.7630	4.763	38.1000	Straight-Cylindrical	7.9380	4
5824515	4BN0187IX100A	4.7630	4.763	101.6000	Straight-Cylindrical	25.4000	4
5824516	4BN0203IR062A	5.1590	6.35	63.5000	Straight-Cylindrical	15.8750	4
5824517	4BN0219IR062A	5.5560	6.35	63.5000	Straight-Cylindrical	15.8750	4
5824518	4BN0234IR075A	5.9530	6.35	63.5000	Straight-Cylindrical	19.0500	4
5824522	4BN0250IL150A	6.3500	6.35	101.6000	Straight-Cylindrical	38.1000	4
5824520	4BN0250IR075A	6.3500	6.35	63.5000	Straight-Cylindrical	19.0500	4
5824521	4BN0250IR112A	6.3500	6.35	76.2000	Straight-Cylindrical	28.5750	4
5824519	4BN0250IS050A	6.3500	6.35	50.8000	Straight-Cylindrical	12.7000	4
5824523	4BN0250IX150A	6.3500	6.35	152.4000	Straight-Cylindrical	38.1000	4
5824524	4BN0281IR075A	7.1440	7.938	63.5000	Straight-Cylindrical	19.0500	4
5824527	4BN0312IL112A	7.9380	7.938	76.2000	Straight-Cylindrical	28.5750	4
5824526	4BN0312IR081A	7.9380	7.938	63.5000	Straight-Cylindrical	20.6380	4
5824525	4BN0312IS050A	7.9380	7.938	50.8000	Straight-Cylindrical	12.7000	4
5824528	4BN0312IX162A	7.9380	7.938	101.6000	Straight-Cylindrical	41.2750	4
5824529	4BN0344IR100A	8.7310	9.525	63.5000	Straight-Cylindrical	25.4000	4
5824532	4BN0375IL112A	9.5250	9.525	76.2000	Straight-Cylindrical	28.5750	4
5824531	4BN0375IR100A	9.5250	9.525	101.6000	Straight-Cylindrical	25.4000	4
5824530	4BN0375IS100A	9.5250	9.525	63.5000	Straight-Cylindrical	25.4000	4
5824533	4BN0375IX150A	9.5250	9.525	152.4000	Straight-Cylindrical	38.1000	4
5824534	4BN0437IR100A	11.1120	12.7	63.5000	Straight-Cylindrical	25.4000	4
5824539	4BN0500IL200A	12.7000	12.7	114.3000	Straight-Cylindrical	50.8000	4
5824536	4BN0500IR100A	12.7000	12.7	101.6000	Straight-Cylindrical	25.4000	4
5824538	4BN0500IR200A	12.7000	12.7	101.6000	Straight-Cylindrical	50.8000	4
5824535	4BN0500IS100A	12.7000	12.7	76.2000	Straight-Cylindrical	25.4000	4
5824537	4BN0500IX150A	12.7000	12.7	152.4000	Straight-Cylindrical	38.1000	4
5824540	4BN0500IX300A	12.7000	12.7	152.4000	Straight-Cylindrical	76.2000	4
5824551	4BN0562IR125A	14.2880	14.288	88.9000	Straight-Cylindrical	31.7500	4
5824553	4BN0625IL225A	15.8750	15.875	127.0000	Straight-Cylindrical	57.1500	4
5824552	4BN0625IR125A	15.8750	15.875	88.9000	Straight-Cylindrical	31.7500	4
5824555	4BN0750IL300A	19.0500	19.05	152.4000	Straight-Cylindrical	76.2000	4
5824554	4BN0750IR150A	19.0500	19.05	101.6000	Straight-Cylindrical	38.1000	4
5824556	4BN0875IR150A	22.2250	22.225	101.6000	Straight-Cylindrical	38.1000	4
5824558	4BN1000IL225A	25.4000	25.4	127.0000	Straight-Cylindrical	57.1500	4
5824557	4BN1000IR150A	25.4000	25.4	101.6000	Straight-Cylindrical	38.1000	4

Tolerance:

End Mill Tolerances
D1	tolerance	D	tolerance h6 + / -
All	+.000/- .002"	≤1/8"	+0/-.00024"
		1/8 1/4"	+0/-.00031"
		1/4 3/8"	+0/-.00035"
		3/8 23/32"	+0/-.00043"
		23/32 1 3/16"	+0/-.00051"

Режимы резания:


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/64	1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0156	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0001	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0001	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0001	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0001	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0002	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0001	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820		2450	IPT	.0001	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	820	–	3250	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	820	–	2450	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A) and Slotting (B)			KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		A		B	Cutting Speed vc SFM				D1 Diameter
									1/32	1/16	5/64	3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	ap	Min		Max	inch	.0313	.0625	.0781	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	0.5 x D	490	–	660	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	460	–	620	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	0.5 x D	390	–	520	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	0.5 x D	300	–	490	IPT	.0002	.0003	.0004	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	0.5 x D	300	–	380	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	0.5 x D	200	–	260	IPT	.0002	.0003	.0004	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	0.5 x D	390	–	490	IPT	.0002	.0004	.0005	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	0.5 x D	360	–	460	IPT	.0002	.0004	.0004	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	0.5 x D	820	–	3250	IPT	.0003	.0006	.0008	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0005	.0006	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	0.5 x D	820	–	2450	IPT	.0003	.0006	.0007	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090


		Side Milling (A)		KC633M			Recommended feed per tooth (IPT = inch/th) for side milling (A).
		A		Cutting Speed vc SFM				D1 Diameter
								3/32	1/8	3/16	1/4	5/16	3/8	1/2	5/8	3/4	1
Material Group		ap	ae	Min		Max	inch	.0938	.1250	.1875	.2500	.3125	.3750	.5000	.6250	.7500	1.0000
P	0	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	1	Ap1 max	0.1 x D	490	–	660	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	460	–	620	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	3	Ap1 max	0.1 x D	390	–	520	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	4	Ap1 max	0.1 x D	300	–	490	IPT	.0005	.0007	.0010	.0014	.0018	.0020	.0026	.0030	.0034	.0039
M	1	Ap1 max	0.1 x D	300	–	380	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
	2	Ap1 max	0.1 x D	200	–	260	IPT	.0004	.0006	.0009	.0012	.0016	.0018	.0023	.0027	.0031	.0036
K	1	Ap1 max	0.1 x D	390	–	490	IPT	.0007	.0009	.0014	.0018	.0023	.0027	.0034	.0040	.0044	.0049
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0005	.0007	.0011	.0015	.0020	.0023	.0029	.0034	.0039	.0045
N	1	Ap1 max	0.1 x D	360	–	460	IPT	.0009	.0013	.0019	.0025	.0031	.0038	.0050	.0063	.0075	.0100
	2	Ap1 max	0.1 x D	360	–	460	IPT	.0008	.0010	.0015	.0020	.0025	.0030	.0040	.0050	.0060	.0080
	4	Ap1 max	0.1 x D	360	–	460	IPT	.0008	.0011	.0017	.0023	.0028	.0034	.0045	.0056	.0068	.0090
