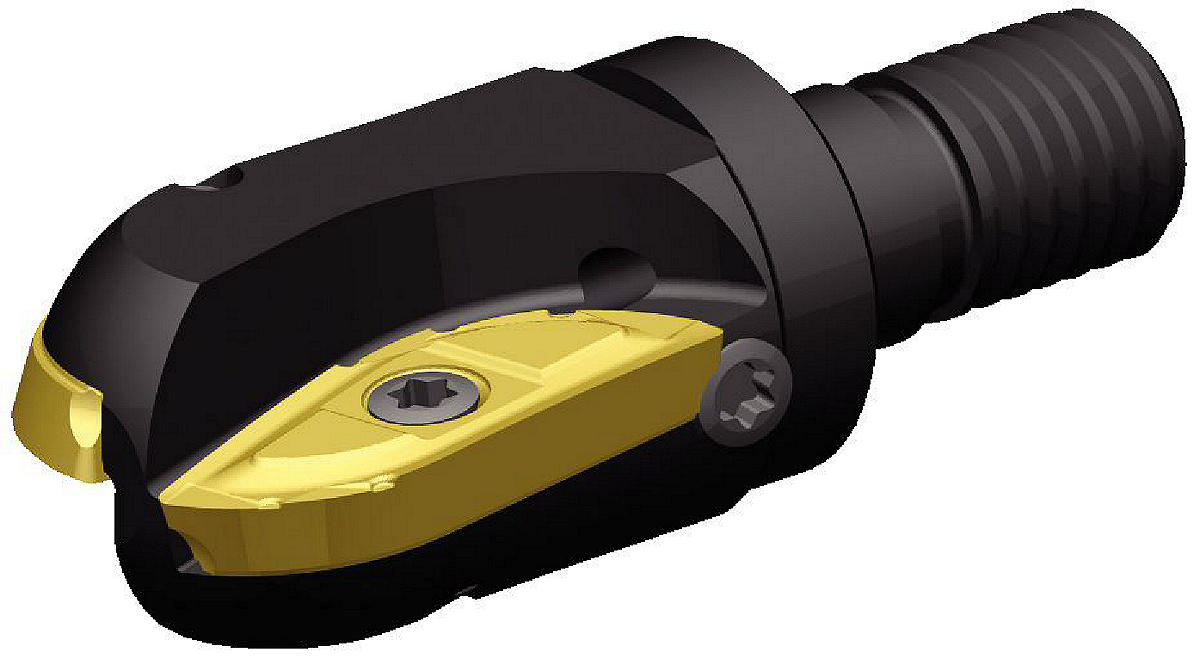

5505VX Modular Head Screw-On End Mills; Stellram; Inch. Ball Nose Milling Cutter. Концевые фрезы со сферическим концом 5505VX • Stellram
Особенности:
- Rough to semi-finish profiling and contour milling.
- Helical insert design for increased speeds and feeds.
- One insert geometry covers most materials for optimized inventory.
Применение:
- Inclined Square End Mill
- 3D Profiling
- Milling - Through Coolant
- Shank - Screw-On

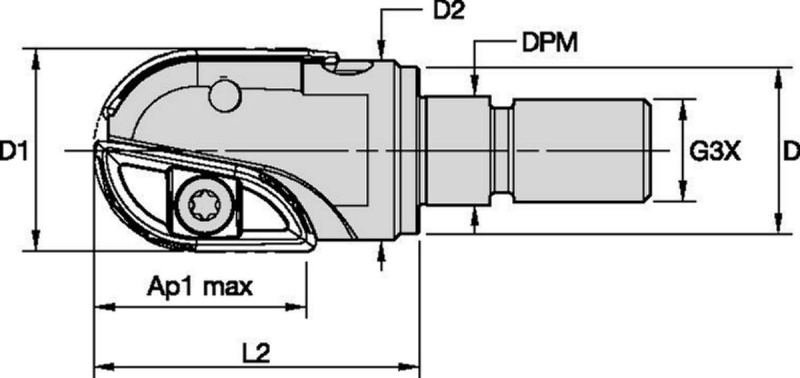

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | [D1] Effective Cutting Diameter | [L2] Head Length | [G3X] Connection Thread Size External | [AP1MAX] 1st Maximum Cutting Depth | [D2] Maximum Body Diameter | [DPM] Pilot Diameter Machine Side | Number of Inserts |
|---|
| 5673710 | A5505VX05SA.625R1.00 | 13.0 | 15.8760 | 25.4000 | M8 | 16.0000 | 14.8700 | 8.5000 | 2 |
| 5673603 | A5505VX06SA.750R1.377 | 18.0 | 19.0500 | 35.0000 | M10 | 19.0500 | 17.9100 | 10.5000 | 2 |
| 5673624 | A5505VX08SA1.00R1.575 | 21.0 | 25.4000 | 40.0000 | M12 | 25.0000 | 23.3600 | 12.5000 | 2 |
| 5672841 | A5505VX10SA1.25R1.968 | 29.0 | 31.7500 | 50.0000 | M16 | 32.0000 | 28.8800 | 17.0000 | 2 |
Выбор пластины:
Рекомендации по выбору режущих пластин
| Material Group | Light Machining | General Purpose | Heavy Machining |
| – | (Light geometry) | – | (Strong geometry) |
| – | wear resistance |  | toughness |
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| P3–P4 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| P5–P6 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| M1–M2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| M3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| K1–K2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| K3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| S3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| S4 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| H1 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
Подача:
At .315 Axial Depth of Cut (ap)
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .009 | .016 | .003 | .007 | .011 | .002 | .005 | .009 | .002 | .004 | .007 | .002 | .004 | .007 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .008 | .014 | .003 | .006 | .010 | .002 | .004 | .007 | .002 | .004 | .006 | .002 | .004 | .006 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .017 | .028 | .006 | .012 | .020 | .004 | .009 | .015 | .004 | .008 | .013 | .003 | .007 | .012 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .012 | .021 | .004 | .009 | .015 | .003 | .007 | .011 | .003 | .006 | .010 | .002 | .005 | .009 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .010 | .016 | .003 | .007 | .011 | .002 | .006 | .008 | .002 | .005 | .007 | .002 | .004 | .007 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .012 | .018 | .003 | .009 | .013 | .002 | .006 | .010 | .002 | .006 | .008 | .002 | .005 | .008 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .021 | .032 | .006 | .015 | .023 | .004 | .012 | .017 | .004 | .010 | .015 | .003 | .009 | .014 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .016 | .024 | .004 | .011 | .017 | .003 | .008 | .013 | .003 | .007 | .011 | .002 | .007 | .010 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .011 | .019 | .003 | .008 | .013 | .002 | .006 | .010 | .002 | .005 | .009 | .002 | .005 | .008 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .013 | .021 | .003 | .010 | .015 | .002 | .007 | .012 | .002 | .006 | .010 | .002 | .006 | .009 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .024 | .038 | .005 | .017 | .028 | .004 | .013 | .021 | .004 | .011 | .018 | .003 | .010 | .016 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .017 | .028 | .004 | .012 | .020 | .003 | .009 | .015 | .003 | .008 | .013 | .002 | .007 | .012 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .011 | .019 | .003 | .008 | .013 | .002 | .006 | .010 | .002 | .005 | .009 | .002 | .005 | .008 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .013 | .021 | .003 | .010 | .015 | .002 | .007 | .012 | .002 | .006 | .010 | .002 | .006 | .009 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .024 | .039 | .006 | .017 | .028 | .004 | .013 | .021 | .004 | .011 | .018 | .003 | .010 | .017 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .017 | .028 | .004 | .013 | .020 | .003 | .009 | .015 | .003 | .008 | .013 | .002 | .007 | .012 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .013 | .022 | .003 | .009 | .016 | .002 | .007 | .012 | .002 | .006 | .010 | .002 | .005 | .010 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .026 | .047 | .006 | .019 | .033 | .004 | .014 | .025 | .004 | .012 | .022 | .003 | .011 | .020 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .015 | .026 | .003 | .010 | .019 | .002 | .008 | .014 | .002 | .007 | .012 | .002 | .006 | .011 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .019 | .034 | .004 | .014 | .024 | .003 | .010 | .018 | .003 | .009 | .016 | .002 | .008 | .015 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .015 | .025 | .003 | .011 | .018 | .002 | .008 | .014 | .002 | .007 | .012 | .002 | .006 | .011 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .004 | .017 | .029 | .003 | .012 | .021 | .002 | .009 | .016 | .002 | .008 | .014 | .002 | .007 | .012 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .008 | .031 | .052 | .005 | .022 | .038 | .004 | .016 | .028 | .004 | .014 | .024 | .003 | .013 | .022 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | .006 | .022 | .038 | .004 | .016 | .027 | .003 | .012 | .020 | .003 | .010 | .018 | .002 | .010 | .016 | R-F |
