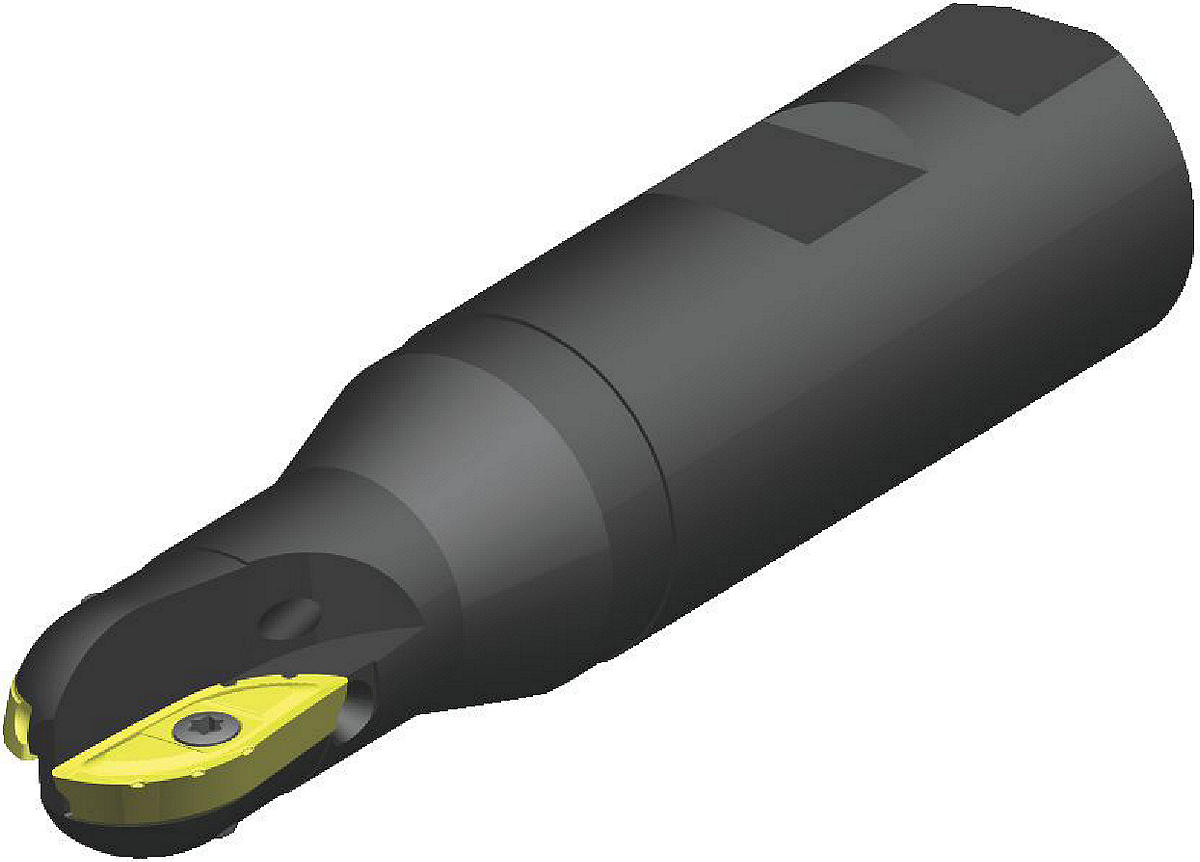

5505VX Weldon End Mills; Stellram; Метрическая система. Фрезы со сферическим концом. Концевые фрезы со сферическим концом 5505VX • Stellram
Особенности:
- Черновое и получистовое профильное фрезерование.
- Пластина с криволинейной кромкой обеспечивает возможность работы на повышенных режимах.
- Одна режущая геометрия подходит для обработки большинства материалов, оптимизируя номенклатуру инструмента.
Применение:
- Inclined Square End Mill
- 3D Profiling
- Milling - Through Coolant
- Shank - Cylindrical Weldon

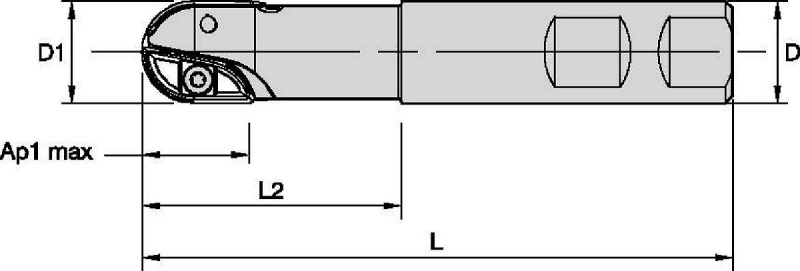

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [L] Overall Length | [D] Adapter / Shank / Bore Diameter | [L2] Head Length | [AP1MAX] 1st Maximum Cutting Depth | Number of Inserts |
|---|
| 5673112 | 5505VX25WA025R60 | 25.0000 | 116.0000 | 25.0 | 59.6100 | 25.0000 | 2 |
| 5672842 | 5505VX32WA032R100 | 32.0000 | 160.0000 | 32.0 | 100.0000 | 32.0000 | 2 |
| 5673329 | 5505VX32WA032R75 | 32.0000 | 135.2000 | 32.0 | 75.2000 | 32.0000 | 2 |
| 5673113 | 5505VX40WA040R100 | 40.0000 | 170.0000 | 40.0 | 100.0000 | 40.0000 | 2 |
| 5673521 | 5505VX40WA040R150 | 40.0000 | 220.0000 | 40.0 | 150.0000 | 40.0000 | 2 |
| 5673114 | 5505VX50WA050R100 | 50.0000 | 170.0000 | 40.0 | 100.0000 | 51.0000 | 2 |
| 5673297 | 5505VX50WA050R150 | 50.0000 | 230.0000 | 50.0 | 150.0000 | 51.0000 | 2 |
Выбор пластины:
| Material Group | Light Machining | General Purpose | Heavy Machining |
| – | (Light geometry) | – | (Strong geometry) |
| – | wear resistance |  | toughness |
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| P3–P4 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| P5–P6 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| M1–M2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| M3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| K1–K2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| K3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| S3 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| S4 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
| H1 | R-F | SP6519 | R-F | SP6519 | R-F | SP6519 |
Подача:
При осевой глубине резания (ap) 8,00
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,20 | 0,34 | 0,07 | 0,15 | 0,25 | 0,05 | 0,11 | 0,19 | 0,04 | 0,10 | 0,16 | 0,04 | 0,09 | 0,15 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,23 | 0,39 | 0,08 | 0,17 | 0,29 | 0,06 | 0,13 | 0,21 | 0,05 | 0,11 | 0,19 | 0,05 | 0,10 | 0,17 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,42 | 0,71 | 0,14 | 0,30 | 0,51 | 0,10 | 0,23 | 0,38 | 0,09 | 0,20 | 0,33 | 0,08 | 0,18 | 0,31 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,31 | 0,52 | 0,10 | 0,22 | 0,37 | 0,08 | 0,17 | 0,28 | 0,07 | 0,15 | 0,24 | 0,06 | 0,13 | 0,22 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,26 | 0,39 | 0,07 | 0,19 | 0,28 | 0,05 | 0,14 | 0,21 | 0,04 | 0,12 | 0,18 | 0,04 | 0,11 | 0,17 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,30 | 0,45 | 0,08 | 0,22 | 0,32 | 0,06 | 0,16 | 0,24 | 0,05 | 0,14 | 0,21 | 0,05 | 0,13 | 0,19 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,54 | 0,81 | 0,14 | 0,39 | 0,58 | 0,10 | 0,29 | 0,43 | 0,09 | 0,25 | 0,38 | 0,08 | 0,23 | 0,35 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,39 | 0,59 | 0,10 | 0,28 | 0,43 | 0,08 | 0,21 | 0,32 | 0,07 | 0,18 | 0,28 | 0,06 | 0,17 | 0,25 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,29 | 0,46 | 0,07 | 0,21 | 0,33 | 0,05 | 0,16 | 0,25 | 0,04 | 0,14 | 0,22 | 0,04 | 0,12 | 0,20 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,34 | 0,54 | 0,08 | 0,24 | 0,39 | 0,06 | 0,18 | 0,29 | 0,05 | 0,16 | 0,26 | 0,05 | 0,15 | 0,23 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,61 | 0,98 | 0,14 | 0,44 | 0,71 | 0,11 | 0,33 | 0,53 | 0,09 | 0,28 | 0,46 | 0,08 | 0,26 | 0,42 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,44 | 0,72 | 0,10 | 0,32 | 0,52 | 0,08 | 0,24 | 0,39 | 0,07 | 0,21 | 0,34 | 0,06 | 0,19 | 0,31 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,29 | 0,46 | 0,07 | 0,21 | 0,33 | 0,05 | 0,16 | 0,25 | 0,04 | 0,14 | 0,22 | 0,04 | 0,12 | 0,20 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,33 | 0,54 | 0,08 | 0,24 | 0,39 | 0,06 | 0,18 | 0,29 | 0,05 | 0,16 | 0,25 | 0,05 | 0,14 | 0,23 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,59 | 0,96 | 0,14 | 0,43 | 0,69 | 0,10 | 0,32 | 0,52 | 0,09 | 0,28 | 0,45 | 0,08 | 0,26 | 0,41 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,43 | 0,70 | 0,10 | 0,31 | 0,51 | 0,08 | 0,23 | 0,38 | 0,07 | 0,20 | 0,33 | 0,06 | 0,19 | 0,30 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,31 | 0,56 | 0,07 | 0,23 | 0,40 | 0,05 | 0,17 | 0,30 | 0,04 | 0,15 | 0,26 | 0,04 | 0,14 | 0,24 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,36 | 0,64 | 0,08 | 0,26 | 0,46 | 0,06 | 0,20 | 0,35 | 0,05 | 0,17 | 0,30 | 0,05 | 0,16 | 0,28 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,65 | 1,16 | 0,14 | 0,47 | 0,83 | 0,10 | 0,35 | 0,62 | 0,09 | 0,31 | 0,54 | 0,08 | 0,28 | 0,50 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,48 | 0,85 | 0,10 | 0,34 | 0,61 | 0,08 | 0,26 | 0,45 | 0.07 | 0,22 | 0,40 | 0,06 | 0,21 | 0,36 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,09 | 0,37 | 0,63 | 0,07 | 0,27 | 0,46 | 0,05 | 0,20 | 0,34 | 0,04 | 0,17 | 0,30 | 0,04 | 0,16 | 0,27 | R-F |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,11 | 0,43 | 0,73 | 0,08 | 0,31 | 0,53 | 0,06 | 0,23 | 0,39 | 0,05 | 0,20 | 0,34 | 0,05 | 0,18 | 0,31 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,14 | 0,56 | 0,96 | 0,10 | 0,40 | 0,69 | 0,08 | 0,30 | 0,52 | 0,07 | 0,26 | 0,45 | 0,06 | 0,24 | 0,41 | R-F |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 5% | 10% | 20% | 30% | 40–100% | |
| R-F | 0,19 | 0,78 | 1,35 | 0,14 | 0,56 | 0,96 | 0,11 | 0,42 | 0,72 | 0,09 | 0,37 | 0,63 | 0,08 | 0,34 | 0,57 | R-F |
