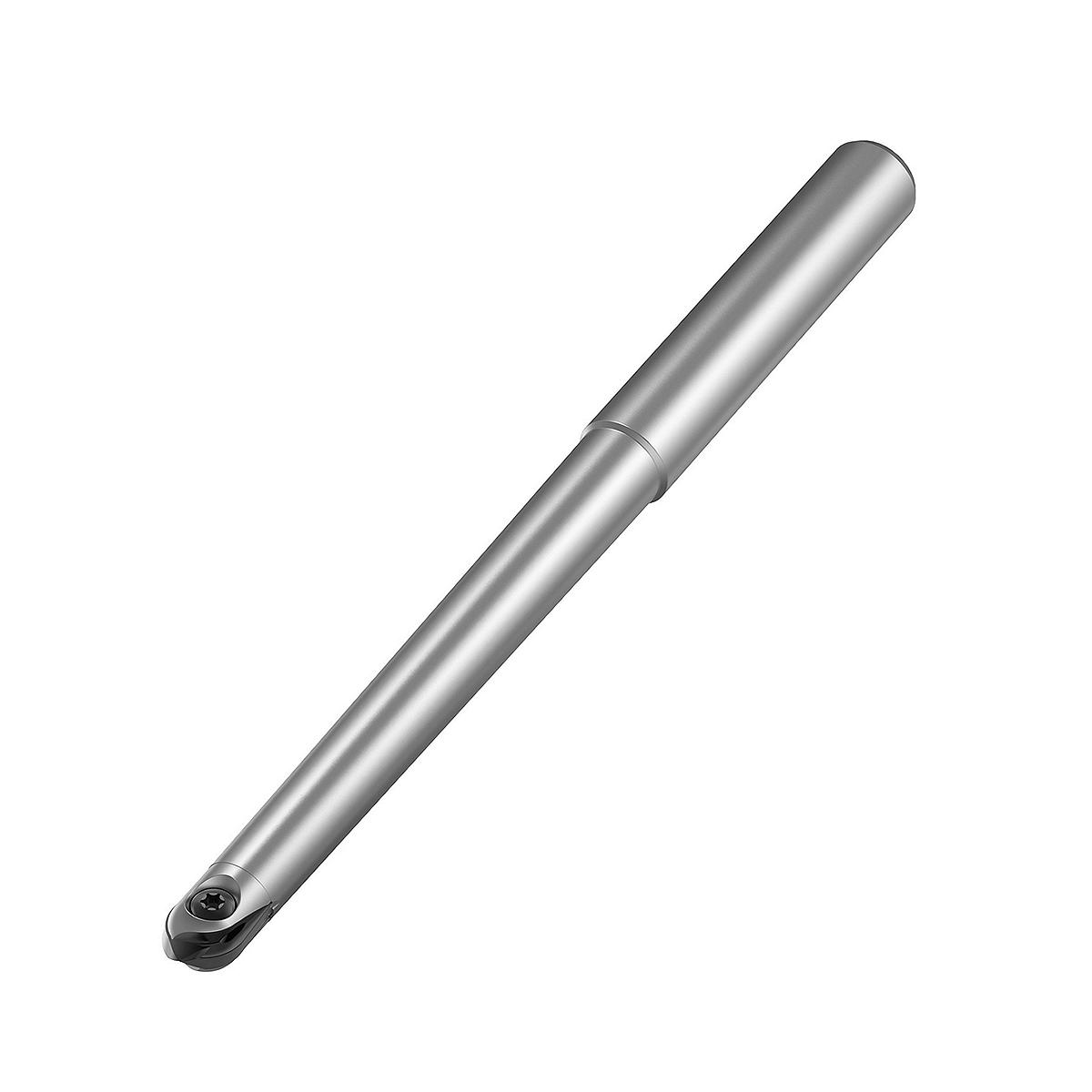

Фреза KDMB со сферическим концом для чистовой обработки; Конические концевые фрезы; Цилиндрический хвостовик; Твердый сплав; Метрическая система. Фрезы со сферическим концом для чистовой обработки. Фрезы KDMB со сферическим концом
Особенности:
- В наличии имеются фрезы диаметром: 6–16 мм.
- Высокая точность и минимальное биение.
- Хвостовик, изготовленный с точностью по h6, подходит для закрепления в патроне с термозажимом.
- Подходят для черновой и чистовой обработки.
- Коническое исполнение идеально подходит для 5-координатного фрезерования.
Применение:
- Ramping: Blank
- Slotting: Ball Nose
- Side Milling/Shoulder Milling: Ball Nose
- 3D Profiling
- Pocketing
- Shank - Cylindrical Plain

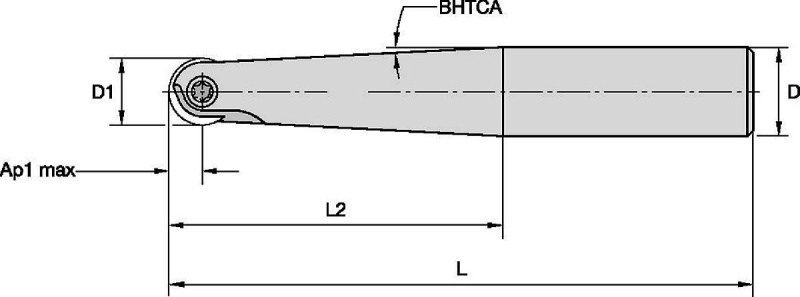

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [L] Overall Length | Gage Insert | [L2] Head Length | Coolant Supply | Maximum Ramping Angle | [Z] Number of Flutes | Max RPM | Number of Inserts | [L1] Gage Length | [D] Adapter / Shank / Bore Diameter | [L3] Usable Length | [AP1MAX] 1st Maximum Cutting Depth | Half Taper Clearance Angle [BHTCA] |
|---|
| 3964257 | KDMB06R90A08HN | 6.0000 | 90.0000 | KDM.06.. | 40.0000 | N | 3.000 | 2 | 40000 | 1 | 90.0000 | 8.0 | 3.0000 | 3.0000 | 1.750 |
| 3964258 | KDMB08R100A10HN | 8.0000 | 100.0000 | KDM.08.. | 60.0000 | N | 3.000 | 2 | 40000 | 1 | 100.0000 | 10.0 | 4.0000 | 4.0000 | 1.250 |
| 3964259 | KDMB08R150A10HN | 8.0000 | 150.0000 | KDM.08.. | 90.0000 | N | 3.000 | 2 | 40000 | 1 | 150.0000 | 10.0 | 4.0000 | 4.0000 | 1.000 |
| 3964260 | KDMB10R100A12HNC | 10.0000 | 100.0000 | KDMB10.. | 60.0000 | Y | 3.000 | 2 | 40000 | 1 | 100.0000 | 12.0 | 5.0000 | 5.0000 | 1.250 |
| 3964261 | KDMB10R150A12HNC | 10.0000 | 150.0000 | KDMB10.. | 90.0000 | Y | 3.000 | 2 | 40000 | 1 | 150.0000 | 12.0 | 5.0000 | 5.0000 | 1.000 |
| 3964262 | KDMB12R120A16HNC | 12.0000 | 120.0000 | KDMB12.. | 70.0000 | Y | 3.000 | 2 | 40000 | 1 | 120.0000 | 16.0 | | 6.0000 | 2.000 |
| 3964263 | KDMB12R150A16HNC | 12.0000 | 150.0000 | KDMB12.. | 90.0000 | Y | 3.000 | 2 | 40000 | 1 | 150.0000 | 16.0 | 6.0000 | 6.0000 | 1.500 |
| 3964264 | KDMB16R140A20HNC | 16.0000 | 140.0000 | KDMB16.. | 70.0000 | Y | 3.000 | 2 | 40000 | 1 | 140.0000 | 20.0 | 8.0000 | 8.0000 | 2.000 |
| 3964265 | KDMB16R175A20HNC | 16.0000 | 175.0000 | KDMB16.. | 90.0000 | Y | 3.000 | 2 | 40000 | 1 | 175.0000 | 20.0 | 8.0000 | 8.0000 | 1.500 |
Выбор пластины:
Фрезы KDMB со сферическим концом; 6 мм
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance |  | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | – | – |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | – | – |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | – | – |
| M1–M2 | .E..GP | KC515M | – | – | – | – |
| M3 | .E..GP | KC515M | | | | |
| K1–K2 | .E..GP | KC515M | .E..GP | KC515M | – | – |
| K3 | .E..GP | KC515M | .E..GP | KC515M | – | – |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | – | – |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..GN | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..GN | KC515M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..GN | KC530M |
| M1–M2 | .E..GP | KC515M | .E..GN | KC530M | – | – |
| M3 | .E..GP | KC515M | .E..GN | KC530M | – | – |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | – | – |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..GN | KC515M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..GN | KC515M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..GN | KC530M |
| M1–M2 | .E..GP | KC515M | .E..GN | KC530M | .E..GN | KC530M |
| M3 | .E..GP | KC515M | .E..GN | KC530M | .E..GN | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | – | – |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..HC | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| M1–M2 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| M3 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | .E..HC | KC530M |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..HC | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| M1–M2 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| M3 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | .E..HC | KC530M |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..HC | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| M1–M2 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| M3 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | .E..HC | KC530M |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..HC | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| M1–M2 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| M3 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | .E..HC | KC530M |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
| Material Group | Light Machining | General Purpose | Heavy Machining |
| (Light geometry) | | (Strong geometry) |
| wear resistance | | toughness |
| Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GP | KC515M | .E..GP | KC515M | .E..HC | KC530M |
| P3–P4 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| P5–P6 | .E..GP | KC505M | .E..GP | KC515M | .E..HC | KC530M |
| M1–M2 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| M3 | .E..GP | KC515M | .E..HC | KC530M | .E..HC | KC530M |
| K1–K2 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GP | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | .E..LD | K115M | .E..LD | K115M | – | – |
| N3 | .E..LD | K115M | .E..LD | K115M | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | .E..LD | K115M | .E..GP | KC515M | .E..HC | KC530M |
| H1 | .E..GP | KC505M | .E..GP | KC505M | .E..GN | KC505M |
Подача:
Фрезы KDMB со сферическим концом; 6 мм
| Working Diameter (Dw) at Axial Depth of Cut (ap) |
| D1 max | 3,00 | 1,50 | 0,50 | 0,25 |
| 6,00 | 6,00 | 5,20 | 3,32 | 2,40 |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,12 | 0,17 | 0,29 | 0,09 | 0,13 | 0,22 | 0,08 | 0,11 | 0,19 | 0,07 | 0,10 | 0,18 | 0,07 | 0,10 | 0,18 | .E..LD |
| .E..GP | 0,14 | 0,20 | 0,34 | 0,11 | 0,15 | 0,25 | 0,09 | 0,13 | 0,22 | 0,09 | 0,12 | 0,21 | 0,08 | 0,12 | 0,20 | .E..GP |
| .E..GN | 0,17 | 0,25 | 0,34 | 0,13 | 0,19 | 0,25 | 0,11 | 0,17 | 0,22 | 0,10 | 0,16 | 0,21 | 0,10 | 0,15 | 0,20 | .E..GN |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,14 | 0,19 | 0,34 | 0,10 | 0,14 | 0,25 | 0,09 | 0,13 | 0,22 | 0,08 | 0,12 | 0,21 | 0,08 | 0,12 | 0,20 | .E..LD |
| .E..GP | 0,16 | 0,23 | 0,39 | 0,12 | 0,17 | 0,29 | 0,11 | 0,15 | 0,26 | 0,10 | 0,14 | 0,24 | 0,10 | 0,14 | 0,23 | .E..GP |
| .E..GN | 0,20 | 0,29 | 0,39 | 0,15 | 0,22 | 0,29 | 0,13 | 0,19 | 0,26 | 0,12 | 0,18 | 0,24 | 0,12 | 0,18 | 0,23 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,30 | 0,42 | 0,74 | 0,22 | 0,31 | 0,55 | 0,19 | 0,27 | 0,48 | 0,18 | 0,26 | 0,45 | 0,18 | 0,25 | 0,44 | .E..LD |
| .E..GP | 0,36 | 0,50 | 0,86 | 0,27 | 0,38 | 0,64 | 0,23 | 0,33 | 0,56 | 0,22 | 0,31 | 0,52 | 0,21 | 0,30 | 0,51 | .E..GP |
| .E..GN | 0,43 | 0,64 | 0,86 | 0,32 | 0,48 | 0,64 | 0,28 | 0,42 | 0,56 | 0,26 | 0,39 | 0,52 | 0,25 | 0,38 | 0,51 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,21 | 0,30 | 0,53 | 0,16 | 0,23 | 0,40 | 0,14 | 0,20 | 0,35 | 0,13 | 0,18 | 0,32 | 0,13 | 0,18 | 0,32 | .E..LD |
| .E..GP | 0,26 | 0,36 | 0,62 | 0,19 | 0,27 | 0,46 | 0,17 | 0,24 | 0,40 | 0,16 | 0,22 | 0,38 | 0,15 | 0,22 | 0,37 | .E..GP |
| .E..GN | 0,31 | 0,46 | 0,62 | 0,23 | 0,35 | 0,46 | 0,20 | 0,30 | 0,40 | 0,19 | 0,28 | 0,38 | 0,18 | 0,28 | 0,37 | .E..GN |
| Working Diameter (Dw) at Axial Depth of Cut (ap) |
| D1 max | 4,00 | 1,50 | 0,50 | 0,25 |
| 8,00 | 8,00 | 6,24 | 3,87 | 2,78 |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,12 | 0,17 | 0,29 | 0,09 | 0,13 | 0,22 | 0,08 | 0,11 | 0,19 | 0,07 | 0,10 | 0,18 | 0,07 | 0,10 | 0,18 | .E..LD |
| .E..GP | 0,14 | 0,20 | 0,35 | 0,11 | 0,15 | 0,26 | 0,09 | 0,13 | 0,23 | 0,09 | 0,12 | 0,21 | 0,08 | 0,12 | 0,21 | .E..GP |
| .E..GN | 0,17 | 0,25 | 0,43 | 0,13 | 0,19 | 0,32 | 0,11 | 0,17 | 0,28 | 0,10 | 0,16 | 0,26 | 0,10 | 0,15 | 0,25 | .E..GN |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,15 | 0,21 | 0,38 | 0,11 | 0,16 | 0,28 | 0,10 | 0,14 | 0,24 | 0,09 | 0,13 | 0,23 | 0,09 | 0,13 | 0,22 | .E..LD |
| .E..GP | 0,18 | 0,26 | 0,45 | 0,14 | 0,19 | 0,34 | 0,12 | 0,17 | 0,29 | 0,11 | 0,16 | 0,27 | 0,11 | 0,15 | 0,27 | .E..GP |
| .E..GN | 0,22 | 0,33 | 0,55 | 0,16 | 0,24 | 0,41 | 0,14 | 0,21 | 0,36 | 0,13 | 0,20 | 0,33 | 0,13 | 0,20 | 0,33 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,34 | 0,48 | 0,85 | 0,25 | 0,36 | 0,63 | 0,22 | 0,31 | 0,55 | 0,21 | 0,29 | 0,51 | 0,20 | 0,29 | 0,50 | .E..LD |
| .E..GP | 0,41 | 0,58 | 1,02 | 0,31 | 0,43 | 0,76 | 0,27 | 0,38 | 0,66 | 0,25 | 0,35 | 0,62 | 0,24 | 0,34 | 0,60 | .E..GP |
| .E..GN | 0,49 | 0,74 | 1,23 | 0,37 | 0,55 | 0,92 | 0,32 | 0,48 | 0,80 | 0,30 | 0,45 | 0,75 | 0,29 | 0,44 | 0,73 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,24 | 0,35 | 0,61 | 0,18 | 0,26 | 0,45 | 0,16 | 0,23 | 0,39 | 0,15 | 0,21 | 0,37 | 0,15 | 0,21 | 0,36 | .E..LD |
| .E..GP | 0,29 | 0,41 | 0,73 | 0,22 | 0,31 | 0,54 | 0,19 | 0,27 | 0,47 | 0,18 | 0,25 | 0,44 | 0,18 | 0,25 | 0,43 | .E..GP |
| .E..GN | 0,35 | 0,53 | 0,88 | 0,26 | 0,39 | 0,66 | 0,23 | 0,34 | 0,57 | 0,21 | 0,32 | 0,54 | 0,21 | 0,31 | 0,52 | .E..GN |
| Working Diameter (Dw) at Axial Depth of Cut (ap) |
| D1 max | 5,00 | 2,00 | 1,00 | 0,50 |
| 10,00 | 10,00 | 8,00 | 6,00 | 4,36 |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,12 | 0,17 | 0,29 | 0,09 | 0,13 | 0,22 | 0,08 | 0,11 | 0,19 | 0,07 | 0,10 | 0,18 | 0,07 | 0,10 | 0,18 | .E..LD |
| .E..GP | 0,14 | 0,20 | 0,35 | 0,11 | 0,15 | 0,26 | 0,09 | 0,13 | 0,23 | 0,09 | 0,12 | 0,21 | 0,08 | 0,12 | 0,21 | .E..GP |
| .E..GN | 0,17 | 0,27 | 0,47 | 0,13 | 0,20 | 0,35 | 0,11 | 0,17 | 0,31 | 0,10 | 0,16 | 0,29 | 0,10 | 0,16 | 0,28 | .E..GN |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,27 | 0,38 | 0,67 | 0,20 | 0,29 | 0,50 | 0,18 | 0,25 | 0,44 | 0,17 | 0,23 | 0,41 | 0,16 | 0,23 | 0,40 | .E..LD |
| .E..GP | 0,33 | 0,46 | 0,81 | 0,24 | 0,34 | 0,60 | 0,21 | 0,30 | 0,53 | 0,20 | 0,28 | 0,49 | 0,19 | 0,28 | 0,48 | .E..GP |
| .E..GN | 0,39 | 0,62 | 1,08 | 0,29 | 0,46 | 0,81 | 0,25 | 0,40 | 0,70 | 0,24 | 0,37 | 0,66 | 0,23 | 0,37 | 0,64 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,15 | 0,21 | 0,37 | 0,11 | 0,16 | 0,27 | 0,10 | 0,14 | 0,24 | 0,09 | 0,13 | 0,22 | 0,09 | 0,13 | 0,22 | .E..LD |
| .E..GP | 0,18 | 0,25 | 0,44 | 0,13 | 0,19 | 0,33 | 0,12 | 0,16 | 0,29 | 0,11 | 0,15 | 0,27 | 0,11 | 0,15 | 0,26 | .E..GP |
| .E..GN | 0,21 | 0,33 | 0,59 | 0,16 | 0,25 | 0,44 | 0,14 | 0,22 | 0,38 | 0,13 | 0,20 | 0,36 | 0,13 | 0,20 | 0,35 | .E..GN |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry |
| 10% | 20% | 30% | 40% | 50–100% | |
| .E..LD | 0,20 | 0,28 | 0,49 | 0,15 | 0,21 | 0,37 | 0,13 | 0,18 |
