Описание

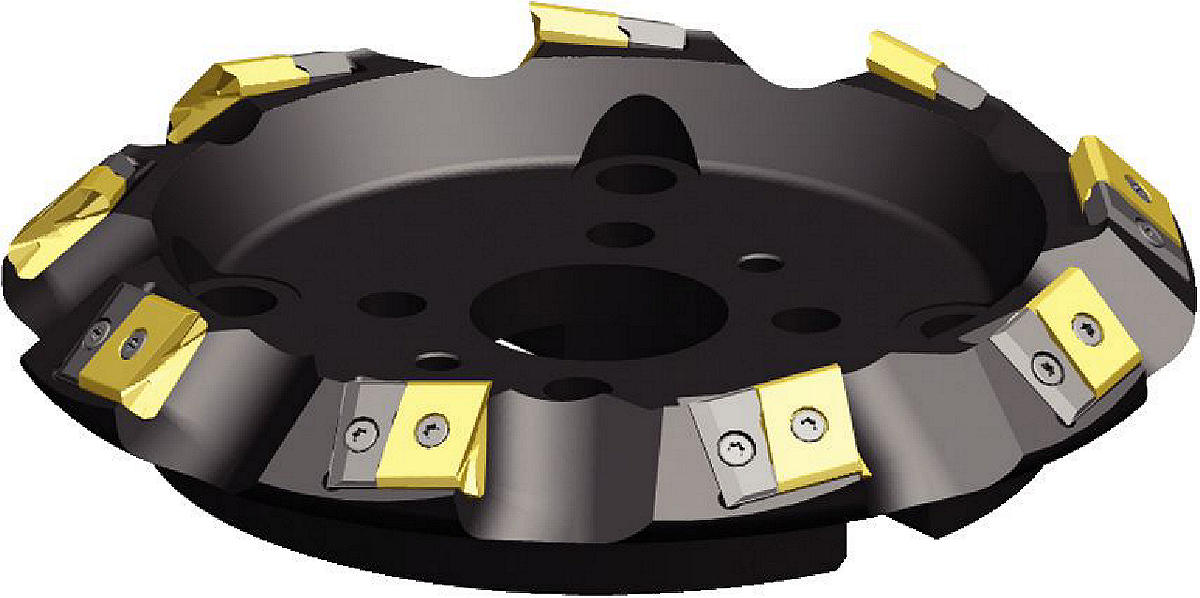

Торцевая фреза Dodeka MAX с углом в плане 45°; Насадные фрезы со сменными режущими пластинами; Дюймовая система; Inch. Торцевые фрезы со сменными пластинами; Крупный и средний шаг зубьев. MEGA 45° • Для тяжелой обработки
Применение:
- Face Milling
- Side Milling/Shoulder Milling: Eased Chamfer
- Milling - Side and Face

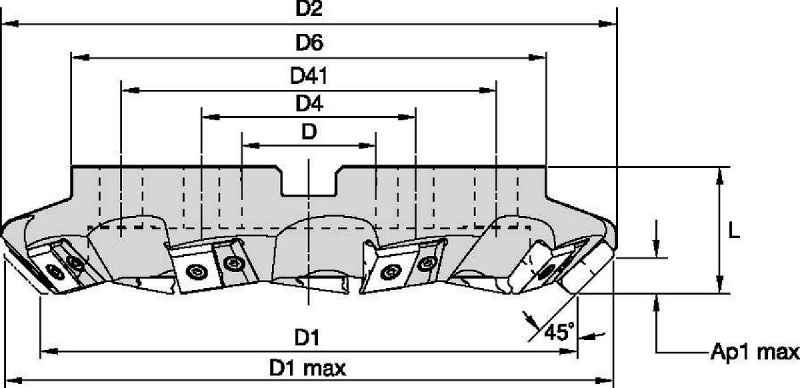

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [L] Overall Length | [D1MAX] Maximum Cutting Diameter | Weight Pounds | [D2] Maximum Body Diameter | Max RPM | Number of Inserts | [D4] Bolt Circle 4 | [D] Adapter / Shank / Bore Diameter | [D6] Hub Diameter | [AP1MAX] 1st Maximum Cutting Depth | [D41] Bolt Circle 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4105177 | MEGA45D1000LN863C10 | 254.0000 | 60.3200 | 289.3600 | 28.04 | 292.1000 | 8850 | 9 | 101.6000 | 63.5 | 225.0000 | 17.1500 | 177.8000 |
| 6057038 | MEGA45D1000LN863C10LH | 254.0000 | 60.3250 | 289.3590 | 28.05 | 292.1000 | 8850 | 9 | 101.6000 | 63.5 | 225.0000 | 17.1540 | 177.8000 |
| 4032278 | MEGA45D1000LN863M10 | 254.0000 | 60.3200 | 289.3600 | 29.05 | 292.1000 | 8850 | 11 | 101.6000 | 63.5 | 225.0000 | 17.1500 | 177.8000 |
| 4105178 | MEGA45D1200LN863C10 | 304.8000 | 80.0000 | 340.1600 | 47.50 | 342.9000 | 8080 | 10 | 101.6000 | 63.5 | 225.0000 | 17.1500 | 177.8000 |
| 4032279 | MEGA45D1200LN863M10 | 304.8000 | 80.0000 | 340.1600 | 48.82 | 342.9000 | 8080 | 13 | 101.6000 | 63.5 | 225.0000 | 17.1500 | 177.8000 |
| 4032274 | MEGA45D500LN863M6 | 127.0000 | 60.3200 | 162.3400 | 9.18 | 170.1800 | 12520 | 6 | 38.1 | 96.7700 | 17.1500 | ||
| 4032277 | MEGA45D800LN863M10 | 203.2000 | 60.3200 | 238.5500 | 19.86 | 242.5700 | 9890 | 9 | 101.6000 | 63.5 | 165.1000 | 17.1500 | |
| 6797491 | MEGA45D800LN863M10LH | 203.2000 | 60.3250 | 238.5540 | 20.03 | 207.8190 | 9890 | 9 | 101.6000 | 63.5 | 165.1000 | 17.1540 |
Выбор пластины:
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | – | (Strong geometry) | ||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | .S..HD | KC725M | .S..HD | KCPK30 | .S..HD2 | KCPM40 |
| P3–P4 | .S..HD | KCPK30 | .S..HD2 | KCPK30 | .S..HD2 | KCPM40 |
| P5–P6 | .S..HD | KC725M | .S..HD2 | KCPK30 | .S..HD2 | KCPM40 |
| M1–M2 | .S..HD | KC725M | .S..HD2 | KCSM40 | .S..HD2 | KCPM40 |
| M3 | .S..HD | KCPK30 | .S..HD2 | KCSM40 | .S..HD2 | KCPM40 |
| K1–K2 | .S..HD | KC520M | .S..HD | KCK15 | .S..HD2 | KC520M |
| K3 | .S..HD | KC520M | .S..HD | KCK15 | .S..HD2 | KC520M |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .S..HD | KC725M | .S..HD2 | KCSM40 | .S..HD2 | KCSM40 |
| S3 | .S..HD | KC725M | .S..HD2 | KCPM40 | .S..HD2 | KCSM40 |
| S4 | .S..HD | KC725M | .S..HD2 | KCSM40 | .S..HD2 | KCSM40 |
| H1 | – | – | – | – | – | – |
Подача:
Рекомендуемые начальные подачи [мм/зуб]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .S..HD | 0,33 | 0,83 | 1,34 | 0,24 | 0,60 | 0,96 | 0,18 | 0,45 | 0,71 | 0,16 | 0,39 | 0,62 | 0,14 | 0,36 | 0,57 | .S..HD |
| .S..HD2 | 0,33 | 0,91 | 1,53 | 0,24 | 0,66 | 1,09 | 0,18 | 0,49 | 0,81 | 0,16 | 0,43 | 0,71 | 0,14 | 0,39 | 0,65 | .S..HD2 |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40 100% | ||||||||||||
| .S..HD | .013 | .033 | .053 | .009 | .023 | .038 | .007 | .018 | .028 | .006 | .015 | .024 | .006 | .014 | .022 | .S..HD |
| .S..HD2 | .013 | .036 | .060 | .009 | .026 | .043 | .007 | .019 | .032 | .006 | .017 | .028 | .006 | .015 | .025 | .S..HD2 |
| Light Machining | General Purpose | Heavy Machining |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | KC520M | KC725M | KCK15 | KCPK30 | KCPK30 | |||||||||||
| P | 1 | – | – | – | 315 | 275 | 255 | – | – | – | 545 | 475 | 440 | – | – | – |
| 2 | – | – | – | 260 | 230 | 195 | – | – | – | 335 | 305 | 275 | – | – | – | |
| 3 | – | – | – | 240 | 205 | 170 | – | – | – | 305 | 275 | 250 | – | – | – | |
| 4 | – | – | – | 215 | 180 | 145 | – | – | – | 225 | 210 | 190 | – | – | – | |
| 5 | – | – | – | 180 | 160 | 145 | – | – | – | 310 | 275 | 255 | – | – | – | |
| 6 | – | – | – | 160 | 120 | 95 | – | – | – | 190 | 165 | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 325 | 295 | 260 | – | – | – | 505 | 460 | 410 | 355 | 320 | 285 | – | – | – |
| 2 | 255 | 225 | 215 | – | – | – | 400 | 355 | 330 | 280 | 255 | 230 | – | – | – | |
| 3 | 215 | 190 | 170 | – | – | – | 335 | 300 | 275 | 235 | 210 | 195 | – | – | – | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| Material Group | KC520M | KC725M | KCK15 | KCPK30 | |||||||||
| P | 1 | – | – | – | 1030 | 900 | 840 | – | – | – | 1780 | 1560 | 1450 |
| 2 | – | – | – | 860 | 760 | 640 | – | – | – | 1100 | 1000 | 900 | |
| 3 | – | – | – | 790 | 670 | 550 | – | – | – | 1000 | 900 | 820 | |
| 4 | – | – | – | 710 | 590 | 470 | – | – | – | 740 | 690 | 620 | |
| 5 | – | – | – | 590 | 530 | 470 | – | – | – | 1020 | 910 | 830 | |
| 6 | – | – | – | 520 | 400 | 310 | – | – | – | 620 | 540 | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 1060 | 960 | 850 | – | – | – | 1660 | 1510 | 1340 | 1160 | 1050 | 940 |
| 2 | 830 | 740 | 700 | – | – | – | 1310 | 1170 | 1090 | 920 | 830 | 760 | |
| 3 | 700 | 620 | 560 | – | – | – | 1100 | 980 | 900 | 770 | 690 | 640 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | |
