Описание

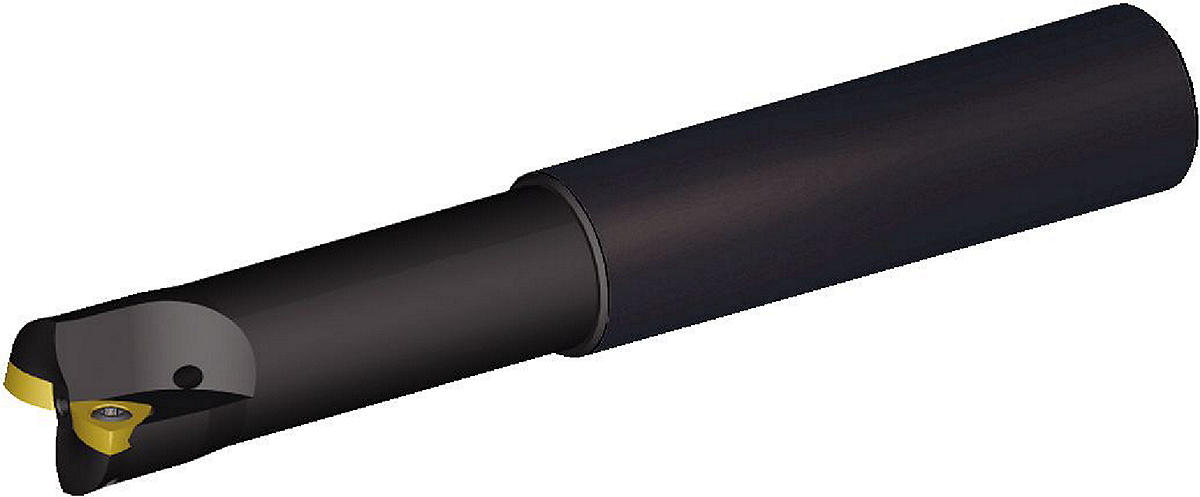

Cylindrical End Mills ; WPGX03...; Inch. Cylindrical End Mills. KenFeed™ Mini
Особенности:
- Engineered to use with small machines and/or components using high-feed milling strategies.
- Fine-pitch cutters boost productivity; able to run up to 0,05 IPT.
- Pocketing, ramping, and helical interpolations.
- First choice above 3 x D applications.
Применение:
- Helical Milling
- Plunge Milling
- Ramping: Blank
- Slotting: Ball Nose
- Side Milling/Shoulder Milling: Ball Nose
- 3D Profiling
- Pocketing
- Shank - Cylindrical Plain
- Milling - Through Coolant

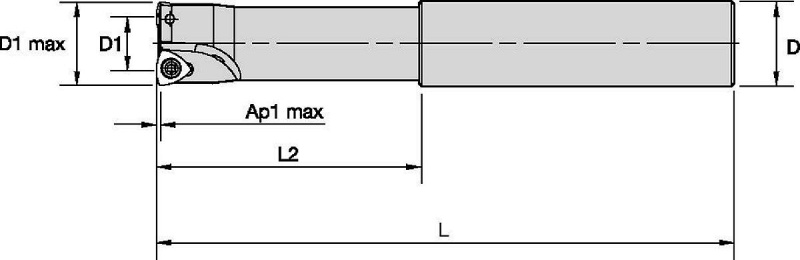

| SAP Material Number | ISO Catalog Number | [D] Adapter / Shank / Bore Diameter | Gage Insert | [D1] Effective Cutting Diameter | [L] Overall Length | [L2] Head Length | [D1MAX] Maximum Cutting Diameter | Weight Pounds | [AP1MAX] 1st Maximum Cutting Depth | Maximum Ramping Angle | Max RPM | Number of Inserts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3652893 | KF063WP0302C063L100 | 15.875 | WP..0302.. | 9.9800 | 85.4000 | 25.4000 | 15.8750 | 0.25 | 0.8400 | 8.500 | 20050 | 2 |
| 4138466 | KF075WP0303C075L150 | 19.05 | WP..0302.. | 12.5000 | 114.3000 | 35.3400 | 19.0500 | 0.48 | 1.0200 | 5.300 | 16700 | 3 |
| 4138467 | KF075WP0303C075L250 | 19.05 | WP..0302.. | 11.7000 | 152.4000 | 60.8000 | 19.0500 | 0.65 | 1.0200 | 5.300 | 16700 | 3 |
| 4138468 | KF100WP0304C100L150 | 25.4 | WP..0302.. | 18.8000 | 121.9200 | 35.3300 | 25.4000 | 0.95 | 1.0200 | 5.300 | 12500 | 4 |
| 4138469 | KF100WP0304C100L250 | 25.4 | WP..0302.. | 18.8000 | 152.4000 | 59.9000 | 25.4000 | 1.18 | 1.0200 | 3.000 | 12500 | 4 |
Выбор пластины:
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | (Strong geometry) | |||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1–P2 | .LD.. | KC522M | .LD.. | KCPK30 | .LD.. | KCPK30 |
| P3–P4 | .LD.. | KC522M | .LD.. | KCPK30 | .LD.. | KCPK30 |
| P5–P6 | .LD.. | KCPK30 | .LD.. | KCPM20 | – | – |
| M1–M2 | .LD.. | KC522M | .LD.. | KC725M | – | – |
| M3 | .LD.. | KC522M | .LD.. | KC725M | – | – |
| K1–K2 | .LN.. | KC510M | .LD.. | KCPK30 | – | – |
| K3 | .LN.. | KC510M | .LD.. | KCPK30 | – | – |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .LD.. | KC522M | .LD.. | KC725M | – | – |
| S3 | .LD.. | KC725M | .LD.. | KC725M | – | – |
| S4 | .LD.. | KC522M | .LD.. | KC725M | – | – |
| H1 | .LN.. | KC510M | .LN.. | KC510M | – | – |
Подача:
Recommended Starting Feeds [IPT]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .LD.. | .027 | .070 | .121 | .019 | .049 | .081 | .017 | .042 | .068 | .016 | .040 | .063 | .015 | .039 | .062 | .LD.. |
| .LN.. | .027 | .070 | .121 | .019 | .049 | .081 | .017 | .042 | .068 | .016 | .040 | .063 | .015 | .039 | .062 | .LN.. |
| Light Machining | General Purpose | Heavy Machining |
Скорость:
Рекомендуемая начальная скорость резания [м/мин]
| Material Group | KC510M | KC522M | KC725M | KCPM20 | KCPK30 | |||||||||||
| P | 1 | – | – | – | 1300 | 1130 | 1060 | 1030 | 900 | 840 | 2170 | 1910 | 1760 | 1780 | 1560 | 1450 |
| 2 | – | – | – | 1080 | 950 | 790 | 860 | 760 | 640 | 1340 | 1210 | 1090 | 1100 | 1000 | 900 | |
| 3 | – | – | – | 1000 | 840 | 700 | 790 | 670 | 550 | 1210 | 1090 | 1000 | 1000 | 900 | 820 | |
| 4 | 960 | 780 | 660 | 890 | 730 | 590 | 710 | 590 | 470 | 910 | 840 | 760 | 740 | 690 | 620 | |
| 5 | – | – | – | 730 | 660 | 590 | 590 | 530 | 470 | 1090 | 980 | 900 | 1020 | 910 | 830 | |
| 6 | – | – | – | 650 | 490 | 400 | 520 | 400 | 310 | 760 | 660 | 570 | 620 | 540 | – | |
| M | 1 | – | – | – | 800 | 710 | 650 | 670 | 590 | 540 | 880 | 790 | 680 | 820 | 720 | 620 |
| 2 | – | – | – | 730 | 620 | 520 | 610 | 520 | 430 | 800 | 700 | 620 | 730 | 640 | 550 | |
| 3 | – | – | – | 550 | 480 | 370 | 460 | 400 | 310 | 640 | 570 | 490 | 570 | 520 | 460 | |
| K | 1 | 1150 | 1040 | 940 | 900 | 820 | 720 | – | – | – | 1420 | 1280 | 1150 | 1160 | 1050 | 940 |
| 2 | 910 | 820 | 760 | 710 | 640 | 590 | – | – | – | 1130 | 1010 | 920 | 920 | 830 | 760 | |
| 3 | 770 | 680 | 620 | 590 | 530 | 480 | – | – | – | 950 | 840 | 780 | 770 | 690 | 640 | |
| N | 1 | 2520 | 2240 | 2060 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – |
| 2 | – | – | – | 160 | 140 | 110 | 140 | 120 | 100 | – | – | – | – | – | – | |
| 3 | – | – | – | 200 | 160 | 110 | 180 | 140 | 100 | – | – | – | – | – | – | |
| 4 | – | – | – | 280 | 200 | 140 | 240 | 180 | 120 | – | – | – | – | – | – | |
| H | 1 | 600 | 500 | 370 | 470 | 360 | 280 | – | – | – | 550 | 460 | 370 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
