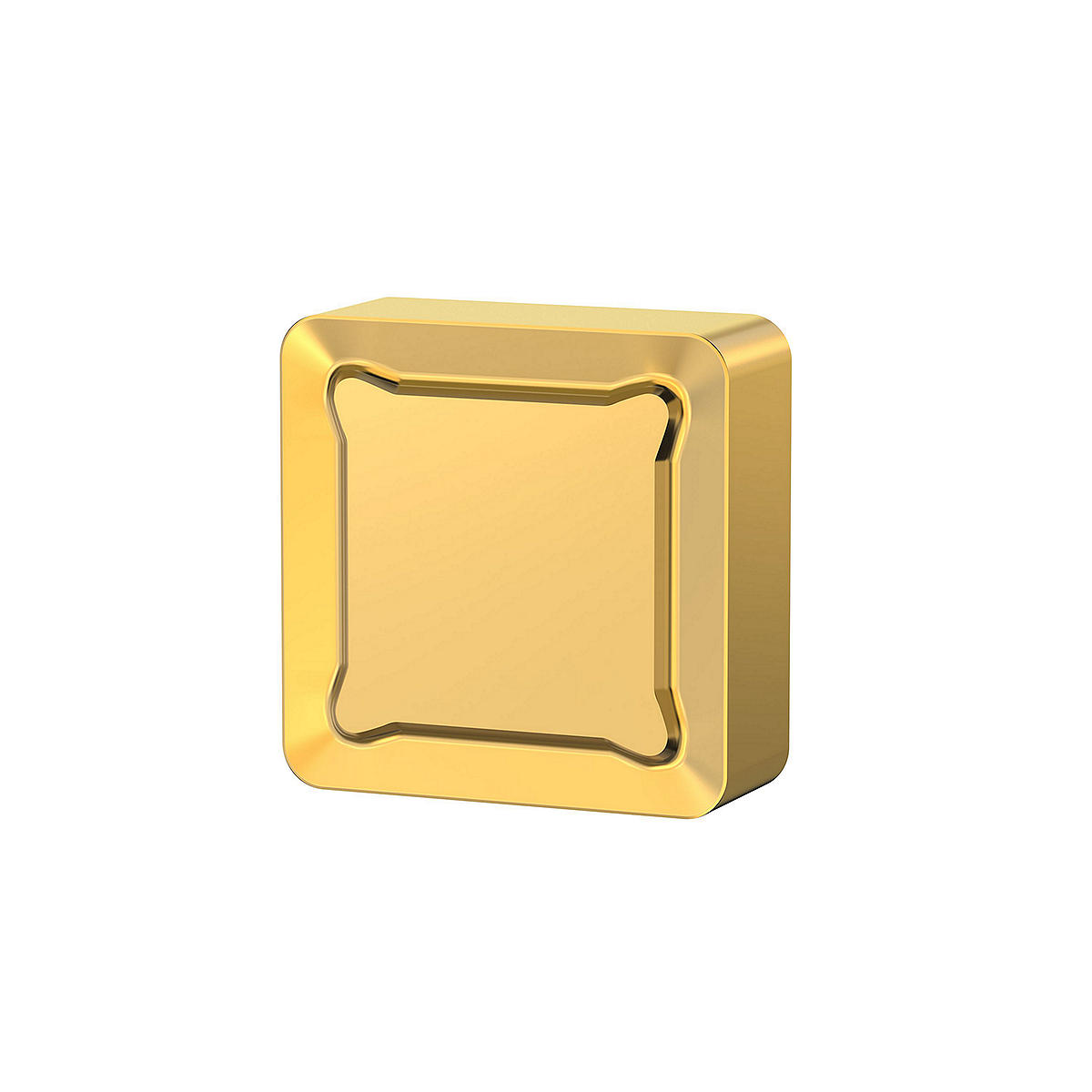

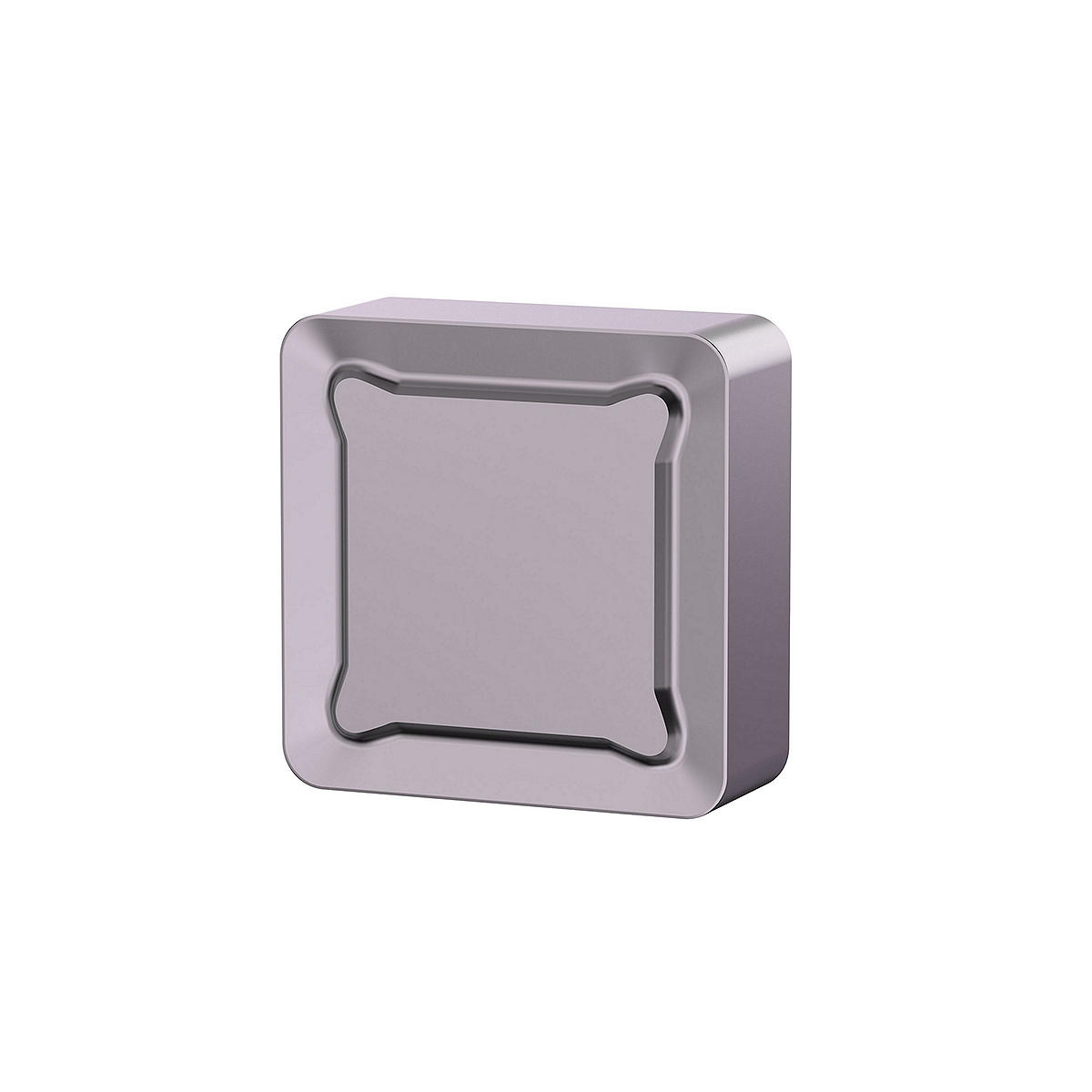

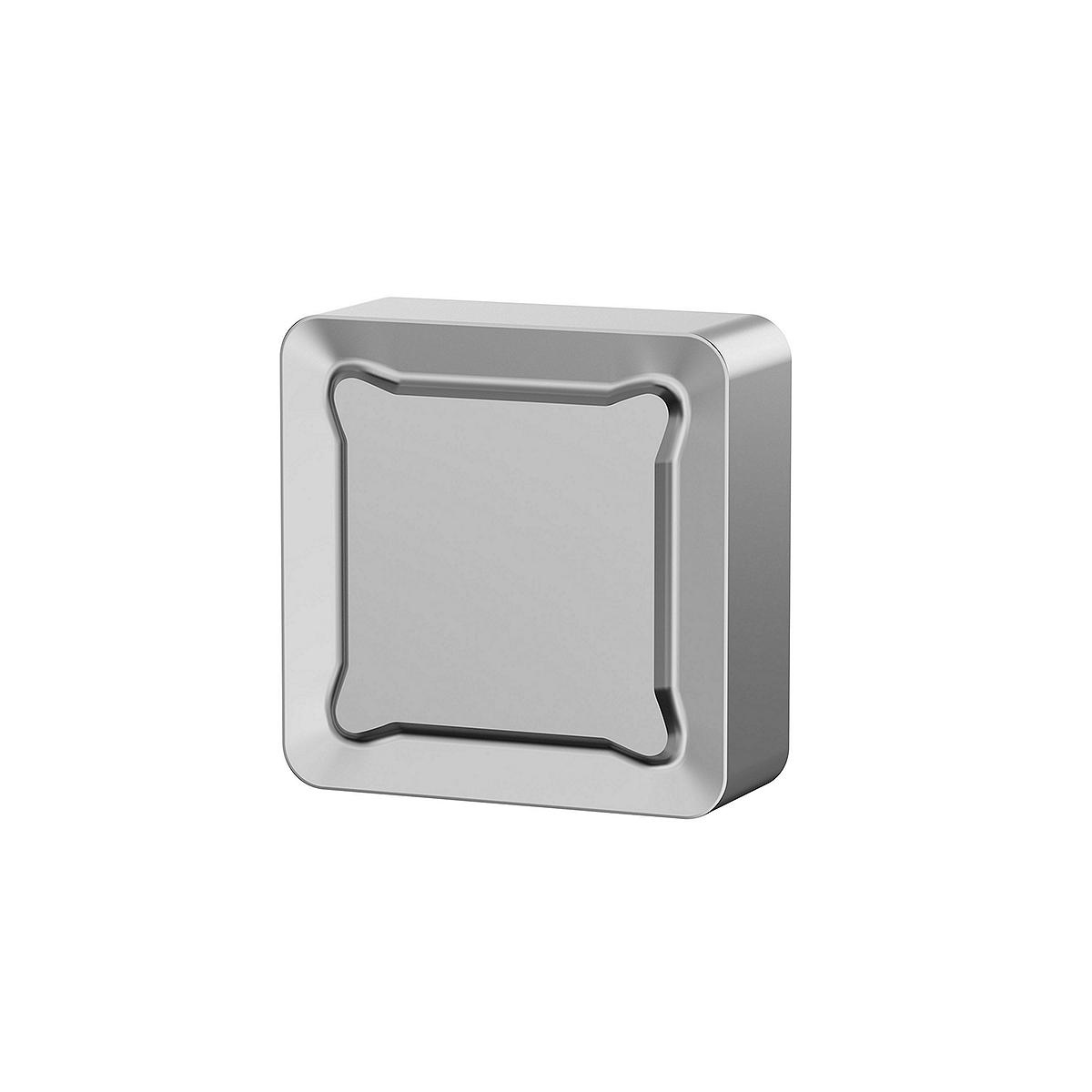

Пластины для фрез KSSR; SNXF-GP. Сменные режущие пластины; KSSR; SNXF 1204.... KSSR
Особенности:
- Milling insert for cast iron and compacted graphite iron (CGI) machining.
- High-precision periphery ground insert.
- Indexabe milling insert with eight cutting edges.
- Perfect solution for any production with transfer lines.

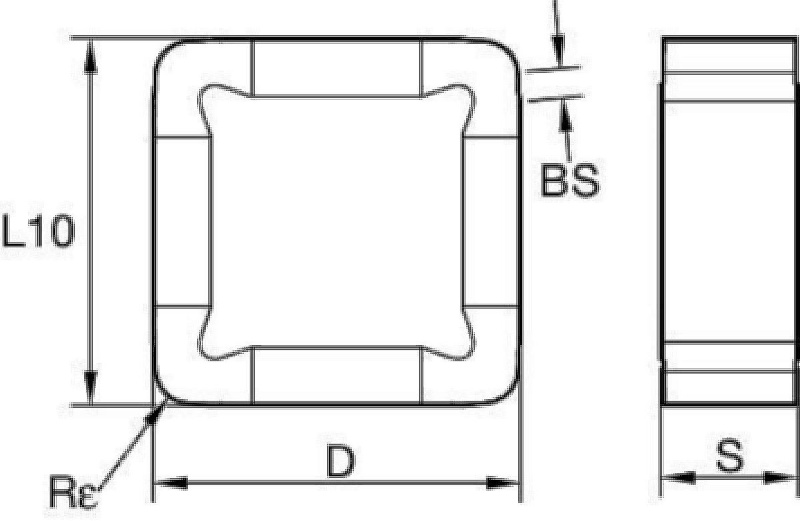

| SAP Material Number | ISO Catalog Number | [Rε] Corner Radius | Average Chip Thickness [HM] | Cutting Edges per Insert | [S] Insert Thickness | [L10] Insert Cutting Edge Length | [D] Insert IC Size |
|---|---|---|---|---|---|---|---|
| 2957738 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
| 6397616 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
| 6969231 | SNXF120412SNGP | 1.2000 | 8 | 4.7600 | 12.7000 | 12.7000 | |
| 2957729 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
| 2957730 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
| 5420838 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
| 6397380 | SNXF120412SNGP | 1.2000 | 0.0600 | 8 | 4.7600 | 12.7000 | 12.7000 |
Выбор пластины:
Рекомендации по выбору режущих пластин
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | – | (Strong geometry) | ||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1 P2 | – | – | – | – | – | – |
| P3 P4 | – | – | – | – | – | – |
| P5 P6 | – | – | – | – | – | – |
| M1 M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1 K2 | .E..LD | KCK15 | .S..GP | KCK15 | .A..SN | KY3500 |
| K3 | .E..LD | KCK20 | .S..GP | KCK20 | .S..HE | KCK20 |
| N1 N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1 S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | (Strong geometry) | ||||
| – | wear resistance | | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | – | – | – | – | – | – |
| P3–P4 | – | – | – | – | – | – |
| P5–P6 | – | – | – | – | – | – |
| M1–M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1–K2 | .E..LD | KCK15 | .S..GP | KCK15 | .S..HE | KCK15 |
| K3 | .E..LD | KCK20 | .S..GP | KCK20 | .S..HE | KCPK30 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
Подача:
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..LD | 0,18 | 0,46 | 0,82 | 0,13 | 0,33 | 0,59 | 0,10 | 0,25 | 0,44 | 0,09 | 0,22 | 0,39 | 0,08 | 0,20 | 0,35 | .E..LD |
| .S..GP | 0,20 | 0,50 | 0,90 | 0,14 | 0,36 | 0,65 | 0,11 | 0,27 | 0,48 | 0,09 | 0,24 | 0,42 | 0,09 | 0,22 | 0,39 | .S..GP |
| .S..HE | 0,18 | 0,51 | 0,95 | 0,13 | 0,37 | 0,69 | 0,10 | 0,28 | 0,51 | 0,09 | 0,24 | 0,45 | 0,08 | 0,22 | 0,41 | .S..HE |
| .A..SN | 0,24 | 0,59 | 0,95 | 0,17 | 0,43 | 0,69 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,45 | 0,10 | 0,26 | 0,41 | .A..SN |
| Light Machining | General Purpose | Heavy Machining |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..LD | .007 | .018 | .033 | .005 | .013 | .024 | .004 | .010 | .018 | .003 | .009 | .015 | .003 | .008 | .014 | .E..LD |
| .S..GP | .008 | .020 | .036 | .006 | .015 | .026 | .004 | .011 | .019 | .004 | .009 | .017 | .003 | .009 | .015 | .S..GP |
| .S..HE | .007 | .020 | .038 | .005 | .015 | .027 | .004 | .011 | .020 | .003 | .010 | .018 | .003 | .009 | .016 | .S..HE |
| .A..SN | .009 | .023 | .038 | .007 | .017 | .027 | .005 | .013 | .020 | .004 | .011 | .018 | .004 | .010 | .016 | .A..SN |
Скорость:
| Material Group | KCK15 | KC514M | KC524M | KC907M | KC914M | KC917M | KY3500 | |||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 505 | 460 | 410 | 480 | 350 | 255 | 450 | 320 | 230 | 490 | 365 | 305 | 420 | 360 | 300 | 360 | 300 | 240 | 965 | 880 | 780 |
| 2 | 400 | 355 | 330 | 420 | 280 | 205 | 390 | 250 | 190 | 385 | 300 | 250 | 360 | 300 | 250 | 300 | 240 | 200 | 765 | 685 | 635 | |
| 3 | 335 | 300 | 275 | 335 | 260 | 200 | 300 | 225 | 160 | 300 | 250 | 200 | 300 | 250 | 200 | 240 | 200 | 160 | 645 | 570 | 525 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Material Group | KCK15 | KC514M | KC524M | KC907M | KC914M | KC917M | KY3500 | |||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 1660 | 1510 | 1340 | 1570 | 1150 | 830 | 1470 | 1050 | 750 | 1600 | 1190 | 1000 | 1370 | 1180 | 980 | 1180 | 980 | 780 | 3170 | 2880 | 2560 |
| 2 | 1310 | 1170 | 1090 | 1380 | 920 | 680 | 1280 | 820 | 620 | 1260 | 980 | 820 | 1180 | 980 | 820 | 980 | 780 | 660 | 2510 | 2240 | 2090 | |
| 3 | 1100 | 980 | 900 | 1100 | 850 | 660 | 980 | 730 | 520 | 980 | 820 | 660 | 980 | 820 | 660 | 780 | 660 | 520 | 2110 | 1870 | 1720 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
