Описание

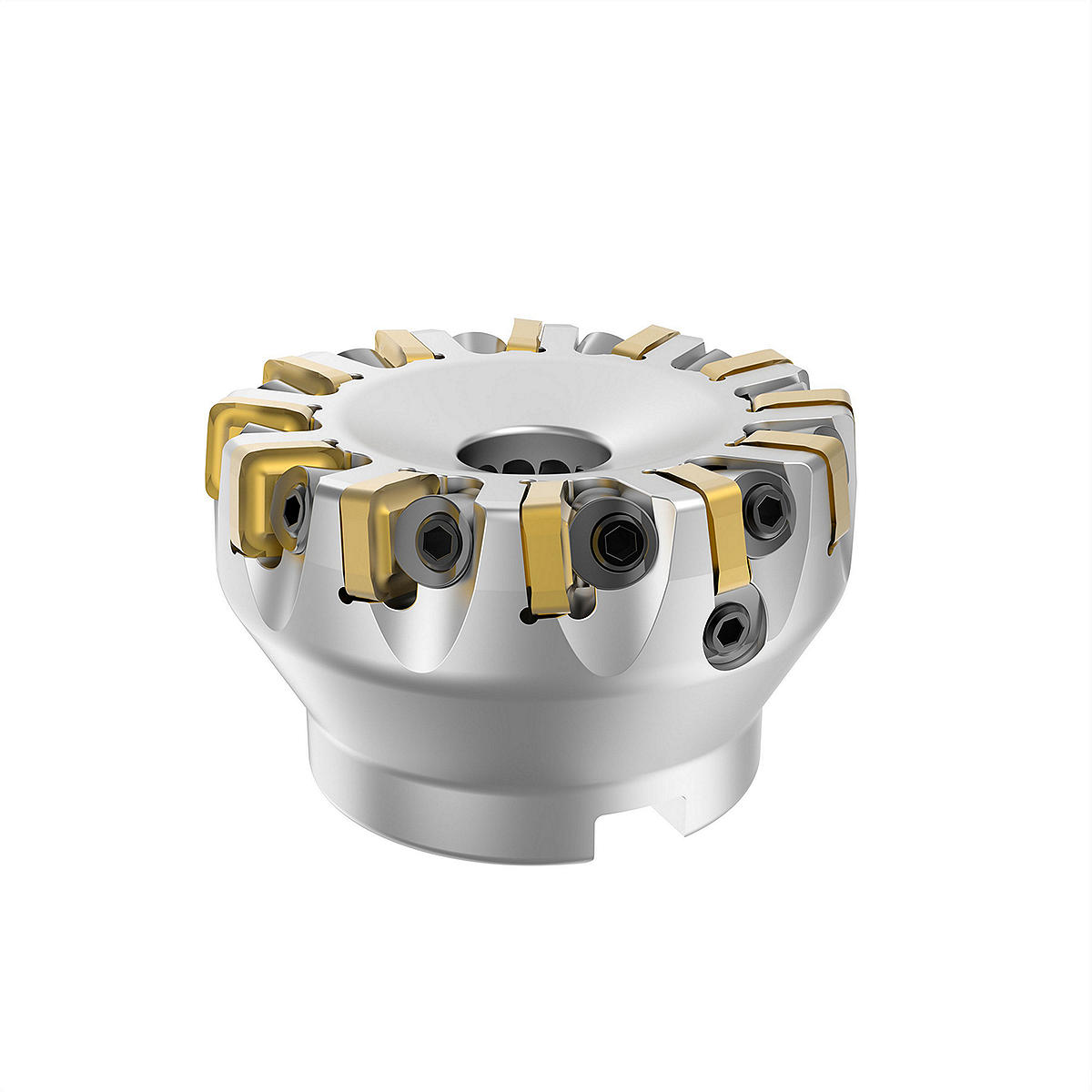

Фрезы KSSR 84° с регулируемыми посадочными гнездами; Насадные фрезы; Метрическая система. Насадные фрезы с регулируемым посадочным гнездом; Обработка чугуна. KSSR
Особенности:
- Большие подачи.
- Высокое качество обработанной поверхности дна.
- Восемь режущих кромок на пластине.
Применение:
- Face Milling
- Milling - Side and Face
- Milling - Through Coolant

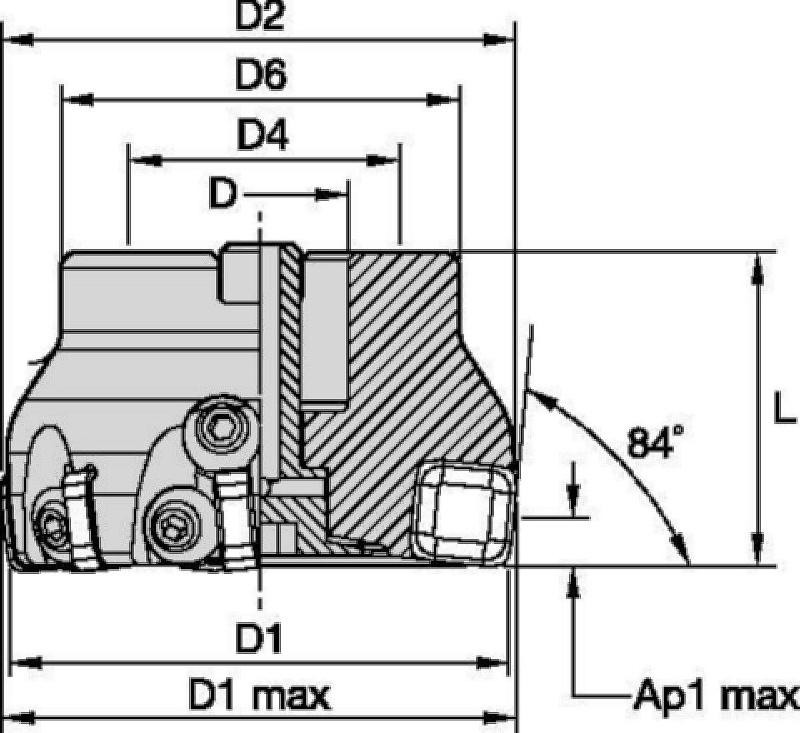

| SAP Material Number | ISO Catalog Number | [D1] Effective Cutting Diameter | [L] Overall Length | [D] Adapter / Shank / Bore Diameter | [D6] Hub Diameter | [AP1MAX] 1st Maximum Cutting Depth | [D1MAX] Maximum Cutting Diameter | [D2] Maximum Body Diameter | Max RPM | Number of Inserts | [D4] Bolt Circle 4 | Weight Kilograms | Number of Adjustable Inserts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4004752 | 100B15RF84SN12B3W | 100.0000 | 50.0000 | 32.0 | 78.0000 | 5.0000 | 102.1000 | 98.5600 | 4800 | 15 | 1.85 | 3 | |
| 4004793 | 125B18RF84SN12B3W | 125.0000 | 63.0000 | 40.0 | 89.0000 | 5.0000 | 127.1000 | 123.4700 | 3800 | 18 | 3.20 | 3 | |
| 4004794 | 160C24RF84SN12B3W | 160.0000 | 63.0000 | 40.0 | 90.0000 | 5.0000 | 162.1000 | 158.3500 | 3000 | 24 | 66.7000 | 4.14 | 3 |
| 4004750 | 63A09RF84SN12B1W | 63.0000 | 40.0000 | 22.0 | 50.0000 | 5.0000 | 65.1000 | 61.8000 | 7600 | 9 | 0.67 | 1 | |
| 4004751 | 80A12RF84SN12B2W | 80.0000 | 50.0000 | 27.0 | 60.0000 | 5.0000 | 82.1000 | 78.6600 | 6000 | 12 | 1.33 | 2 |
Выбор пластины:
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| (Light geometry) | – | (Strong geometry) | ||||
| wear resistance |  | toughness | ||||
| Geometry | Grade | Geometry | Grade | Geometry | Grade | |
| P1 P2 | – | – | – | – | – | – |
| P3 P4 | – | – | – | – | – | – |
| P5 P6 | – | – | – | – | – | – |
| M1 M2 | – | – | – | – | – | – |
| M3 | – | – | – | – | – | – |
| K1 K2 | .E..LD | KCK15 | .S..GP | KCK15 | .A..SN | KY3500 |
| K3 | .E..LD | KCK20 | .S..GP | KCK20 | .S..HE | KCK20 |
| N1 N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1 S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | – | – | – | – |
Подача:
Рекомендуемые начальные подачи [мм/зуб]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .E..LD | 0,18 | 0,46 | 0,82 | 0,13 | 0,33 | 0,59 | 0,10 | 0,25 | 0,44 | 0,09 | 0,22 | 0,39 | 0,08 | 0,20 | 0,35 | .E..LD |
| .S..GP | 0,20 | 0,50 | 0,90 | 0,14 | 0,36 | 0,65 | 0,11 | 0,27 | 0,48 | 0,09 | 0,24 | 0,42 | 0,09 | 0,22 | 0,39 | .S..GP |
| .S..HE | 0,18 | 0,51 | 0,95 | 0,13 | 0,37 | 0,69 | 0,10 | 0,28 | 0,51 | 0,09 | 0,24 | 0,45 | 0,08 | 0,22 | 0,41 | .S..HE |
| .A..SN | 0,24 | 0,59 | 0,95 | 0,17 | 0,43 | 0,69 | 0,13 | 0,32 | 0,51 | 0,11 | 0,28 | 0,45 | 0,10 | 0,26 | 0,41 | .A..SN |
| Light Machining | General Purpose | Heavy Machining |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | KCK15 | KC514M | KC524M | KC907M | KC914M | KC917M | KY3500 | |||||||||||||||
| P | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| M | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| K | 1 | 505 | 460 | 410 | 480 | 350 | 255 | 450 | 320 | 230 | 490 | 365 | 305 | 420 | 360 | 300 | 360 | 300 | 240 | 965 | 880 | 780 |
| 2 | 400 | 355 | 330 | 420 | 280 | 205 | 390 | 250 | 190 | 385 | 300 | 250 | 360 | 300 | 250 | 300 | 240 | 200 | 765 | 685 | 635 | |
| 3 | 335 | 300 | 275 | 335 | 260 | 200 | 300 | 225 | 160 | 300 | 250 | 200 | 300 | 250 | 200 | 240 | 200 | 160 | 645 | 570 | 525 | |
| N | 1–2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
