Описание

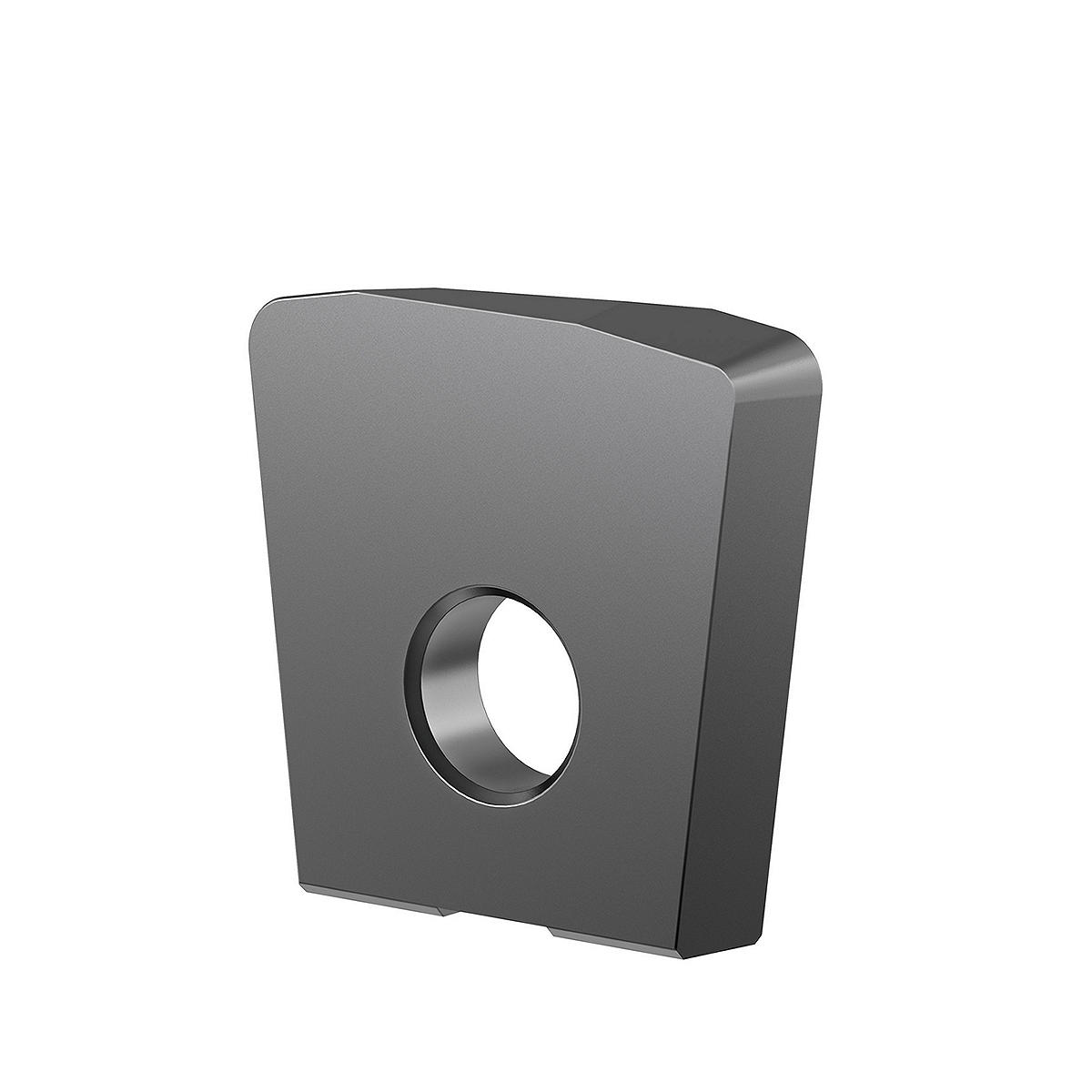

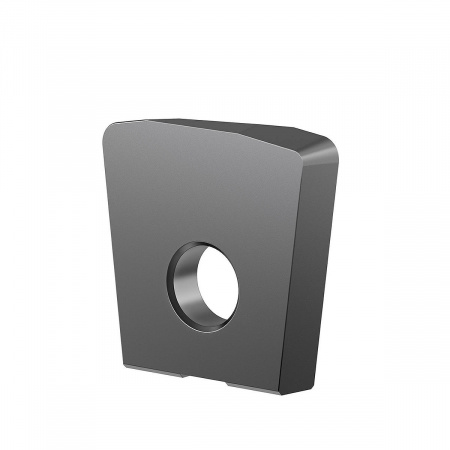

Пластины для фрез KDMT; KDMT-HF. Сменные режущие пластины; KDMS...; KDMT.... Концевые фрезы со сферическим концом • KDMT
Особенности:
- Специальная геометрия пластины для обработки с большими подачами.
| SAP Material Number | ISO Catalog Number | [S] Insert Thickness | [W] Cutting Width | Average Chip Thickness [HM] | [RT] Theoretical Corner Radius Programing | [LI] Insert Length |
|---|---|---|---|---|---|---|
| 6784029 | KDMT0250SRHF | 1.6000 | 6.3500 | 8.0000 | ||
| 6784030 | KDMT0312SRHF | 2.0000 | 7.9250 | 9.5000 | ||
| 6784051 | KDMT0375SRHF | 2.5000 | 9.5250 | 11.5000 | ||
| 6784137 | KDMT0500SRHF | 2.5000 | 12.7000 | 14.0000 | ||
| 4177622 | KDMT0604SRHF | 1.6000 | 6.0000 | 0.0800 | 0.8000 | 8.0000 |
| 6784142 | KDMT0750SRHF | 3.0000 | 19.0500 | 18.0000 | ||
| 4177633 | KDMT0806SRHF | 2.0000 | 8.0000 | 0.0800 | 1.0000 | 9.5000 |
| 6784151 | KDMT1008SRHF | 2.5000 | 10.0000 | 11.5000 | ||
| 6784157 | KDMT1210SRHF | 2.5000 | 12.0000 | 14.0000 | ||
| 6784162 | KDMT1615SRHF | 3.0000 | 16.0000 | 16.0000 | ||
| 6784167 | KDMT2020SRHF | 3.0000 | 20.0000 | 18.0000 |
Выбор пластины:
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | – | (Strong geometry) | |||
| – | wear resistance |  | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GC | KC515M | .E..GC | KC515M | .E..GN | KC515M |
| P3–P4 | .E..HC | KC505M | .E..GN | KC515M | .E..GN | KC515M |
| P5–P6 | .E..HC | KC505M | .E..GN | KC515M | .E..GN | KC515M |
| M1–M2 | – | – | .E..GC | KC515M | – | – |
| M3 | – | – | .E..GC | KC515M | – | – |
| K1–K2 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | .E..GC | KC515M | – | – |
| H1 | .E..HC | KC505M | .E..HC | KC505M | .E..GN | KC515M |
| Material Group | Light Machining | General Purpose | Heavy Machining | |||
| – | (Light geometry) | – | (Strong geometry) | |||
| – | wear resistance | | toughness | |||
| – | Geometry | Grade | Geometry | Grade | Geometry | Grade |
| P1–P2 | .E..GC | KC515M | .E..GC | KC515M | .E..GN | KC515M |
| P3–P4 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| P5–P6 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| M1–M2 | – | – | .E..GN | KC515M | – | – |
| M3 | – | – | .E..GN | KC515M | – | – |
| K1–K2 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| K3 | .E..GN | KC515M | .E..GN | KC515M | .E..GN | KC515M |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | – | – | – | – | – | – |
| S3 | – | – | – | – | – | – |
| S4 | – | – | – | – | – | – |
| H1 | – | – | .E..GN | KC515M | – | – |
Подача:
Рекомендуемые начальные подачи [мм/зуб]
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .E..GC | 0,12 | 0,25 | 0,34 | 0,09 | 0,19 | 0,25 | 0,08 | 0,17 | 0,22 | 0,07 | 0,16 | 0,21 | 0,07 | 0,15 | 0,20 | .E..GC |
| .E..GN | 0,17 | 0,25 | 0,34 | 0,12 | 0,19 | 0,25 | 0,11 | 0,17 | 0,22 | 0,10 | 0,16 | 0,21 | 0,10 | 0,15 | 0,20 | .E..GN |
| .E..HC | 0,17 | 0,25 | 0,34 | 0,13 | 0,19 | 0,25 | 0,11 | 0,17 | 0,22 | 0,10 | 0,16 | 0,21 | 0,10 | 0,15 | 0,20 | .E..HC |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .E..GC | .007 | .010 | .014 | .005 | .008 | .010 | .004 | .007 | .009 | .004 | .006 | .008 | .004 | .006 | .008 | .E..GC |
| .E..GN | .007 | .010 | .014 | .005 | .008 | .010 | .004 | .007 | .009 | .004 | .006 | .008 | .004 | .006 | .008 | .E..GN |
| Light Machining | General Purpose | Heavy Machining |
| Insert Geometry | Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae) | Insert Geometry | ||||||||||||||
| 10% | 20% | 30% | 40% | 50–100% | ||||||||||||
| .S..HF | .059 | .092 | .131 | .042 | .064 | .086 | .036 | .054 | .073 | .034 | .050 | .067 | .033 | .049 | .066 | .S..HF |
| Light Machining | General Purpose | Heavy Machining |
Скорость:
Рекомендуемые начальные скорости резания [м/мин]
| Material Group | K115M | KC505M | KC515M | |||||||
| P | 1 | – | – | – | – | – | – | 330 | 295 | 255 |
| 2 | – | – | – | – | – | – | 310 | 275 | 240 | |
| 3 | – | – | – | – | – | – | 275 | 240 | 200 | |
| 4 | – | – | – | 360 | 260 | 215 | 240 | 200 | 165 | |
| 5 | – | – | – | 360 | 260 | 215 | 200 | 165 | 130 | |
| 6 | – | – | – | 350 | 240 | 190 | 165 | 130 | 110 | |
| M | 1 | – | – | – | – | – | – | 330 | 275 | 240 |
| 2 | – | – | – | – | – | – | 275 | 220 | 165 | |
| 3 | – | – | – | – | – | – | 220 | 185 | 145 | |
| K | 1 | 220 | 185 | 145 | – | – | – | 440 | 330 | 220 |
| 2 | 185 | 145 | 110 | – | – | – | 330 | 255 | 185 | |
| 3 | 110 | 90 | 75 | – | – | – | 145 | 110 | 75 | |
| N | 1–2 | 440 | 330 | 220 | – | – | – | – | – | – |
| 3 | 295 | 220 | 185 | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | |
| H | 1 | – | – | – | 260 | 205 | 170 | 170 | 120 | 95 |
| Material Group | KC515M | |||
| P | 1 | 1080 | 960 | 840 |
| 2 | 1020 | 900 | 780 | |
| 3 | 900 | 780 | 660 | |
| 4 | 780 | 660 | 540 | |
| 5 | 660 | 540 | 420 | |
| 6 | 540 | 420 | 360 | |
| M | 1 | 1080 | 900 | 780 |
| 2 | 900 | 720 | 540 | |
| 3 | 720 | 600 | 480 | |
| K | 1 | 1440 | 1080 | 720 |
| 2 | 1080 | 840 | 600 | |
| 3 | 480 | 360 | 240 | |
| N | 1–2 | – | – | – |
| 3 | – | – | – | |
| S | 1 | – | – | – |
| 2 | – | – | – | |
| 3 | – | – | – | |
| 4 | – | – | – | |
| H | 1 | 550 | 400 | 310 |
